販売終了

5つの条件を満たした5X PROTECTION対応microATXマザーボード

AM1M-A

JAN/UPC:0886227713974
TEKWIND型番:ASU-AM1M-A

【主な特長】

・Scoket AM1対応
・AMD Athlon/SempronシリーズAPU対応
・DDR3メモリ×2枚(最大32GB)対応
・HDMI×1、DVI-D×1、D-Sub 15ピン×1
・PCIe 2.0 x16×1、PCIe 2.0 x1×2
・SATA 6Gb/s×2
・USB 3.0×4、USB 2.0×8
・1000BASE-T×1
・安心の独自基準「5X PROTECTION」をクリア
・デジタル電源回路「DIGI+ VRM」1+1フェーズ
・省電力を実現する電力制御チップ「EPU」
・CPUファン+ケースファンを細かく設定できる「Fan Xpert」
・USB 3.0をブーストする「USB 3.0 Boost」
・microATXフォームファクター


製品についてお気軽にお問い合わせください

この製品を問い合わせる

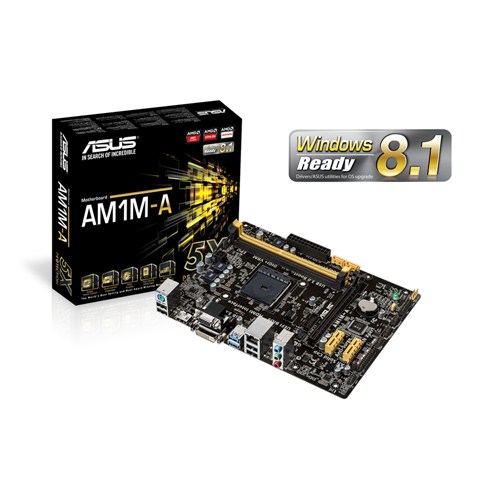

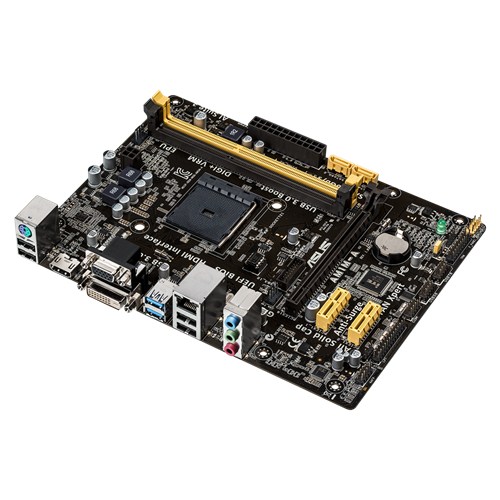

製品画像

スペック

CPU AMD Sempron& Athlon-Series APUs
LAN Realtek 8111GR Gigabit LAN Controller
USB 8xUSB 2.0,2 x USB 3.0
オーディオ機能 8Channels, 3jack,Realtek ALC887 High Definition Audio CODEC
チップセット AMD Sempron & Athlon-Series APUs
拡張スロット 2xDDR3 DIMM, max.32GB, DDR3 1866(O.C.)/1600/1333MHz,non- ECC, un-buffered
背面端子類 1xPS2 Keyboard&Mouse combo port, 1xHDMI,1xDVI-D,1xVGA,1xRJ45,2xUSB 3.0,4xUSB 2.0,3 Audio jacks
  • CPU
    AMD Socket AM1 Athlon™/Sempron™ Processors
    Supports CPU up to 4 cores
    * Refer to www.asus.com for CPU support list
  • Chipset
    Build in AMD Sempron & Athlon-Series APUs
  • Memory
    2 x DIMM, Max. 32GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
    Single Channel Memory Architecture
    Support AMD Memory Profile (AMP) memory
    * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
  • Graphic
    Integrated AMD Radeon™ R Series Graphics in the APU
    Multi-VGA output support : HDMI/DVI/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
    - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 2048 MB
  • Expansion Slots
    1 x PCIe 2.0 x16 (x4 mode)
    2 x PCIe 2.0 x1
  • Storage
    AMD® Sempron & Athlon-Series APUs :
    2 x SATA 6Gb/s port(s), yellow
  • LAN
    Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *2
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • USB Ports
    ASMedia® ASM1042 controller :
    2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
    AMD® Sempron & Athlon-Series APUs :
    8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
    AMD® Sempron & Athlon-Series APUs :
    2 x USB 3.0/2.0 port(s) (2 at mid-board)
  • Special Features
    ASUS 5X Protection :
    - ASUS DIGI+ VRM - 1 + 1 Phase digital power design
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger+
    - Anti-Surge
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    ASUS Q-Design :
    - ASUS Q-Slot
  • Operating
    System Support
    Windows® 8.1 , 32bit/64bit
    Windows® 8 , 32bit/64bit
    Windows® 7 , 32bit/64bit
    Windows® XP , 32bit

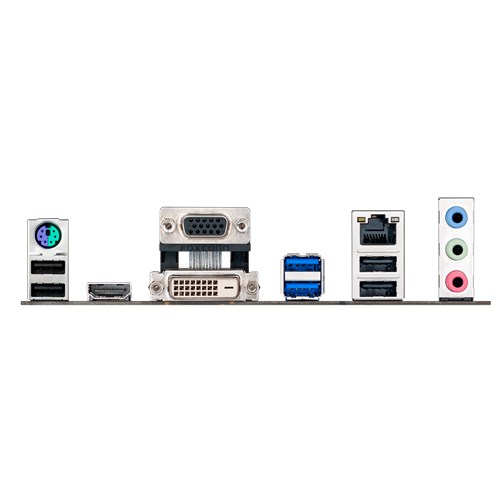

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.0 (blue)
    4 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x TPM header
    1 x COM port(s) connector(s)
    2 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x parallel port connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x System panel(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Support Disc
    Drivers
    ASUS utilities
    ASUS Update
    Anti-virus software (OEM version)
  • Form Factor
    mATX Form Factor
    8.9 inch x 6.7 inch ( 22.6 cm x 17 cm )
  • Note
    *1: Please check the specifications of your AMD APU for capabilities. Video playback at 4096 x 2160 pixels may not be guaranteed.
    *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
