5GHz/2.4GHzデュアルバンド対応
IEEE802.11n/a/g/b無線LANルーター
・JAN/UPC：0886227442300
・TEKWIND型番：ASU-RT-N66U
【主な特長】
・最大450MbpsのIEEE802.11nに対応
・5GHzと2.4GHzのデュアルバンド対応
・接続機器を狙い撃つAi Radar機能で離れていても安定接続
・グラフィカルなASUSWRT画面ですべての設定を簡単変更
・ASUS AiCloudでどこからでもデータにアクセス
・Broadcom BCM4706プロセッサー＋256MBメモリで余裕のスピード
・使い方が広がる便利なUSB 2.0ポートを搭載
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
- Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6
- Product Segment
N900 ultimate performance; 450+450Mbps
- Data Rate
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 450Mbps - Antenna
Detachable antenna x 3
- Operating
Frequency2.4GHz/5GHz
- Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support
- Firewall &
Access ControlFirewall: SPI intrusion detection,DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter - Management
UPnP, DLNA, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Virtual Server, DMZ
- VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server - WAN Connection
TypeInternet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Multicast Proxy support - Utilities
．Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
．Media server:
Image: JPEG
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
．QoS:
WMM
User definable rules for IP/MAC/Port. Upload and Download bandwidth management.
ACK/SYN/FIN/RST/ICMP with Highest priority
．Guest Network
2.4GHz guest network x 3, 5GHz guest network x 3
．Printer Server: multifunctional printer support(Windows nly), LPR protocol support
．File server: Samba and FTP server with account management
．PPTP VPN server
．Network map
．Traffic monitor - Ports

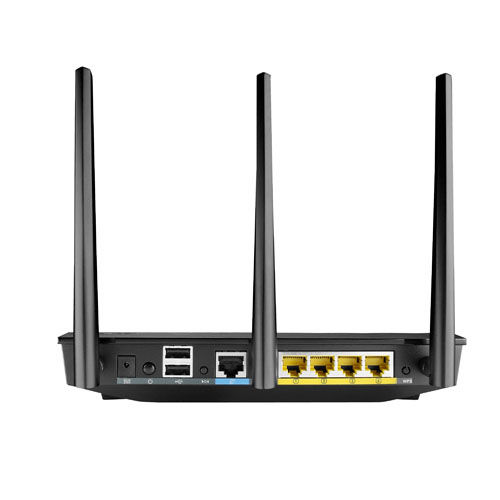

4 x RJ45 for 10/100/1000/Gigabits BaseT for LAN, 1 x RJ45 for 10/100/1000/Gigabits BaseT for WAN, Support Ethernet and 802.3 with max. bit rate 10/100/1000/Gigabits Mbps and auto cross-over function(MDI-X)
USB 2.0 x 2 - Button
WPS Button, Reset Button, Power Button
- LED Indicator
LAN x 4
WAN x 1
AIR x 2
USB x 1 - Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.58 A current - OS Support
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Mac OS X
Linux - Dimensions
207 x 148.8 x 35.5 mm (WxDxH)
- Weight
450 g
- Package Content
RT-N66U wireless router
Stand
RJ-45 cable
Power adapter
Warranty card
Quick start guide - Router Special
Features3G/4G data sharing AiCloud Printer server Download Master AiDisK Multiple SSIDs Parental Control
