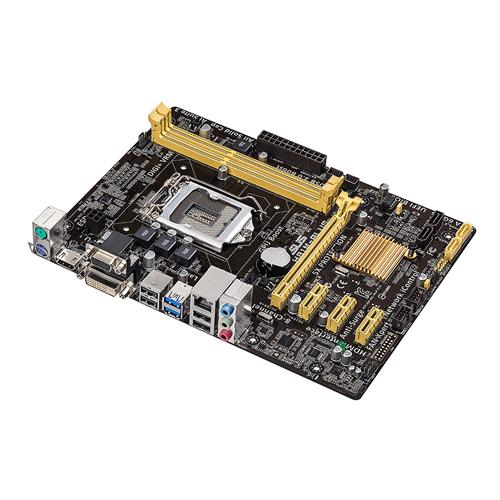

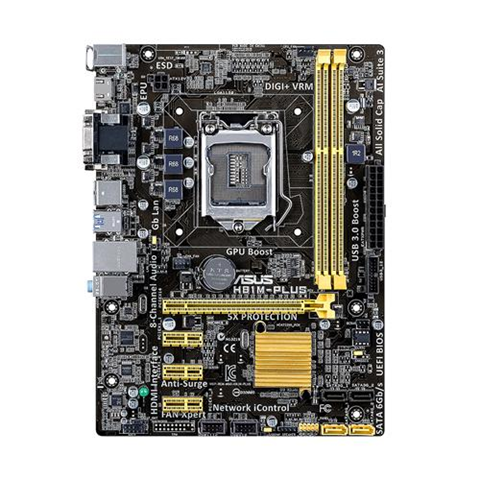

H81M-PLUS

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H81
• Memory
  2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : HDMI/DVI/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Dual independent displays support with HDMI/DVI and D-Sub
• Expansion Slots
  1 x PCIe x16
  3 x PCIe 2.0 x1
• Storage
  Intel® H81 chipset :
  2 x SATA 6Gb/s port(s), yellow
  2 x SATA 3Gb/s port(s), dark brown
  Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
• LAN
  Realtek® 8111G, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *2
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• USB Ports
  ASMedia® ASM1042 controller :
  2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
  Intel® H81 chipset :
  2 x USB 3.0/2.0 port(s) (2 at mid-board)
  Intel® H81 chipset :
  8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
• Special Features
  ASUS 5X Protection :
  - ASUS DIGI+ VRM - 3 Phase digital power design
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost
  - AI Suite 3
  - Ai Charger+
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  ASUS Q-Design :
  - ASUS Q-Slot
• Operating System
  Support
  Windows® 8.1
  Windows® 8
  Windows® 7

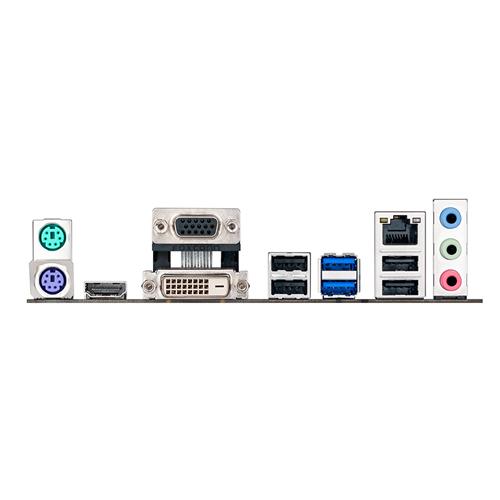

• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.0 (blue)
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  2 x SATA 6Gb/s connector(s)
  2 x SATA 3Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
• BIOS
  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-Virus Software (OEM Version)
• Form Factor
  uATX Form Factor
  9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm )
• Note
  *1-1:Due to the limitation of the Intel® H81chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.
  *1-2:These functions will work depending on the CPU installed.
  *2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
