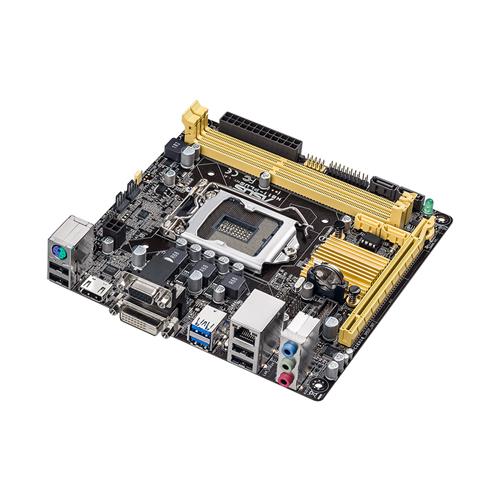

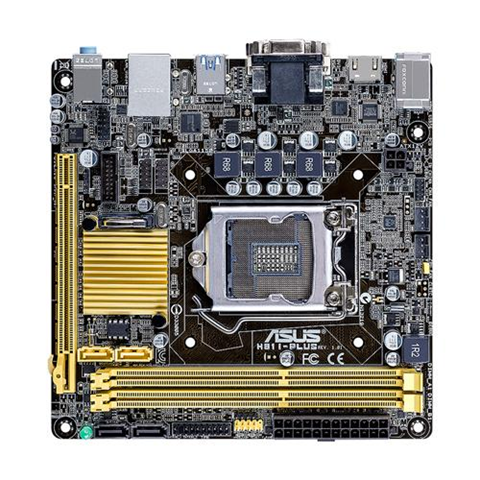

H81I-PLUS

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H81
• Memory
  2 x U-DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
• Graphic
  Integrated Graphics Processor
  - Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
• Expansion Slots
  1 x PCIe 2.0 x16
• Storage
  Intel® H81 chipset :
  2 x SATA 6Gb/s port(s), yellow
  2 x SATA 3Gb/s port(s), dark brown
  Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
• LAN
  Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *2
• USB Ports
  Intel® H81 chipset :
  4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
  Intel® H81 chipset :
  8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
• Special Features
  ASUS EPU :
  - EPU
  ASUS Digital Power Design :
  - ASUS DIGI+ VRM Utility
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger+
  - Anti-Surge
  - ESD Guards
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  ASUS Quiet Thermal Solution :
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  100% All High-quality Conductive Polymer Capacitors
• Operating System
  Support
  Windows® 8
  Windows® 7
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.0
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x TPM header
  2 x SATA 6Gb/s connector(s)
  2 x SATA 3Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel connector(s)
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
• BIOS
  64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a
• Manageability
  WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS Update
  Anti-virus software (OEM version)
• Form Factor
  Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Note
  *1-1:Due to the limitation of the Intel® H81chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.
  *1-2:These functions will work depending on the CPU installed.
  *2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
