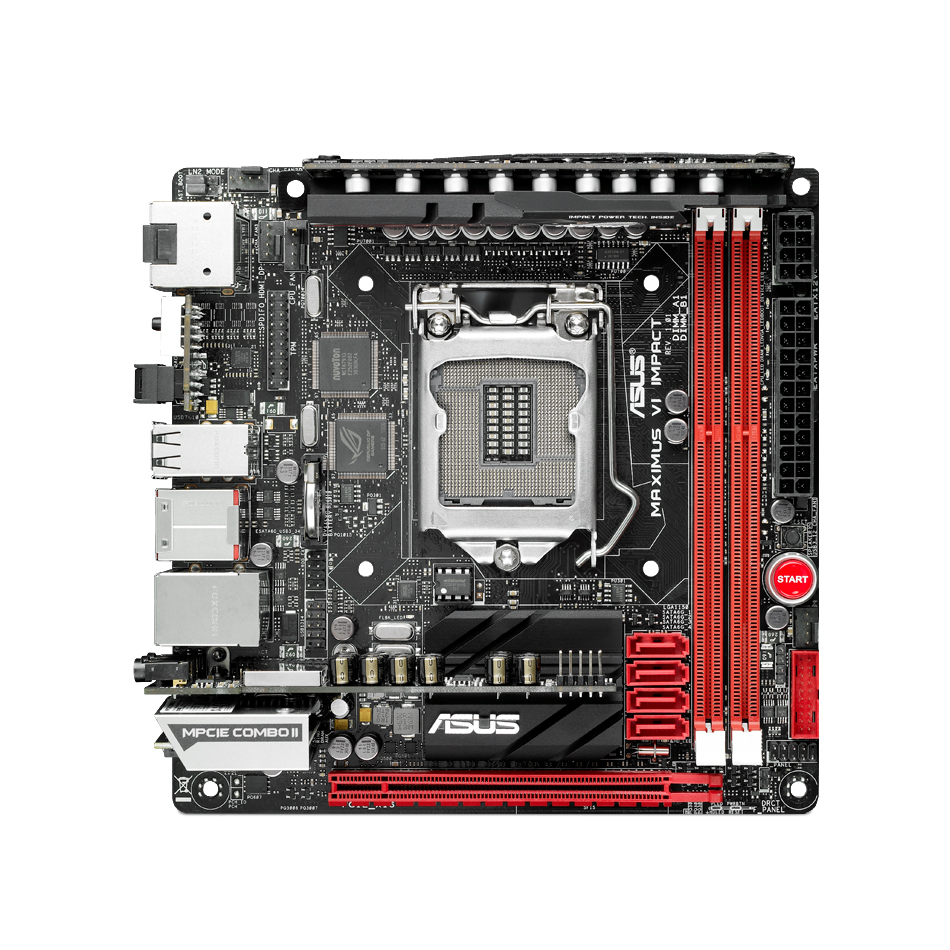

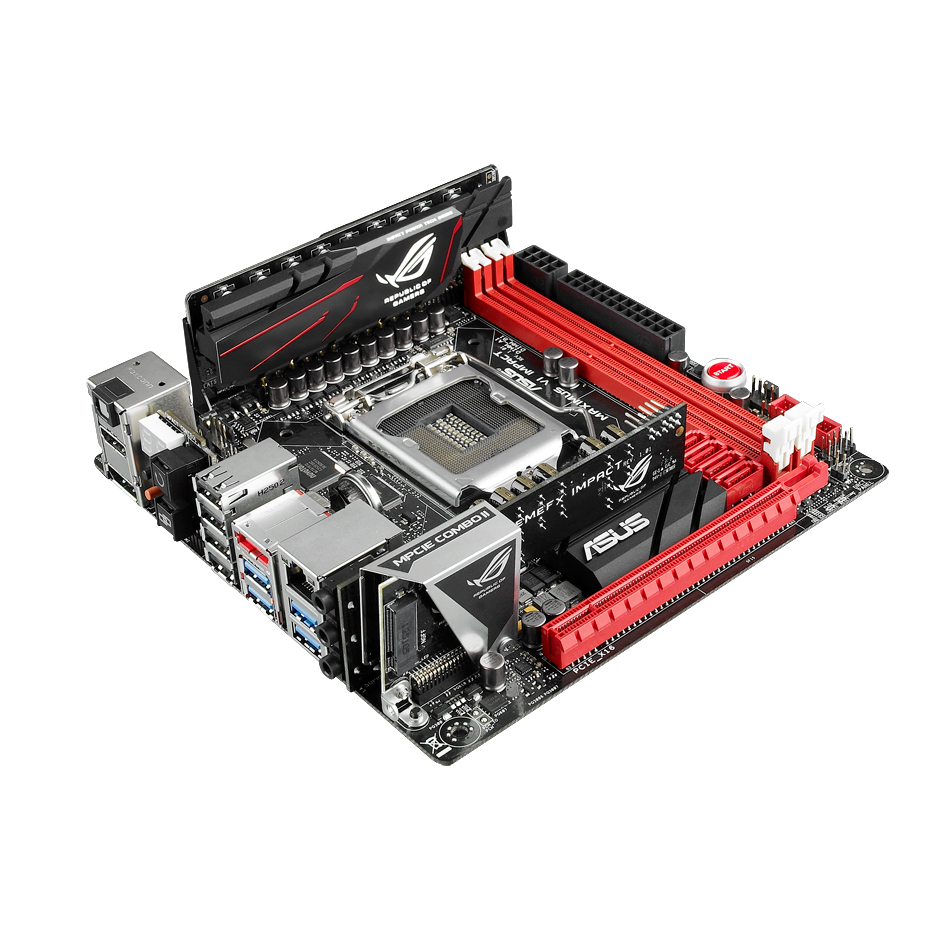

MAXIMUS 6 IMPACT

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® Z87

2 x DIMM, Max. 16GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

1 x PCIe 3.0/2.0 x16
1 x mini-PCIe 2.0 x1 *1

Intel® Z87 chipset :
4 x SATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2
Intel® Z87 chipset :
1 x eSATA port(s), red
Intel® Z87 chipset :
1 x M.2 (NGFF) Socket 2 on mPCIe Combo II expansion card(s), black
Support M.2 (NGFF) Type 2242/2260/2280/22110 SSD card (up to 110mm in length), support PCI express 2.0 x1 and SATA 6Gb/s standards

Intel® I217V, 1 x Gigabit LAN Controller(s)

Wi-Fi 802.11a/b/g/n/ac*3
Supports dual band frequency 2.4/5 GHz

Bluetooth V4.0
Bluetooth V3.0+HS

ROG SupremeFX Impact 8-Channel High Definition Audio CODEC *4
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Lineout DAC playback Signal-to-Noise Ratio (A-weighted, Differential output): 115 dB
- Headphone DAC playback Signal-to-Noise Ratio (A-weighted, Differential output):110 dB
- TI LM4562 high-fidelity audio OP AMP(s)
Audio Feature :
- SupremeFX Shielding™ Technology
- ELNA premium audio capacitors
- Blu-ray audio layer Content Protection
- Sonic Radar
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Music PnP

Intel® Z87 chipset : *5
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z87 chipset : *6
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)

SupremeFX Impact
mPCIe Combo II (mPCIe/M.2 combo card)
Impact Power :
- 8 + 2 phase power design
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
ROG RAMDisk
GameFirst II
Extreme Tweaker

ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
CPU Level Up
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Media Streaming Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Cable
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Windows® 8
Windows® 7

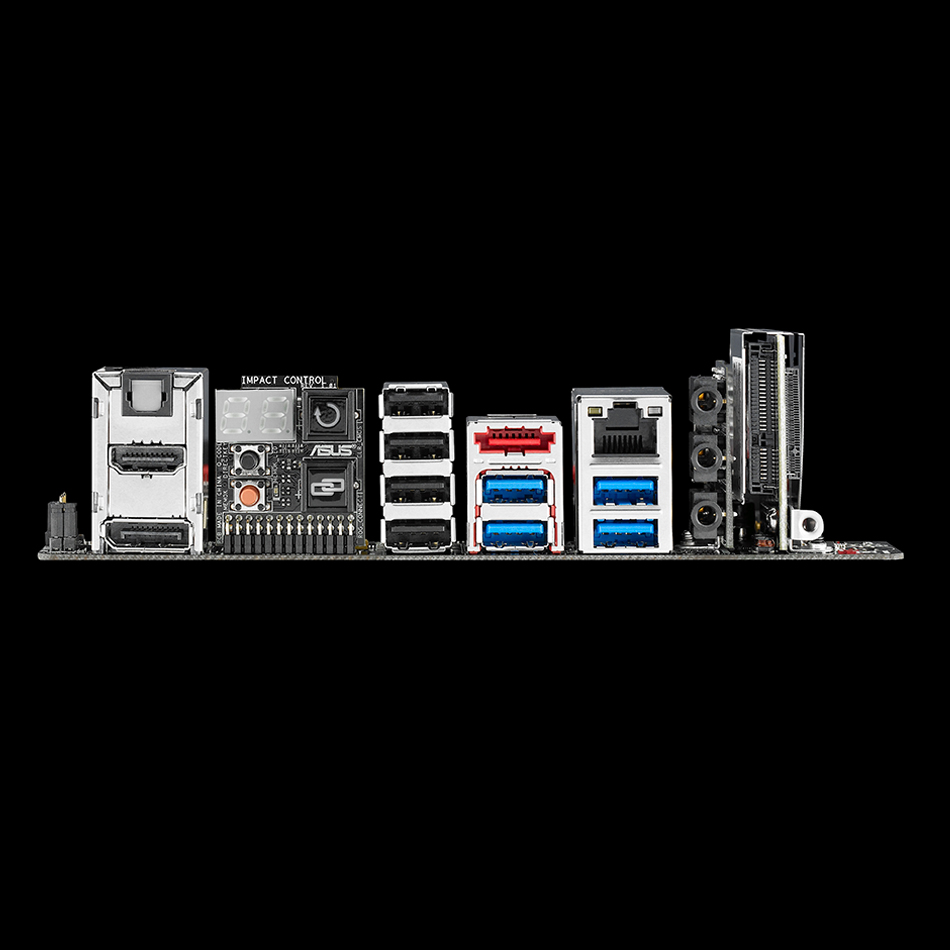

1 x DisplayPort
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
1 x Q-Code LED
1 x DirectKey button
1 x MemOK! button

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DRCT header(s)
10 x ProbeIt Measurement Points
1 x Power-on button(s)
1 x Reset button(s)
1 x LN2 Mode jumper(s)
1 x FastBoot jumper(s)
1 x SupremeFX Impact connector(s)
1 x ROG extension (ROG_EXT) header(s)
1 x mPCIe Combo II connector(s)

User's manual
1 x ASUS Q-Cable

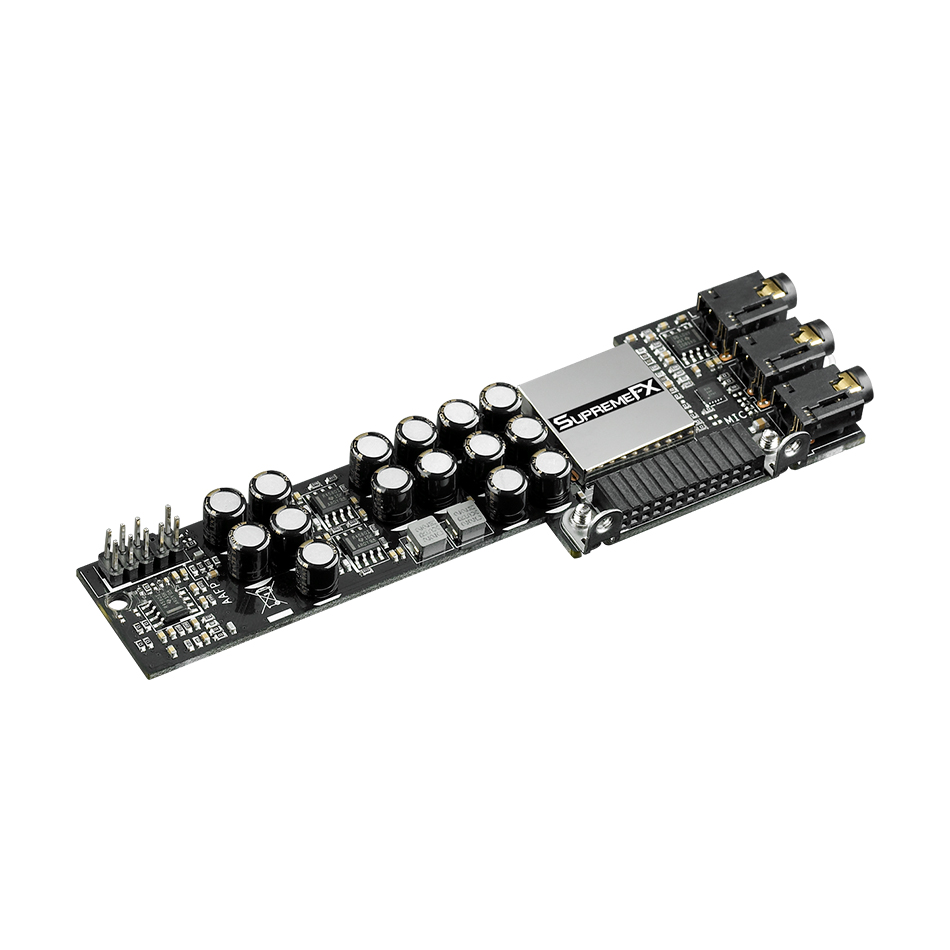

1 x SupremeFX Impact audio card(s)
1 x Optional 4-in-1 washers for CPU cooler backplate
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo II card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0/3.0+HS module

64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS

WfM 2.0, DMI 2.7, WOL by PME, PXE

Drivers
ROG GameFirst II
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities

Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )

*1: The mini-PCIe slot is pre-installed with a Wi-Fi/Bluetooth module on mPCIe Combo II expansion card.
*2: The functions support depends on the CPU types.
*3: The module is pre-installed on mPCIe Combo II expansion card.
*4: 8-channel audio output is supported by jack-retasking using a chassis with HD audio module in the front panel.
*5: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.
*6: 2 x USB2.0 ports at mid-board shares with ROG extension (ROG_EXT) port.
