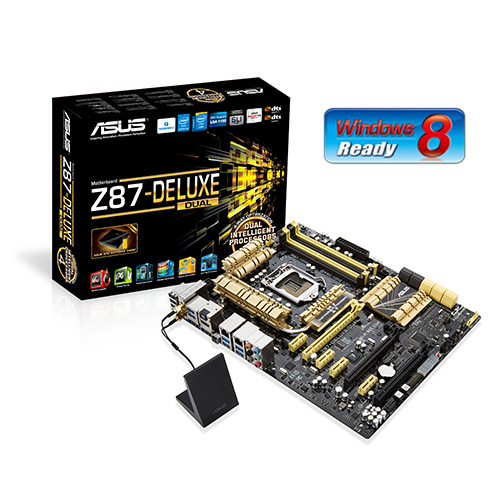

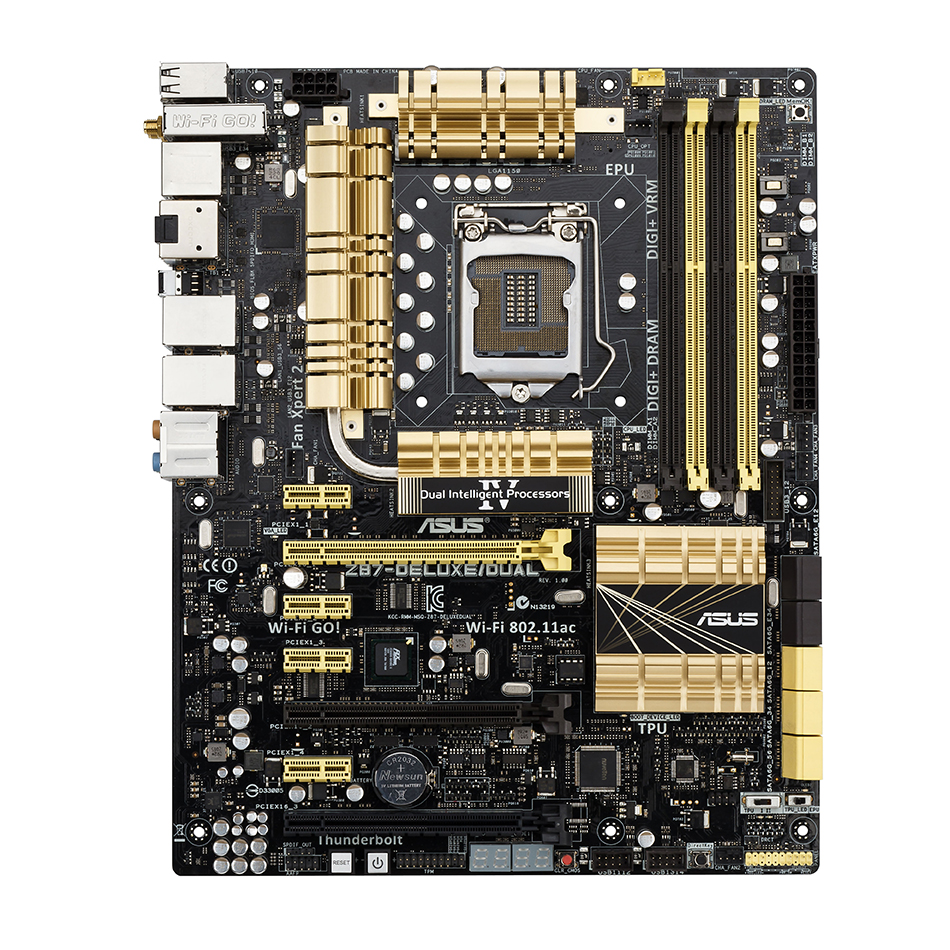

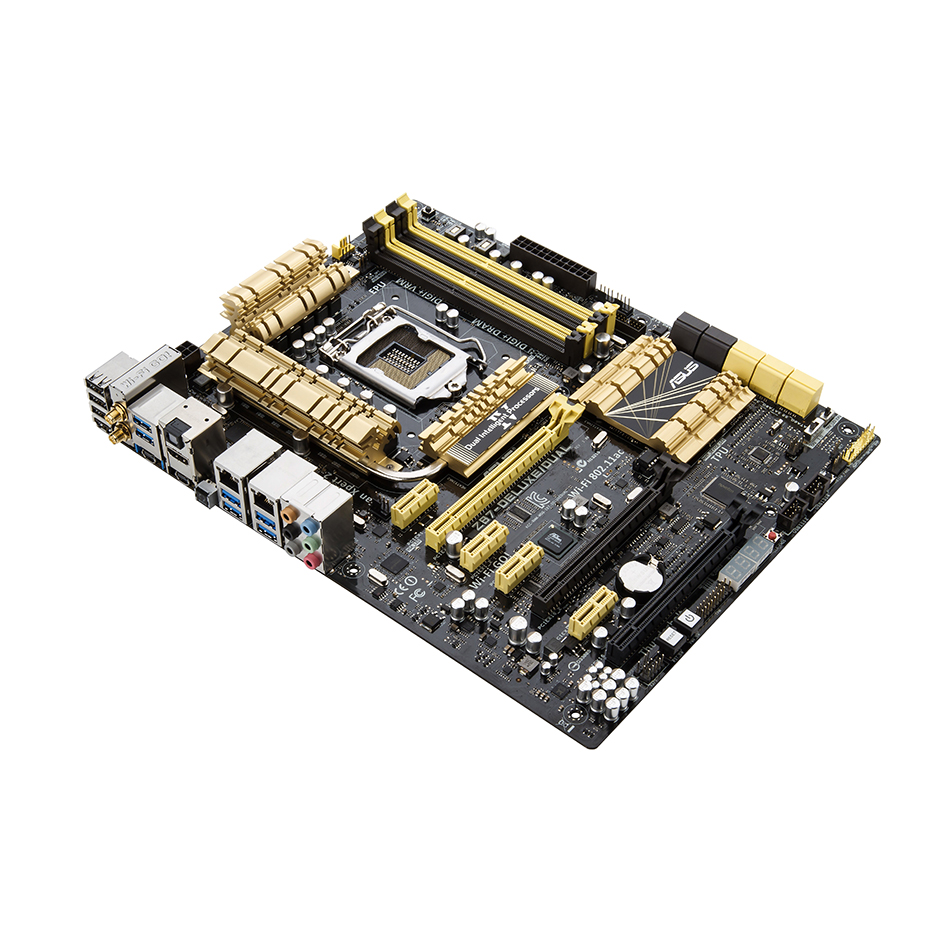

Z87-DELUXE/DUAL

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• Chipset
  Intel® Z87
• Memory
  4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Thunderbolt
  VGA output support
  Data transfer rate up to 10 Gbps
  Daisy-chain up to 12 Thunderbolt devices
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : HDMI/Dual Thunderbolt ports ports *1
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports Thunderbolt with max. resolution 4096 x2160 @24 Hz / 3840 x 2160 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Multi-GPU
  Support
  Supports NVIDIA® Quad-GPU SLI™ Technology *2
  Supports AMD Quad-GPU CrossFireX™ Technology
  Supports AMD 3-Way CrossFireX™ Technology
• Expansion Slots
  3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4)
  4 x PCIe 2.0 x1
• Storage
  Intel® Z87 chipset :
  6 x SATA 6Gb/s port(s), yellow
  Support Raid 0, 1, 5, 10
  Supports Intel® Dynamic Storage Accelerator, Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*3
  ASMedia® ASM1061 controller : *4
  4 x SATA 6Gb/s port(s), dark brown
• LAN
  Intel® I217V, 1 x Gigabit LAN Controller(s)
  Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
  Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
  Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
• Wireless Data
  Network
  Wi-Fi 802.11a/b/g/n/ac*5
  Supports dual band frequency 2.4/5 GHz
• Bluetooth
  Bluetooth V4.0
  Bluetooth V3.0+HS
• Audio
  Realtek® ALC1150 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
  Audio Feature :
  - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
  - Blu-ray audio layer Content Protection
  - DTS Ultra PC II
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - BD Audio Layer Content Protection
• USB Ports
  Intel® Z87 chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® Z87 chipset :
  8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
  ASMedia® USB 3.0 controller :
  4 x USB 3.0/2.0 port(s) (4 at back panel, blue)
• Special Features
  ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
  - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
  ASUS 5X Protection :
  - ASUS DIGI+ VRM - 16 Phase digital power design
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  ASUS EPU :
  - EPU
  - EPU switch
  ASUS Digital Power Design :
  - Industry leading Digital 16 Phase CPU Power Design
  - Industry leading Digital 2 Phase DRAM Power Design
  - ASUS DIGI+ VRM Utility
  - CPU Power Utility
  - DRAM Power Utility
  ASUS Wi-Fi GO!
  - Wi-Fi GO! Function: Cloud GO!, Media Streaming Hub, Smart Sensor Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
  - Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
  - Wi-Fi GO! & NFC Remote for portable Smartphone/Tablet, supporting iOS & Android systems
  ASUS Exclusive Features :
  - USB BIOS Flashback
  - MemOK!
  - AI Suite 3
  - Ai Charger+
  - USB Charger+
  - Anti-Surge
  - Onboard Button : Power/Reset
  - Front Panel USB 3.0 Support
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-pipe solution
  - ASUS Fan Xpert 2
  ASUS EZ DIY :
  - DirectKey
  - Precision Tweaker 2
  - ASUS O.C. Profile
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - Multi-language BIOS
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  100% All High-quality Conductive Polymer Capacitors
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
• Operating System
  Support
  Windows® 8
  Windows® 7

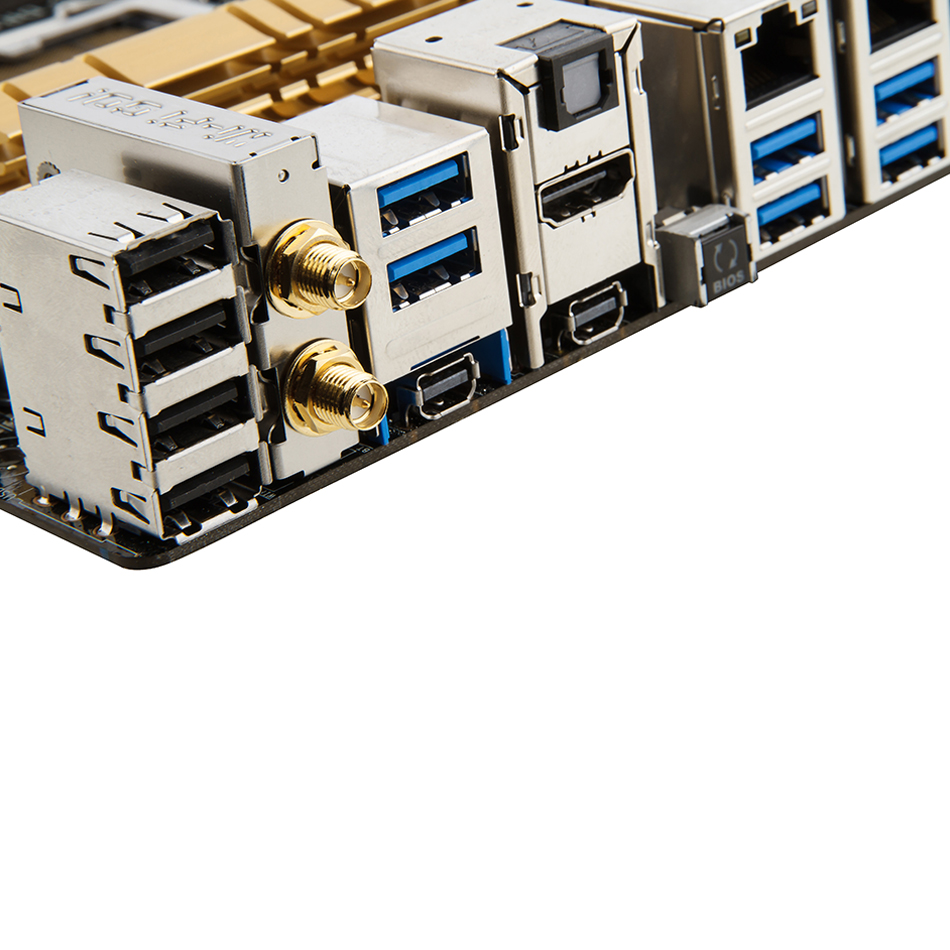

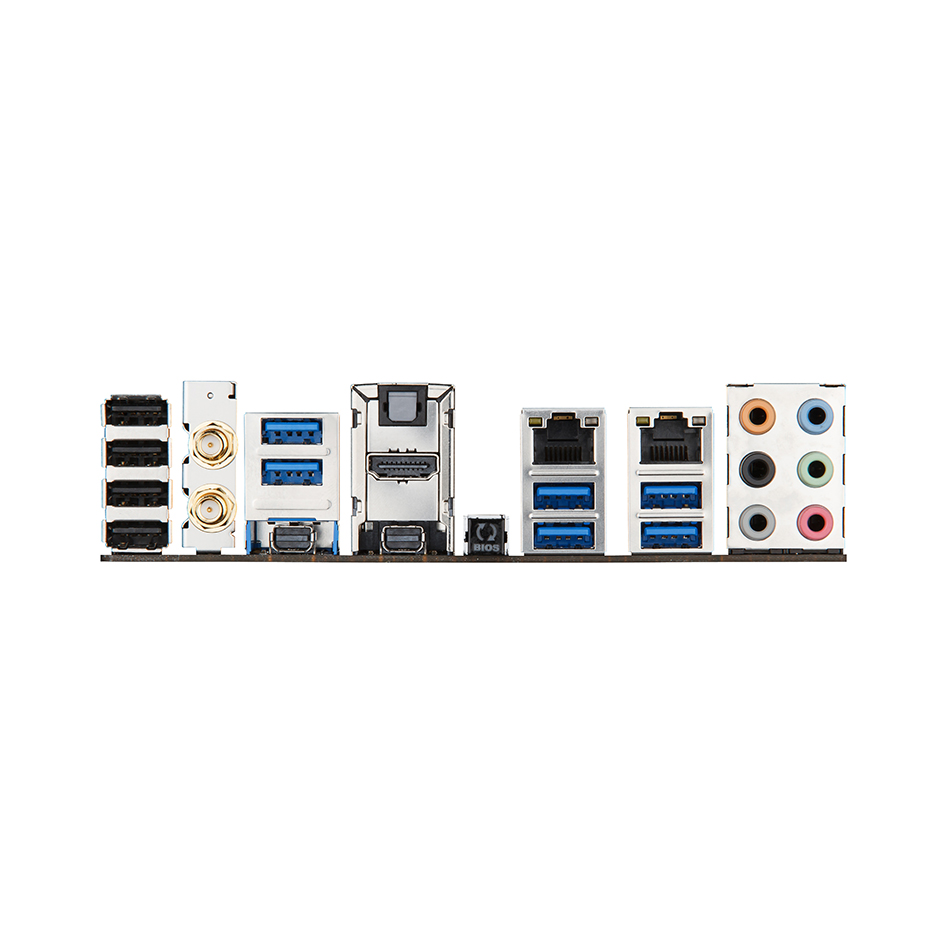

• Back I/O Ports
  2 x Thunderbolt port(s)
  1 x HDMI
  2 x LAN (RJ45) port(s)
  6 x USB 3.0 (blue)
  4 x USB 2.0
  1 x Optical S/PDIF out
  6 x Audio jack(s)
  1 x USB BIOS Flashback Button(s)
  1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)
• Internal I/O
  Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x TPM header
  10 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  4 x Chassis Fan connector(s) (4 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s) (Q-Connector)
  1 x DirectKey Button(s)
  1 x DRCT header(s)
  1 x MemOK! button(s)
  1 x TPU switch(es)
  1 x EPU switch(es)
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x Clear CMOS button(s)
• Accessories
  User's manual
  ASUS Q-Shield
  6 x SATA 6Gb/s cable(s)
  1 x NFC EXPRESS box with 2 extra USB 3.0 ports + NFC EXPRESS tag + ASUS NFC EXPRESS utility*6
  1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  1 x SLI bridge(s)
  1 x Q-connector(s) (2 in 1)
• BIOS
  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.7, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *1: 1-1 Both ports are from Intel® DSL4510 Thunderbolt™ Controller
  1-2 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
  *2: With 2 PCIex16 graphics card.
  *3: Supports on Intel® Core™ processor family
  *4: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
  *5: The Wi-Fi standard of 802.11ac will be restricted by countries' regulations. Wi-Fi 802.11ac feature will be supported under the complete 11ac eco-system environment.
  *6: The NFC EXPRESS is only supported in Windows ® 8.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
