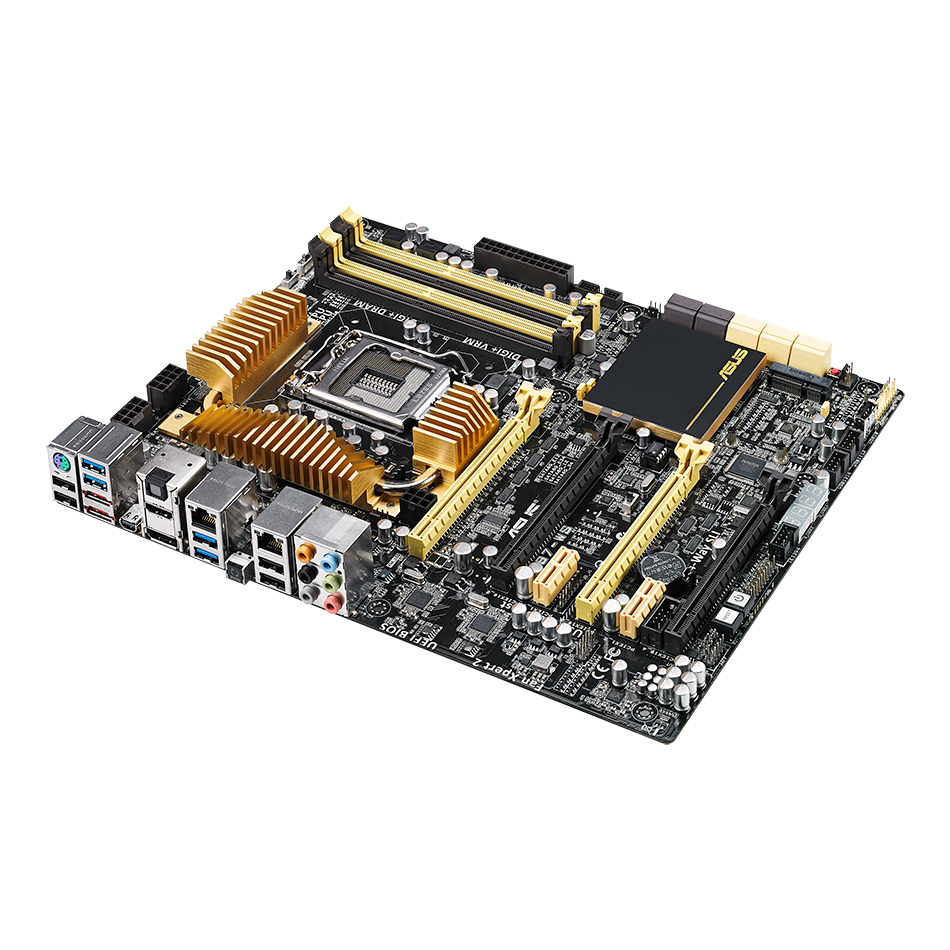

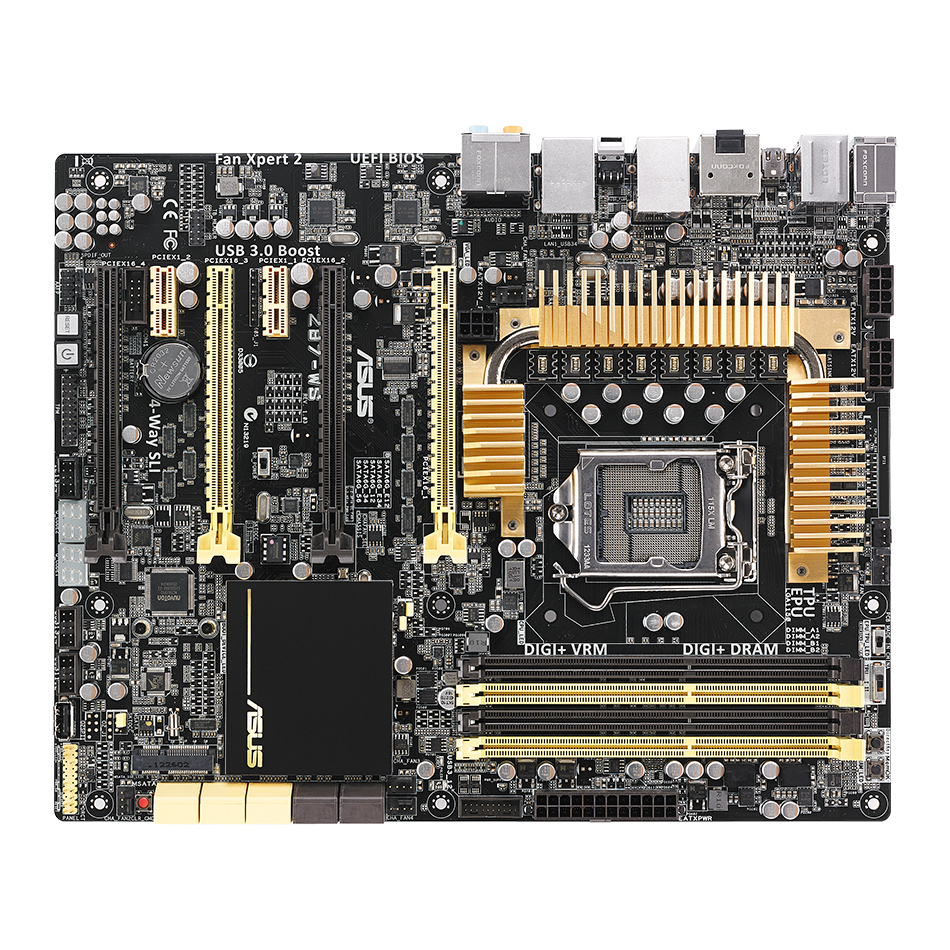

Z87-WS

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®/Xeon® E3-1200/12x5 v3 series Processors
  Supports Intel® 22 nm CPU
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• Chipset
  Intel® Z87
• Memory
  4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1800/1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor *1
  Multi-VGA output support : HDMI/DisplayPort /Mini DisplayPort ports *2
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports up to 3 displays simultaneously
• Multi-GPU
  Support
  Supports NVIDIA® 4-Way SLI™ Technology
  Supports AMD 4-Way CrossFireX Technology
• Expansion Slots
  4 x PCIe 3.0/2.0 x16 (dual x16 or x16/x8/x8 or quad x8)
  2 x PCIe 2.0 x1
• Storage
  Intel® Z87 chipset :
  6 x SATA 6Gb/s port(s), yellow
  Support Raid 0, 1, 5, 10
  Marvell® PCIe 9230 controller :
  4 x SATA 6Gb/s port(s), black
  Support Raid 0, 1, 10
  ASMedia® ASM1061 controller :
  2 x eSATA 6Gb/s port(s), red
• LAN
  Intel® I210, 2 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC1150 8-Channel High Definition Audio CODEC
  - Supports : Multi-streaming, Front Panel Jack-retasking
  - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB (Line-in)
  Audio Feature :
  - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
  - DTS Ultra PC II
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - BD Audio Layer Content Protection
• IEEE 1394
  1 x IEEE 1394a port(s)
  (1 at mid-board)
• USB Ports
  Intel® Z87 chipset :
  3 x USB 3.0/2.0 port(s) (1 at back panel, blue, 2 at mid-board)
  Intel® Z87 chipset :
  9 x USB 2.0/1.1 port(s) (4 at back panel, , 5 at mid-board)
  ASMedia® USB 3.0 controller :
  3 x USB 3.0/2.0 port(s) (3 at back panel, blue)
• Workstation
  Feature
  4 x PCIe x 16 slot(s)
  Quick Gate: 1 x vertical USB 2.0 on board
  ASUS Dr. Power
• Special Features
  ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
  - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
  ASUS EPU :
  - EPU
  - EPU switch
  ASUS Digital Power Design :
  - Industry leading Digital 8 Phase CPU Power Design
  - Industry leading Digital 2 Phase DRAM Power Design
  - ASUS DIGI+ VRM Utility
  - CPU Power Utility
  - DRAM Power Utility
  ASUS Exclusive Features :
  - TurboV EVO
  - GPU Boost
  - USB BIOS Flashback
  - MemOK!
  - AI Suite 3
  - Ai Charger+
  - USB Charger+
  - Anti-Surge
  - Onboard Button : Power/Reset
  - Front Panel USB 3.0 Support
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - ASUS SSD Caching II
  - Network iControl
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS EZ DIY :
  - DirectKey
  - Precision Tweaker 2
  - ASUS O.C. Profile
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - Multi-language BIOS
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  100% All High-quality Conductive Polymer Capacitors
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)

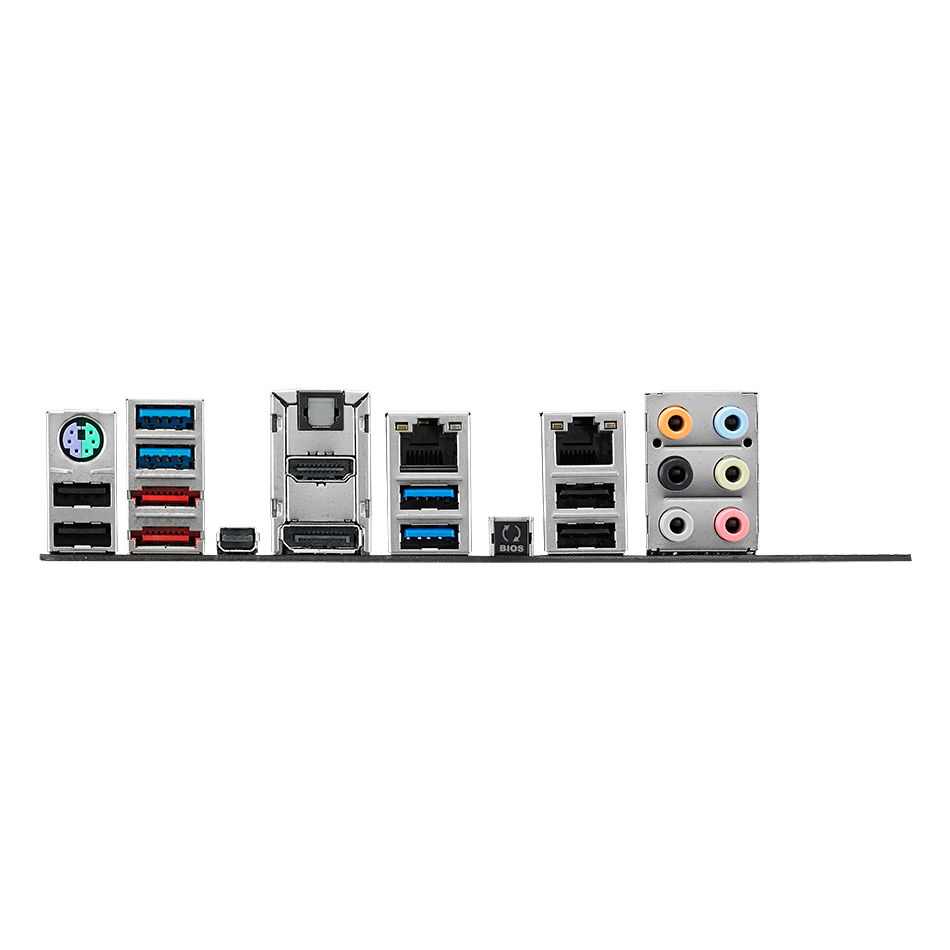

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  2 x eSATA 6Gb/s
  2 x LAN (RJ45) port(s)
  4 x USB 3.0
  4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
  1 x Optical S/PDIF out
  6 x Audio jack(s)
  1 x USB BIOS Flashback Button(s)
  1 x Mini DisplayPort(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x USB 2.0/1.1 vertical port
  1 x TPM connector(s)
  1 x COM port(s) connector(s)
  10 x SATA 6Gb/s connector(s)
  1 x mSATA connector
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  4 x Chassis Fan connector(s) (4 x 4 -pin)
  1 x S/PDIF out header(s)
  2 x 8-pin EATX 12 V Power connector
  1 x 6-pin EATX 12 V_1 Power connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x DirectKey Button(s)
  1 x MemOK! button(s)
  1 x TPU switch(es)
  1 x EPU switch(es)
  1 x Dr.Power switch
• Accessories
  User's manual
  Accessory Guide
  ASUS Q-Shield
  1 x COM port cable(s)
  10 x SATA 6Gb/s cable(s)
  1 x 3-Way SLI bridge(s)
  1 x 4-Way SLI bridge(s)
  1 x SLI bridge(s)
  1 x 2-port USB2.0 + 1394 bracket(s)
• BIOS
  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.7, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS Update
  Anti-virus software (OEM version)
• Operating System
  Windows® 8 32/64-bit
  Windows® 7 32/64-bit
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *1 Intel® HD Graphics support
  *2 DisplayPort 1.2 Multi-Stream Transport compliant, supports DisplayPort 1.2 monitor daisy chain up to 3 displays
  *3 These SATA ports are for data hard drivers only. ATAPI devices are not supported.
  *4 supports ASUS USB 3.0 Boost

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies
