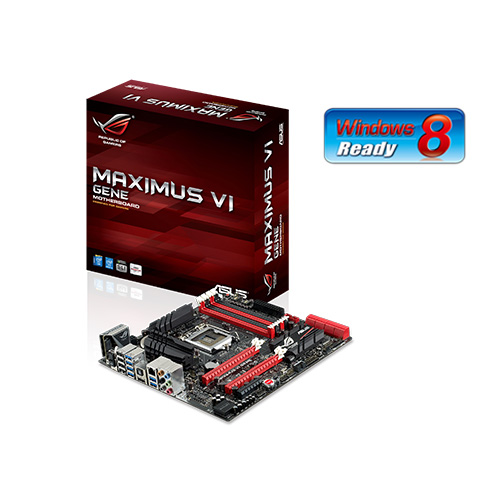

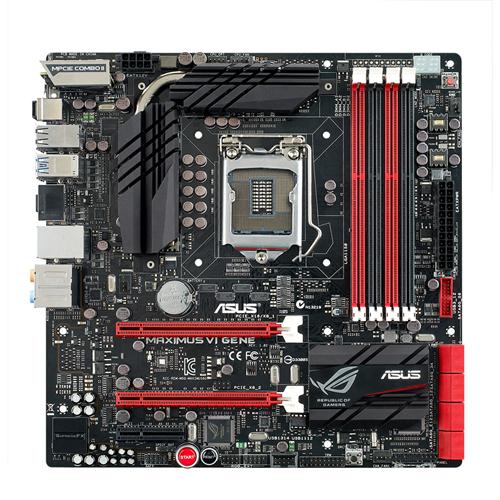

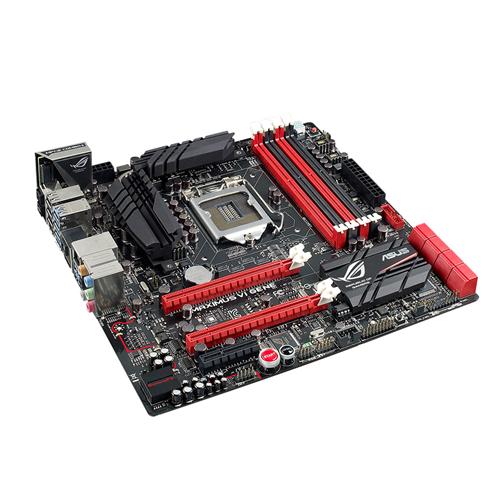

MAXIMUS 6 GENE

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® Z87
• Memory
  4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Multi-GPU
  Support
  Supports NVIDIA® Quad-GPU SLI™ Technology
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
  1 x PCIe 2.0 x4
  1 x mini-PCIe 2.0 x1 *1
• Storage
  Intel® Z87 chipset : *2
  6 x SATA 6Gb/s port(s), red
  Support Raid 0, 1, 5, 10
  Intel® Z87 chipset :
  1 x M.2 (NGFF) Socket 2 on mPCIe Combo II expansion card(s), black
  Support M.2 (NGFF) Type 2242 SSD card (22mm x 42mm), Support PCI express 2.0 x1 and SATA 6Gb/s standards
  ASMedia® ASM1061 controller : *4
  2 x SATA 6Gb/s port(s), red
• LAN
  Intel® I217V, 1 x Gigabit LAN Controller(s)

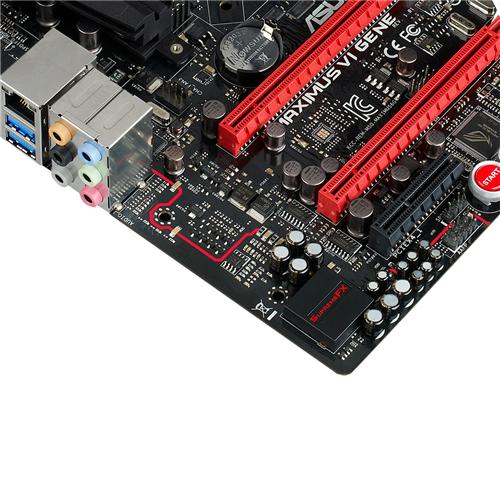

• Audio
  ROG SupremeFX 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 115 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - ELNA premium audio capacitors
  - Blu-ray audio layer Content Protection
  - Sonic Radar
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
• USB Ports
  Intel® Z87 chipset : *5
  4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® Z87 chipset : *6
  8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
  ASMedia® USB 3.0 controller :
  4 x USB 3.0 port(s) (4 at back panel, blue)
• ROG Exclusive
  Features
  mPCIe Combo II (mPCIe/M.2 combo card)
  Extreme Engine Digi+ III :
  - 8 + 2 phase power design
  - NexFET™ Power Block MOSFET
  - 60A BlackWing Chokes
  - 10K Black Metallic Capacitors
  ProbeIt
  UEFI BIOS features :
  - ROG BIOS Print
  - GPU.DIMM Post
  - Tweakers' Paradise
  - ROG SSD Secure Erase
  ROG RAMDisk
  GameFirst II
  Extreme Tweaker
• Special Features
  ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
  - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
  CPU Level Up
  ASUS Exclusive Features :
  - USB BIOS Flashback
  - MemOK!
  - AI Suite 3
  - Ai Charger+
  - USB Charger+
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS EZ DIY :
  - ASUS O.C. Profile
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
• Operating System
  Support
  Windows® 8
  Windows® 7

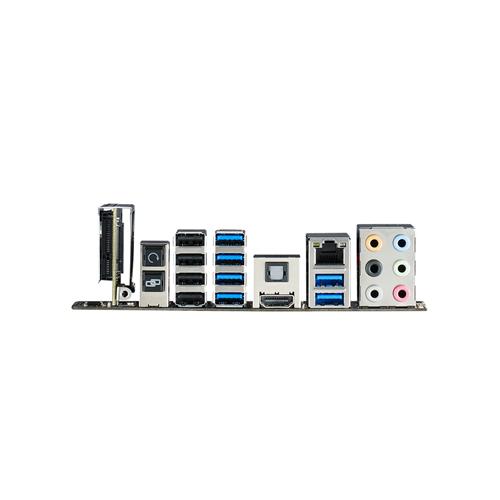

• Back I/O Ports
  1 x HDMI
  1 x LAN (RJ45) port(s)
  6 x USB 3.0 (blue)
  4 x USB 2.0
  1 x Optical S/PDIF out
  6 x Audio jack(s)
  1 x Clear CMOS button(s)
  1 x ROG Connect On/ Off switch(es)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x TPM connector(s)
  8 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  3 x Chassis Fan connector(s)
  1 x S/PDIF out header(s)
  1 x 8-pin EATX 12 V Power connector
  1 x 24-pin EATX Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x DirectKey Button(s)
  1 x DRCT header(s)
  1 x MemOK! button(s)
  10 x ProbeIt Measurement Points
  1 x LN2 Mode header(s)
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x ROG extension (ROG_EXT) header(s)
  1 x mPCIe Combo II connector(s)
• Accessories
  User's manual
  I/O Shield
  6 x SATA 6Gb/s cable(s)
  1 x SLI bridge(s)
  1 x Q-connector(s) (2 in 1)
  1 x 12 in 1 ROG Cable Label(s)
  1 x mPCIe Combo II expansion card(s)
  1 x ROG Door Hanger(s)
• BIOS
  64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS
• Manageability
  WfM 2.0, DMI 2.7, WOL by PME, PXE
• Support Disc
  Drivers
  ROG GameFirst II
  ROG RAMDisk
  ROG CPU-Z
  ROG Mem TweakIt
  Kaspersky® Anti-Virus
  DAEMON Tools Pro Standard
  ASUS WebStorage
  ASUS Utilities
• Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
• Note
  *1: 1 x mini-PCI Express 2.0 x1 slot on mPCIe Combo II expansion card
  *2: SATA 6Gb/s port 5 will be disabled when M.2 slot on mPCIe Combo II is in use.
  *3: The supported functions depends on the CPU installed.
  *4: These SATA ports are for data hard drives only. ATAPI devices are not supported.
  *5: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.
  *6: 2 x USB2.0 ports at mid-board shares with ROG extension (ROG_EXT) port.
