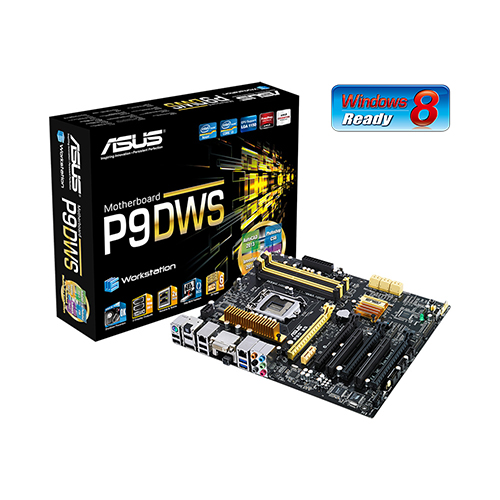

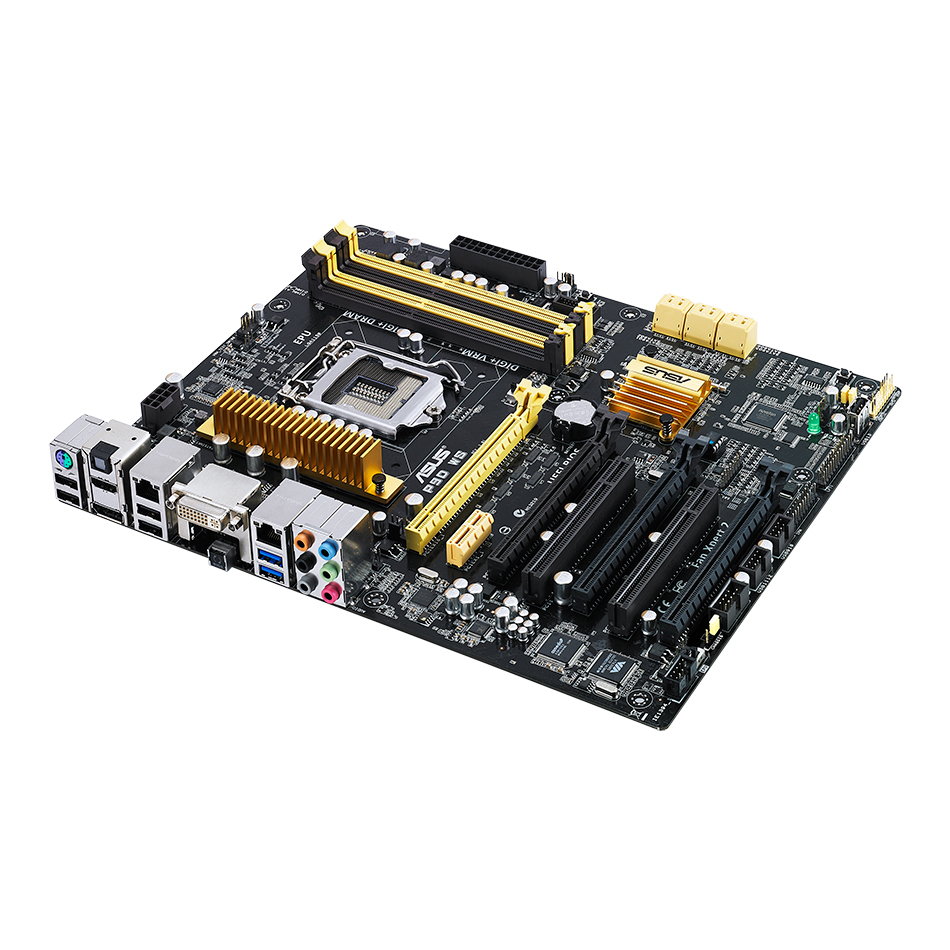

P9D WS

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Xeon® E3-1200/12x5 v3 series Processors
  Supports Intel® 22 nm CPU
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® C226
• Memory
  4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor *1
  Multi-VGA output support : HDMI/DVI/DisplayPort ports
  - Supports HDMI with max. resolution 4000 x 2000 @ 24 Hz
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 3200 x 2000 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Multi-GPU Support
  Supports AMD 4-Way CrossFireX Technology
• Expansion Slots
  3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4)
  1 x PCIe 2.0 x16 (x4 mode)
  1 x PCIe 2.0 x1 (x1 mode)
  2 x PCI
• Storage
  Intel® C226 Chipset :
  6 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports
• LAN
  Intel® I210
• Audio
  Realtek® ALC892 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• IEEE 1394
  1 x IEEE 1394a port(s)
  (1 at mid-board)
• USB Ports
  Built-in Controller :
  4 x USB 3.0/2.0 port(s) (2 at back panel, , 2 at mid-board)
  Built-in Controller :
  9 x USB 2.0/1.1 port(s) (4 at back panel, , 5 at mid-board)
• Workstation
  Feature
  4 x PCIe x 16 slot(s)
  G.P. Diagnosis Card bundled
  Quick Gate: 1 x vertical USB 2.0 on board
  ASUS Dr. Power
• Special Features
  ASUS EPU :
  - EPU
  - EPU switch
  ASUS Power Design :
  - 4 +2 Phase Power Design
  ASUS Exclusive Features :
  - MemOK!
  - AI Suite 3
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash
  ASUS Q-Design :
  - ASUS Q-Connector

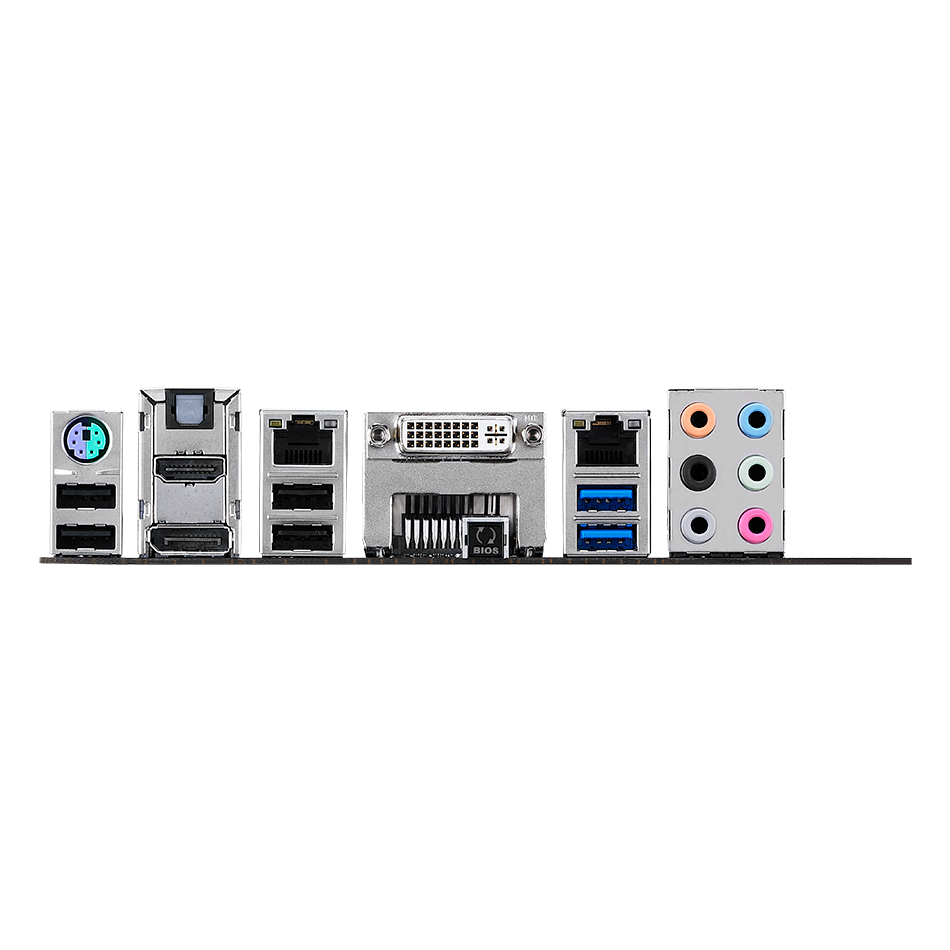

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-I
  1 x DisplayPort
  1 x HDMI
  2 x LAN (RJ45) port(s)
  2 x USB 3.0
  4 x USB 2.0
  1 x Optical S/PDIF out
  6 x Audio jack(s)
  1 x USB BIOS Flashback Button(s)
• Internal I/O Ports
  1 x AAFP connector
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x USB 2.0/1.1 vertical port(s)
  1 x TPM header
  1 x LPT1 header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x IEEE 1394a connector(s)
  1 x CPU fan with PWM control
  4 x Chassis Fan connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin ATX Power connector
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel connector(s) (1 x 20 -pin)
  1 x MemOK! button(s)
• Accessories
  User's manual
  1 x G.P. Diagnosis card *2
  I/O Shield
  1 x COM port cable(s)
  6 x SATA 6Gb/s cable(s)
  1 x Q-connector(s) (2 in 1)
  1 x 2-port USB2.0 + 1394 bracket(s)
• BIOS
  64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
• Operating System
  Windows® 8 32/64-bit
  Windows® 7 32/64-bit
• Note
  *1: Only using processors which feature Intel HD Graphics,Intel integrated graphics could enable.
  *2: If installing G.P Diagnosis card on TPM port, the PCIE card which installed on PCIEX16_4 should be less than 13cm*0.5cm (length*depth).For more detail,please go to this link
  http://www.asus.com/Motherboards/P9D_WS/#support_Knowledge_E1F9E779-8883-4693-BB3D-82122294A894

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
