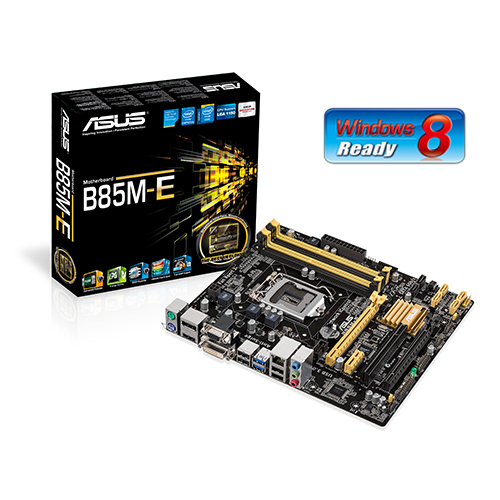

B85M-E

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• Chipset
  Intel® B85
• Memory
  4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory
  Dual Channel Memory Architecture
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 1600 @ 60 Hz
  Maximum shared memory of 1024 MB
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16
  1 x PCIe 2.0 x16 (x4 mode)
  1 x PCIe 2.0 x1
  1 x PCI
• Storage
  Intel® B85 chipset :
  2 x SATA 3Gb/s port(s), dark brown
  4 x SATA 6Gb/s port(s), yellow
• LAN
  Realtek® 8111F, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
• USB Ports
  Intel® B85 chipset :
  4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
  Intel® B85 chipset :
  8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
• Special Features
  ASUS EPU :
  - EPU
  GPU Boost
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  ASUS Quiet Thermal Solution :
  - ASUS Fan Xpert 2
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - ASUS MyLogo 2
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
  100% All High-quality Conductive Polymer Capacitors

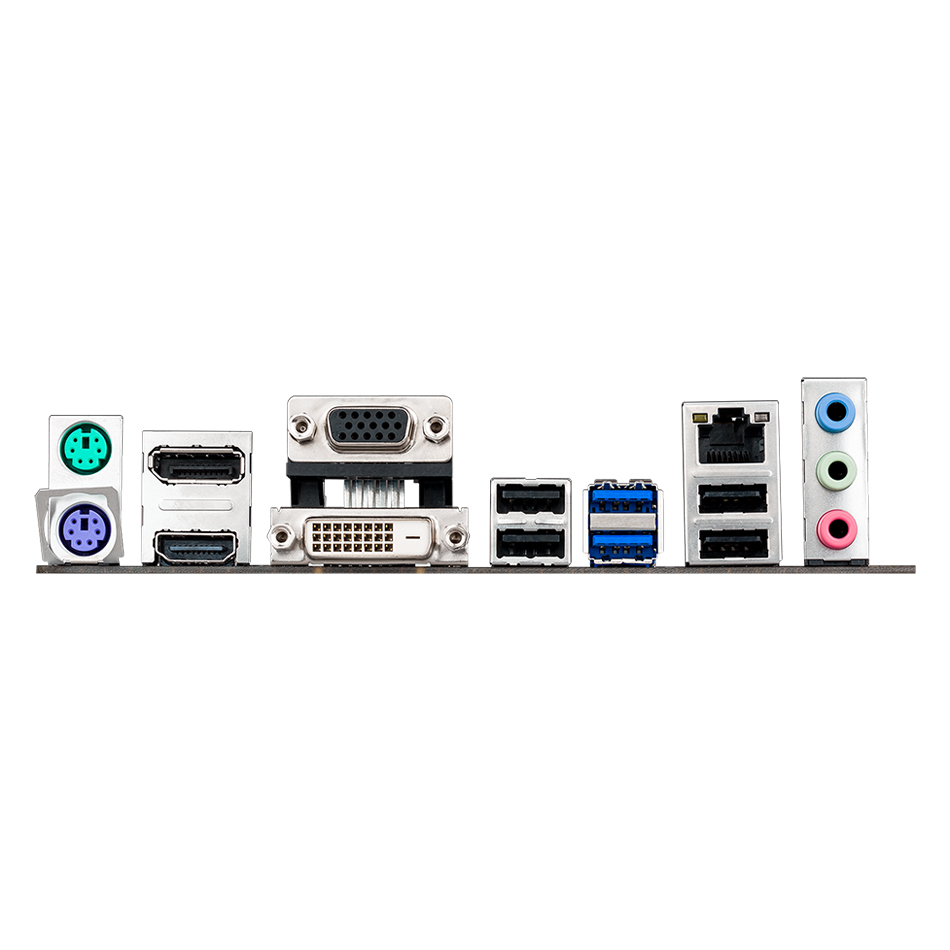

• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.0
  4 x USB 2.0
  1 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x TPM header
  1 x LPT1 header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  2 x SATA 3Gb/s connector(s)
  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
• BIOS
  128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS Update
  Anti-virus software (OEM version)
• Form Factor
  mATX Form Factor
  9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
