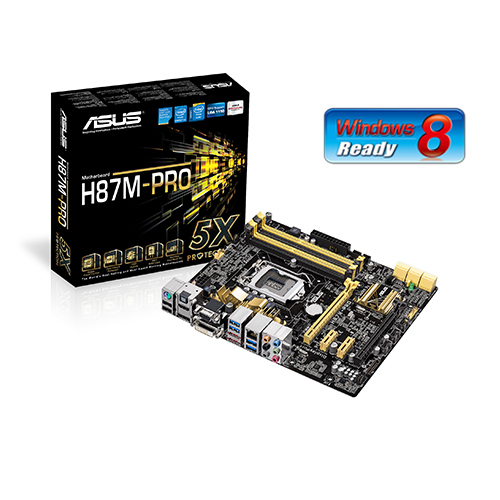

H87M-PRO

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H87
• Memory
  4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
  1 x PCIe 2.0 x16 (x4 mode, dark brown) *1
  2 x PCIe 2.0 x1
• Storage
  Intel® H87 chipset :
  6 x SATA 6Gb/s port(s), yellow
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2
  Marvell® PCIe SATA 6Gb/s controller : *3
  2 x eSATA port(s), red
• LAN
  Realtek® 8111G, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC892 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  Audio Feature :
  - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
  - Optical S/PDIF out port(s) at back panel
• USB Ports
  Intel® H87 chipset :
  6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
  Intel® H87 chipset :
  8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
• Special Features
  ASUS 5X PROTECTION :
  - ASUS DIGI+ VRM - 4 Phase digital power design
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  - ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost
  - USB BIOS Flashback
  - MemOK!
  - AI Suite 3
  - USB Charger+
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 2
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector

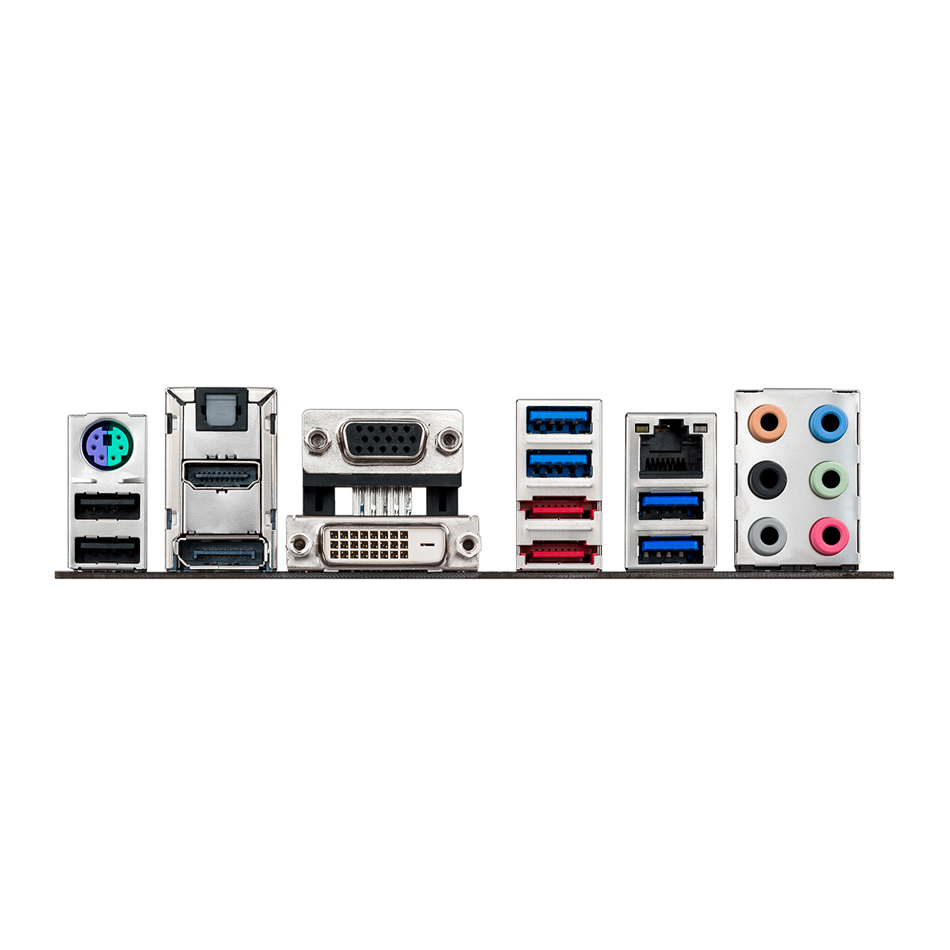

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI
  1 x D-Sub
  1 x DisplayPort
  1 x HDMI
  2 x eSATA 6Gb/s
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue)
  2 x USB 2.0
  1 x Optical S/PDIF out
  6 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  3 x Chassis Fan connector(s) (3 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x MemOK! button(s)
  1 x GPU Boost switch(es)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  ASUS Q-Shield
  3 x SATA 6Gb/s cable(s)
  1 x Q-connector(s) (2 in 1)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  uATX Form Factor
  9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )
• Note
  *1: The PCIe x16_2 slot shares bandwidth with PCIe x1_1 and PCIe x1_2 slot. The default setting is x2 mode. Go to the BIOS setup to change the settings.
  *2: These functions will work depending on the CPU installed.
  *3: These SATA ports are for data hard drives only. ATAPI devices are not supported.
