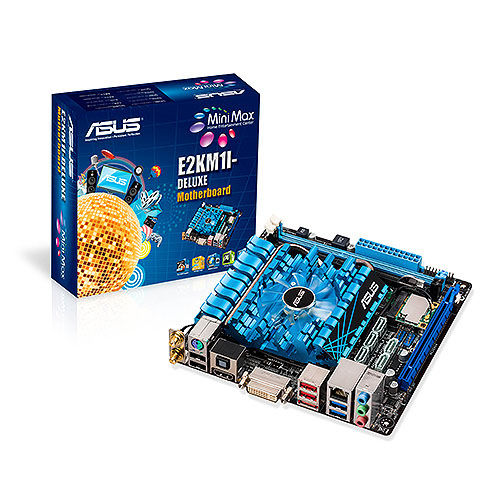

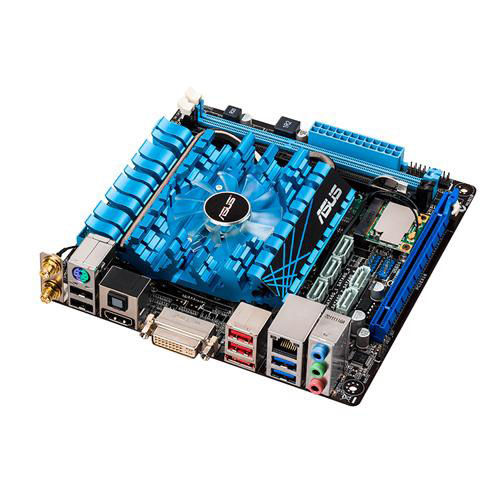

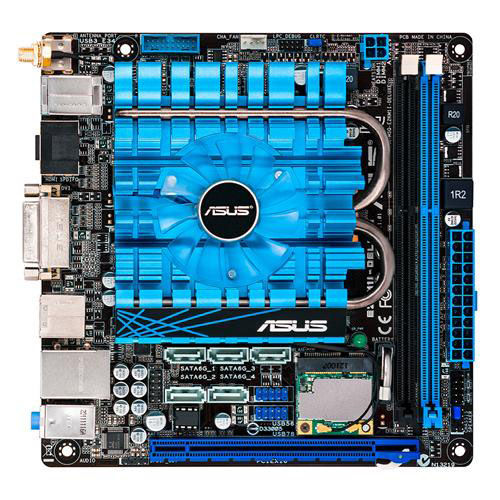

E2KM1I-DELUXE

AMD APU E2-2000 Dual-Core onboard Processors
Supports AMD® Turbo Core Technology

AMD FCH A50M (Hudson M1)

2 x DIMM, Max. 16GB, DDR3 MHz Non-ECC, Un-buffered Memory
Single Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

Integrated AMD® Radeon HD 7340 Discrete-Class Graphics
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz

1 x PCIe 2.0 x16 (x4 mode)

Built-in Controller :
5 x SATA 6Gb/s port(s), gray
1 x eSATA port(s), red

Realtek® 8111F, 1 x Gigabit LAN Controller(s)

Wi-Fi 802.11 a/b/g/n
Supports dual band frequency 2.4/5 GHz

Bluetooth V4.0
Bluetooth V3.0+HS

Realtek® ALC898 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel

ASMedia® USB 3.0 controller :
4 x USB port(s) (2 at back panel, blue)
AMD A50 FCH chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

ASUS EPU :
- EPU
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi GO! Remote for portable Smartphone/Tablet, supporting iOS & Android systems
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
ASUS Exclusive Features :
- AI Suite II
- Ai Charger+
- USB Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Design Heat-pipe solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

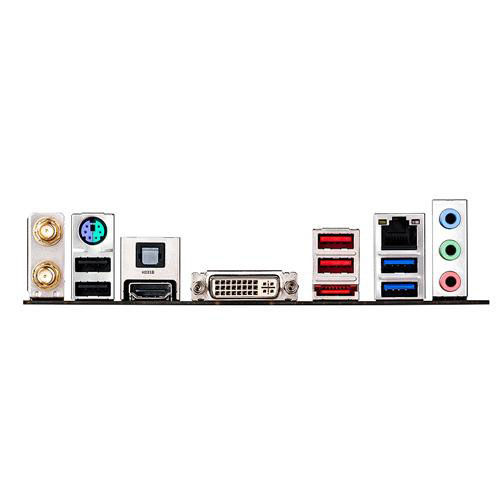

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)
2 x Wi-Fi antenna port(s)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
5 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)

User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
2 x Wi-Fi Ring Moving Antenna(s)

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS

WfM 2.0, DMI 2.0, WOL by PME, PXE

Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)

Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
