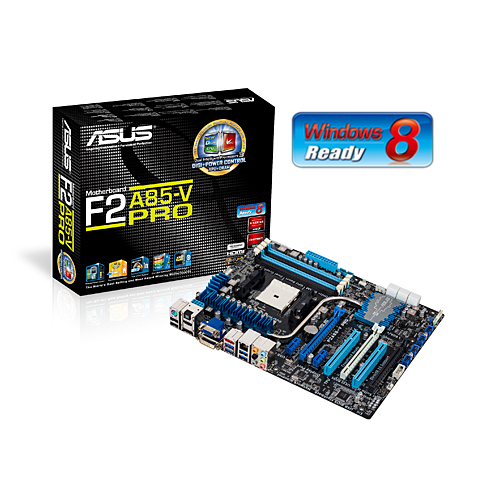

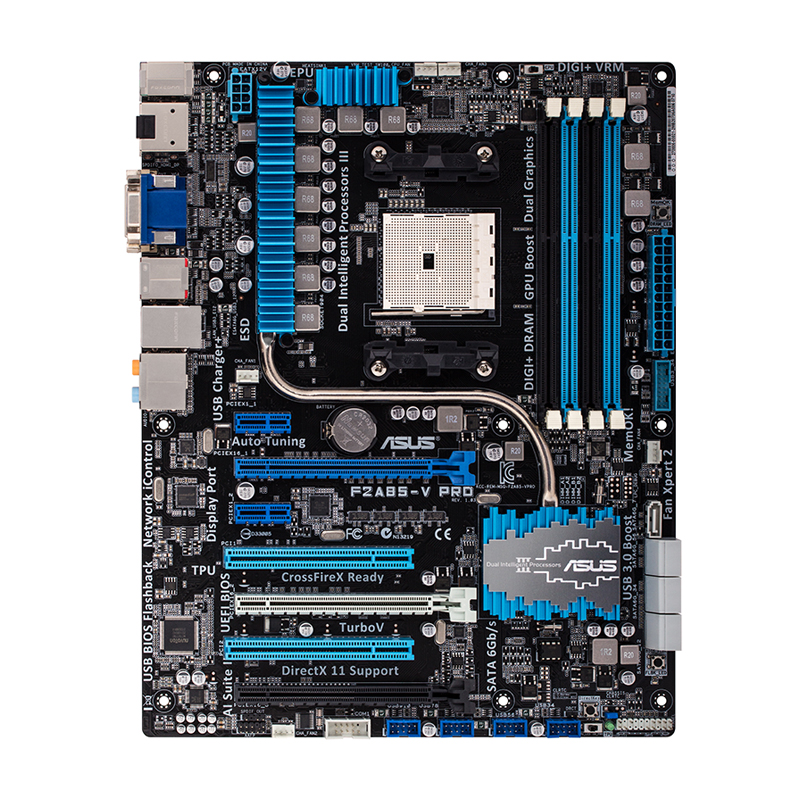

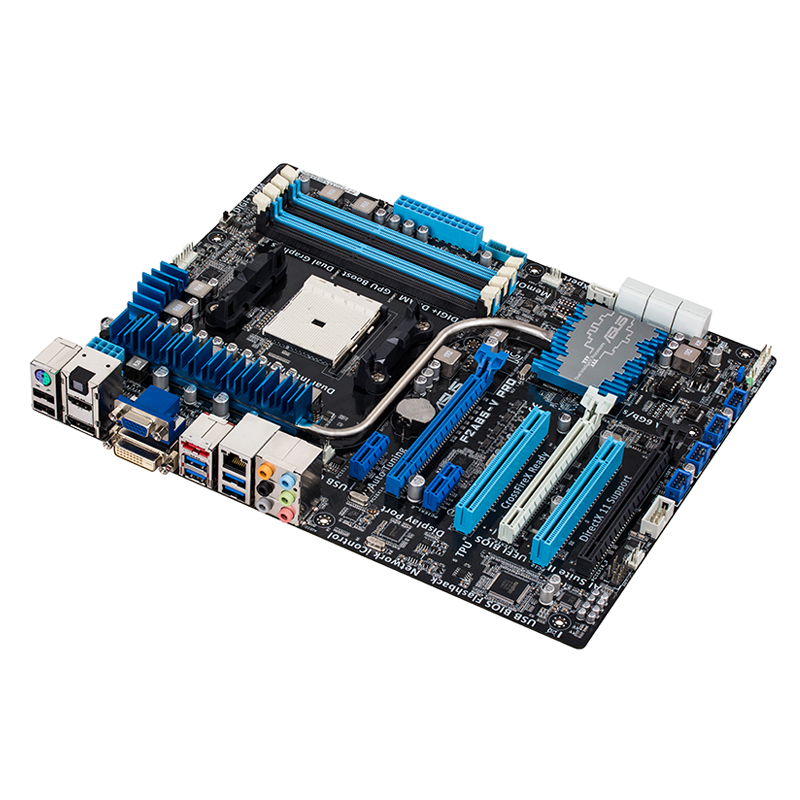

F2A85-V

AMD Socket FM2 Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology

AMD A85X FCH(Hudson D4)

4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

Integrated AMD Radeon™ HD 7000 Series Graphics in A-series APU
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support *1
Supports DirectX 11

Supports AMD 3-Way CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *2

2 x PCIe 2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1
2 x PCI

AMD A85X FCH(Hudson D4) chipset :
7 x SATA 6Gb/s port(s), gray
1 x eSATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10, JBOD

Realtek® 8111F, 1 x Gigabit LAN Controller(s)

Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel

ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD A85X FCH(Hudson D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
AMD A85X FCH(Hudson D4) chipset :
10 x USB 2.0 port(s) (2 at back panel, , 8 at mid-board)

Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
SMART DIGI+ :
- Smart DIGI+ Key- Quickly delivers optimized VRM frequency, voltage and current for superior APU/DRAM overclocking performance with one click.
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 6 +2 Phase Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :
- Remote GO!
- USB BIOS Flashback
- MemOK!
- AI Suite II
- Ai Charger+
- USB Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert 2
ASUS EZ DIY :
- DirectKey
- Precision Tweaker 2
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors

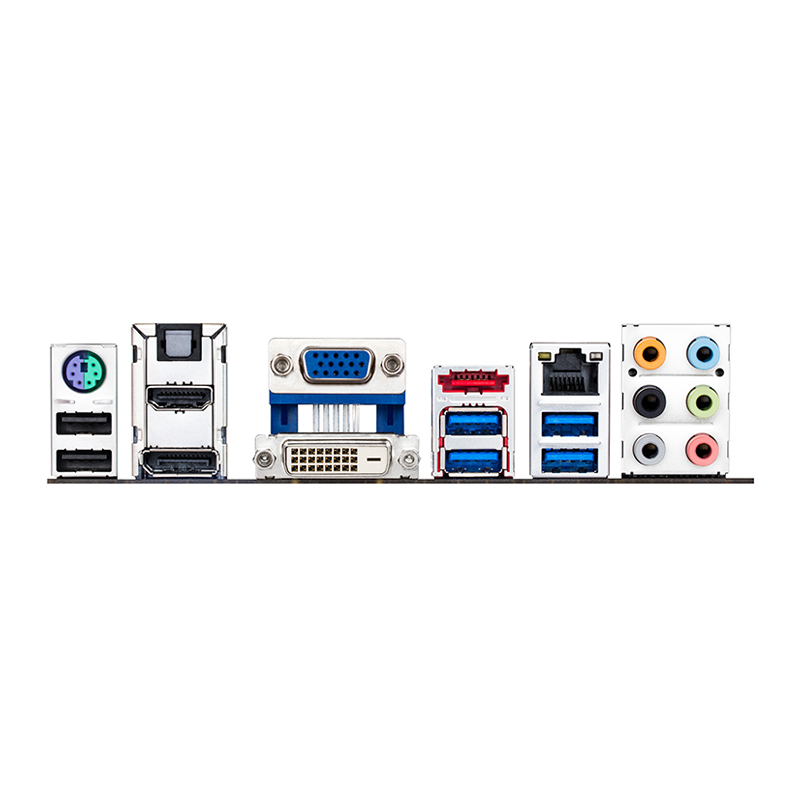

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
7 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 x -pin)
4 x Chassis Fan connector(s) (4 x -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x USB BIOS Flashback button(s)

User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1) *3

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information

Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

*1 Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology
*2 LucidLogix Virtu MVP supports Windows 7 operating systems.
*3 Retail version only
