ASUS（エイスース） C8HM70-I/HDMI

USB 3.0, SATA6Gb/s and Windows 8 support on Intel® HM70 chipset MINI ITX platform

・JAN/UPC：0886227375783
・TEKWIND型番：ASU-C8HM70-I/HDMI

【主な特長】

・Intel® Celeron 847 on board
・Intel® HM70 chipset
・USB3.0 - The latest data transfer technology
・SATA 6Gb/s - Native Ports, Native Speed and Accessibility
・Windows 8 Ready – Assured Compatibility

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

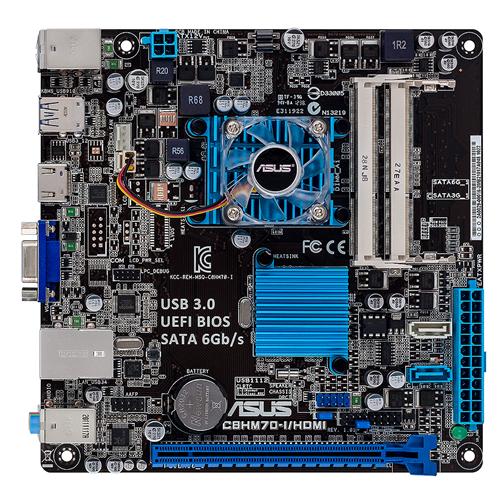

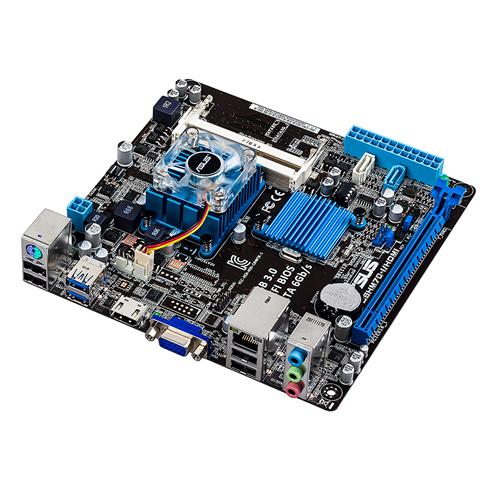

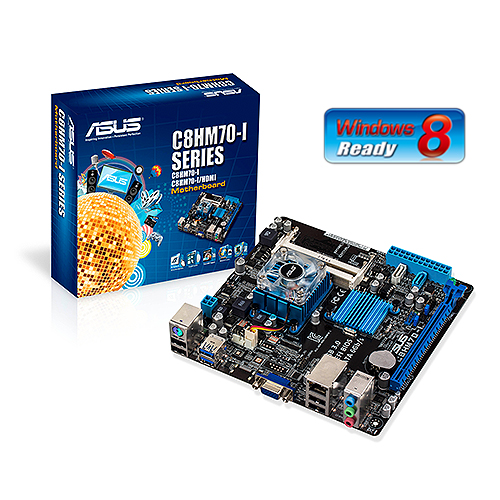

製品画像

スペック

CPU
Intel® Celeron® 847 Processors
Chipset
Intel® HM70
Memory
2 x SO-DIMM, Max. 16GB, DDR3 1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Expansion Slots
1 x PCIe 2.0 x16
Storage
1 x SATA 3Gb/s port(s), blue
1 x SATA 6Gb/s port(s), gray
LAN
Realtek® 8111F-VB-CG
Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
USB Ports
Built-in Controller :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
Built-in Controller :
2 x USB 3.0 port(s)
Special Features
ASUS Exclusive Features :
- AI Suite II
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

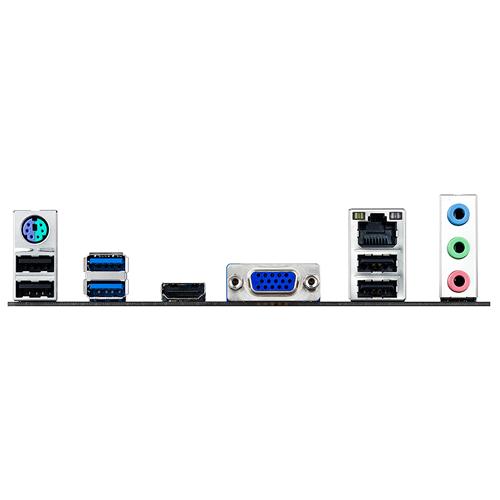

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
Accessories
User's manual
I/O Shield
1 x SATA 3Gb/s cable(s)
1 x SATA 6Gb/s cable(s)
BIOS
64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0,SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
