- CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
- Chipset
Intel® B75
- Memory
2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). - Graphic
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1696 MB - Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1
1 x PCI - Storage
Intel® B75 chipset :
5 x SATA 3Gb/s port(s), blue
1 x SATA 6Gb/s port(s), gray - LAN
Realtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)
- Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function - USB Ports
Built-in Controller :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
Built-in Controller :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board) - Special Features
GPU Boost
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

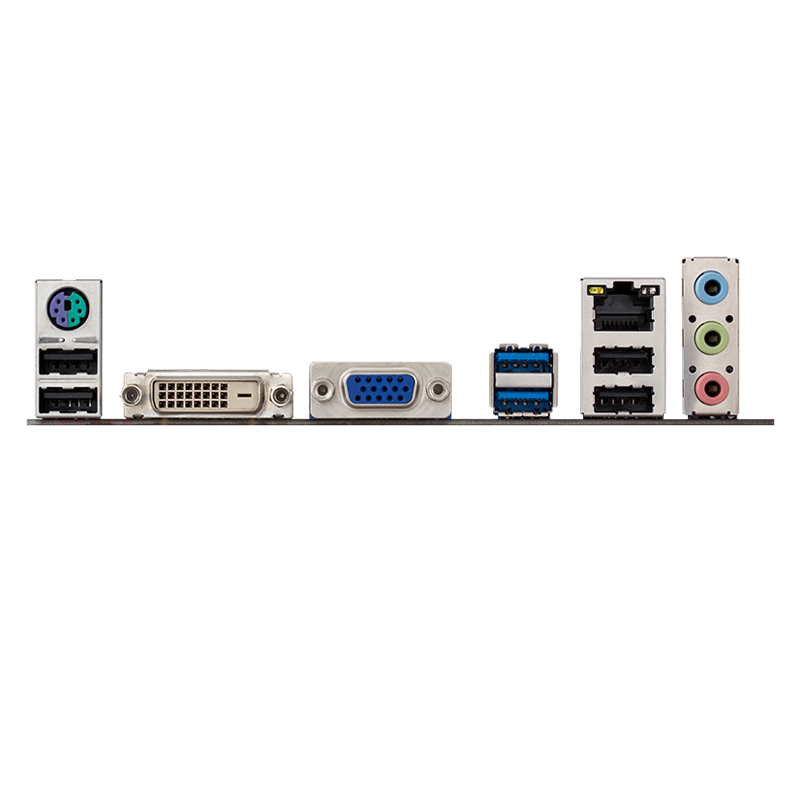

100% All High-quality Conductive Polymer Capacitors - Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s) - Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA 6Gb/s connector(s)
5 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s) - Accessories
User's manual
I/O Shield
1 x SATA 3Gb/s cable(s)
1 x SATA 6Gb/s cable(s) - BIOS
128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
- Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
- Support Disc
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version) - Form Factor
mATX Form Factor
9.6 inch x 6.9 inch ( 24.4 cm x 17.5 cm )
Enhanced USB 3.0 Speed and Real-time Network Bandwidth Control on the B75 Platform
・JAN/UPC：0610839187799
・TEKWIND型番：ASU-P8B75-M/LX/PLUS
【主な特長】
・ASUS UEFI BIOS – Experience the most friendly BIOS interface ever.
・GPU Boost – Enjoy great graphic performance with your iGPU.
・PCIe 3.0 – Improve your graphic performance with incredible data speed
・SATA 6G / USB 3.0 – The latest data transfer technology.
・Windows 8 Ready – Assured Compatibility
製品についてお気軽にお問い合わせください
この製品を問い合わせる
製品画像
スペック
| LAN | Realtek 8111F-VB-CG |
|---|---|
| USB | 8x USB2.0(4+4), 4x USB3.0(2+2) |
| オーディオ機能 | Realtek ALC887 8ch |
| チップセット | Intel B75 |
| メモリ | 2x DIMM, Max. 16GB, DDR3 2200,2000,1800(O.C.)/1600/1333/1066 MHz Non-ECC |
| 拡張スロット | 1x PCIe 3.0/2.0 x16, 2x PCIe 2.0 x1, 1x PCI |
| 背面端子類 | 1x PS/2, 1x DVI-D, 1x D-Sub, 1x RJ45, 2x USB3.0, 4x USB2.0, 3x AJ |
