・JAN/UPC:0886227311477
・TEKWIND型番:ASU-Z9PA-D8

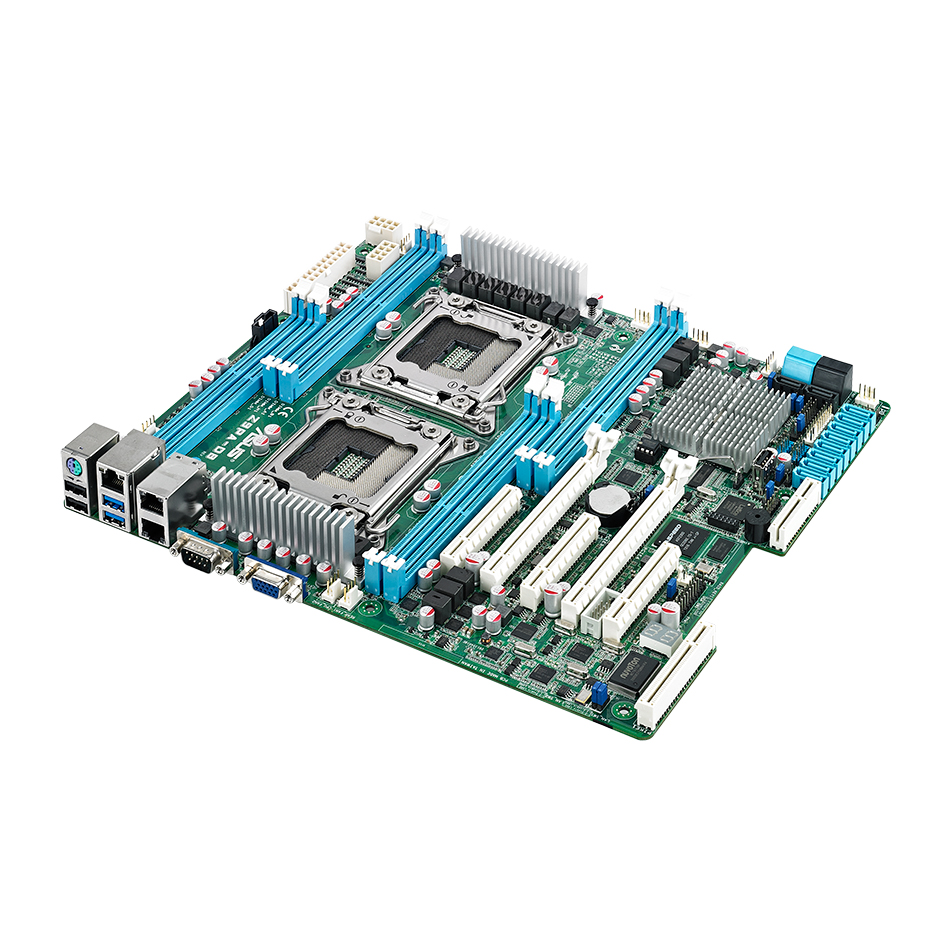

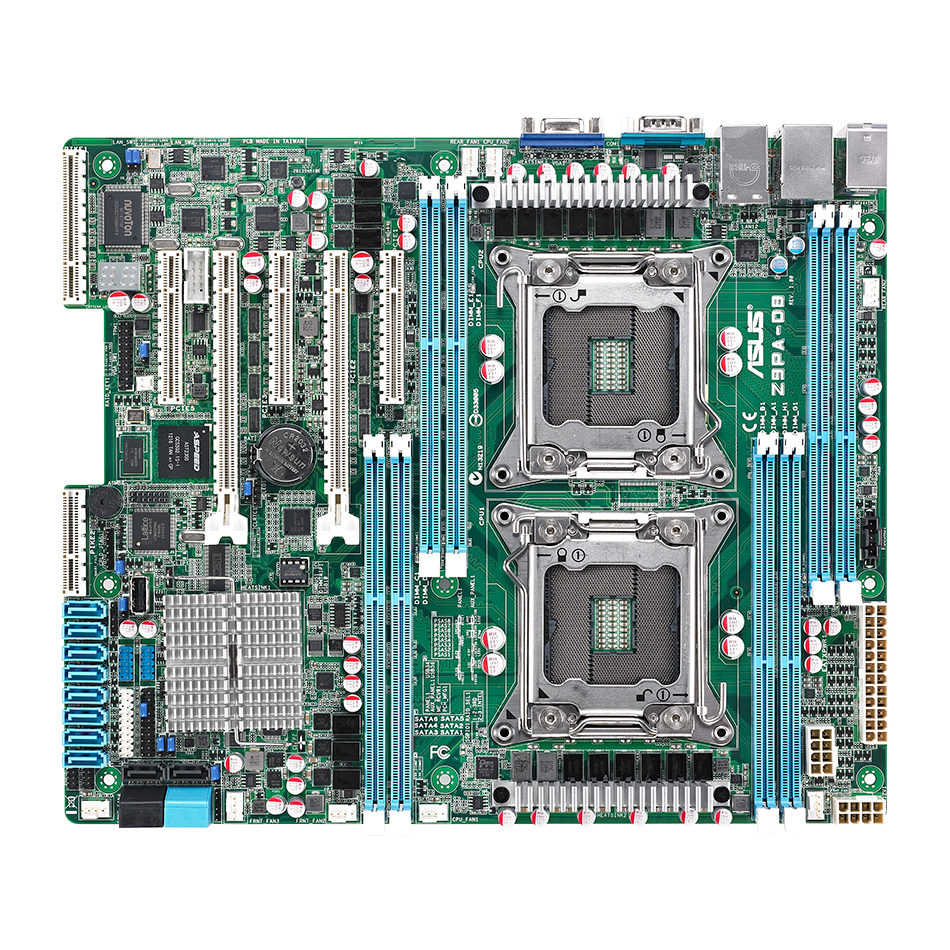

ASUS proudly to announce new server board Z9PA-D8 based on Intel® E5-2600 + C602 PCH platform. The board integrates versatile features into a compact 12”x10” size which allows this board to fit into ATX chassis. Through innovative and top-notch engineering design, this board is able to support dual Intel® Xeon® E5-2600 processors up to 135W CPU. With adequately developed thermal solution in 1U rack mount, the system may support up to 115W CPU.
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
Processor / System Bus |
2 x Socket 2011 Intel® Xeon® processor E5-2600 product family (135W) * QPI 6.4 / 7.2 / 8.0 GT/s |
---|---|
Core Logic | Intel® C602-A PCH |
Memory |
Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU) Capacity : Maximum up to 256GB LRDIMM Memory Type : DDR3, 1066/1333/1600, RDIMM DDR3, 1066/1333/1600, UDIMM DDR3, 1066/1333, LRDIMM Memory Size : 2GB, 4GB, 8GB, 16GB RDIMM 2GB, 4GB, 8GB UDIMM 8GB, 16GB, 32GB LRDIMM |
Expansion Slots |
Total Slot : 5 Slot Location 2 : PCI-E x8 (Gen2 X4 Link) Slot Location 3 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied Slot Location 4 : PCI-E x8 (Gen3 X8 Link) Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied Slot Location 6 : PCI-E x8 (Gen3 X8 Link), MIO supported Additional Slot 1 : PIKE Slot for Stroage expansion *1 Follow SSI Location# |
Form Factor | ATX (12"x10") |
ASUS Features |
FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise |
Storage |
SATA Controller : Intel® C602-A AHCI 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card ASUS PIKE 2108 8-port SAS2 6G RAID card ASUS PIKE 2208 8-port SAS 6G HW RAID card ASUS PIKE 9230 4-port SATA 6G RAID card |
Networking | 2 x Intel® 82574L + 1 x Mgmt LAN |
Graphic | Aspeed AST2300 with 16MB VRAM |
On Board I/O |
1 x TPM header 1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector *2 1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector*3 1 x USB connector*4 2 x USB pin header , Up to 4 Devices 8 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x Management Connector , Onboard socket for management card |

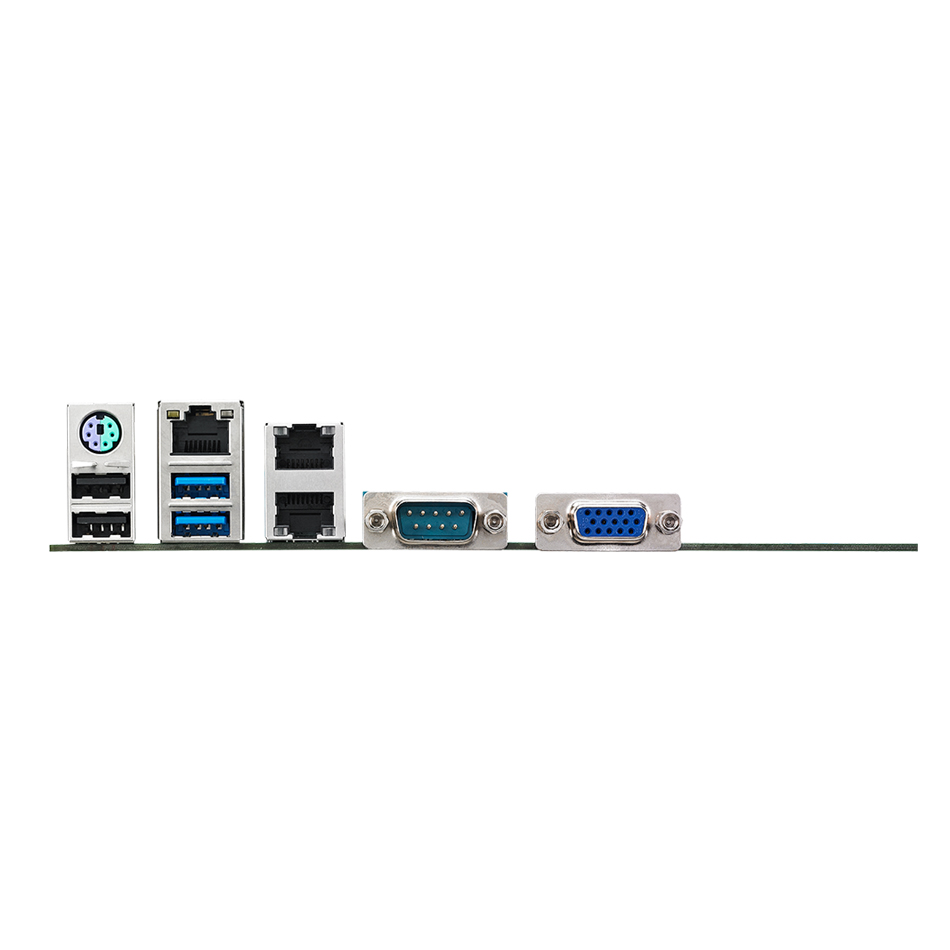

Back I/O Ports |
1 x External Serial Port 4 x External USB Port ?2 x USB 3.0, 2 x USB 2.0? 1 x VGA Port 2 x RJ-45 + 1 x Mgmt LAN 1 x PS/2 KB/Mouse |
Management Solution |
ASWM Enterprise Optional ASMB6-iKVM for KVM-over-Internet |
EMI |
US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) |
Environment |
Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
Accessories |
Gift Box Pack (1pcs per Carton): 6 x SATA Data Cables 1 x I/O Shield 1 x ASUS Mainboard Support CD 1 x ASWM Support CD 1 x User's Guide 1 x USB to SATA DOM Power cable Bulk Pack (10pcs per Carton): 1 x I/O Shield 1 x ASUS Mainboard Support CD 1 x ASWM Support CD 1 x User's Guide |
Product SKUs |
Standard Gift Box Pack Standard Bulk Pack |
Monitoring |
CPU Temperature Fan RPM |
Note |
* Refer to ASUS Server AVL for latest update *1 1* PIKE Slot for Storage expansion (Gen3 supported) *2 95W or below CPU only, Minimum requirement of ATX Power supply: 1) 500W 2) All +12V output ≧20A *3 Support Both ATX & SSI Power Supply *4 Type A USB socket |
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
