ASUS（エイスース） P8H61-MX USB3

USB 3.0ポートを搭載するH61採用バリューモデル

・JAN/UPC：0610839187010
・TEKWIND型番：ASU-P8H61-MX/USB3

【主な特長】

・Intel H61チップセット搭載
・Intel Core i7/i5/i3 CPU対応
・DDR3メモリ×2枚（最大16GB）対応
・DVI-D、D-Sub 15ピン
・x16 3.0/2.0スロット×1、x1 2.0スロット×2
・SATA 3Gb/s×4
・USB 3.0×2、USB 2.0×8
・1000BASE-T×1
・CPUファンを温度制御できるファンコン機能「Fan Xpert」
・スマートフォンを高速充電できる「Ai Charger+」
・グラフィカルで分かりやすい高機能BIOS「EFI BIOS」
・CPU内蔵GPUをオーバークロックする「GPU Boost」ツールを付属
・microATXフォームファクター

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

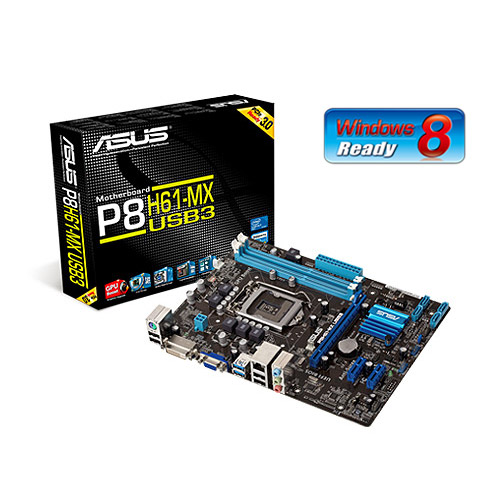

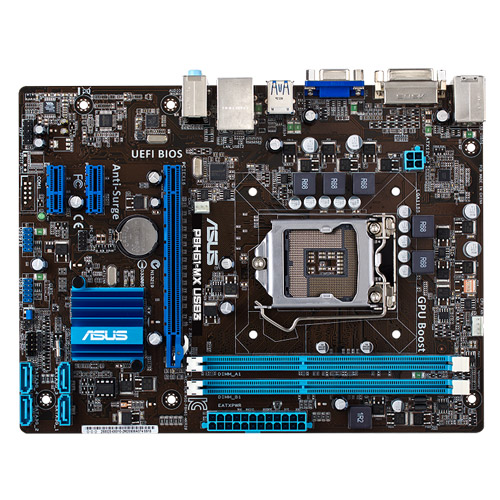

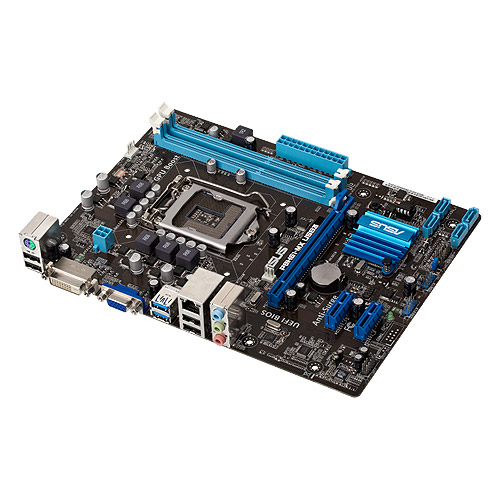

製品画像

スペック

CPU	Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU * Refer to www.asus.com for CPU support list
Chipset	Intel® H61(B3)
Memory	2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * 1600MHz and higher frequency is supported by Intel® 3rd generation processors. * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Graphic	Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Expansion Slots	1 x PCIe 3.0/2.0 x16 *1 2 x PCIe 2.0 x1
Storage	Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), blue
LAN	Realtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)
Audio	VIA VT1708S 8-Channel High Definition Audio CODEC - Supports : Multi-streaming
USB Ports	Intel® H61(B3) chipset : 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) ASMedia® ASM1042 controller : 2 x USB 3.0 port(s) (2 at back panel, )
Special Features	ASUS Protect Technology : - Anti-Surge Protection GPU Boost ASUS Exclusive Features : - Ai Charger+ - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl ASUS Quiet Thermal Solution : - ASUS Fan Xpert - ASUS Q-Fan 2 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2

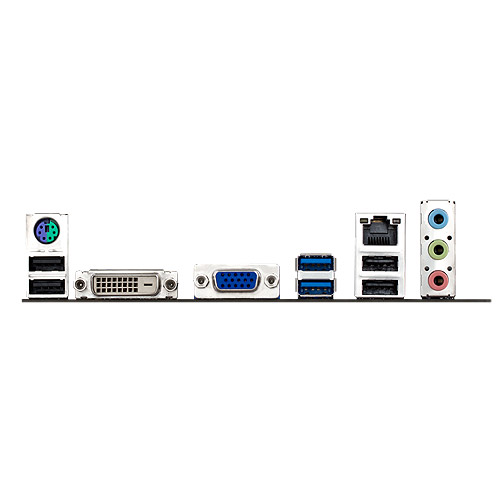

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.0 (blue) 4 x USB 2.0 3 x Audio jack(s)
Internal I/O	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s)
Accessories	User's manual I/O Shield 2 x SATA 3Gb/s cable(s)
BIOS	64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a
Manageability	WOL, PXE, PME Wake Up
Support Disc	Drivers ASUS Utilities ASUS Update Anti-Virus Software (OEM Version)
Form Factor	uATX Form Factor 9.6 inch x 7.2 inch ( 24.4 cm x 18.3 cm )
Note	*1: PCIe 3.0 speed is supported by Intel ® 3rd generation processors.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
