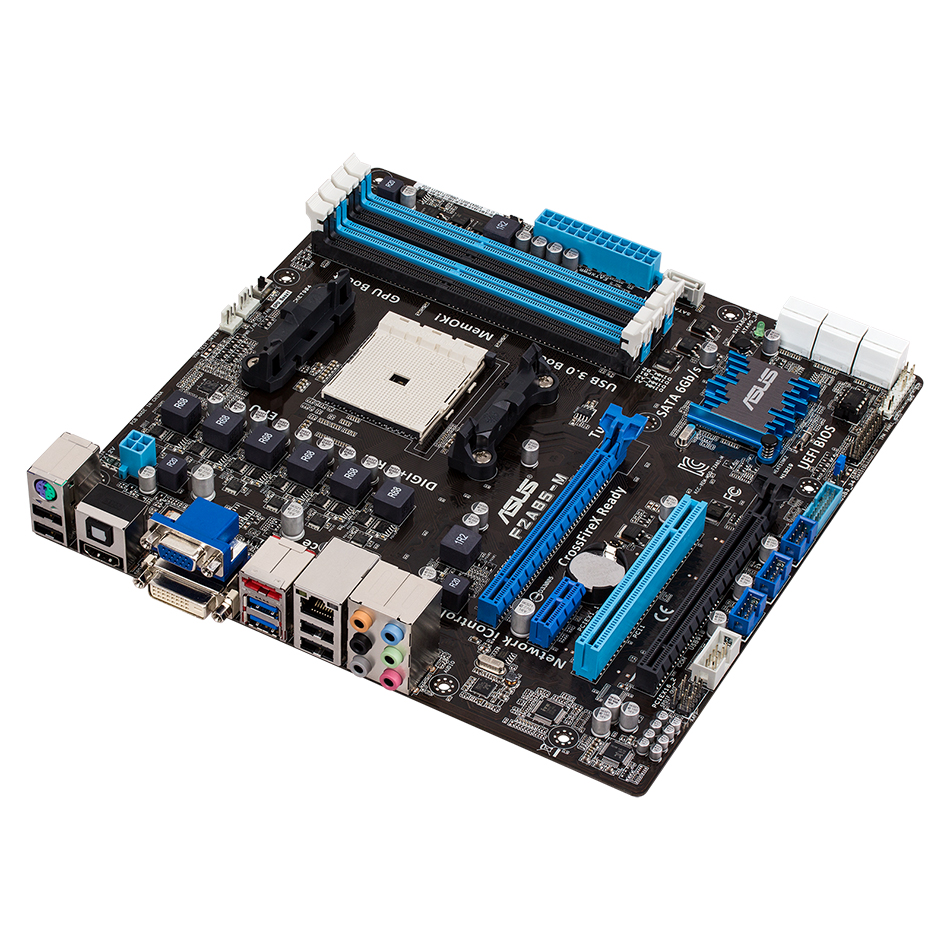

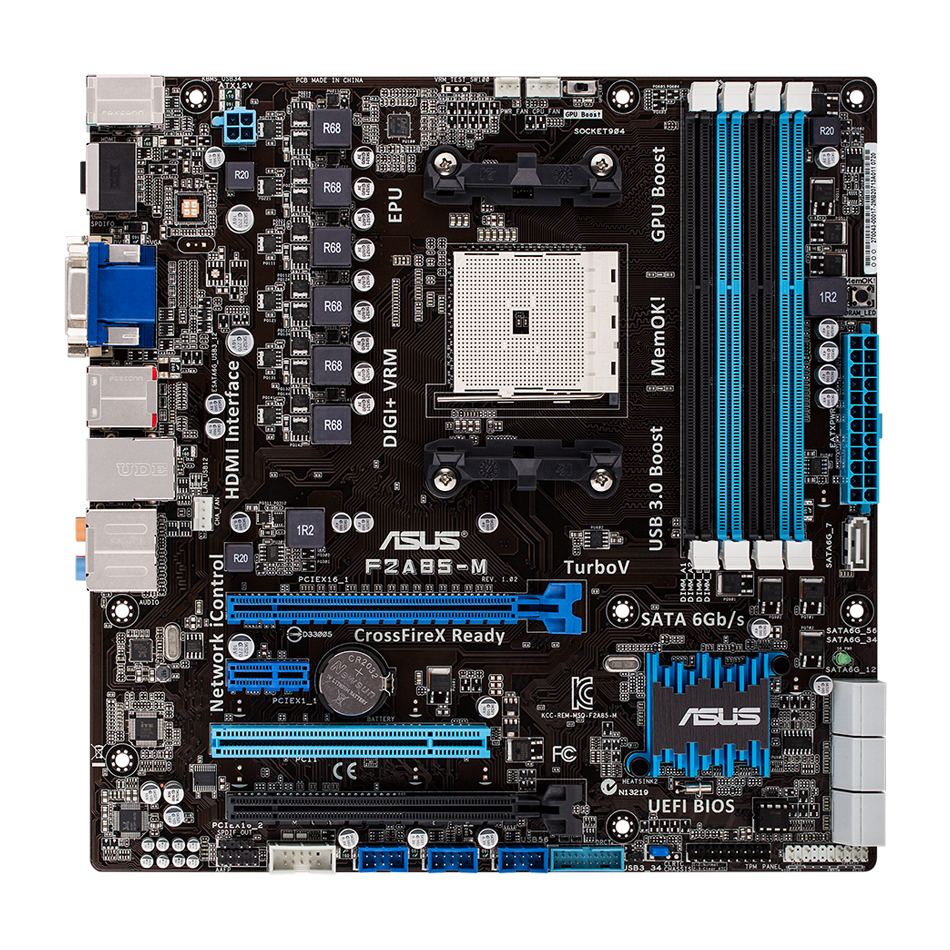

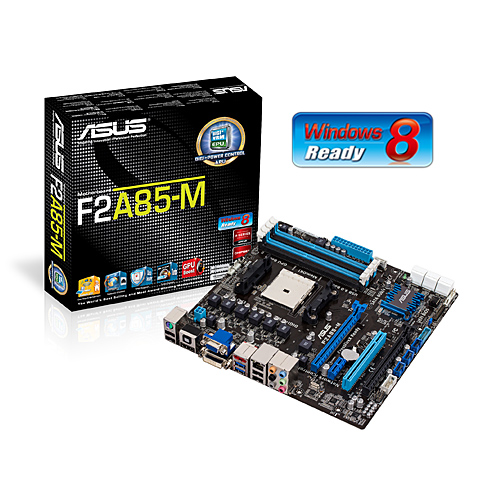

AMD最新APU「Trinity」に対応した「AMD A85」搭載モデル
デジタル電源回路と高性能ファンコン機能を搭載
・JAN/UPC：0886227317370
・TEKWIND型番：ASU-F2A85-M
【主な特長】
・AMD A85X FCHチップセット搭載
・Socket FM2:AMD AシリーズAPU対応
・DDR3メモリ×4枚（最大64GB）対応
・HDMI×1、DVI-D×1、D-Sub 15ピン×1
・x16 2.0スロット×2 (x16/x4) 、x1 2.0スロット×1、PCI×1
・SATA 6Gb/s×7、eSATA 6Gb/s×1
・1000BASE-T×1
・USB 3.0×4、USB 2.0×10
・デジタル電源回路（4＋2フェーズ）
・マザーボードの電力を集中管理する電力制御チップ「EPU」
・microATXフォームファクター
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU |
AMD Athlon™/A- Series Processors Supports CPU up to 4 cores Supports AMD® Turbo Core 3.0 Technology |
|---|---|
| Chipset | AMD A85X FCH(Hudson D4) |
| Memory |
4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Support AMD Memory Profile (AMP) memory * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic |
Integrated AMD Radeon™ HD 7000 Series Graphics in A-series APU Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz Maximum shared memory of 2048 MB AMD® Dual Graphics technology support *1 Supports DirectX 11 |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots |
2 x PCIe 2.0 x16 (x16/x4) 1 x PCIe 2.0 x1 1 x PCI |
| Storage |
AMD A85X FCH(Hudson D4) chipset : 7 x SATA 6Gb/s port(s), gray 1 x eSATA 6Gb/s port(s), red Support Raid 0, 1, 5, 10, JBOD |
| LAN | Realtek® 8111F, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| USB Ports |
AMD A85X FCH(Hudson D4) chipset : 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board) AMD A85X FCH(Hudson D4) chipset : 10 x USB 2.0 port(s) (4 at back panel, , 6 at mid-board) |
| Overclocking Features |
Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
| Special Features |
ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 4 +2 Phase Power Design - CPU Power Utility TurboV GPU Boost ASUS Exclusive Features : - Remote GO! - MemOK! - AI Suite II - Ai Charger - Anti-Surge - ESD Guards - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors |

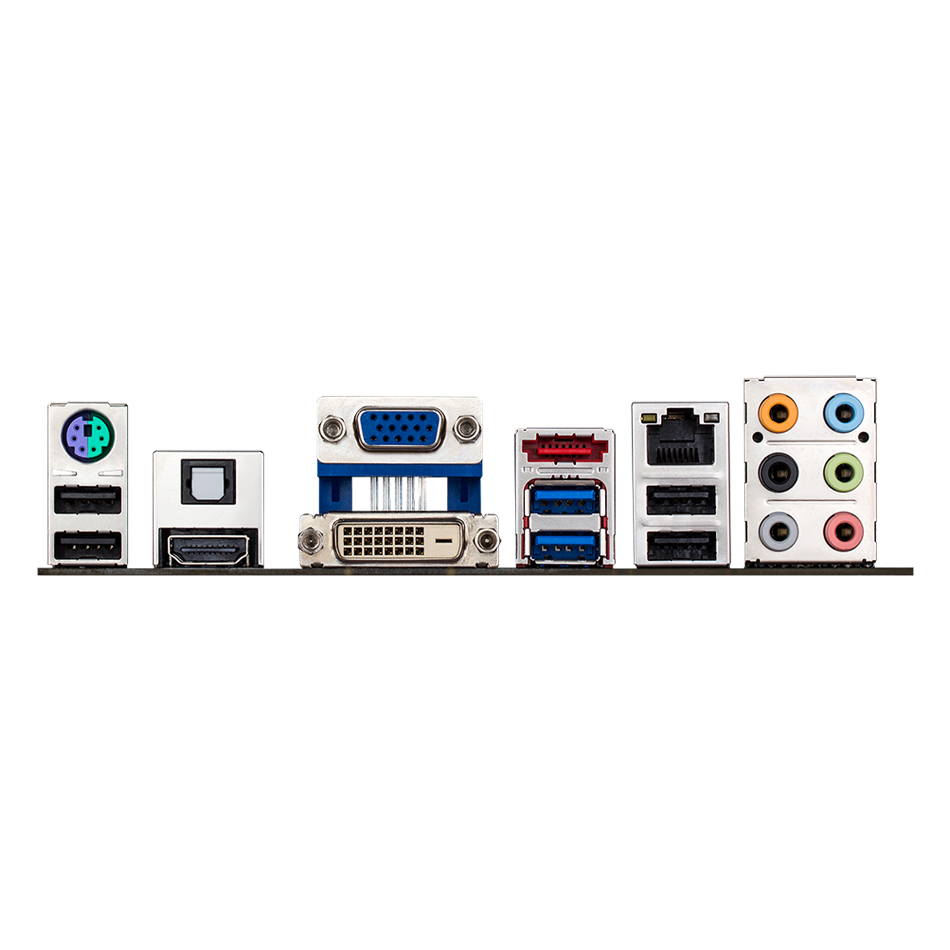

| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x eSATA 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
| Internal I/O Ports |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 7 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x Chassis Fan connector(s) (4 -pin) 1 x Power Fan connector(s) (3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x GPU Boost switch(es) |
| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Support Disc | Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version) |
| Form Factor |
uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Note | *1 Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology |
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
