販売終了 サポート終了

Intel Z77チップセット採用 THUNDERBOLT搭載のATXマザーボード

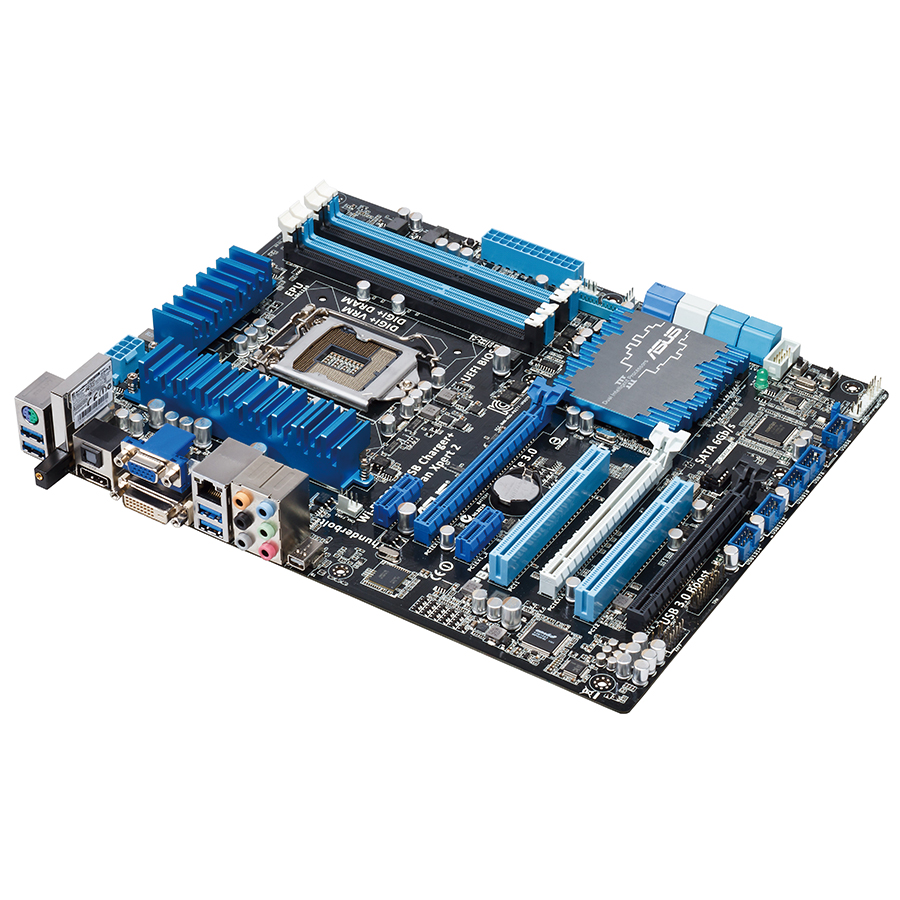

P8Z77-V PRO/THUNDERBOLT

JAN/UPC:0610839187256
TEKWIND型番:ASU-P8Z77-V/PRO/THUNDERBOLT

【主な特長】

・Dual Intelligent Processors 3 with SMART DIGI+ Power Control
・SMART DIGI+ - Get a Blazing Performance Boost and CPU Wattage Requirements Cut in Half!
・Thunderbolt onboard - Blistering-fast Data Transfer and Daisy Chain Expansion
・Wi-Fi GO! - DLNA Streaming and Remote Desktop Made Easy
・Fan Xpert 2 - The Most Customizable Fan Controls\
・USB 3.0 Boost - Faster USB 3.0 Transmission with UASP(170%)


製品についてお気軽にお問い合わせください

この製品を問い合わせる

製品画像

スペック

CPU Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® Z77
Memory 4 x DIMM, Max. 32GB, DDR3 2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Thunderbolt VGA output support
Data transfer rate up to 10 Gbps
Daisy-chain up to 6 Thunderbolt devices
Graphic Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB/Thunderbolt ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
- Supports Thunderbolt with max. resolution 2560 x 1600 @ 60 Hz
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology *1
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *2
Expansion Slots 3 x PCIe 3.0/2.0 x16 *3
2 x PCIe x1 *4
2 x PCI
Storage Intel® Z77 chipset : *5
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *5
ASMedia® PCIe SATA controller : *6
2 x SATA 6Gb/s port(s), navy blue
LAN Intel® 82579V, 1 x Gigabit LAN Controller(s)
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Wireless Data Network Wi-Fi 802.11 b/g/n
Supports single band frequency 2.4GHz
Audio Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
USB Ports ASMedia® USB 3.0 controller : *7
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® Z77 chipset : *8
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z77 chipset :
10 x USB 2.0 port(s) (10 at mid-board)
Overclocking Features Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control :
SMART DIGI+ :
- Smart DIGI+ Key- quickly delivers higher VRM frequency, voltage and current for superior CPU/iGPU/DRAM overclocking performance with one switch.
- Smart CPU Power Level (Intel® VRD 12.5 Future Power Design)- provides the best digital power saving conditions.
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 12 Phase Power Design
(8 -phase for CPU, 4 -phase for iGPU)
- Industry leading Digital 2 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
- Wi-Fi GO! Remote for portable Smartphone/Tablet, supporting iOS & Android systems
- Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite II
- Ai Charger+
- USB Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

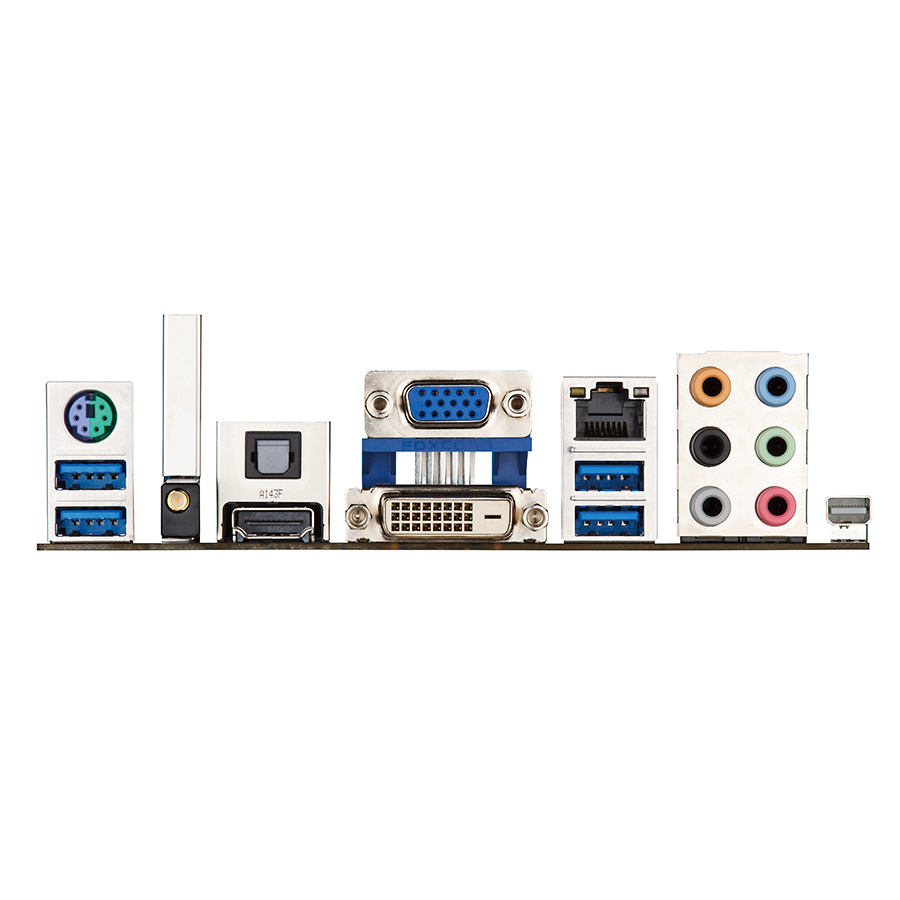

Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x Thunderbolt port(s) *9
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x WLAN connector(s) for ASUS wireless module
Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
5 x USB 2.0 connector(s) support(s) additional 10 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x CPU/DRAM overvoltage jumper(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)

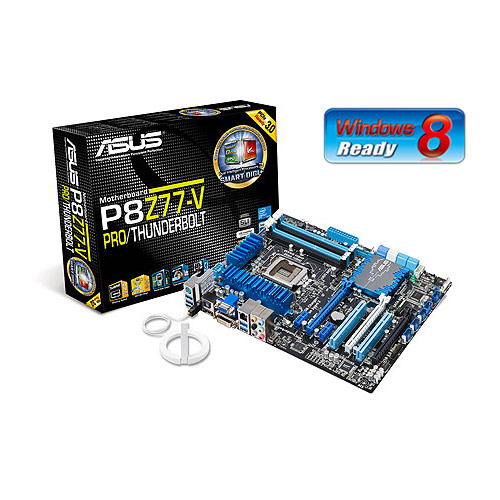

Accessories User's manual
ASUS Q-Shield
2 x SATA 3Gb/s cable(s)
2 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB 2.0 and eSATA module(s)
1 x ASUS Wi-Fi GO! card(s)
1 x Wi-Fi Ring Moving Antenna(s)
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note *1: With 2 PCIex16 graphics cards
*2: LucidLogix Virtu MVP supports Windows® 7 operating systems.
*3: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors. Install the Ivy Bridge CPU before installing a device on the PCIeX16_3 slot.
*4: The PCIe x1_2 slot shares bandwidth with SATA6G_E12. SATA6G_E12 is enabled by default for system resource optimization.
*5: Supports on Intel® Core™ processor family with Windows® 7 operating systems.
*6: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
*7: Supports ASUS USB 3.0 Boost UASP Mode.
*8: Supports ASUS USB 3.0 Boost Turbo Mode.
*9: Thunderbolt port shares bandwidth with SATA6G_E12, USB3_E12 and PCIeX1_2. The Thunderbolt port default runs at X2(Auto) mode, SATA6G_E12 and USB3_E12 are enabled for system resource optimization. Go to Advanced> Onboard Devices Configuration> Thunderbolt bandwidth in BIOS to configure the bandwidth to [X4] for full speed support.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
