- マザーボード
- Super X13DEG-QT

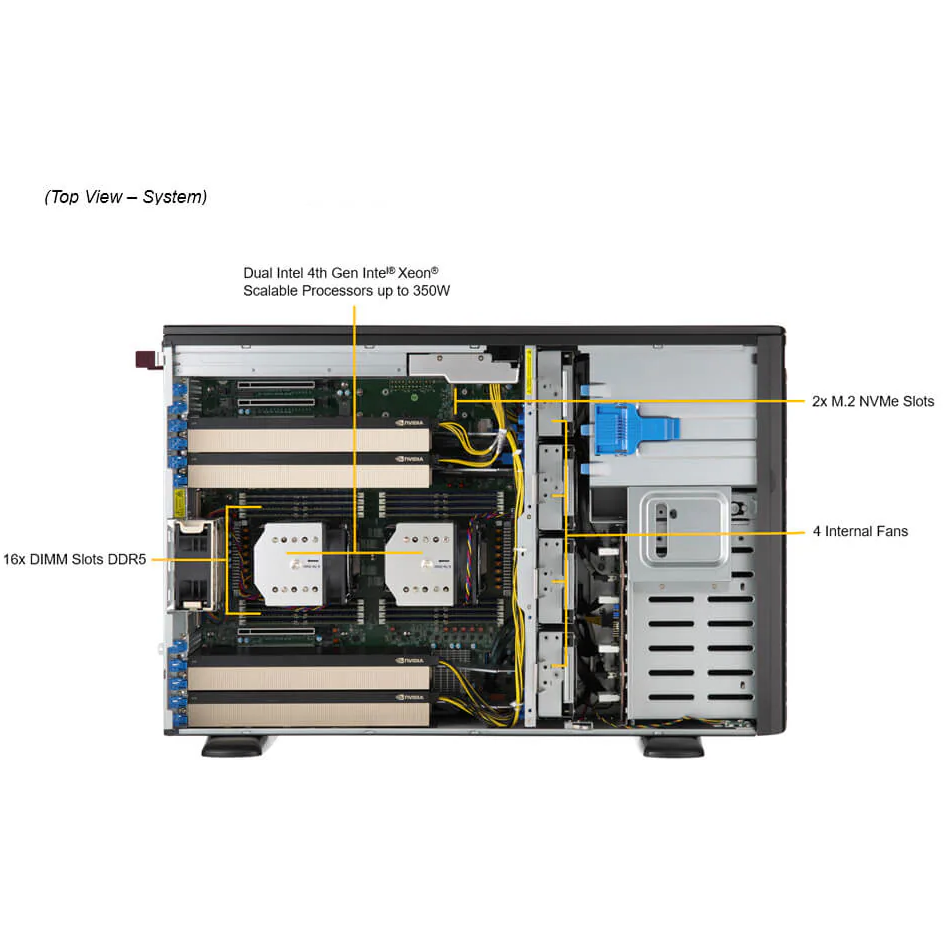

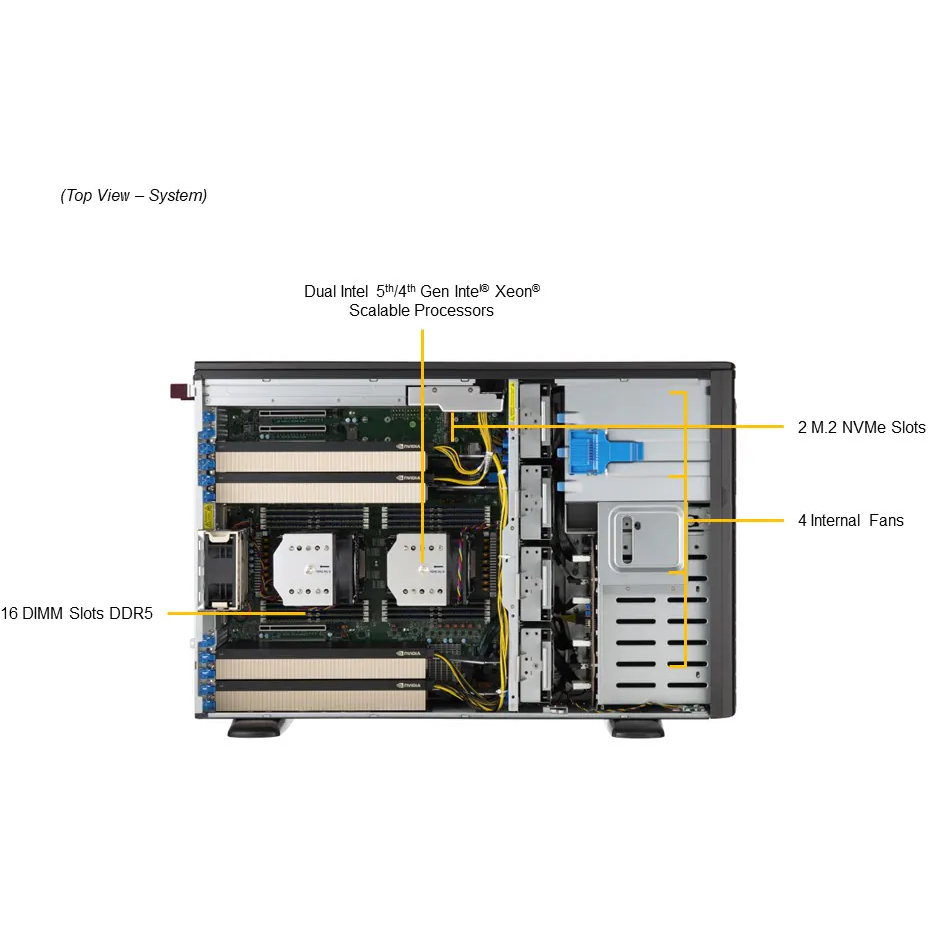

- プロセッサー_CPU
- Dual Socket E (LGA-4677)
- プロセッサー_コア
- Up to 64C/128T; Up to 320MB Cache per CPU
- プロセッサー_備考
- Supports up to 350W TDP CPUs (Air Cooled)
- GPU_最大GPU数
- Up to 4 double-width or 7 single-width GPU(s)
- GPU_動作検証済み GPU
- AMD PCIe: Instinct MI210
NVIDIA PCIe: H100,RTX A5500,RTX A4000,L4,A30,L40,RTX A6000,RTX 6000 ADA,L40S,A100 - GPU_CPU-GPUインターコネクト
- PCIe 5.0 x16 CPU-to-GPU Interconnect
- GPU_GPU-GPUインターコネクト
- NVIDIA® NVLink® Bridge (optional)
- システムメモリー_メモリー
- Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM - システムメモリー_メモリー電圧
- 1.1 V
- オンボードデバイス_SATA
- SATA3 (6Gbps); RAID 0/1/5/10 support
- オンボードデバイス_チップセット
- Intel® C741
- オンボードデバイス_IPMI
- Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - オンボードデバイス_ネットワーク接続
- 2x 10GbE BaseT with Intel® X550-AT2
- 入出力_ビデオ
- 1 VGA port(s)
- BIOSタイプ
- AMI 32MB SPI Flash EEPROM
- 電源構成
- ACPI Power Management
Power-on mode for AC power recovery - ソフトウェア
- IPMI 2.0
KVM with dedicated LAN
Super Diagnostics Offline
SuperDoctor® 5
Supermicro Update Manager (SUM)
Supermicro Power Manager (SPM)
Supermicro Server Manager (SSM)
Redfish API - セキュリティ_ハードウェア
- Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant - PCヘルスモニタリング_CPU
- 8+4 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory - PCヘルスモニタリング_ファン
- Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control - PCヘルスモニタリング_温度
- Monitoring for CPU and chassis environment
Thermal Control for fan connectors - シャーシ_形状
- Tower Rackmount
- シャーシ_型式
- CSE-749TS-R2K05BP
- 寸法と重量_高さ
- 178mm
- 寸法と重量_幅
- 437mm
- 寸法と重量_奥行き
- 737mm
- 寸法と重量_パッケージ
- 27" (H) x 13" (W) x 38" (D)
- 寸法と重量_総重量
- Net Weight: 46 lbs (20.9 kg)
Gross Weight: 62 lbs (28.1 kg) - 寸法と重量_色
- Black Front & Silver Body

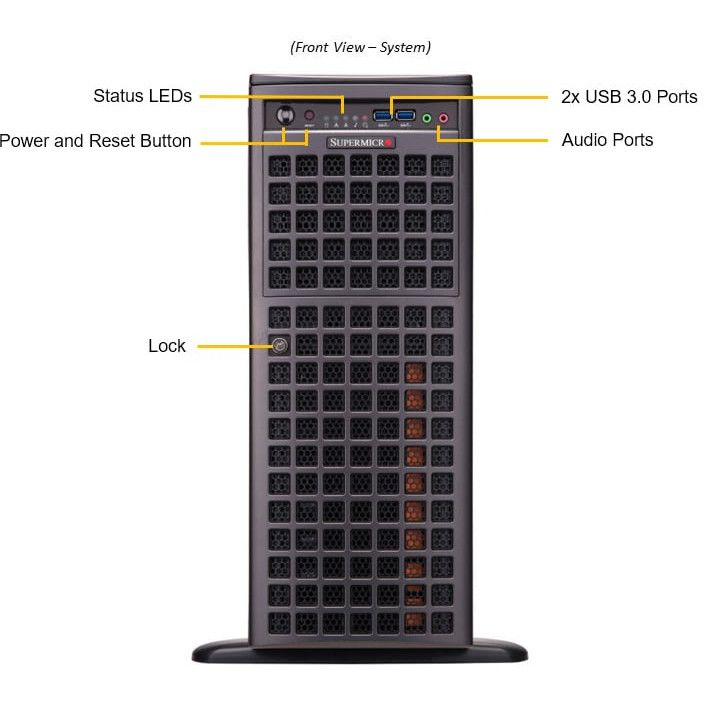

- フロントパネル_ボタン
- Power On/Off button
System Reset button - フロントパネル_LED
- Hard drive activity LED
Network activity LEDs
Power status LED

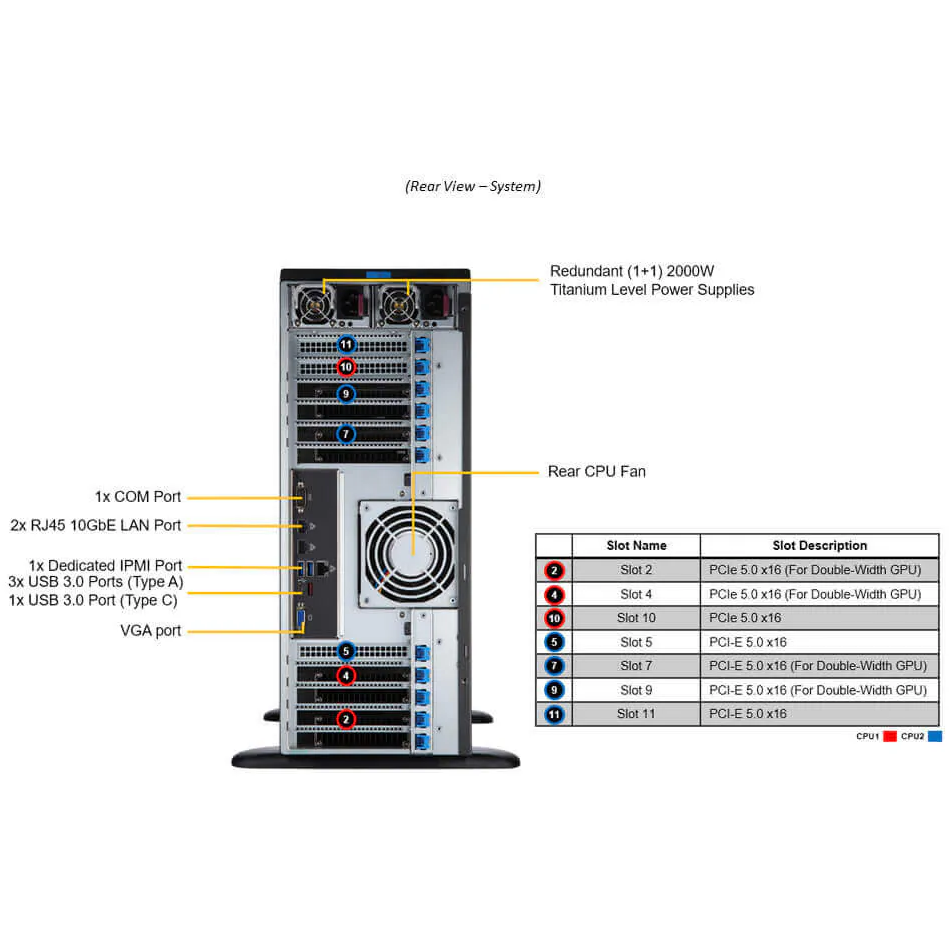

System Overheat & Power Fail LED - 拡張スロット_PCI-Express
- 7 PCIe 5.0 x16 FHFL slot(s)

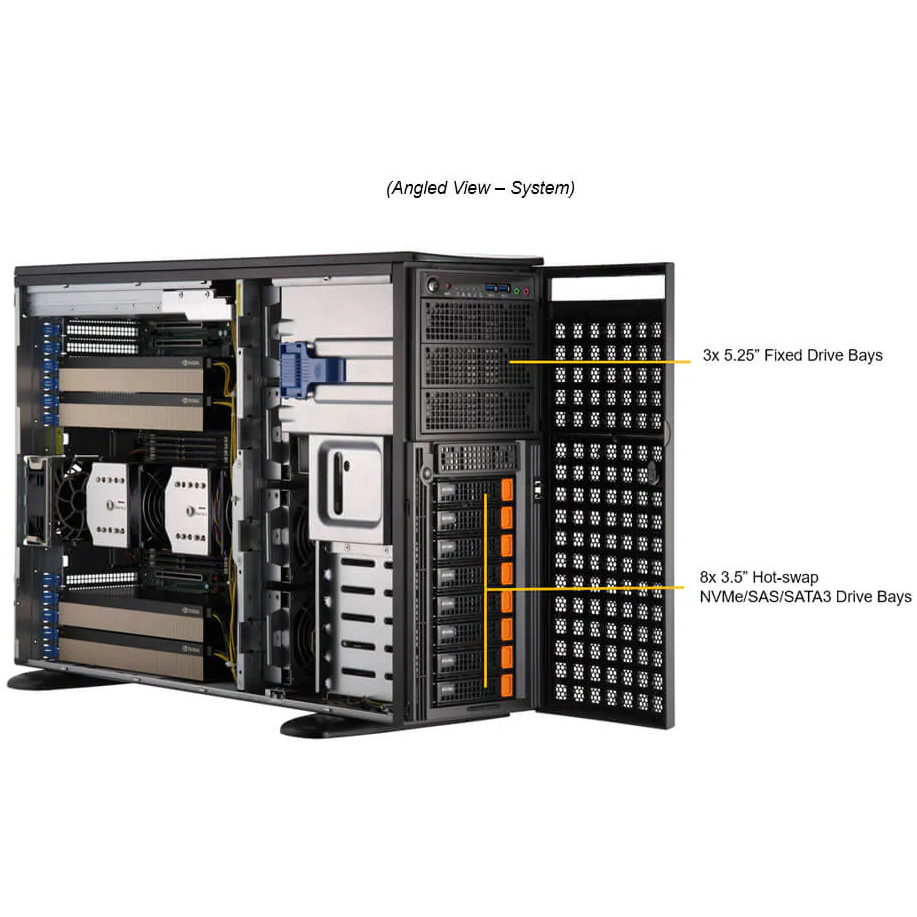

- ドライブベイ/ストレージ_ホットスワップ
- 8x 3.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid)
- ドライブベイ/ストレージ_M.2
- 2 M.2 NVMe
- ファン
- 4 heavy duty fans with optimal fan speed control
- 電源
- 2000W Redundant Titanium Level power supplies
- 電源の寸法
- 73.5 x 40 x 265 mm
- AC入力
- 1000W: 100-120Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz - +12V
- Max: 83.3A / Min: 0A (100Vac-120Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166.7A / Min: 0A (230Vac-240Vac) - 12V SB
- Max: 2.1A / Min: 0A
- 出力タイプ
- Backplanes (gold finger)
- 動作環境
- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
