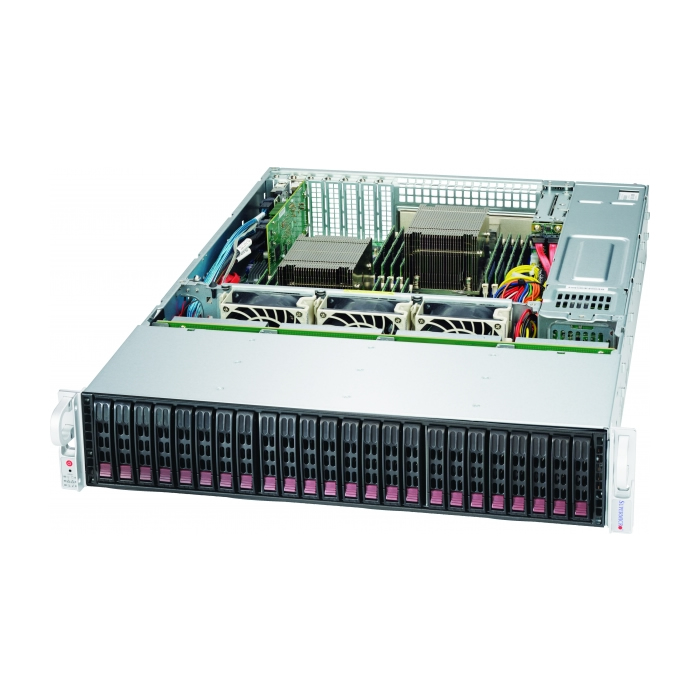

2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
・JAN/UPC:0672042148080
・メーカー型番:CSE-216BE1C-R920LPB
・TEKWIND型番:SPM-CSE-216BE1C-R920LPB/1Y
【主な特徴】
・2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
・24 x 2.5" hot-swap SAS/SATA drive bay,
optional 2 x 2.5" hot-swap drive bay
・24-port 2U SAS3 12Gbps single-expander backplane,
support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
・1U 920W Redundant Platinum Super Quiet power supply W/PMbus
・7 low-profile expansion slot(s)
・3 x 8cm high-performance PWM fan(s)
・Optional 5 x 6cm 4pin high performance fan(s)
スペック
サイズ | 437mm x 89mm x 630mm |
---|---|
シリーズ | SuperChassis |
規格 | 2U chassis |
重量 | GW: 24kg |
搭載電源 | 920W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC |
特記事項1 | dual, single Intel / AMD processors |
シャーシーに関連する導入事例
導入事例はありません。
