カテゴリー:
サーバー・ワークステーション > シャーシー
10-port 1U TQ (W/ AMI 9072) backplane,
support up to 10x 2.5-inch SAS/SATA HDD/SSD
・JAN/UPC:0672042105533
・メーカー型番:CSE-116TQ-R700WB
・TEKWIND型番:SPM-CSE-116TQ-R700WB/1Y
【主な特徴】

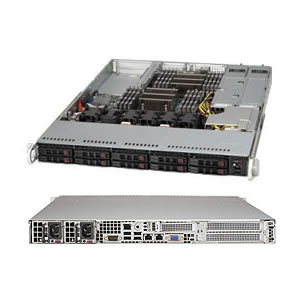

・23.5" Depth 1U Rackmount Chassis
supports for maximum motherboard sizes of 12" x 13" Optimized for WIO (W series) motherboards
・10 x 2.5" hot-swap SAS/SATA drive bay
・SAS or enterprise SATA HDD only recommended
・10-port 1U TQ (W/ AMI 9072) backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD
・1U 700/750W hot swap redundant power supply.
・2 full height expansion slot(s) (Riser Card Required),
1 low-profile expansion slot(s) (Riser Card Required)
・4 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fans for AOC cooling
スペック
サイズ | 43mm x 437mm x 597mm |
---|---|
シリーズ | SuperChassis |
規格 | 1U chassis |
重量 | GW: 18.2kg |
搭載電源 | 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C |
特記事項1 | dual, single Intel / AMD processors |
