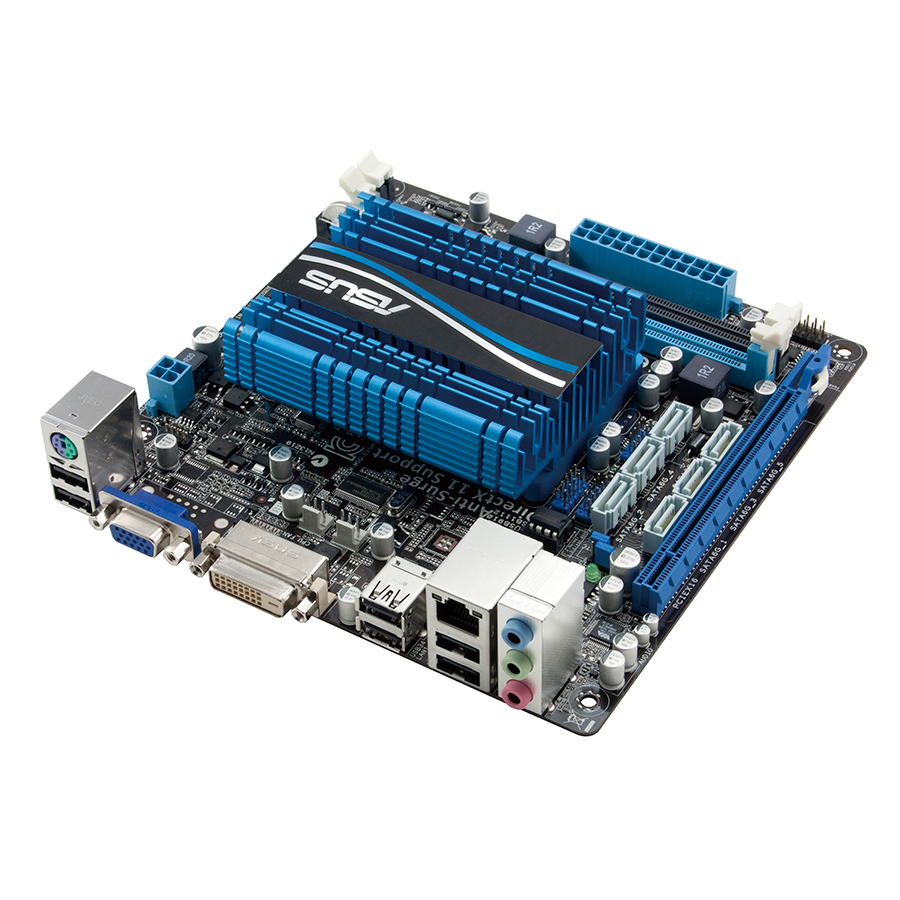

ASUS（エイスース） C60M1-I

ノートパソコン向けデュアルコアCPUのC-60とDirectX 11対応GPUのRadeon HD 6290を搭載
低消費電力でファンレス仕様のMini-ITXマザーボード

・JAN/UPC：0610839186068
・TEKWIND型番：ASU-C60M1-I

【主な特長】

・AMD C-60 CPUをオンボード搭載
・AMD A50M FCHチップセット搭載
・AMD Radeon HD 6290グラフィックス機能搭載
・DDR3メモリ×2枚（最大8GB）対応
・x16 2.0スロット×1
・SATA 6Gb/s×6
・DVI-D、D-Sub 15ピン
・1000BASE-T×1
・USB 2.0×12
・静音PCに最適なファンレス仕様
・CPU＋ケースファンを温度制御できるファンコン機能「Q-Fan 2」
・スマートフォンを高速充電できる「Ai Charger」
・マザーボード搭載機能を集中管理できる高機能統合ツール「AI Suite II」
・初心者モードと上級者モードを備える高機能BIOS「EFI BIOS」
・Mini-ITXフォームファクター

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

製品画像

スペック

CPU	AMD Fusion APU C-60 1.0GHz Dual-Core onboard Processors
Chipset	AMD FCH A50M (Hudson M1)
Memory	2 x DIMM, Max. 8GB, DDR3 1066/800 MHz Non-ECC, Un-buffered Memory Single Channel Memory Architecture * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Graphic	Integrated ATI Radeon™ HD 6290 GPU Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Expansion Slots	1 x PCIe 2.0 x16 (x4 mode)
Storage	Built-in Controller : 6 x SATA 6Gb/s port(s), gray
LAN	Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio	VIA VT1708S 8-Channel High Definition Audio CODEC
USB Ports	Built-in Controller : 12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)
Special Features	ASUS Exclusive Features : - AI Suite II - Ai Charger - Anti-Surge - Network iControl ASUS Quiet Thermal Solution : - ASUS Fan Xpert - ASUS Q-Fan 2 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors

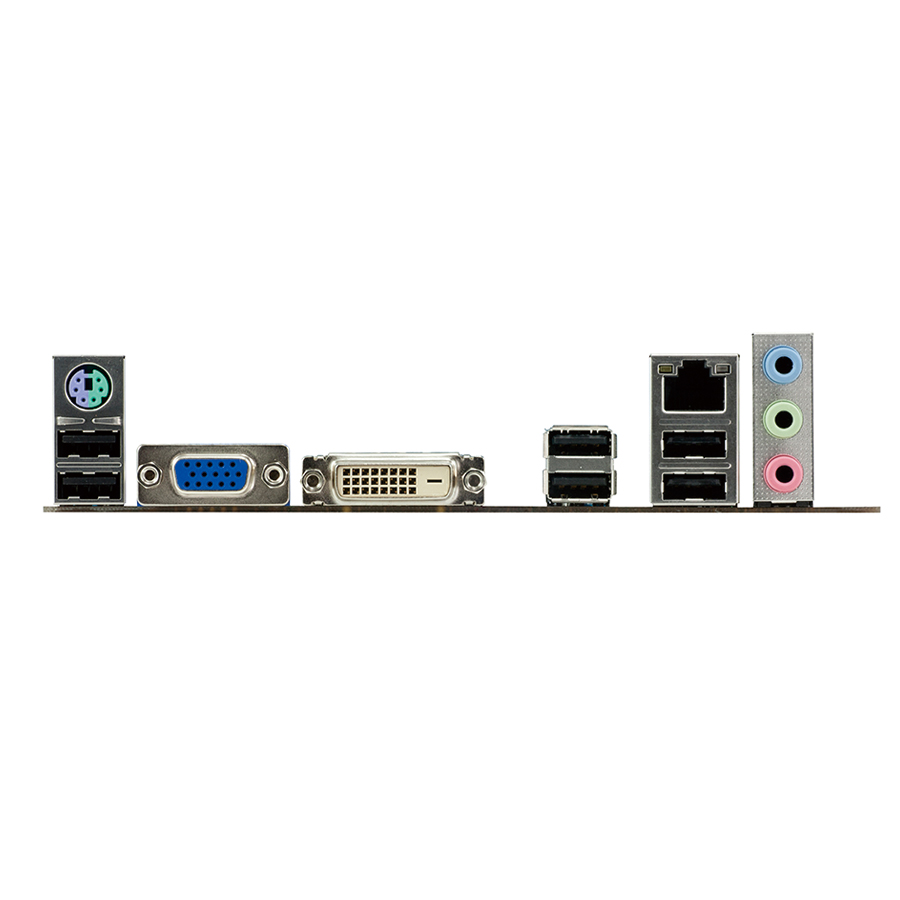

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s)

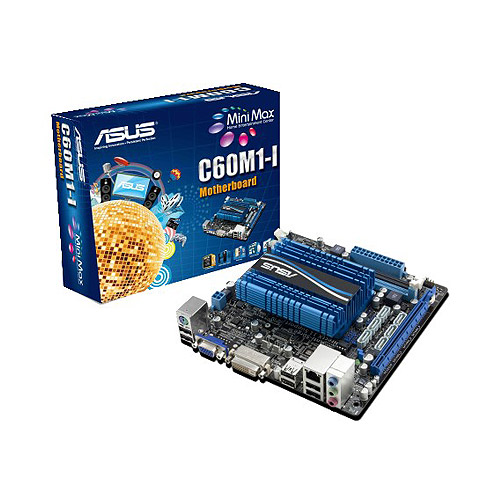

Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s)
BIOS	32Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5
Support Disc	Drivers ASUS utilities ASUS Update Anti-virus software (OEM version)
Form Factor	Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
