型番 |
SST-TJ08B-E(ブラック)
SST-TJ08B-EW (ブラック + ウィンドウ) |
材質 |
アルミニウムフロントパネル, steel body |
マザーボード |
Micro-ATX, Mini-DTX, Mini-ITX |
ドライブベイ |
外部 |

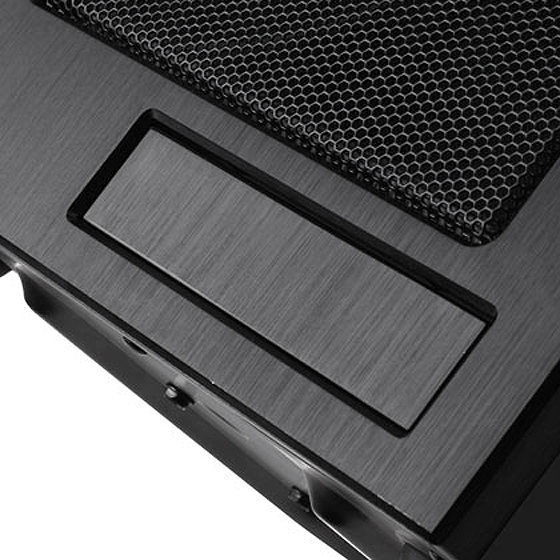

5.25" x 2 |
3.5" x 1 (compatible with one 3.5” hard dirve) |
内部 |

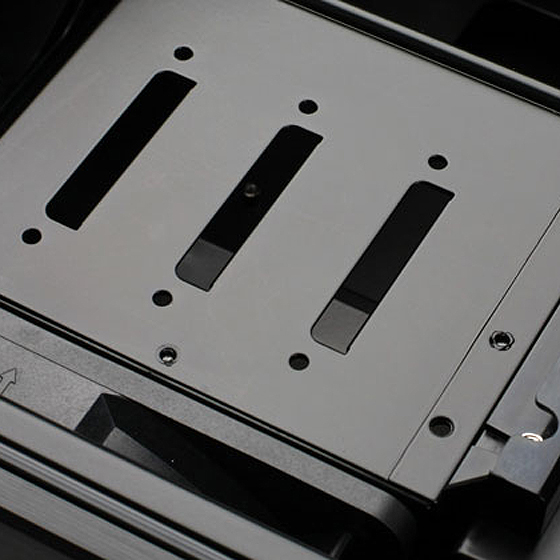

3.5" x 4 , 2.5” x1 |
冷却システム |
前面 |

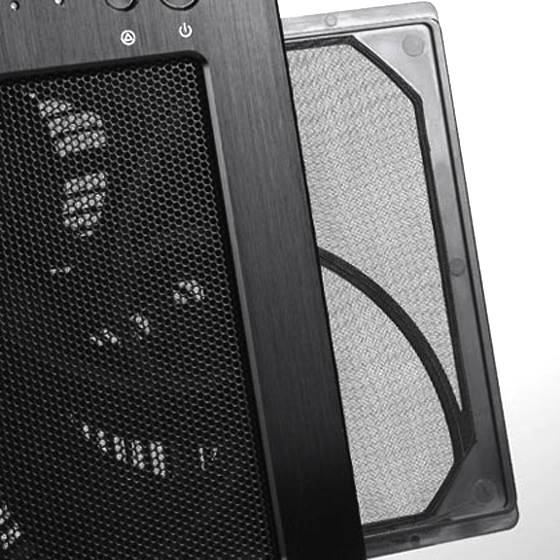

1 x 180mm AP181 intake fan, 700/1200rpm, 18/34dBA (backwards compatible with 140mm fan) |
背面 |
1 x 120mm fan slot (option) |
サイド |
-- |
トップ |
-- |
底面 |
-- |
内部 |
-- |
対応ラジエター |
前面 |
N/A |
背面 |
120mm x 1 |
トップ |
N/A |
底面 |
N/A |
拡張スロット |
4 |

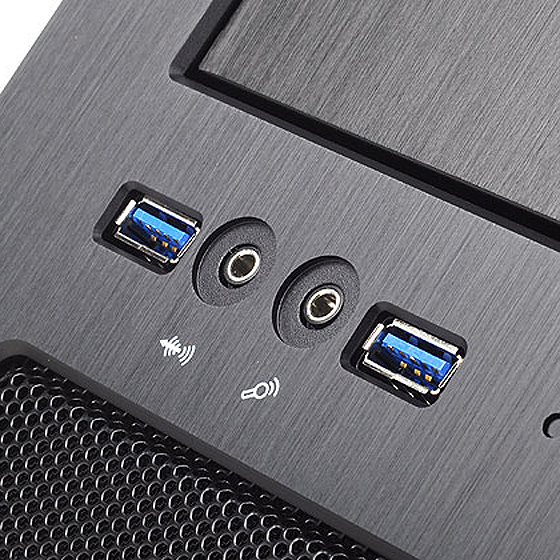

フロント I/O ポート |
USB 3.0 x 2 (backwards compatible with USB 2.0)
Audio x 1
MIC x 1 |
電源 |
1 x optional standard PS2(ATX) up to 160mm |
グラフィックス カード |
拡張13.25" (336mm)グラフィックスカード装着可能,幅の制限-6.69" (169mm)* |
CPUクーラーの限度 |
165mm |
PSUの限度 |
160mm (recommended), 180mm (maximum) |
実重量 |
5.3 kg |

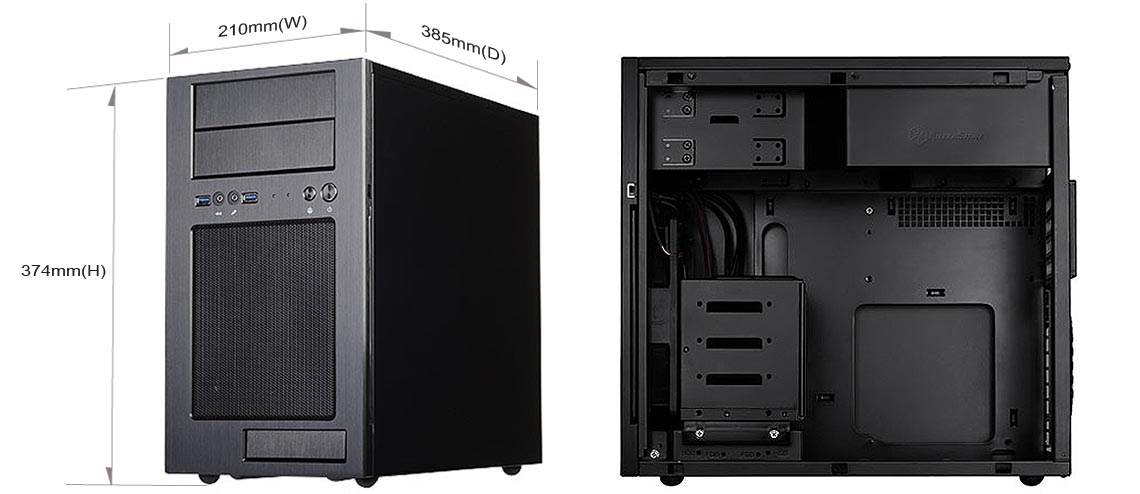

寸法 |
210mm(W) x 374mm(H) x 385mm(D), 30.2 リットル |
その他 |
support two Kensington locks |
備考*1. The maximum recommended combined depth for PSU and optical drive is 382mm plus 20mm room for connectors. We recommend the largest PSU to be no greater than 160mm deep (e.g.
ST1000-P)
*2. Please install into expansion slots 3 and 4 for graphics card with extension bracket and length of 13.3”
