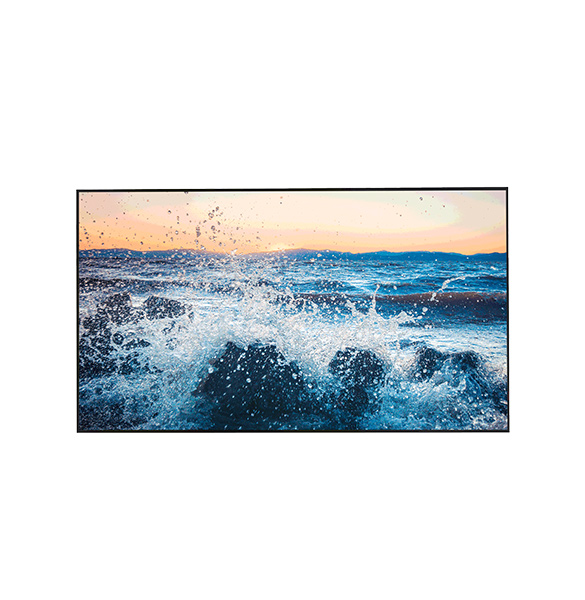

LDH43-HAI400K
商業施設や公共スペースでの情報表示に最適な43インチ壁掛けデジタルサイネージディスプレイ。
- カテゴリー
LDH43-HAI400Kの主な特長
- 高品質パネル、産業グレードのデザイン、全金属製の筐体:耐久性と信頼性の高いディスプレイを提供します。
- Dahua MPSプラットフォーム:システムインテグレーターやメディアオペレーターのための統合リモート管理を実現します。
- 強力な4コアプロセッサ:優れたデコーディング能力を持ち、高品質なディスプレイ性能を提供します。
- 複数の取り付けモード:さまざまなプロジェクト要件に対応します。
- 内蔵メディアプレーヤーソフトウェアとUSBプレーヤー:コンテンツの再生方法を複数提供します。
製品仕様 SPEC
Display
Model
LDH43-HAI400K
Backlight
LED
Screen Size
43''
Aspect Ratio
16:09
Resolution
3840×2160
Display Colors
1.07B(10 bits)
Brightness
700 cd/m²
Contrast Ratio
4000:1
Viewing Angle(H×V)
178°/178°
Display Mode
Landscape/Portrait
Response Time
9.5ms
Connectivity
Input
RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, Audio In×1
External Control
IR, RJ45(LAN), USB
Wi-Fi
Optional
Speaker
5W×2
Smart Signage Platform
Media Publish System 3.0
Power & Environmental Conditions
Power Supply
AC100-240V, 50/60Hz
Type
Internal
Consumption(Typical)
105W
Consumption(Standby)
Less than 0.5W
Operating Temperature
0℃~+40℃ (32℉~104℉)
Operating Humidity
10%~85%
Mechanical Specification
Dimensions
956mm×546mm×69.9mm
Package
1085x150x693mm
Bezel Width
4.5mm
Net Weight
18kg (44.09lb)
Gross Weight
20kg (48.50lb)
Accessory
Included in Box
Power cord, VESA bracket
VESA Mount
400mm × 400mm
Internal Player
Processor
Quad-core Cortex-A17 up to 1.6GHz
Operating System
Android 8.1
RAM
2GB
Storage
16GB
Material Type
Video, audio, image, time, weather, countdown, txt, web page, stream media, pdf
Video
mp4,avi,mov,asf,wmv,mkv
A single file can upload up to 2G, and the resolution cannot exceed 4K
A single file can upload up to 2G, and the resolution cannot exceed 4K
Audio
mp3,wma,wav
A single file can upload up to 500M
A single file can upload up to 500M
jpg,jpeg,gif,bmp,png
A single file can upload up to 30M, and the resolution cannot exceed 4K
A single file can upload up to 30M, and the resolution cannot exceed 4K
Documents
pdf, doc, docx, ppt, pptx, xls, xlsx and txt.
A single filecan can upload up to 200 MB
A single filecan can upload up to 200 MB
Decoding Capacity
1CH H265 4K@60/2CH H264 4K@25/2CH H265 1080P@30&2CH H264 1080P@25/4CH H265 1080P@30/2CH H264 1080P@25
