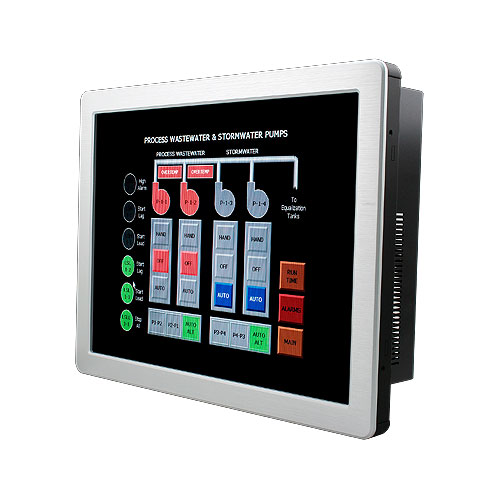

15”多機能 タッチパネル PC
・JAN/UPC：4717677408270
・メーカー型番：LPC-15P5-525-A1R
・TEKWIND型番：AVA-LPC-15P5
・ Intel® Atom™ D525 1.8 GHz CPU
・ DDR3 SDRAM対応 204ピン SODIMMソケット x1(最大4GB)
・ USB x4、COM x2、VGA
・ デュアル Intel® 82583V Gigabitイーサネット、
・ 1W x 2 スピーカー
・ +12V単一電源入力
・ PCI x1、Mini PCIe x1
・ フロントパネル：IP65準拠
・ 寸法 (W x D x H) ：350 x 274 x 88.6mm
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
Panel
| LCD Size | 15”, 4:3 |
|---|---|
| Display Type | XGA |
| Resolution | 1024 x 768 |
| Pixel Pitch | 0.297mm (H) x 0.297mm (V) |
| Luminance | 400cd/m² |
| Contrast Ratio | 700 |
| Viewing Angle | 60 (U), 80 (D), 80 (L), 80 (R) |
| Response Time | 8ms |
| Touch Screen | Optional Resistive Touch |
| Touch Light Transmission | 80% |
| Touch Interface | USB Touch Control Board EETI |
System
| Board | EMX-PNV-D525 |
|---|---|
| CPU | Onboard Intel® Pineview D525 1.8GHz CPU |
| System Chipset | Intel® ICH8-M Express |
| I/O Chip | Winbond W83627DHG |
| System Memory | One 204-pin SODIMM Supports Up to 4GB DDR3 SDRAM |
| Storage | One Type I/II Compact Flash Socket, One 2.5” HDD Bay |
| Watchdog Timer | Reset: 1 sec. ~ 255min. and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring System Temperature and Voltage. with Auto Throttling Control |
| Expansion | 1 PCI, 1 Mini PCIe |
Mechanical & Environmental
| Color | Front Silver & Rear Panel Black |
|---|---|
| Mounting | Wall/ Stand/ VESA 75 x 75 & 100 x 100mm |
| System Power Requirement |
+12V DC Power Input |
| Power Adapter | Input: 100 ~ 250VAC/ 47 ~ 63Hz; Output: 60W Adapter (12V @ 5A Adapter) |
| Relative Humidity | 5% ~ 90% Relative Humidity, Non-condensing |
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temp. | -10°C ~ 60°C (14°F ~ 140°F) |
| Dimensions | 350mm x 274mm x 88.6mm |
| Weight | 4.2Kgs |

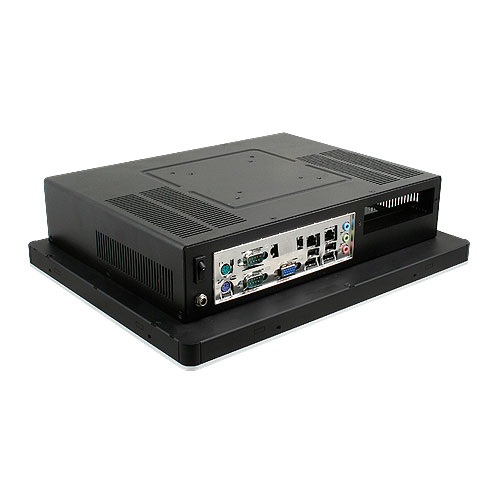

Rear I/O
| Serial Port | 2 x RS-232 |
|---|---|
| Ethernet | 2 x RJ-45 (Dual Intel® 82583V Gigabit Ethernet) |
| Audio | Mic-in, Line-out, Line-in (Realtek ALC888 Supports 5.1-CH Audio) |
| VGA | 1 x DB-15 |
| USB | 4 x USB 2.0 |
| Mouse & K/B | 2 x PS/2 KB & MS |
