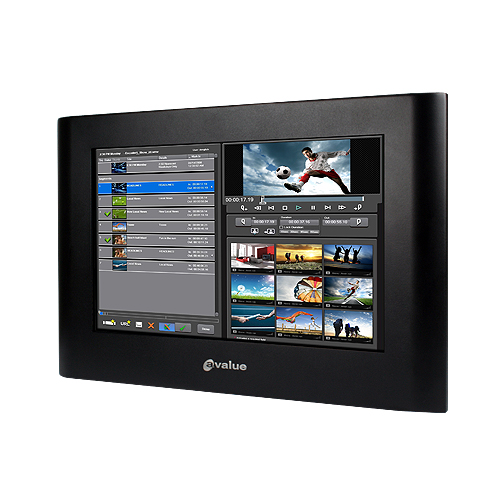

10” WSVGA対応 TFT 多機能 タッチパネルPC



・ FPC-10W07:Intel® Atom™ D2550 1.86GHz CPU搭載
・ VGA、オーディオ
・ ギガビット・イーサネット、WiFiモジュール (オプション)
・ CF x1、COM x2、USB x5
・ 2.5" SATA HDD対応
・ 広範囲電源入力:+10V ~ +26V
・ フロントパネル:IP65規格準拠
・ ファンレス仕様、VESA規格準拠
・ 寸法 (W x D x H):300 x 195 x56mm




Backlight LED
Color 256K
Contrast Ratio 500
Display Type WSVGA TFT
LCD Size 10” Wide
Light transmission 80%
Luminance 200cd/m2
Pixel Pitch 0.21525mm (W) x 0.21525mm (H)
Resolution 1024 x 600
Response Time 25ms
Touch Interface USB
Touch Screen 5-wire Resistive
Viewing Angle 50 (U), 60 (D), 70 (L), 70 (R)

Rear Panel I/O

Audio 1 x Line-out, 1 x Mic-in (Realtek ALC892 Supports 5.1-CH Audio)
Ethernet 2 x RJ-45 (Dual Intel® 82574L Gigabit Ethernet)
Mouse & K/B 1 x PS/2 Keyboard Connector
Serial Port 1 x RS-232, 1 x RS-232 or Optional RS-422/485
USB 5 x USB 2.0
VGA 1 x DB-15
WIFI Optional USB WiFi 802.11 b/g

Environment & Mechanical

Color Front Panel Black; Rear Panel Black
Dimension (W x D x H) 300mm x 195mm x 56mm
Mounting Wall/ Stand/ VESA 75mm x 75mm
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Power Adapter Input: 100 ~ 250Vdc/ 47 ~ 63Hz, Output: 60W Adapter (12V @ 5A Adapter)
Relative Humidity 10% to 95% @ 40°C, Non-condensing
Storage Temperature -10°C ~ 50°C (14°F ~ 122°F)
System Power
+12V ~ +26V DC Power Input
Weight 2.95Kgs

Computing Platform

CPU Onboard Intel® Atom™ D2550 1.86GHz CPU
I/O Chip Nuvoton W83627DHG-P
SSD One CF Socket by IDE Secondary Slave Channel Supports Type I/II Compact Flash Card
System Chipset Intel® NM10 Chipset
System Memory One SODIMM Socket Supports Up to 4GB DDR3 1066MHz SDRAM
