ファンレス 8” WSVGA対応 TFT 多機能 タッチパネルPC
・JAN/UPC：4717677407594
・メーカー型番：FPC-08W27-00300-1R
・TEKWIND型番：AVA-FPC-08W27
・ Intel® Atom™ D2550 1.86GHz CPU搭載
・ VGA、HDMI、オーディオ
・ ギガビット・イーサネット
・ CF x1、COM x2、USB
・ 広範囲電源入力：+10V ~ +26V
・ フロントパネル：IP65規格準拠
・ ファンレス仕様、VESA規格準拠
・ 寸法 (W x D x H)：225 x 139 x 42mm
製品についてお気軽にお問い合わせください

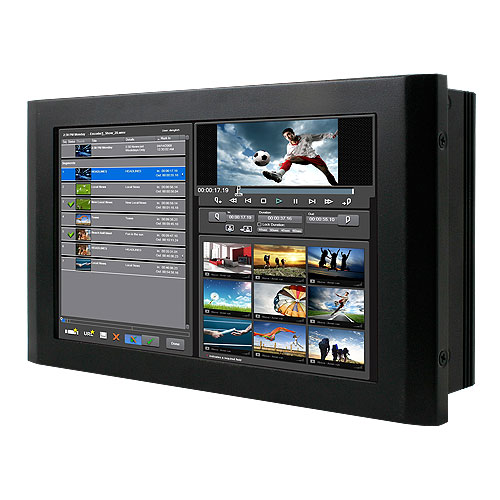

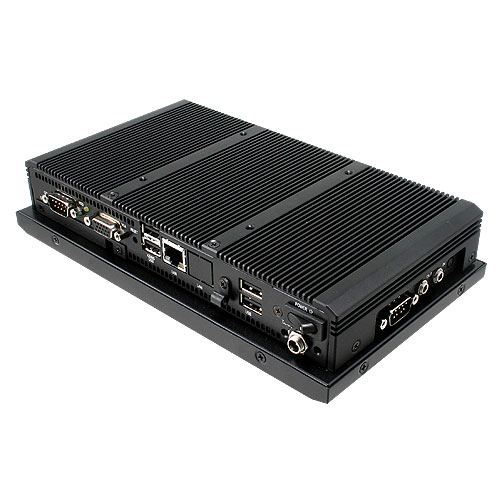

この製品を問い合わせる製品画像
スペック
System
| Board | ECM-CDV |
|---|---|
| CPU | Onboard Intel® Atom™ D2550 1.86GHz CPU |
| System Chipset | Intel® NM10 Chipset |
| I/O Chip | Nuvoton W83627DHG-P |
| System Memory | One SODIMM Supports Up to 4GB DDR3 1066MHz SDRAM |
| SSD | One CF Socket by IDE Secondary Slave Channel Supports Type I/II Compact Flash Card |
| Expansion | 1 x Mini PCIe (mSATA Supported) |
Rear Panel I/O
| Serial Port | 1 x RS-232, 1 x RS-232 or Optional RS-422/485 |
|---|---|
| Ethernet | 2 x RJ-45 (Dual Intel® 82574L Gigabit Ethernet) |
| VGA | 1 x DB-15 |
| HDMI | 1 x HDMI |
| WIFI | Optional USB WiFi 802.11 b/g |
| Audio | 1 x Line-out, 1 x Mic-in (Realtek ALC892 Supports 5.1-CH Audio) |
| USB | 3 x USB 2.0 |
Environment & Mechanical
| Color | Front Panel Black; Rear Panel Black |
|---|---|
| Mounting | Wall/ Stand/ VESA 75mm x 75mm |
| System Power Requirement | +12V ~ +26V DC Power Input |
| Power Adapter | Input: 100 ~ 250Vdc/ 47 ~ 63Hz; Output: 60W Adapter (12V @ 5A Adapter) |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 10% to 95% @ 40°C, Non-condensing |
| Dimension (W x D x H) | 225mm x 129mm x 43.4mm |
| Weight | 1.31kg |
Display Screen
| LCD Size | 8” |
|---|---|
| Display Type | WSVGA TFT |
| Resolution | 1024 x 600 |
| Color | 256K |
| Pixel Pitch | 0.1725mm (W) x 0.1656mm (H) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 700 |
| Viewing Angle | 70 (U), 75 (D), 75 (L), 75 (R) |
| Response Time | 20ms |
| Backlight | LED |
| Touch Screen | 5-wire Resistive |
| Light transmission | 80% |
| Touch Interface | USB Onboard Touch Control Board EETI |
