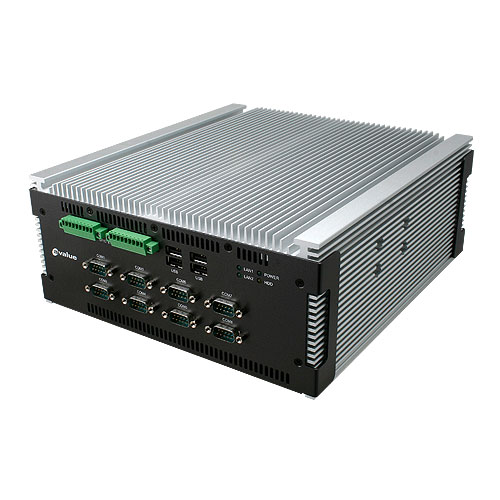

Intel Ivy Bridge対応のIntel QM77



・ Intel Ivy Bridgeプロセッサー対応
・ Intel QM77 チップセット搭載
・ 2 x 204ピンDDR3 SODIMM ソケット、最大16GB DDR3 1333/ 1600MHz SDRAM対応
・ トリプルディスプレイ出力対応 (VGA/HDMI/DISPLAY)
・ Intel HD オーディオ、Intel デュアルGigabitイーサネット
・ 1 x CF, 2 x SATAⅢ, 8 x COM, 8 x USB, 1 x LPT, 2 x PCI
・ 1 x SIM カード, 8/16-bit DIO, H/W RAID 0/1 対応
・ HDD/SSD, メモリを簡単に取外し可能なサービスウィンドウが背面に装備
・ 広範囲動作温度 : -20 ~ 60°C
・ オプション : PCI+PCIex16ライザーカード、シングルPCIex16ライザーカード
・ 寸法 (W x D x H) : 250mm x 220mm x 108mm





Board EAP-CE02 + ESM-QM77
CPU Intelreg; Coretrade; i7-3610QE, 4-Core 2.3GHz, 3M Cache; Intelreg; Coretrade; i5-3610ME, 2-Core 2.7GHz, 3M Cache; Intelreg; Coretrade; i3-3120ME, 2-Core 2.4GHz, 3M Cache
System Chipset Intelreg; QM77 Chipset
I/O Chip Nuvoton NTC6776F
System Memory One 204-pin SODIMM Sockets Up to 8GB DDR3 1333/ 1600 SDRAM (Second SODIMM for Optional, Up to 16GB)
Storage Supported 2 x 2.5" Drive Bay (4 x 2.5" Drive Bay Bracket for Optional)
Watchdog Timer Reset: 1sec. ~ 255min. and 1sec. or 1min./step
Display Intelreg; QM77 with Integrated Graphics Engine
Audio Intelreg; High Definition Audio
Ethernet Dual Intelreg; Gigabit Ethernet
System Indicators 4 LED Indicators Show Power, HDD, LAN 1 and 2
Expansion Interface 2 PCI Slots, 2 Mini PCIe Sockets (One Supported SIM Card Slot), Optional with 1 PCI + PCIex16 Riser Card, 1 PCIex16 Riser Card

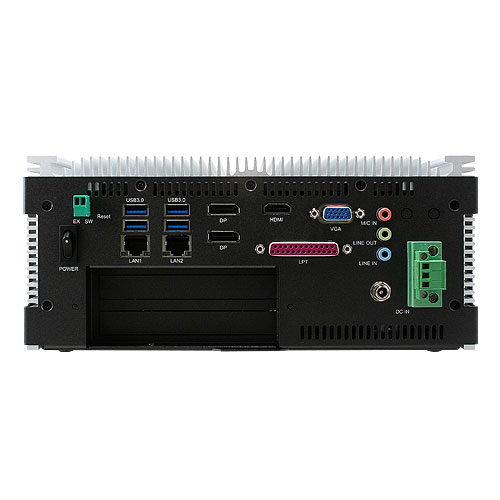

External I/O

COM Port 8 x RS232 (4 x COM RS-232/422/485 Setting by BIOS)
LAN Port 2 x RJ-45
Display Output Port 1 x CRT, 1 x HDMI, 2 x Display Port
Audio Port Mic-in, Line-out
USB Port 4 x USB 2.0 ; 4 x USB 3.0 (Rear 6; Front 2)
Digital I/O 8 In and 8 Out GPIO
Antenna 2 Knockouts for Antenna Mounting (Options to Add WiFi & 3G)
Extending Switch 1 x 2-pin Phoenix Type Connector

Environment & Mechanical

Power Requirement +12Vdc ~ +26Vdc in Dual DC Connector, Lockable & Phoenix Connector (Optional with One +18Vdc ~ +75Vdc Wide Range Power Module)
ACPI Single Power ATX Support S0, S3, S4, S5; ACPI 1.0b and 2.0 Compliant
Power Type AT/ ATX (ATX is The Default Setting)
Operating Temperature -10 ~ 60°C (w/ SSD/ DOM), Ambient w/ Air Flow; i5/ i3, -10 ~ 50°C (w/ SSD/ DOM), Ambient w/ Air Flow; i7
Storage Temperature -40 ~ 75°C (-40 ~ 167°F)
Relative Humidity 0% ~ 90% Relative Humidity, Non-condensing
Vibration Protection With DOM/ SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 1hr/axis
Shock Protection With DOM/ SSD: 50G, IEC 60068-2-27, Half Sine, 11ms
Mounting Table Mount
Dimension (WxDxH) 250mm x 270mm x 113mm
Weight 10lbs (5Kgs)
