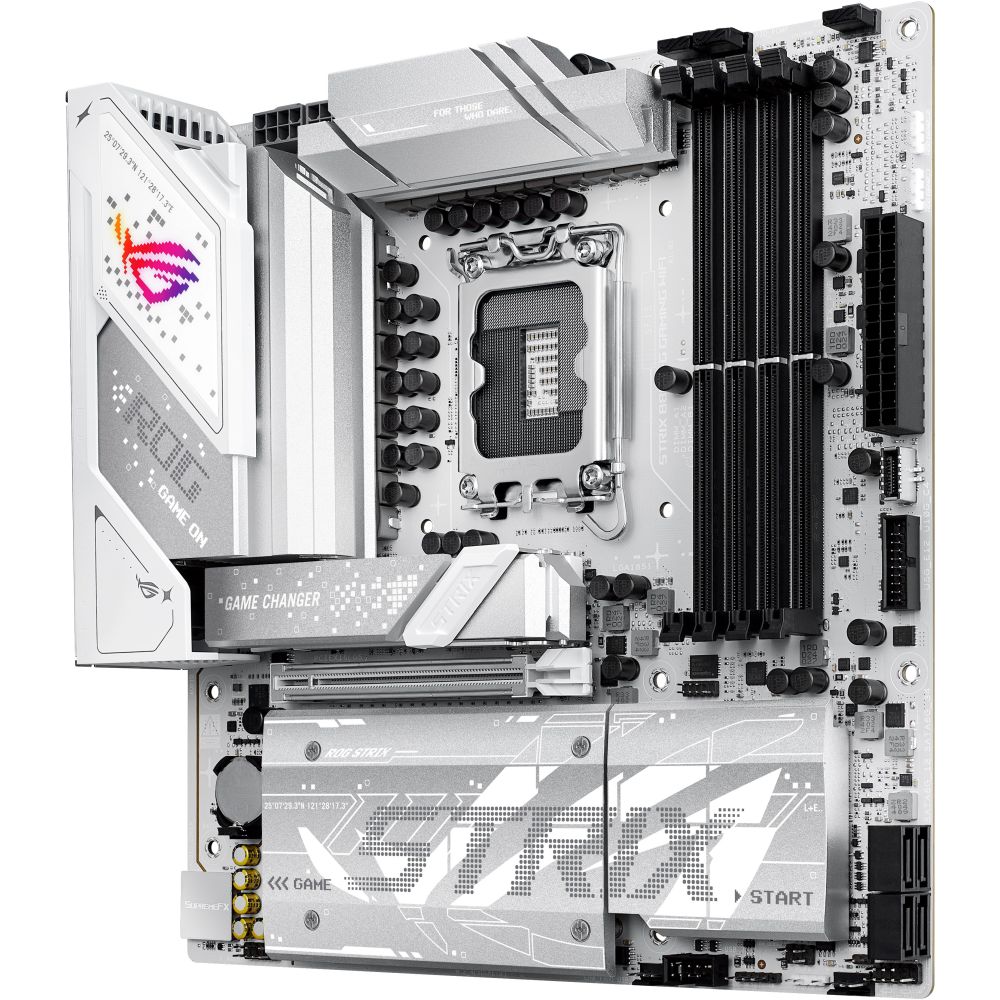

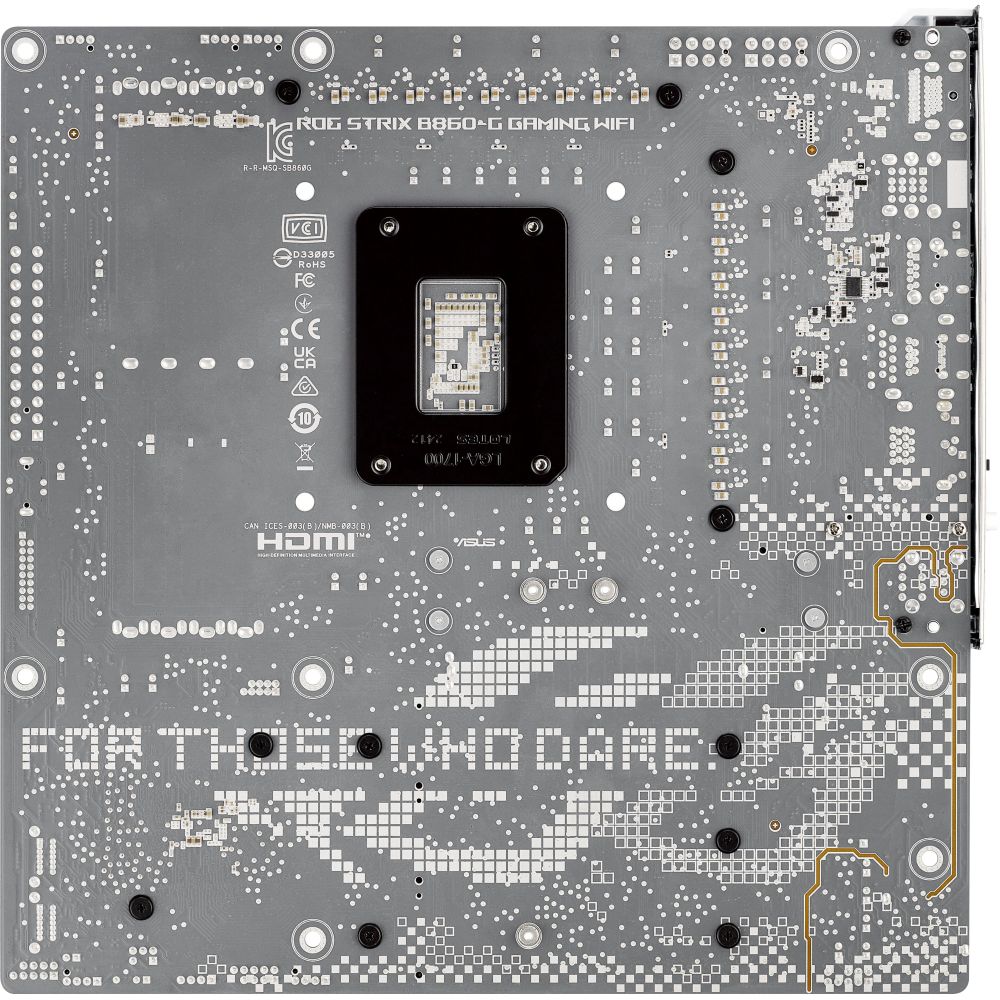

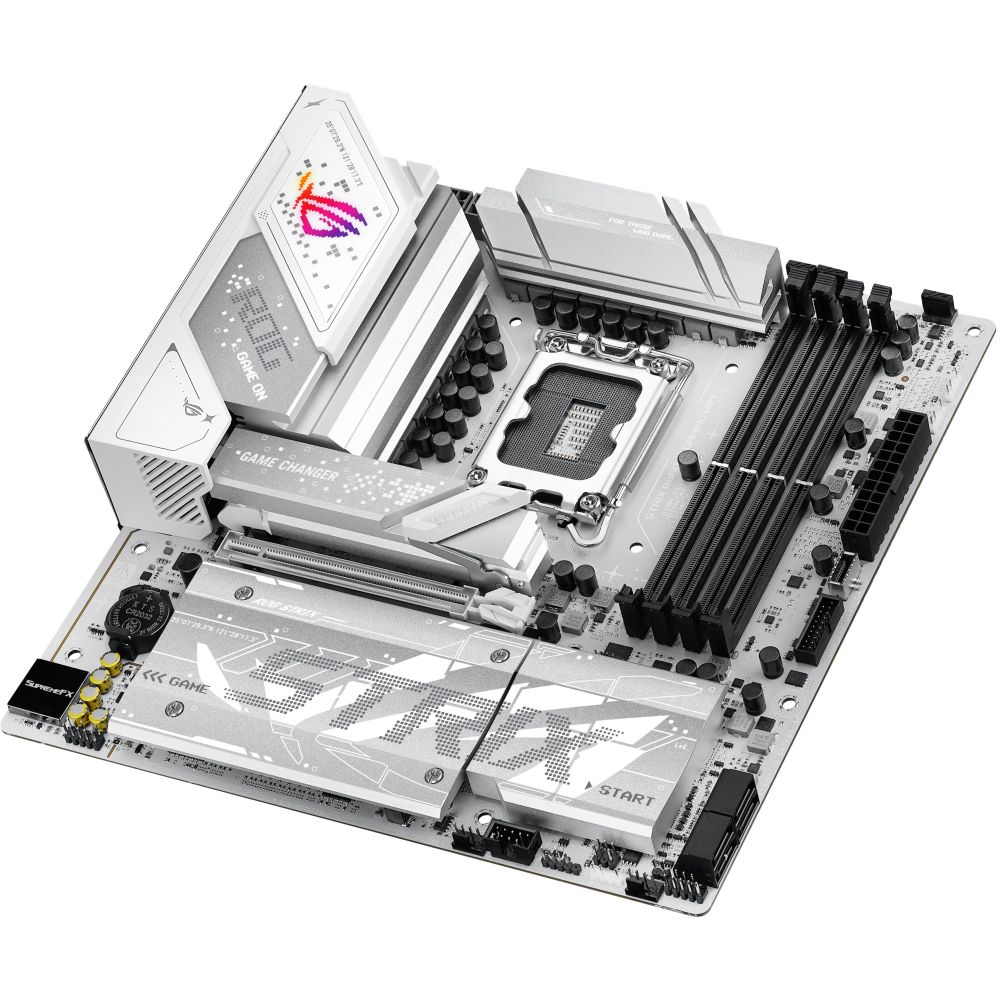

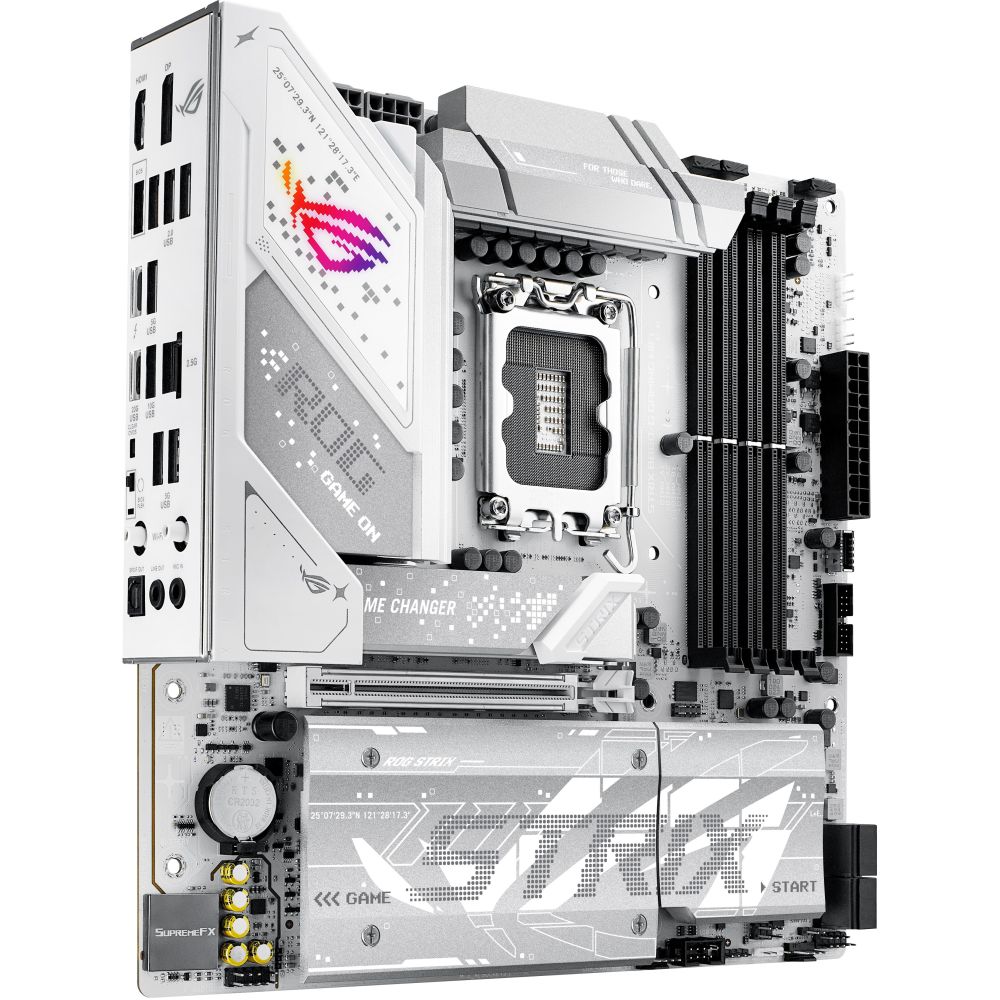

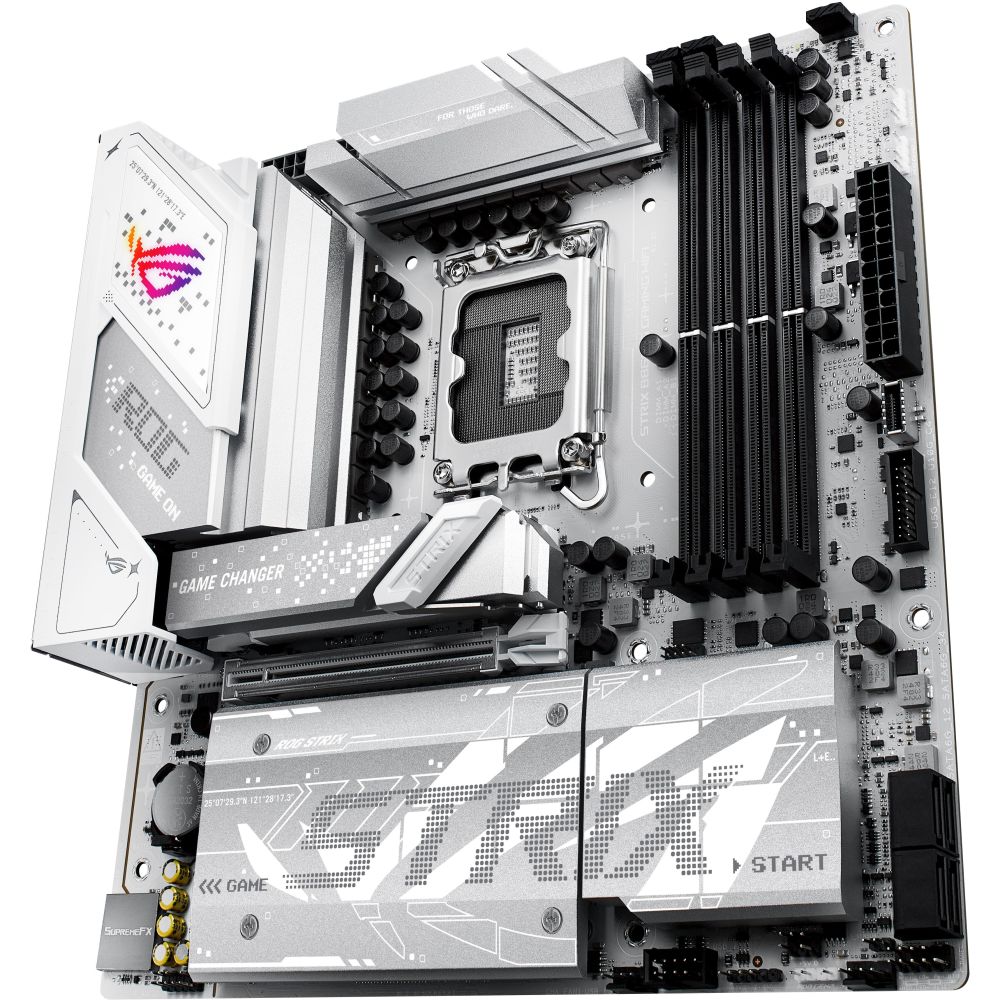

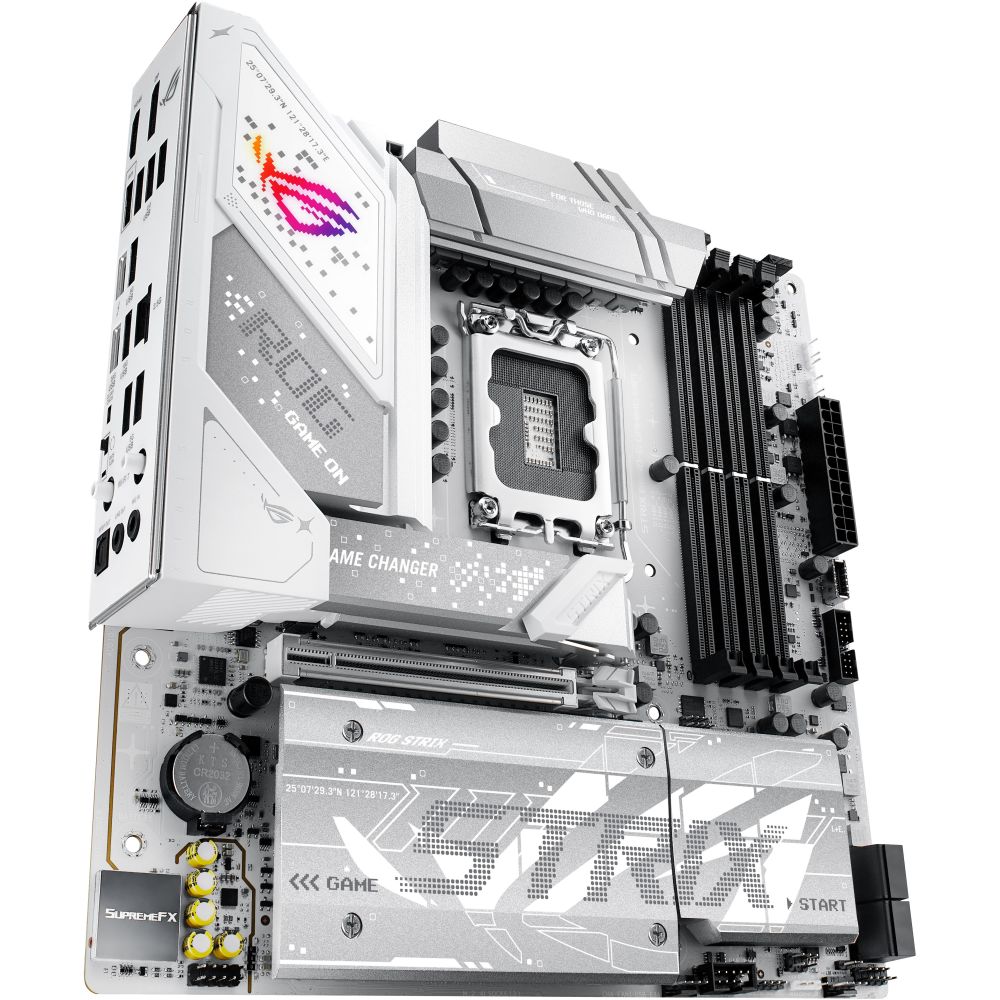

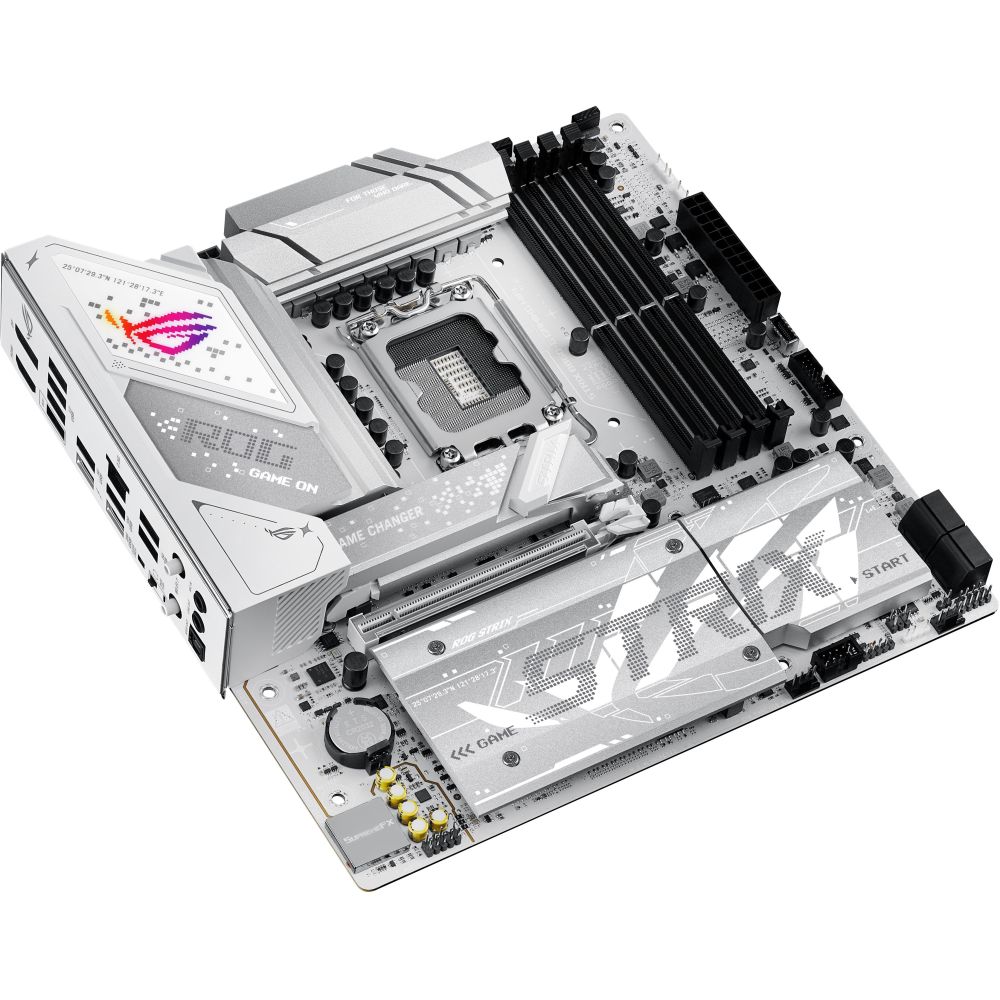

ROG STRIX B860-G GAMING WIFI ― インテル® B860チップセット搭載micro-ATX マザーボード

基本仕様

対応CPU

Support Intel® Core™ Ultra Processors(Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

搭載チップセット

Intel® B860 Chipset

メインメモリー

"4 x DIMM slots, max. 192GB, DDR5

Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

グラフィックス機能

1 x DisplayPort**
1 x HDMI™ port***
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
"** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
"
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
***** VGA resolution support depends on processors' or graphic cards' resolution.

拡張スロット

Intel® Core™ Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot***
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

ストレージ機能

Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset**
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

Ethernet

1 x Intel® 2.5Gb Ethernet

Wi-Fi

"Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.


*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

Bluetooth®

Bluetooth® v5.4***

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

USB機能

Rear USB (Total 10 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port(s) (1 x USB Type-C®)
1 x USB 10Gbps port(s) (1 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A

オーディオ機能

"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

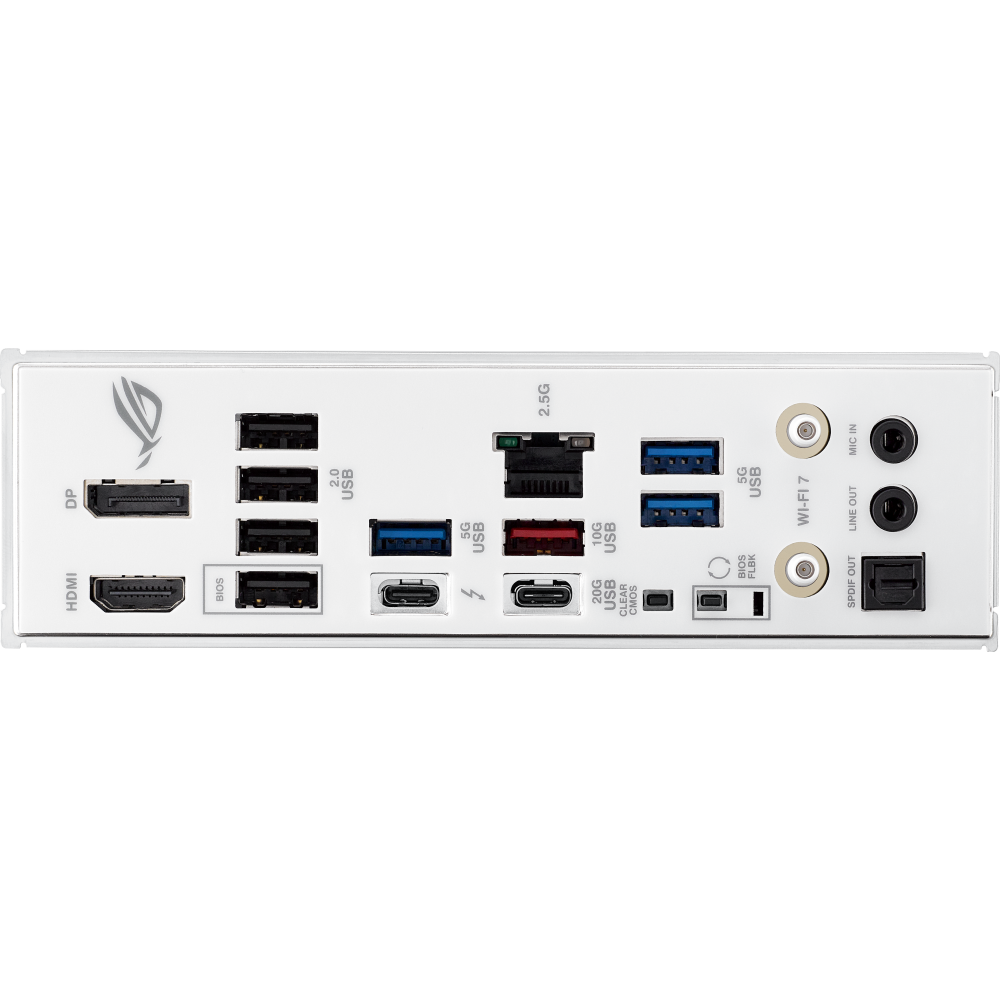

背面インターフェース

1 x Thunderbolt™ 4 USB Type-C® port(s)
1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port(s) (1 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
2 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
1 x M.2 Vertical slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (support(s) USB Type-C® )
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header

特別な機能

Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)

Software Features

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey

BIOS機能

256 Mb Flash ROM, UEFI AMI BIOS

主な付属品

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix sticker
3 x M.2 rubber package(s)
1 x M.2 backplate rubber package(s)
Documentation
1 x Quick start guide

OS

Windows 11 (22H2 later)

フォームファクター（サイズW×D）

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

寸法

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Color Box (mm)

285mm x 274mm x 72.5mm

製品重量

1.226kg

製品重量（梱包あり）（KG）

2.12kg

Manageability

WOL by PME, PXE

パッケージサイズ

幅(W)

29cm

奥行(D)

28cm

高さ(H)

8cm

本体サイズ

重量

2.2kg

法令関連

電気用品安全(PSE)

対象外

電波法(TELEC認証)

TELEC対応

RoHS対応

RoHS対応
