ROG STRIX Z890-I GAMING WIFI

WiFi 7対応、PCIe 5.0/M.2搭載、AI機能や強力電源設計を備えた高性能マザーボード

メーカー型番
90MB1IC0-M0JAY0
TEKWIND型番
ASU-ROG/STRIX/Z890-I/GAMING/WIFI
JAN/UPC
0197105755277
ROG STRIX Z890-I GAMING WIFIの主な特長
  • ASUS AIインテリジェンス: AI Overclocking、AI Cooling II、AI Networking II、AI Advisor、AEMP III
  • ROG Strix オーバークロック テクノロジー: Dynamic OC Switcher、Core Flex、非同期クロック、PBO 拡張
  • 堅牢な電源ソリューション: ProCool II 電源コネクタ、110A 定格の 10+1+2+1 電源ソリューション
  • 最適化された熱設計: 統合型 I/O カバーと高伝導性サーマル M.2 & Chipsetヒートシンク、拡大したVRMヒートシンク
  • 最新の M.2 サポート: オンボード PCIe® 5.0 M.2 スロット 1 つと PCIe 4.0 M.2 スロット 1 つ、すべてに強力な冷却ソリューションが付属
  • 最先端のコネクティビティ: ROG STRIX HIVE II、ROG FPS Card、2 x Thunderbolt™ 4 Type-C®、1 x USB 20Gbps Type-C® フロントパネル コネクタ、PCIe 5.0 x16 SafeSlot
  • 高性能ネットワーク: intel 2.5 Gbイーサネット、WiFi 7 (802.11be)
  • DIY フレンドリーなデザイン: M.2 Q-Release Duo、PCIE® SLOT Q-RELEASE SLIM、Q-Antenna、BIOS FLASHBACK™、プリマウント I/O シールド
  • 没入型オーディオ: ESS™ SABRE 9260Q DAC と Dolby Atmos® を搭載した ROG Strix Hive II 外部オーディオ ソリューション

製品仕様 SPEC

基本仕様

対応CPU
Support Intel® Core™ Ultra Processors(series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット
Intel® Z890 Chipset
メインメモリー
"2 x DIMM slots, max. 96GB, DDR5
Support up to 8000+MT/s (OC), ECC and Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*"
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
ASUS Enhanced Memory Profile III (AEMP III)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
グラフィックス機能
1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
**** VGA resolution support depends on processors' or graphic cards' resolution.
拡張スロット
Intel® Core™ Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot*** (supports x16 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ機能
Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
2 x SATA 6Gb/s ports****
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
** M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi
"Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
USB機能
Rear USB (Total 9 ports)
2 x Thunderbolt™ 4 (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 3 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
ROG STRIX HIVE II (Total 2 ports)
2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A)
ROG FPS Card (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
オーディオ機能
"ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 121 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Premium audio capacitors
*** All audio functions on ROG STRIX Z890-I GAMING WIFI are supported through the ROG STRIX HIVE II.
背面インターフェース
2 x Thunderbolt™ 4 (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
1 x Extra Flow Fan header
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3 additional USB 2.0 ports
特別な機能
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Release Duo
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Fan bracket
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
- Backplate
Aura Sync
- Addressable Gen 2 headers

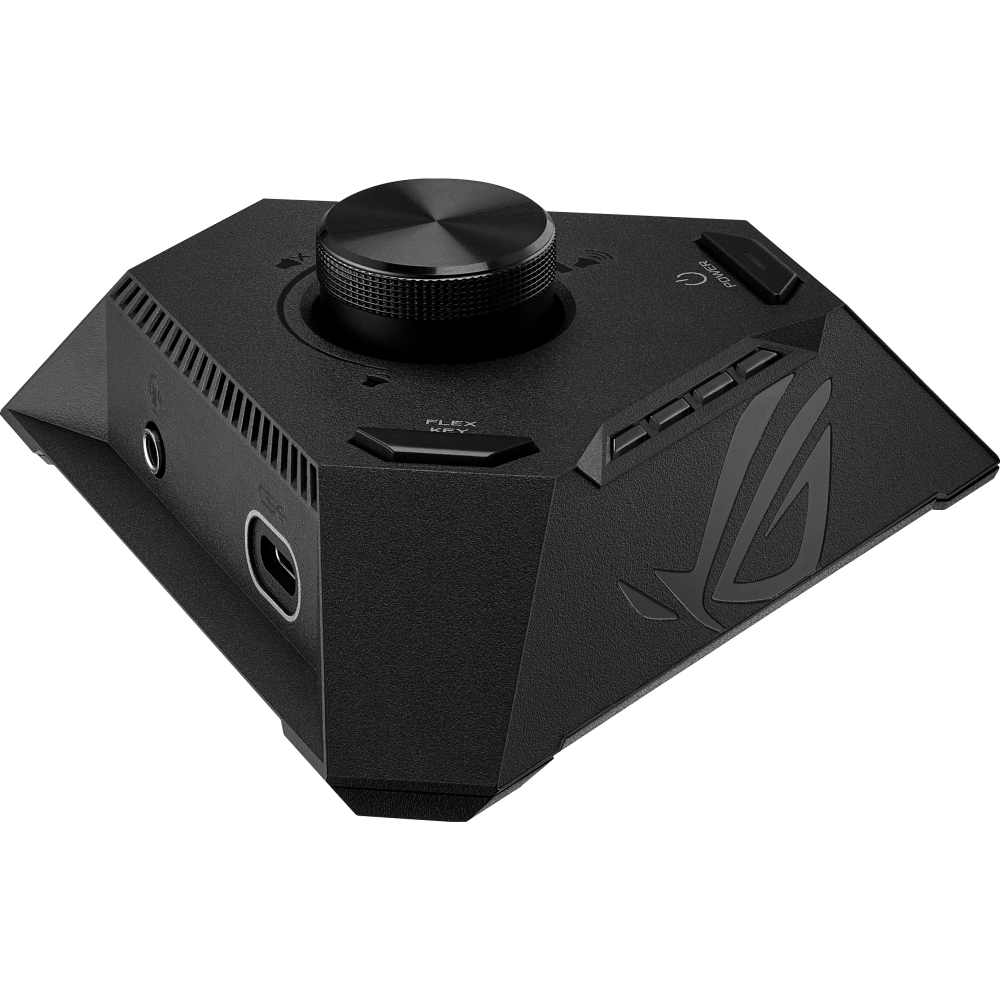

ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps ports ( 1 x USB Type-C®+ 1 x Type-A)
1 x Headphone jack with mic in
1 x FlexKey button
1 x Power button
1 x Volume control knob with mute button
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Software Features
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
Thunderbolt™ Share
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS機能
256 Mb Flash ROM, UEFI AMI BIOS
その他
WOL by PME, PXE

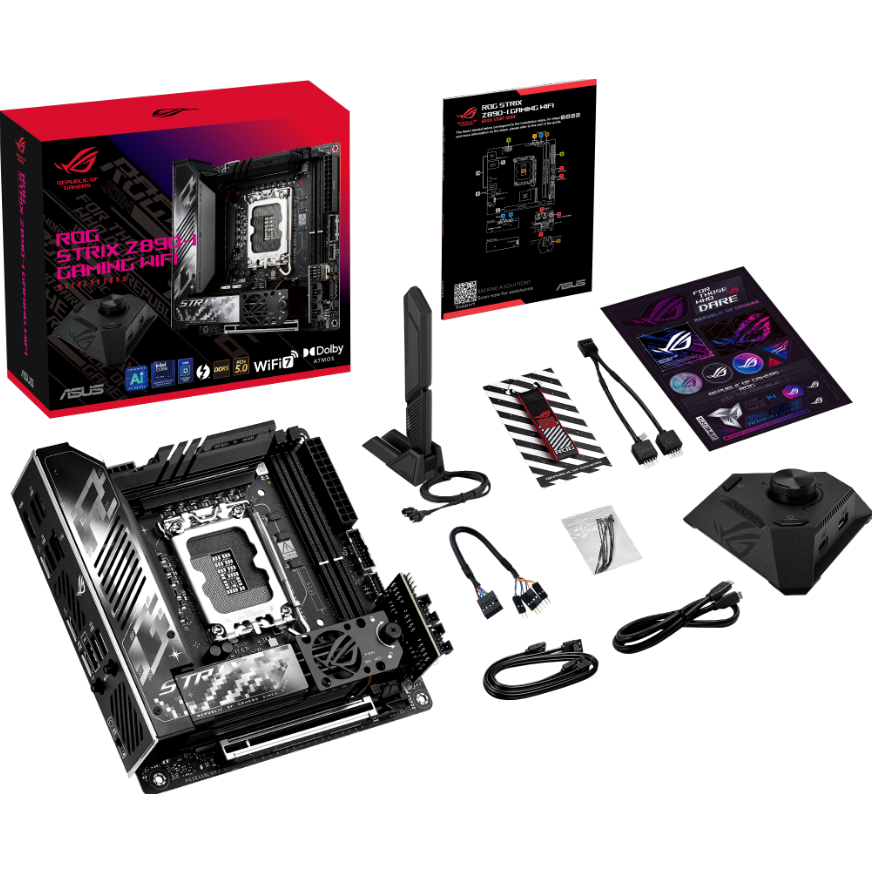

主な付属品
Cables
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
1 x Panel Cable
ROG FPS Card
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x ROG key chain
1 x ROG Strix stickers
Documentation
1 x Quick start guide
OS
Windows 11 (22H2 later)
フォームファクター(サイズW×D)
Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)

パッケージサイズ

幅(W)
22.4cm
奥行(D)
10.9cm
高さ(H)
27.8cm

本体サイズ

重量
1.6kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
TELEC対応
RoHS対応
RoHS対応
