PRIME B760M-A D4
ASUS インテル® Socket LGA1700 第13世代インテル® B760チップセット対応 mATXマザーボード
製品仕様 SPEC
基本仕様
- CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
- Chipset
- Intel® B760 Chipset
- Memory
- 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
- Graphics
- 1 x DisplayPort**
- Expansion Slots
- Intel® 13th & 12th Gen Processors
- Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
- Ethernet
- 1 x Realtek 2.5Gb Ethernet
- USB
- Rear USB (Total 6 ports)
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

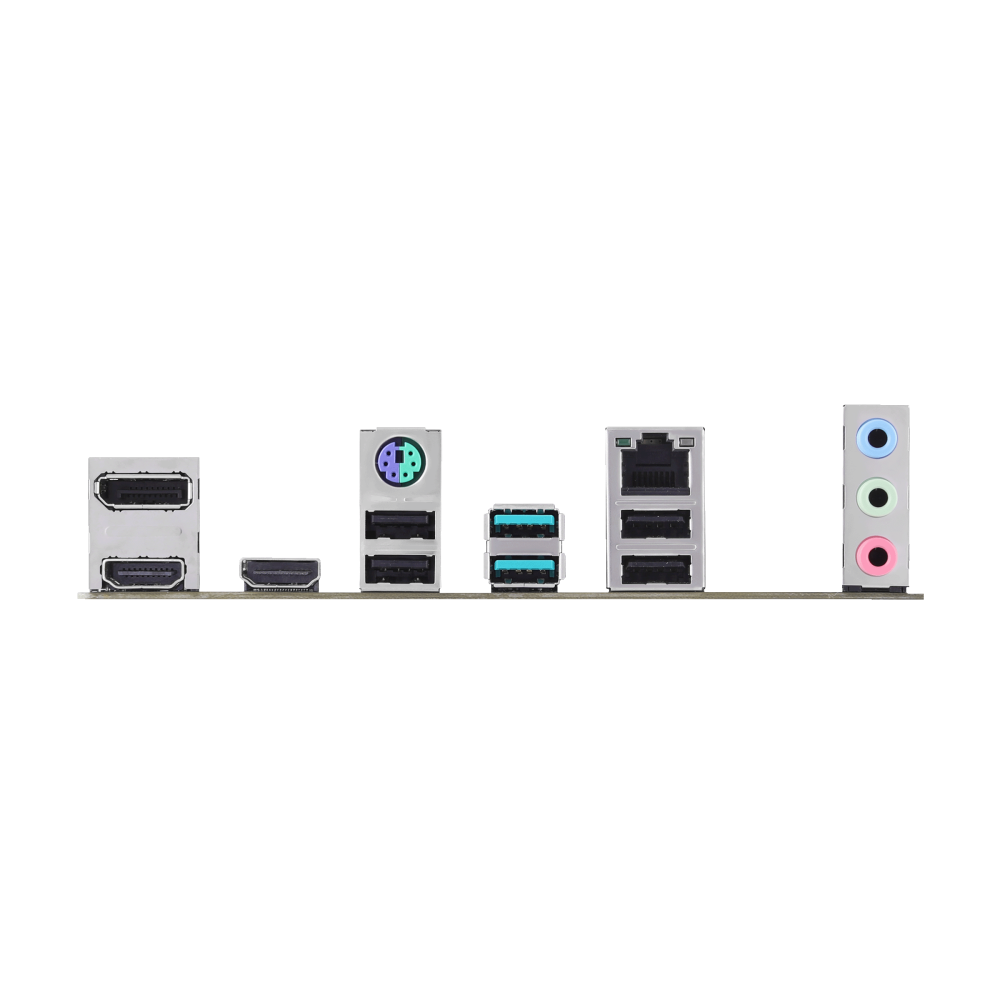

- Supports up to 24-Bit/192 kHz playback - Back Panel I/O Ports
- 2 x USB 3.2 Gen 2 ports (2 x Type-A )
- Internal I/O Connectors
- Fan and Cooling related
- Special Features
- ASUS 5X PROTECTION III
- Software Features
- ASUS Exclusive Software
- BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Manageability
- WOL by PME, PXE
- Accessories
- Cables
- Operating System
- Windows® 11, Windows® 10 64-bit
- Form Factor
- mATX Form Factor
- Product (mm)_ L*W*H
- 244mm*244mm*40mm
- Color Box (mm)_ L*W*H
- 270mm*263mm*52mm
- Motherboard only
- 0.669KG
- Full package
- 1.140KG
パッケージサイズ
- 幅(W)
- 27cm
- 奥行(D)
- 5.2cm
- 高さ(H)
- 26cm
本体サイズ
- 重量
- 1.1kg
法令関連
- 電気用品安全(PSE)
- 対象外
- 電波法(TELEC認証)
- 対象外
- RoHS対応
- RoHS対応
