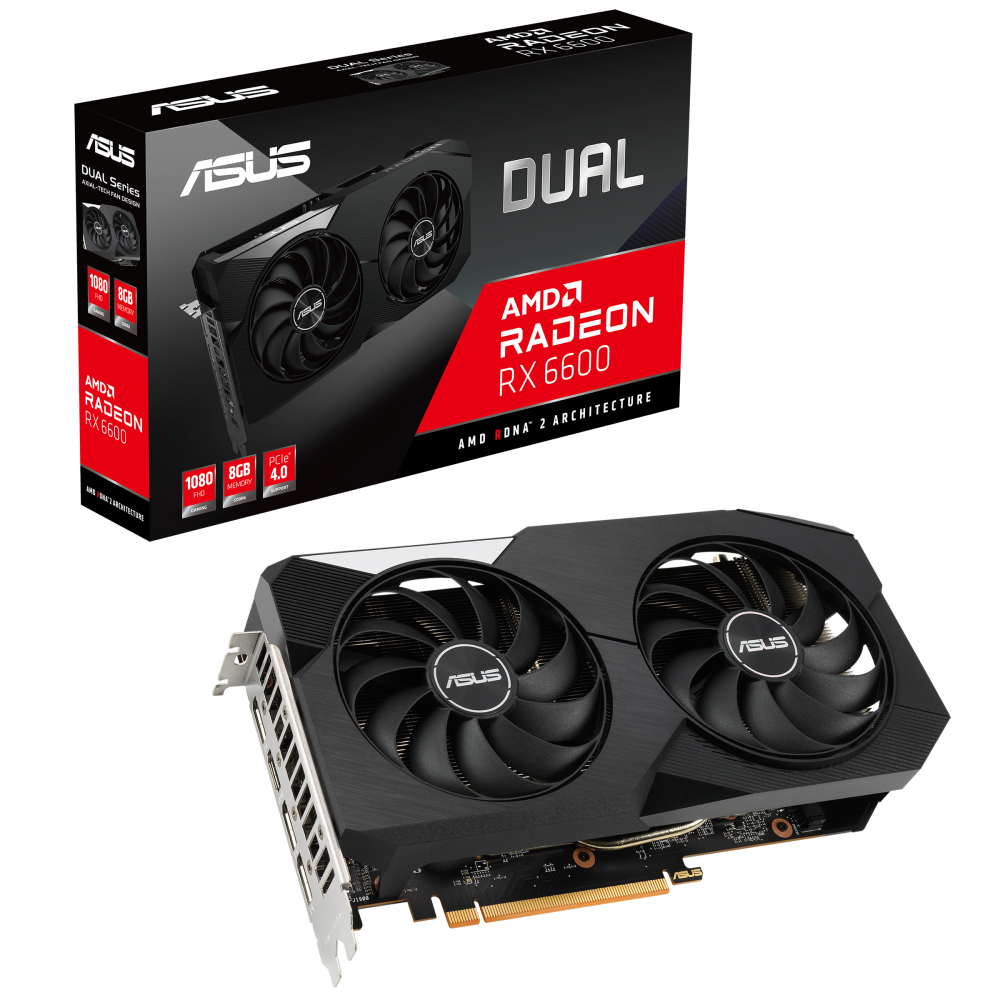

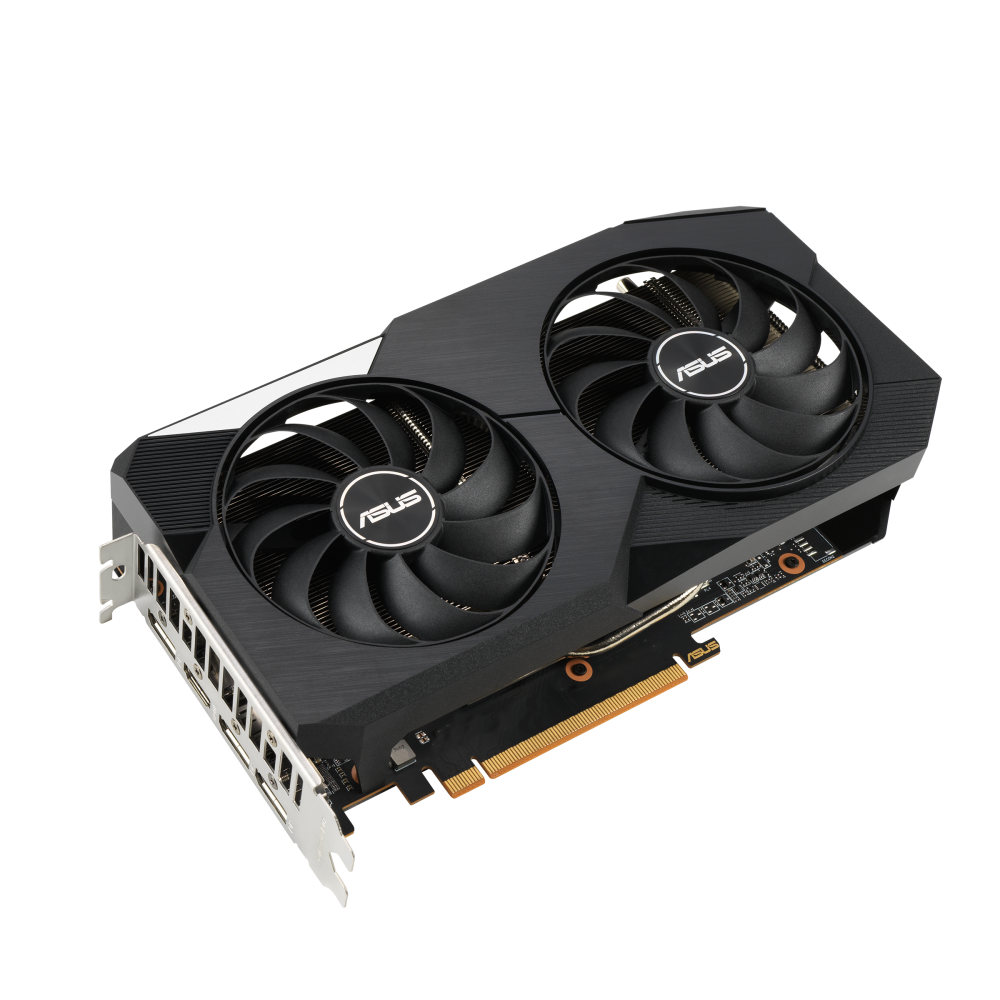

ASUS Dual Radeon™ RX 6600

高フレームレートを実現し、バイタル監視機能を備えたASUS Dual Radeon™ RX 6600 8GB GDDR6

メーカー型番
90YV0GP0-M0NA00
TEKWIND型番
ASU-DUAL-RX6600-8G
JAN/UPC
0195553363112
ASUS Dual Radeon™ RX 6600の主な特長

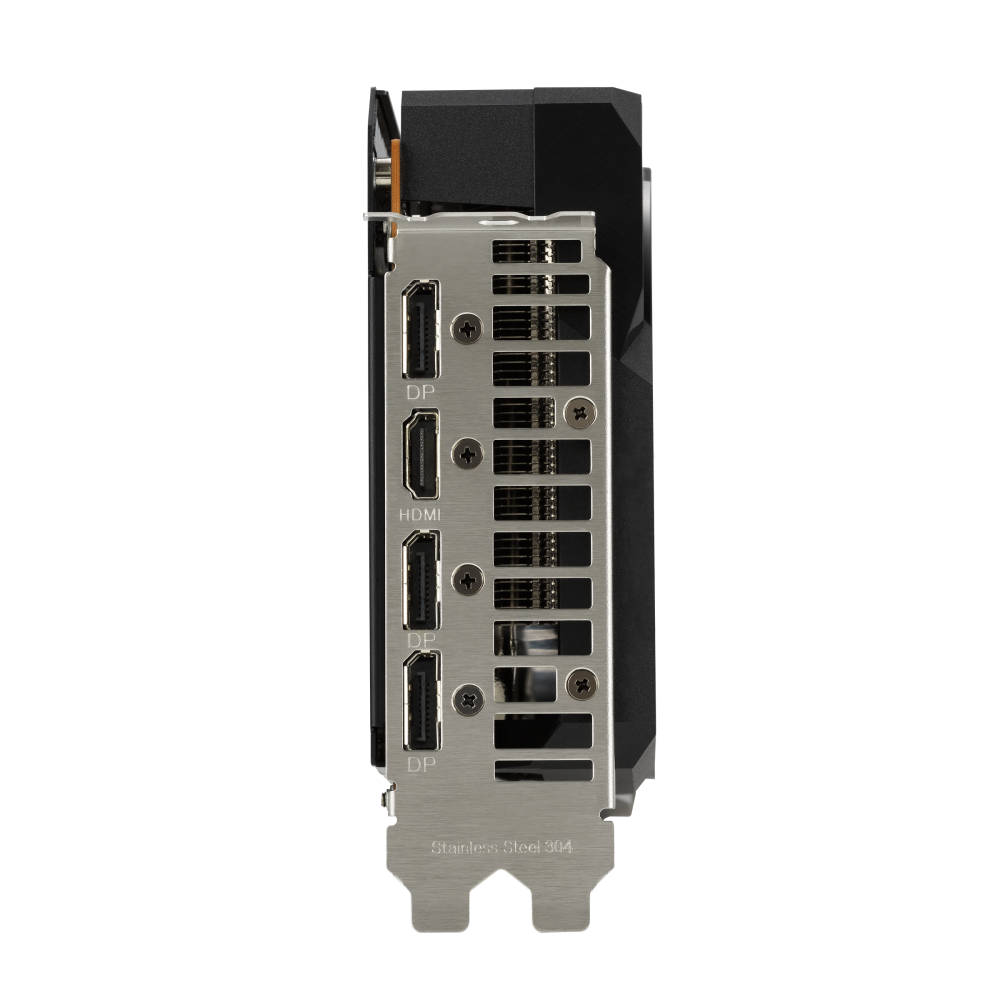

  • ASUS Dual AMD Radeon™ RX 6600 8GB GDDR6 ゲーミンググラフィックスカード (AMD RDNA™ 2, PCIe 4.0, 8GB GDDR6 memory, HDMI 2.1, DisplayPort 1.4a, Axial-techファン設計, 0dB テクノロジー)
  • Axial-techファン設計は、より長いブレードを活用できる小さなファンハブと、下向きの空気圧を高めるバリアリングを搭載。
  • デュアルボールファンベアリング設計は、スリーブベアリング設計に比べての最大2倍の寿命。
  • Auto-Extremeテクノロジーによる自動化で、システムの信頼性を向上します。
  • 防護バックプレートがPCBの歪みやトレースの損傷を防ぎます。

製品仕様 SPEC

基本仕様

グラフィックスエンジン
AMD Radeon™ RX 6600
ストリームプロセッサー
1792
OpenGL
OpenGL® 4.6
メモリーインターフェース
128-bit
メモリースピード
14 Gbps
電源コネクター
1 x 8-pin
HDCP準拠
HDCP 2.3
解像度
7680 x 4320
NVlink/ Crossfire Support
Yes for DirectX® 12 and Vulkan®
推奨PSU
500 W
主な付属品
1 x Collection Card
1 x Speedsetup Manual
付属ソフトウェア
ASUS GPU Tweak II & Driver, please download all software from the support site.
スロット
2.5 slot
サイズ
243 x 134 x 49 mm
9.6 x 5.3 x 1.9 inch
Color Box (mm)
364 x 217 x 66 mm
Single Card (KG)
0.71
製品重量(梱包あり)(KG)
1.11
その他
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Crossfire Support for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
対象外
RoHS対応
RoHS対応
