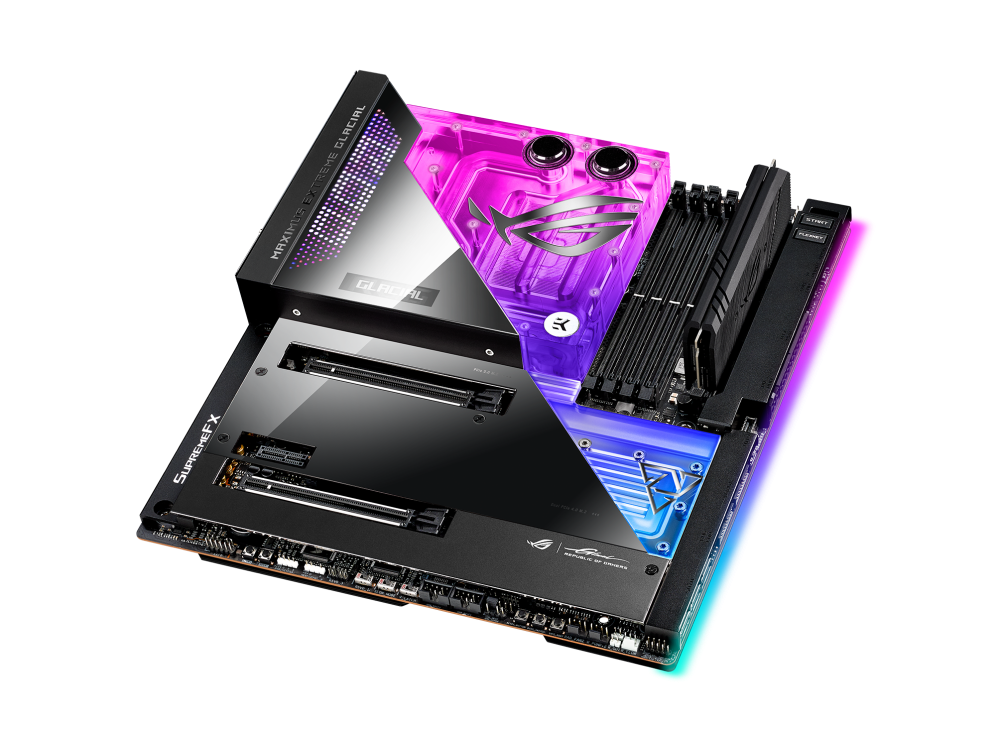

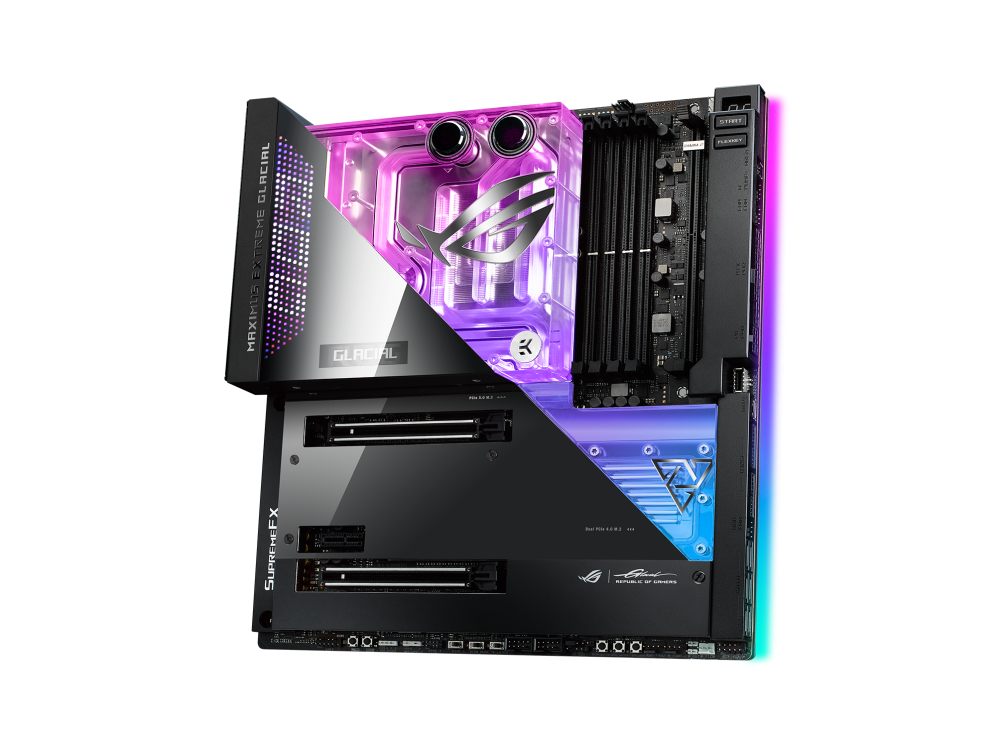

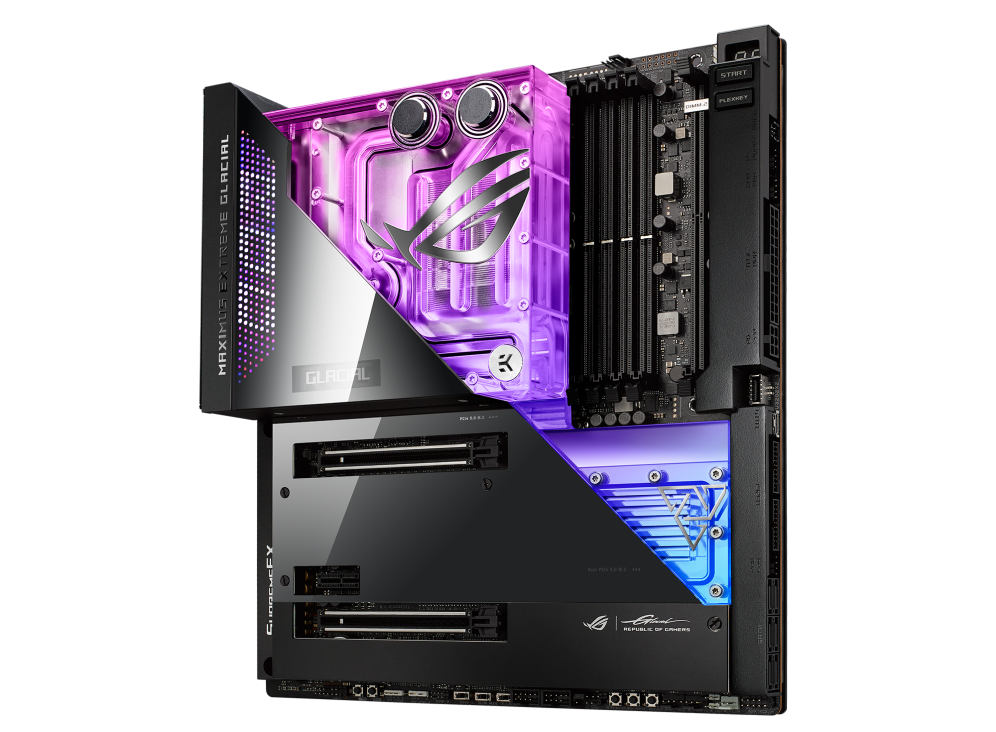

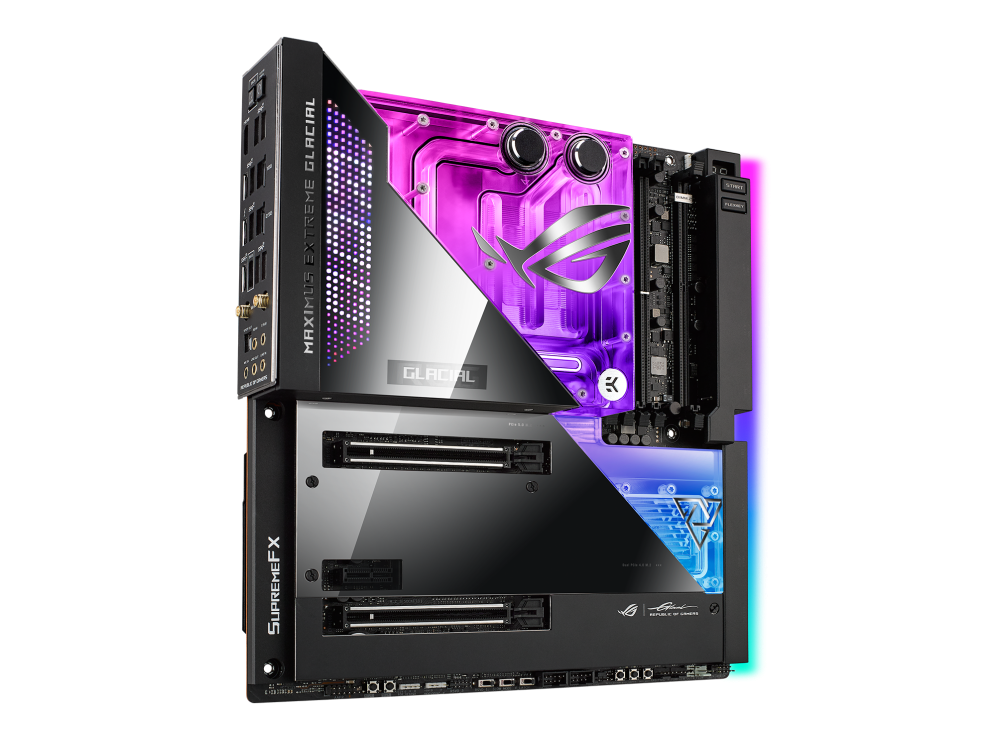

ROG MAXIMUS Z690 EXTREME GLACIAL

Intel® Z690 EATX マザーボード 24+1 パワーステージ、OptiMem III搭載EK® Ultrablock DDR5内蔵、5つのM.2、Quick Charge 4+対応USB 3.2 Gen 2x2 フロントパネルコネクタ、デュアル Thunderbolt™ 4、PCIe® 5.0、オンボードWi-Fi 6E、Aura Sync RGBライティング

この製品のお問い合わせ

プロフェッショナルがいるテックウインドの強み

メーカー型番: 90MB1A60-M0JAY0
TEKWIND型番: ASU-ROG/MAXIMUS/Z690/EXTREME/GL
JAN/UPC: 0195553463416

カテゴリー: PCパーツマザーボード LGA1700

ROG MAXIMUS Z690 EXTREME GLACIALの主な特長

第12世代インテル® Core™、Pentium® Gold、Celeron®プロセッサー対応のLGA 1700ソケット
インテリジェントコントロール: セットアップを簡素化し、パフォーマンスを向上させるASUS独自のソフトウェアおよびファームウェアユーティリティ： AI Overclocking, AI Cooling, AI Networking, 双方向AIノイズキャンセル
堅牢な電源ソリューション：定格105Aの24+1電源ステージ、ProCool II電源コネクタ、MicroFine合金チョーク、プレミアム金属コンデンサ
最適化された熱設計：EK® Ultrablock、高導電性サーマルパッド、5つのM.2ヒートシンク、埋め込みバックプレートとROG水冷ゾーンの両方を搭載
高性能ネットワーク：オンボードWiFi 6E、Marvell® AQtion 10Gb、Intel® 2.5Gbイーサネット、およびASUS LANGaurd搭載
優れた接続性：PCIe®5.0、オンボードGen 5 M.2、Thunderbolt™4対応USB 3.2 Gen 2x2フロントパネルコネクタ、リアトリプルUSBType-C®ポート。
業界をリードするゲーミングオーディオ：ROG SupremeFX ALC4082コーデックとESS® ES9018Q2C DACの組み合わせにより、高性能なオーディオを実現
比類なきパーソナライゼーション：AniMe Matrix™ LEDディスプレイ、2インチLiveDash OLED、ASUS独自のAura Sync RGBライティング（1つのRGBヘッダーと3つのアドレサブルGen 2 RGBヘッダーを含む）。
DIYフレンドリーなデザイン：事前に取り付けられたI/Oシールド、V-Latchスイッチ、BIOS FlashBack™、Q-Code、FlexKey、Q-Connector、M.2 Q-Latch、SafeSlot、ROG Glavis、ROGグラフィックスカードホルダー
有名なソフトウェア：バンドルされた1年間のAIDA64 Extremeサブスクリプションと統合されたMemTest 86を備えた直感的なUEFIBIOSダッシュボード

お客様に最適な製品をご提案いたしますお見積りや納期のご相談

製品仕様 SPEC

基本仕様

対応CPU: Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット: Z690
メインメモリー: 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem III*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
グラフィックス機能: * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.***Support 4K@60Hz as specified in HDMI® 2.1.
拡張スロット: Intel® 12th Gen Processors*2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**Intel® Z690 Chipset***1 x PCIe 3.0 x1 slot* Please check PCIe bifurcation table in support site.** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.*** Support Intel® Optane Memory H Series on PCH-attached PCIe slot.
ストレージ機能: Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110***- Intel® 12th Gen processors support PCIe 5.0 x4 mode.M.2_2 slot (Key M), type 2280- Intel® 12th Gen processors support PCIe 4.0 x4 mode.Intel® Z690 Chipset**M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)6 x SATA 6Gb/s ports***** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.
Wi-Fi: 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready** * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 10 build 21H1 or later. ** Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later.
USB機能: Rear USB: Total 10 ports 1 x Thunderbolt™ 4 port (1 x USB Type-C®)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)Front USB: Total 10 ports 1 x Thunderbolt™ 4 connector (1 x USB Type-C®)1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports
オーディオ機能: ALC4082 ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features- SupremeFX Shielding Technology- ESS® SABRE9018Q2C DAC/AMP- LED-illuminated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover

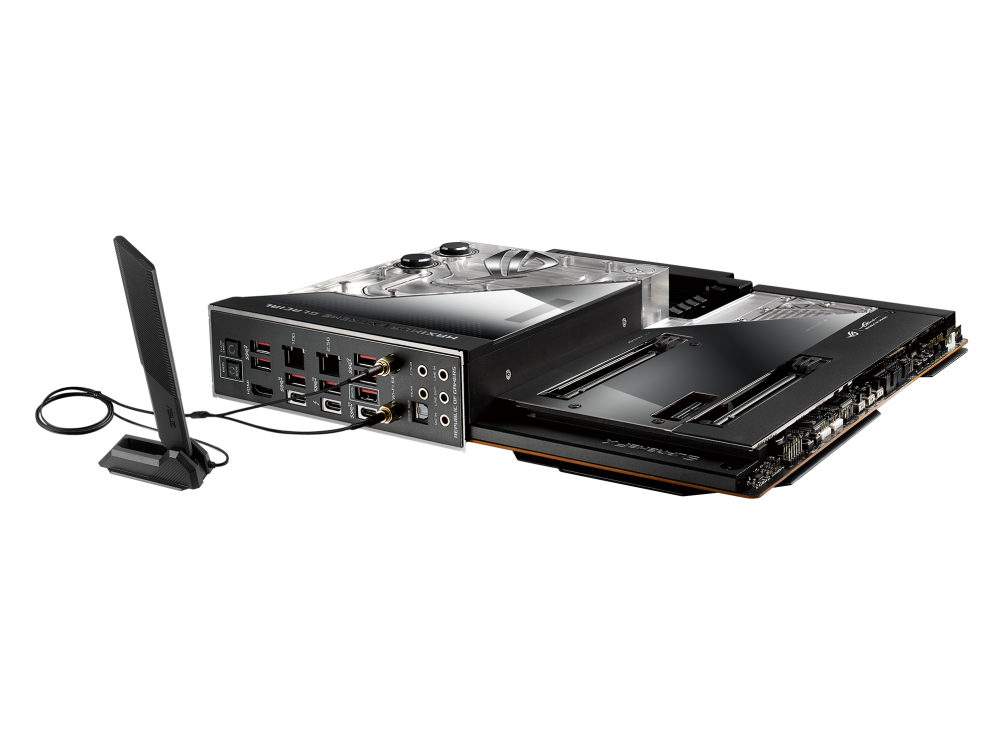

背面インターフェース: 1 x Thunderbolt™ 4 USB Type-C® port1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)1 x HDMI® port1 x ASUS Wi-Fi Module1 x Intel® 2.5Gb Ethernet port1 x Marvell® AQtion 10Gb Ethernet port5 x LED-illuminated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button
特別な機能: Y Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - ROG AURA sync backplate - AURA RGB header(s) - Addressable Gen 2 header(s) Dual BIOS OLED 2" Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE - 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) * Visit ASUS Website for the latest compatibility list.
Software Features: ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - OLED Display - AniMe MatrixTM LED Display AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
BIOS機能: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
主な付属品: Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cables 1 x RGB extension cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x Monoblock 3 x Screw package for monoblock 1 x Thermal pad for monoblock 1 x Fittings for monoblock 1 x M.2 heatsink Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 SSD screw package 1 x Q-connector 1 x ROG CLAVIS DAC 1 x ROG graphics card holder 1 x ROG key chain 1 x ROG logo plate stickers 1 x ROG screwdriver 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide
