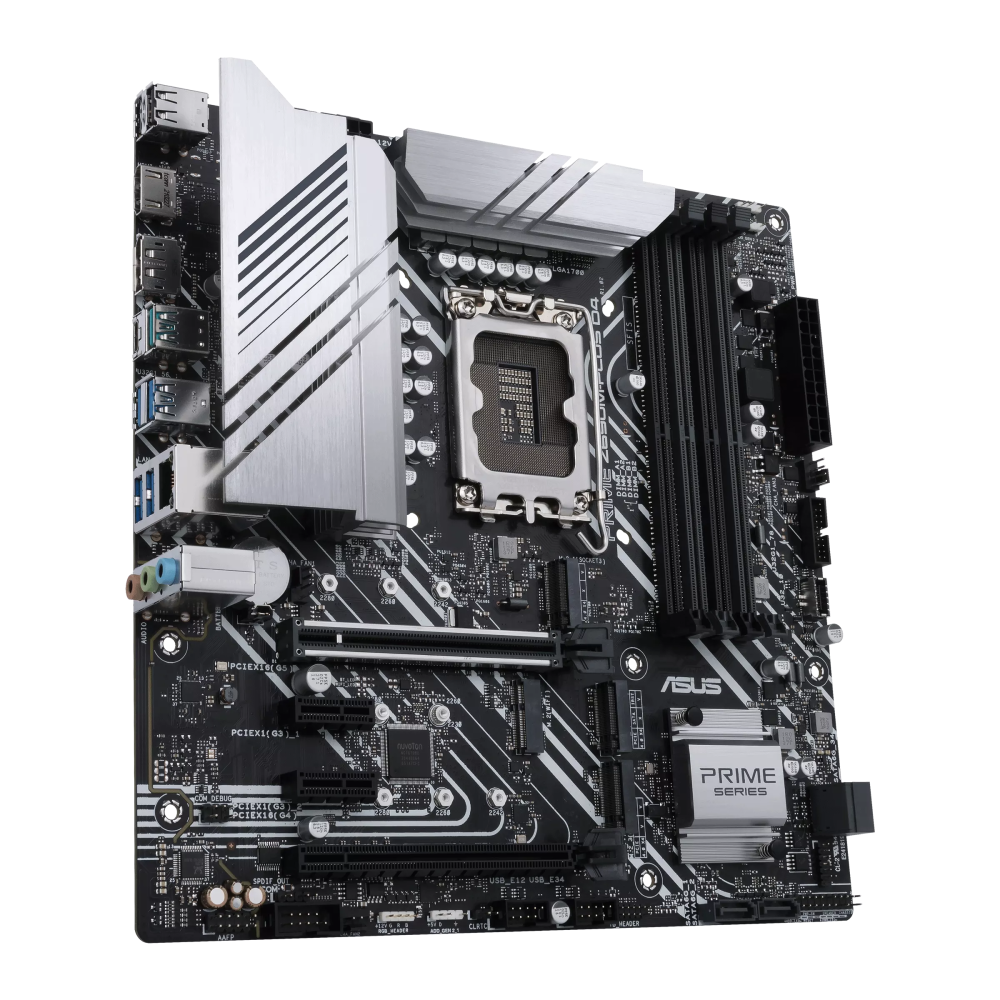

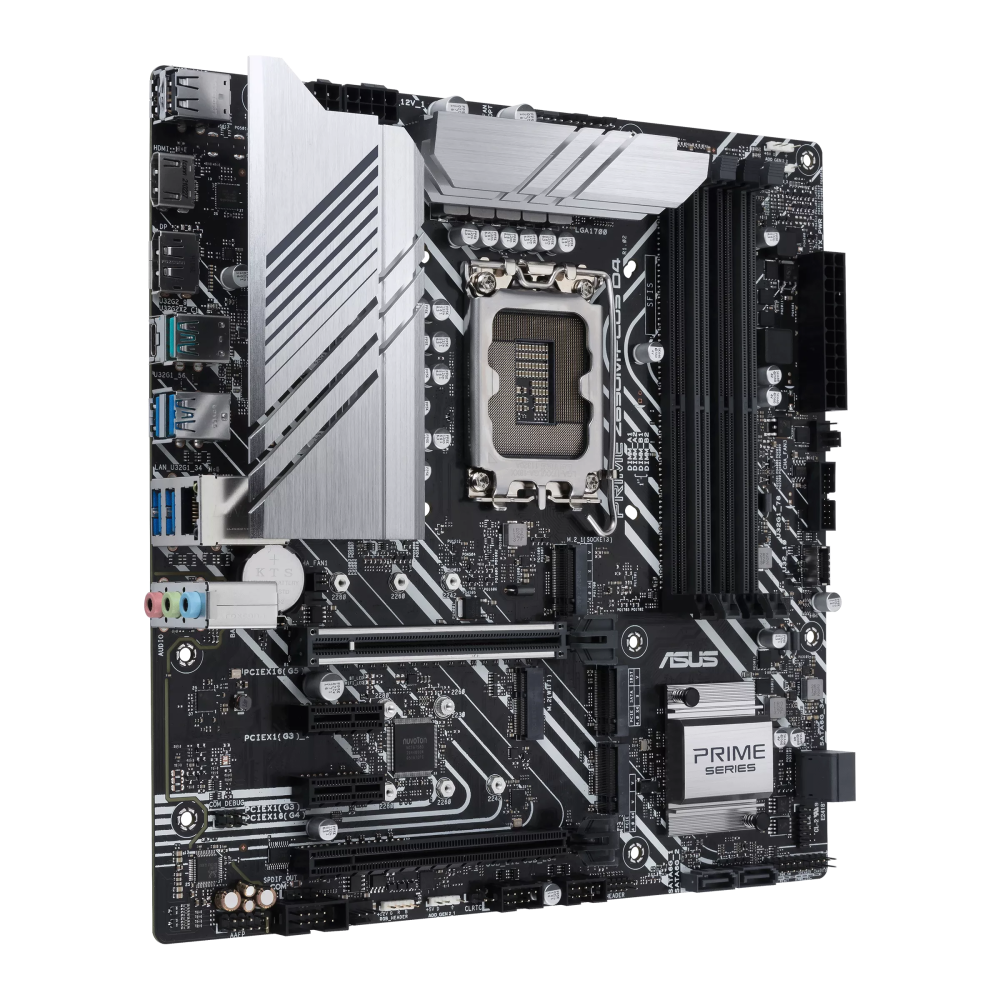

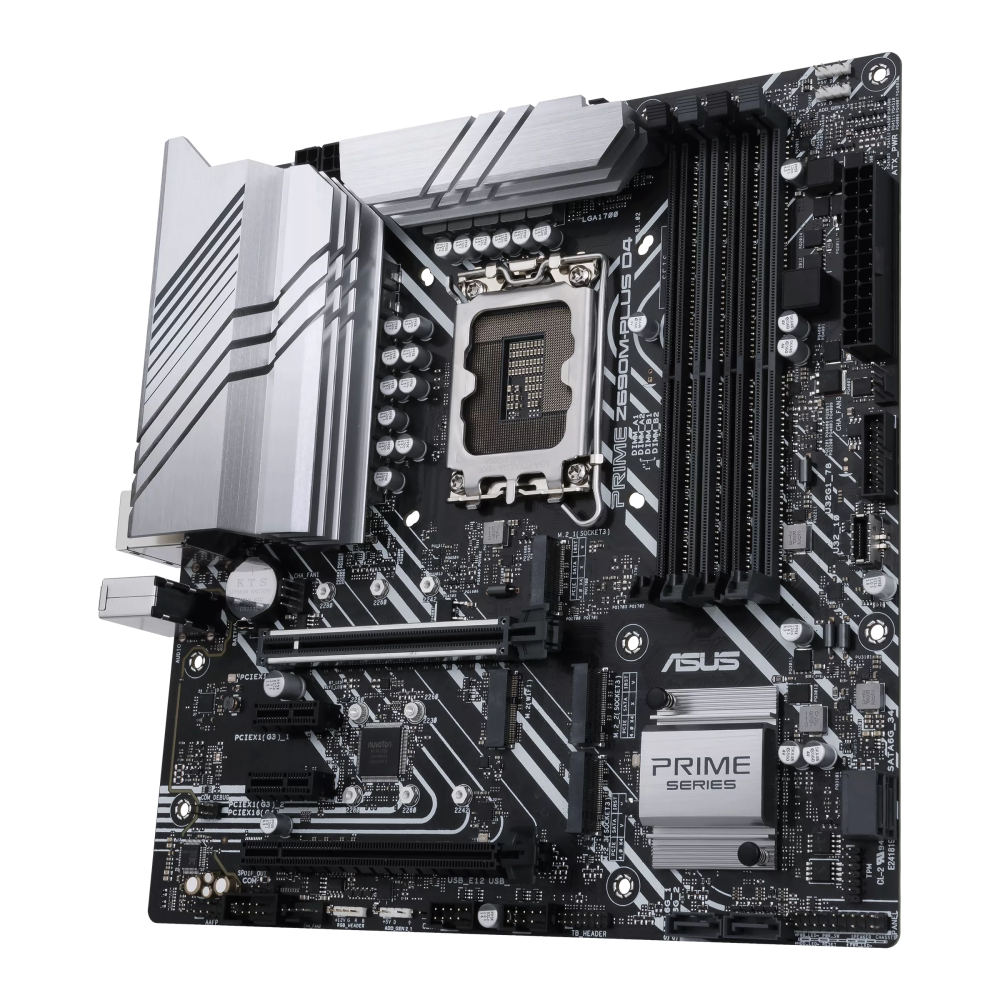

PRIME Z690M-PLUS D4

Intel® Z690 (LGA 1700) mATX マザーボード PCIe® 5.0、3つのM.2スロット、10+1 DrMOS、DDR4、HDMI®、DisplayPort™、Intel® 1 Gbイーサーネット、USB 3.2 Gen 2x2 Type-C®、フロントUSB 3.2 Gen 1 Type-C®、Thunderbolt™ 4 ヘッダー、Aura Sync RGBライティング

メーカー型番
90MB18Q0-M0JAY0
TEKWIND型番
ASU-PRIME/Z690M-PLUS/D4
JAN/UPC
0195553466066
PRIME Z690M-PLUS D4の主な特長
  • インテル® LGA 1700ソケット:第12世代インテル® プロセッサーに対応
  • 強化されたパワーソリューション:10+1 DrMOS、4-pin+8-pin ProCoolコネクタ、合金チョークと耐久性の高いコンデンサにより、安定した電力供給を実現
  • 包括的な冷却:大型VRM用ヒートシンク、PCH用ヒートシンク、ハイブリッドファンヘッダー、Fan Xpert 4搭載
  • ASUS OptiMem II:トレースとビアを慎重に配置し、グランド層を最適化することでシグナルインテグリティを維持し、メモリのオーバークロックを向上
  • 次世代のコネクティビティ:DDR4、PCIe® 5.0、インテル® 1 Gbイーサネット、USB 3.2 Gen 2x2 Type-C®、フロントパネルUSB 3.2 Gen 1 Type-C®、Thunderbolt™ 4ヘッダー

製品仕様

基本仕様

対応CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット
Z690
メインメモリー
4 x DIMM, Max. 128GB, DDR45333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
グラフィックス機能
1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Support 4K@60Hz as specified in DisplayPort 1.4.***Support 4K@60Hz as specified in HDMI 2.1.
拡張スロット
Intel® 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
ストレージ機能
Supports 3 x M.2 slots and 4 x SATA 6Gb/s portsIntel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Wi-Fi
M.2 slot only (Key E, CNVi & PCIe)*Wi-Fi module is sold separately.
オーディオ機能
Realtek 7.1 Surround Sound HighDefinition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
USB機能
Rear USB:Total 8 ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
特別な機能
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB header - Addressable Gen 2 headers
Software Features
ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 -Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

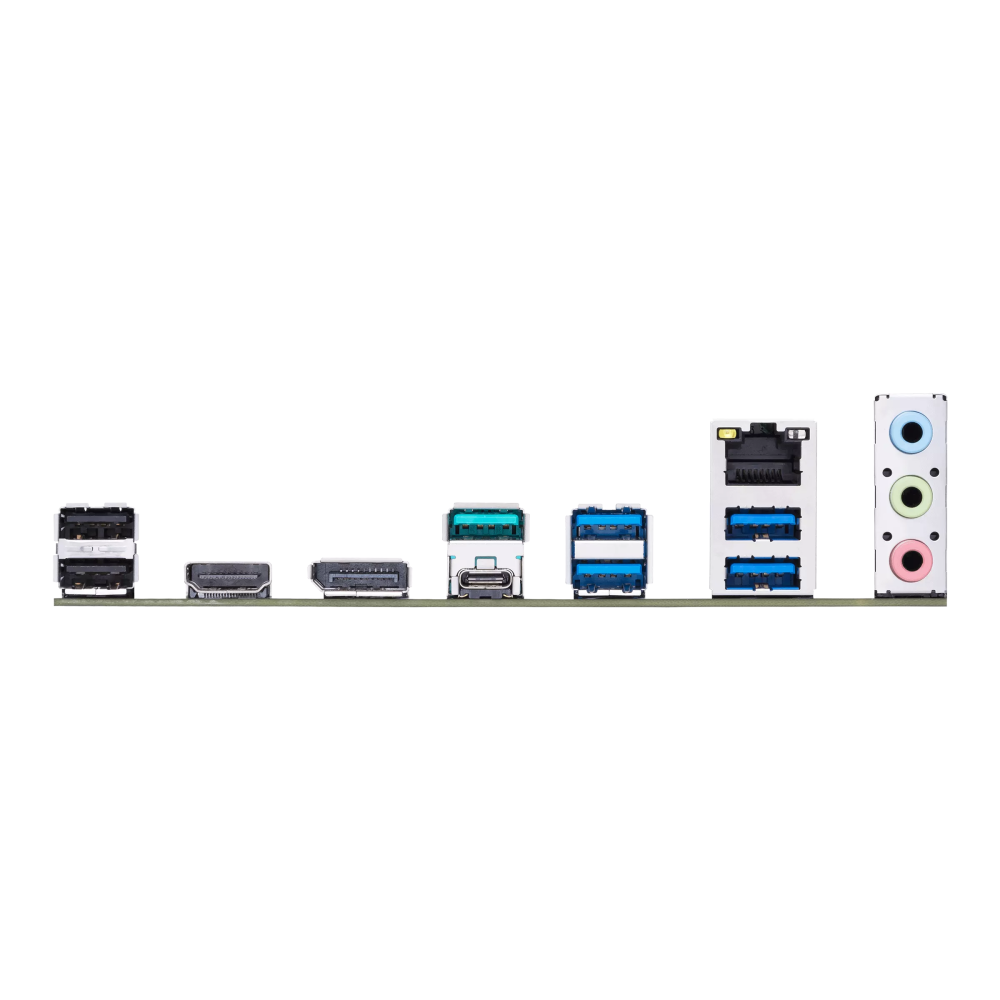

背面インターフェース
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks
基板上インターフェース
Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header

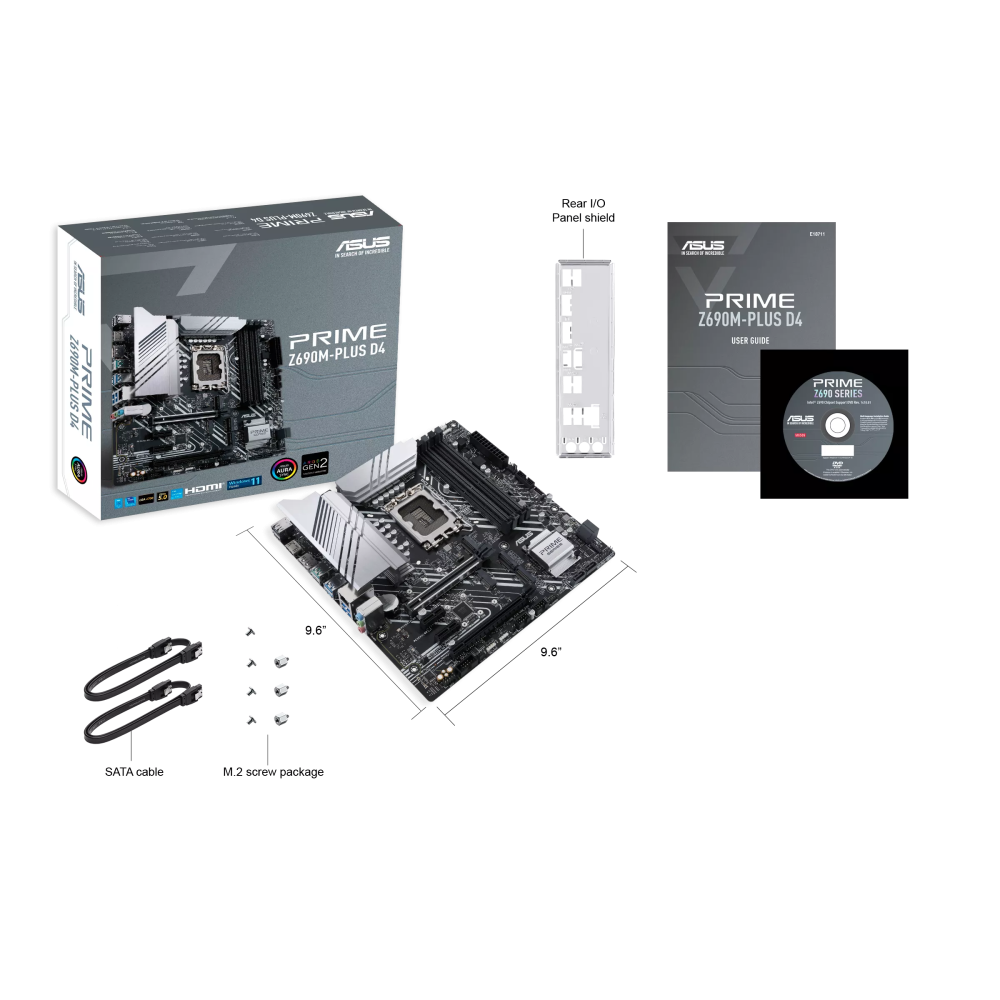

主な付属品

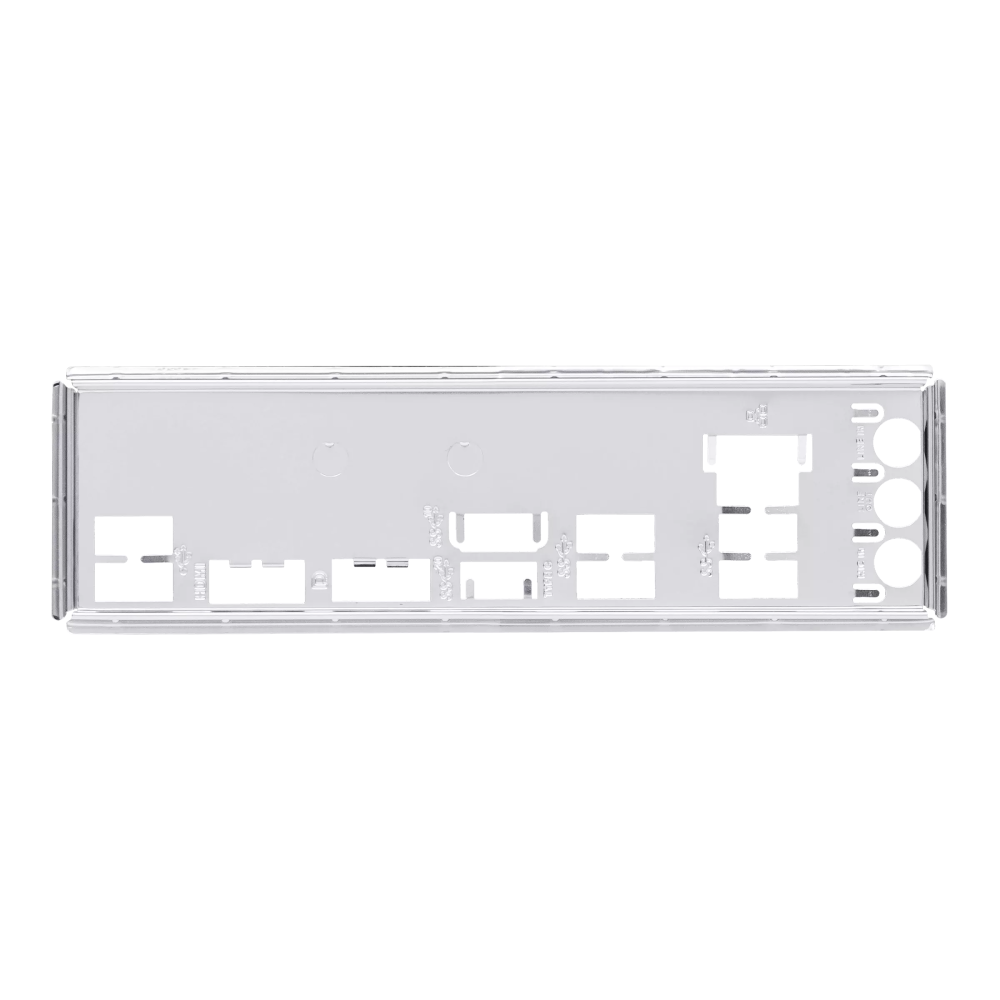

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User guide
BIOS機能
192 (128+64) Mb Flash ROM, UEFI AMIBIOS
管理機能
WOL by PME, PXE
フォームファクター
microATX24.4cm x 24.4cm

パッケージサイズ

幅(W)
26.7cm
奥行(D)
6.8cm
高さ(H)
27.5cm

本体サイズ

重量
1.3kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
対象外
RoHS対応
RoHS対応
