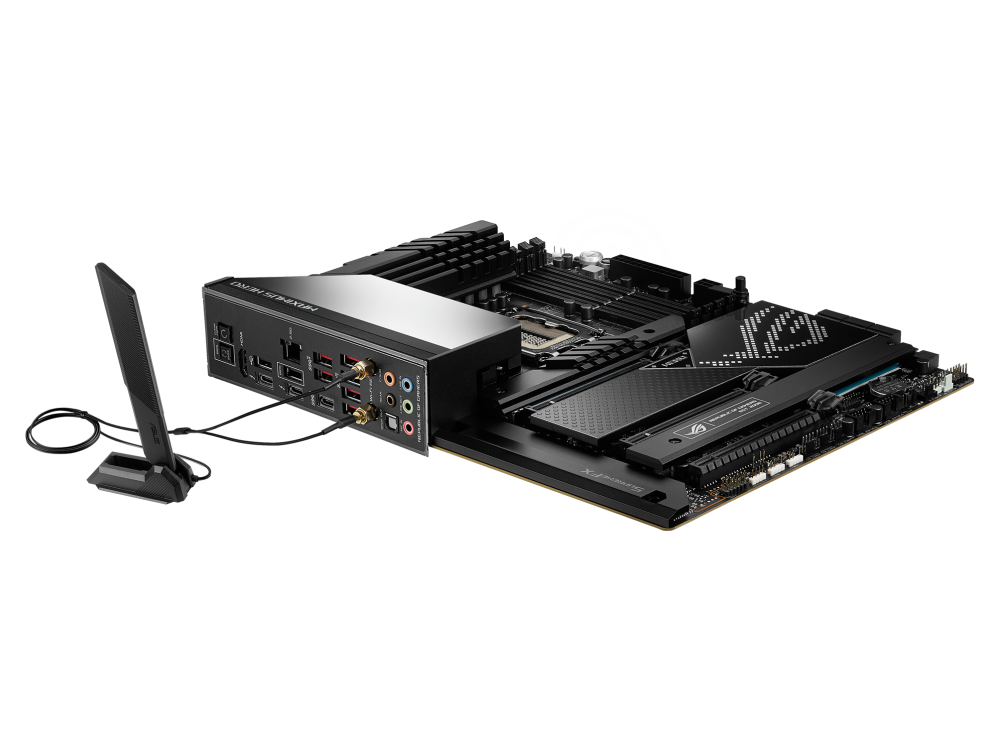

ROG MAXIMUS Z690 HERO

インテル® Z690 ATXマザーボード、20+1パワーステージ、DDR5、5つのM.2、USB 3.2 Gen 2x2フロントパネルコネクタ、デュアルThunderbolt™ 4、PCIe® 5.0、オンボードWiFi 6E、Aura Sync RGB照明機能搭載

メーカー型番
90MB18E0-M0JAY0
TEKWIND型番
ASU-ROG/MAXIMUS/Z690/HERO
JAN/UPC
0195553455503
ROG MAXIMUS Z690 HEROの主な特長
  • 第12世代インテル® Core™、Pentium® Gold、Celeron®プロセッサー対応のLGA 1700ソケット。
  • インテリジェントコントロール:セットアップを簡素化し、パフォーマンスを向上させるASUS独自のソフトウェアおよびファームウェアユーティリティ: AI Overclocking, AI Cooling, AI Networking, 双方向AIノイズキャンセル。
  • 堅牢な電源ソリューション: 定格90Aの20+1電源ステージ、ProCool II電源コネクタ、MicroFine合金チョーク、プレミアム金属コンデンサ。
  • 最適化された冷却性: 大型VRMヒートシンクに、一体型のアルミニウム製のI/Oカバー、高伝導性サーマルパッド、3つのM.2ヒートシンクと2つのM.2バックプレート、さらにROG水冷ゾーンとヒートシンク付きROG Hyper M.2カードを搭載。
  • 高性能ネットワーク:オンボードWiFi 6E(802.11ax)、デュアルIntel® 2.5Gbイーサネット、およびASUS LANGaurd搭載。
  • 優れた接続性:PCIe® 5.0, デュアルGen4 M.2搭載、Gen5 M.2対応のROG Hyper M.2カード、USB 3.2 Gen 2x2フロントパネルコネクタ、デュアルThunderbolt™ 4(USB Type-C® ポート)。
  • 業界をリードするゲーミングオーディオ: 正確でダイナミックなサウンドを実現するESS® ES9018Q2C DACを搭載したROG SupremeFX ALC4082
  • 比類なきパーソナライゼーション: ASUS独自のAura Sync RGBライティングにより多彩な光の演出が可能なI/Oカバーに、RGBヘッダー1つとアドレサブルGen 2 RGBヘッダーを3つ搭載。
  • DIYフレンドリーなデザイン: 事前に取り付けられたI/Oシールド、BIOS FlashBack™、Qコード、FlexKey、Qコネクタ、M.2 Q-Latch, SafeSlot, ヒートシンク付きROG Hyper M.2カードおよびROGグラフィックスカードホルダー
  • 有名なソフトウェア: バンドルされた1年間のAIDA64 Extremeサブスクリプションと統合されたMemTest 86を備えた直感的なUEFIBIOSダッシュボード

製品仕様

基本仕様

対応CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット
Intel® Z690 Chipset
メインメモリー
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)
グラフィックス機能
1 x HDMI® port**2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Support 4K@60Hz as specified in HDMI 2.1.
拡張スロット
Intel® 12th Gen Processors*2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** Intel® Z690 Chipset***1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)* Please check PCIe bifurcation table in Chapter 1.** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.*** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
ストレージ機能
Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)- Intel® 12th Gen processors support PCIe 4.0 x4 mode.Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***- Intel® 12th Gen processors support PCIe 5.0 x4 modeIntel® Z690 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****6 x SATA 6Gb/s ports****** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.*** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.**** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports
Wi-Fi
Intel® Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth v5.2 hardware ready*** WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
オーディオ機能
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features:- SupremeFX Shielding Technology- ESS® SABRE9018Q2C DAC/AMP- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover
USB機能
Rear USB: Total 11 ports 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)2 x USB 2.0 ports (2 x Type-A) Front USB: Total 9 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports
特別な機能
Extreme OC Kit- FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) * Visit ASUS Website for the latest compatibility list.
Software Features
ROG Exclusive Software - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
背面インターフェース
2 x Thunderbolt™ 4 USB Type-C® ports7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
基板上インターフェース
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x ReTry button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
主な付属品
Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 4 x SATA 6Gb/s cables ROG Hyper M.2 Card 1 x ROG Hyper M.2 Card with heatsink 2 x M.2 screw packages for ROG Hyper M.2 Card Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Q-Latch package 2 x M.2 Q-Latch packages for M.2 backplate 1 x M.2 Rubber Package 1 x Q-connector 1 x ROG Graphics card holder 1 x ROG stickers 1 x ROG key chain 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User Guide
BIOS機能
256 Mb Flash ROM, UEFI AMI BIOS
管理機能
WOL by PME, PXE
対応OS
Windows® 11 64-bit, Windows® 10 64-bit
フォームファクター
ATX 30.5cm x 24.4cm

パッケージサイズ

幅(W)
31.2cm
奥行(D)
10.8cm
高さ(H)
37cm

本体サイズ

重量
4kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
TELEC対応
RoHS対応
RoHS対応
