ROG MAXIMUS Z690 FORMULA - Intel®12世代CPU対応Z690チップセット搭載マザーボード

  • 仕様
  • SNSでシェアする

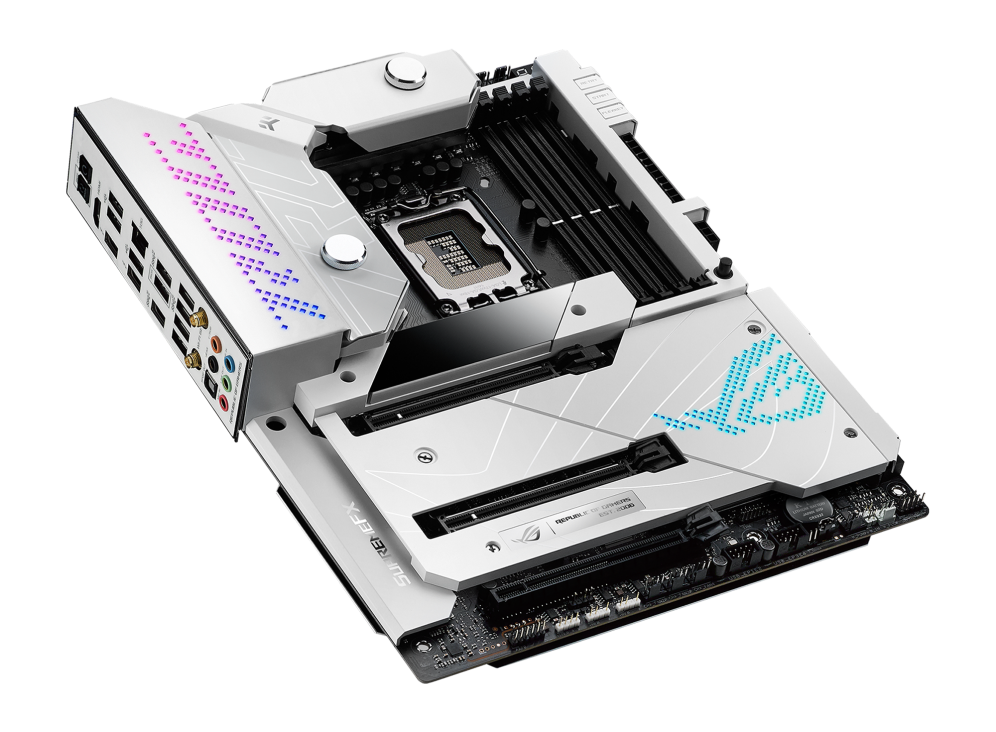

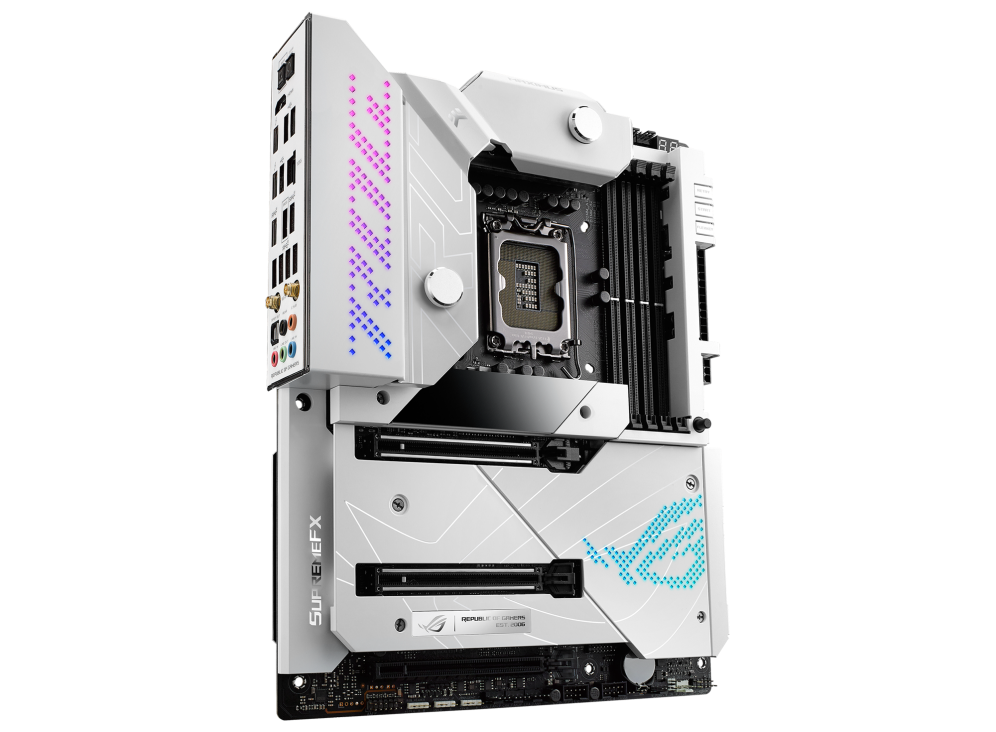

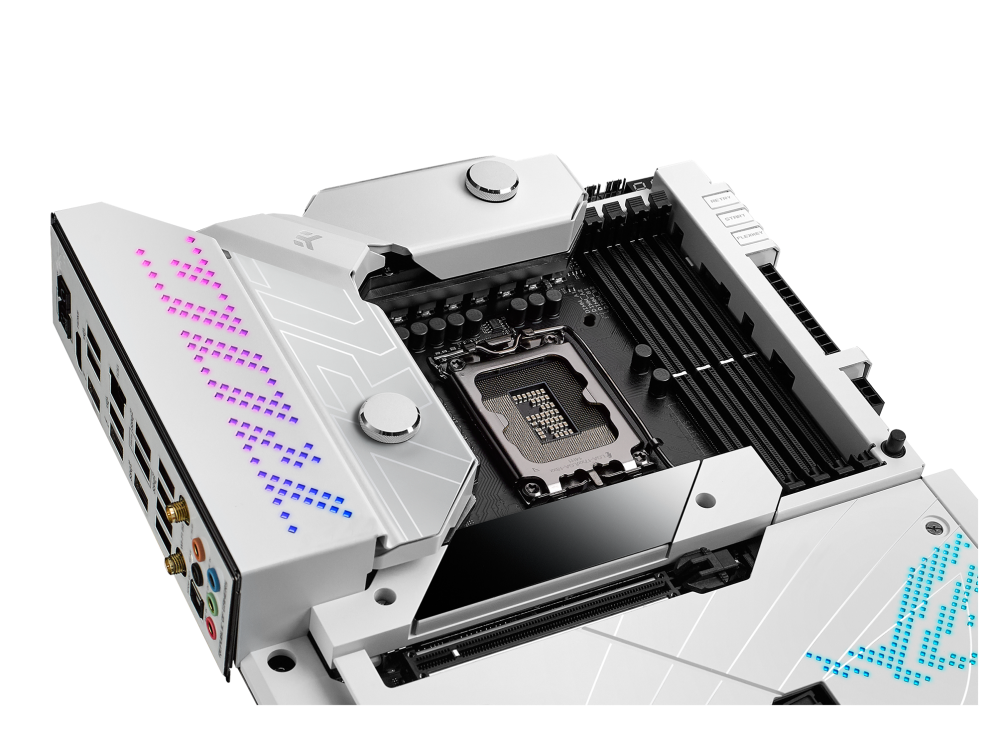

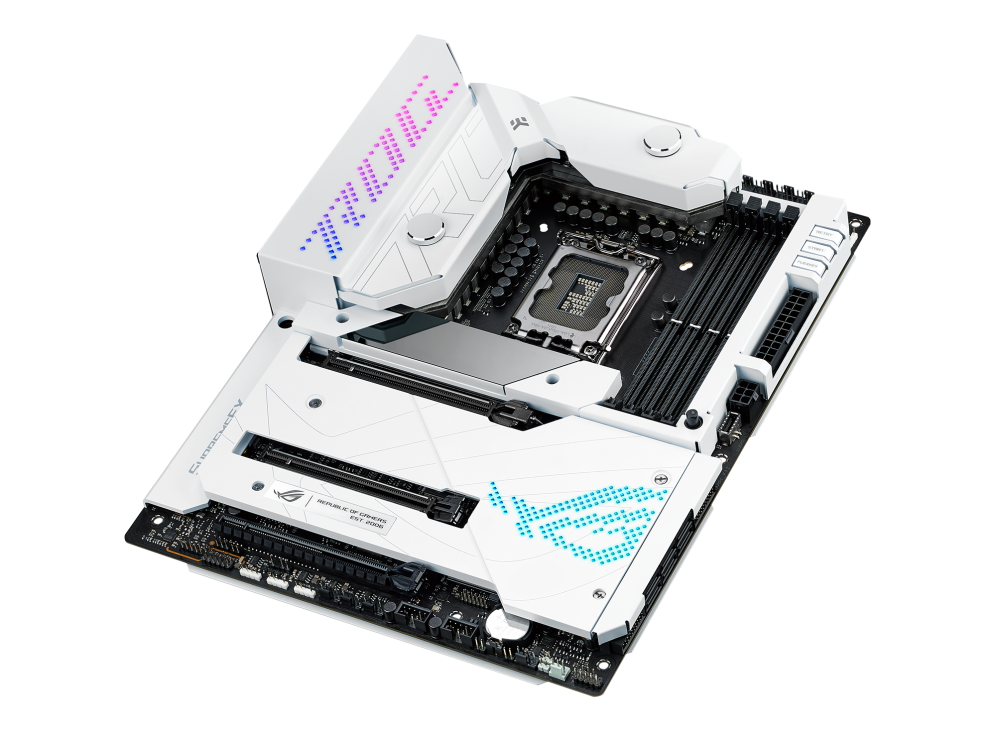

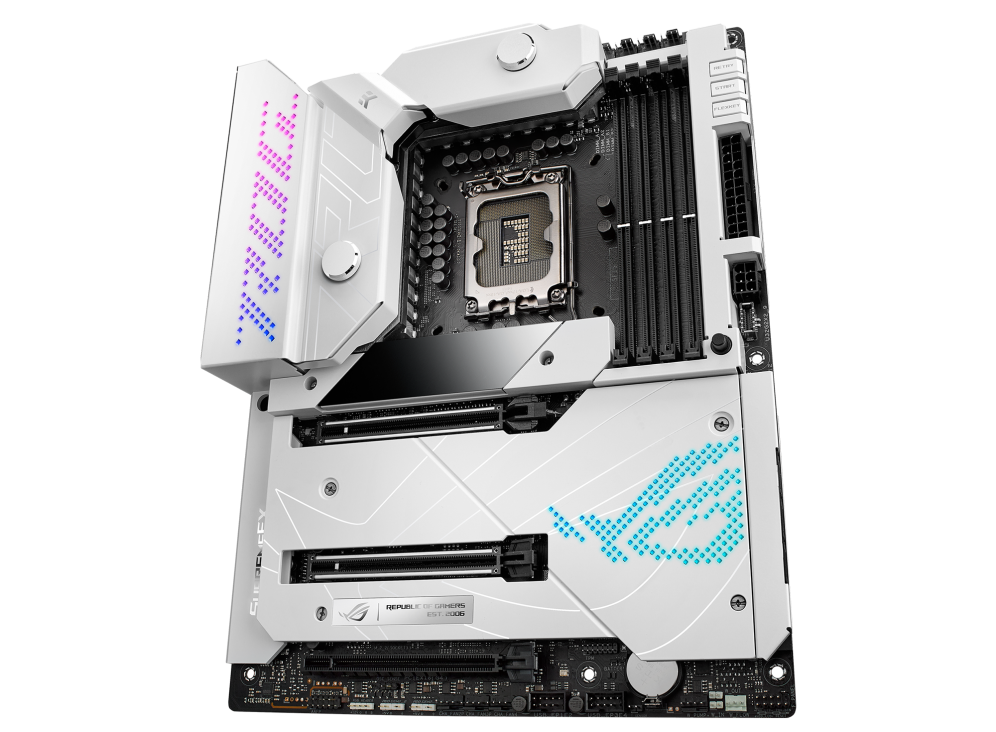

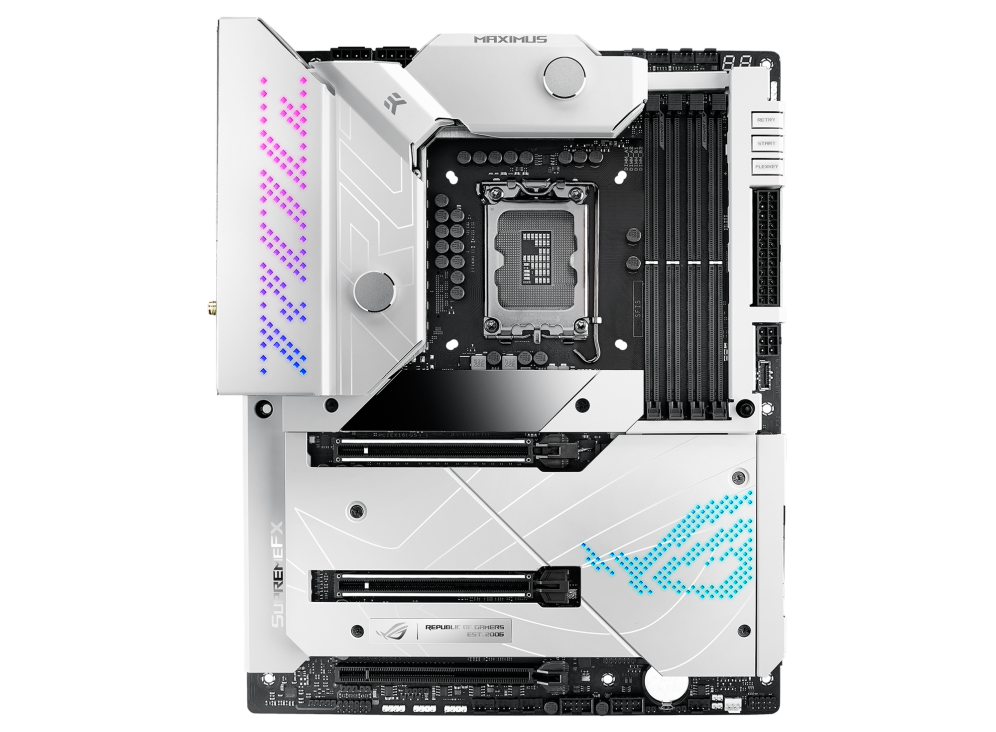

ROG MAXIMUS Z690 FORMULA

Intel®Z690ATXマザーボード、20 + 1パワーステージ、DDR5、Five M.2、USB 3.2 Gen 2x2フロントパネルコネクタ、DualThunderbolt™4、PCIe®5.0、オンボードWiFi 6E、10 Gbイーサネット、Aura Sync RGB照明

メーカー型番
90MB18G0-M0JAY0
TEKWIND型番
ASU-ROG/MAXIMUS/Z690/FORMULA
JAN/UPC
0195553483193
ROG MAXIMUS Z690 FORMULAの主な特長
  • 第12世代インテル® Core™、Pentium® Gold、Celeron®プロセッサー対応のLGA 1700ソケット。
  • インテリジェントコントロール:セットアップを簡素化し、パフォーマンスを向上させるASUS独自のソフトウェアおよびファームウェアユーティリティ: AI Overclocking, AI Cooling, AI Networking, 双方向AIノイズキャンセル。
  • 堅牢な電源ソリューション: 定格105Aの20+1電源ステージ、ProCool II電源コネクタ、MicroFine合金チョーク、プレミアム金属コンデンサ。
  • 最適化された冷却設計:EK CrossChill IIIソリューションを採用した大型VRMヒートシンク、高導電性サーマルパッド、3つのM.2ヒートシンクと2つのM.2バックプレート、ROG水冷ゾーン。
  • 高性能ネットワーク:オンボードWiFi 6E、Marvell® AQtion 10 Gbイーサネット、ASUS LANGaurd搭載。
  • 優れた接続性:PCIe® 5.0、オンボードデュアルGen4 M.2、Gen5 M.2対応のROG Hyper M.2カード、USB 3.2 Gen 2x2フロントパネルコネクタ、デュアルThunderbolt™ 4 USB Type-C® ポート。
  • 業界をリードするゲーミングオーディオ: 正確でダイナミックなサウンドを実現するESS® ES9018Q2C DACを搭載したROG SupremeFX ALC4082
  •  比類なきパーソナライゼーション: 2インチのLiveDash OLED、ASUS独自のAura Sync RGBライティング(1つのRGBヘッダーと3つのアドレサブルGen 2ヘッダーを含む)。 
  • DIYフレンドリーなデザイン: 事前に取り付けられたI/Oシールド、 PCIeスロット Q-Release、BIOS FlashBack™、Q-Code、FlexKey、Q-Connector、M.2 Q-Latch、SafeSlot、 ヒートシンク付きROG Hyper M.2カードおよびROGグラフィックスカードホルダー
  • 有名なソフトウェア: バンドルされた1年間のAIDA64 Extremeサブスクリプションと統合されたMemTest 86を備えた直感的なUEFIBIOSダッシュボード

製品仕様

基本仕様

対応CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット
Intel® Z690 Chipset
メインメモリー
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)** Supported memory types, data rate (speed), and number of DRAM modules may vary depending on the CPU and memory configuration, for more information refer to www.asus.com for the memory support list.
グラフィックス機能
Graphics:1 x HDMI® port**2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs**** Graphics specifications may vary between CPU types.** Support 4K@60Hz as specified in HDMI 2.1.*** VGA resolution support depends on processors' or graphic cards' resolution.
拡張スロット
Intel® 12th Gen Processors*2 x PCIe 5.0 x16 slot(s) (supports x16 or x8/x8 mode(s))**Intel® Z690 Chipset***1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)**** Please check PCIe bifurcation table in manual Chapter 1** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.*** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
ストレージ機能
Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110- Intel® 12th Gen processors support PCIe 4.0 x4 mode. Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***- Intel® 12th Gen processors support PCIe 5.0 x4 modeIntel® Z690 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****6 x SATA 6Gb/s ports****** Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.*** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4)_3, Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.**** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4)_3, Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.***** SATA6G_E12 cannot support RAID 0/1/5/10.
Wi-Fi
Intel® Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth v5.2* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
オーディオ機能
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology- ESS® SABRE9018Q2C DAC/AMP- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors
USB機能
Rear USB: Total 12 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®)3 x USB 2.0 port(s) (3 x Type-A)Front USB: Total 9 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
特別な機能
Extreme OC Kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black Metallic Capacitors- MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution - CrossChill EK III- M.2 heatsink backplate- M.2 heatsinks- Steel backplateASUS EZ DIY- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header(s)- Addressable Gen 2 header(s)OLED 2"Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support- Support: up to 60W charging*- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27WASUS HYDRANODE- 1 x 12-1 pin Front Panel Audio header (AAFP)- 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)* Visit ASUS Website for the latest compatibility list.
Software Features
ROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS® Sound Unbound - BullGuard Internet Security (1-year full version)ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (1 year full version)- AURA Creator- AURA Sync- Fan Xpert 4 - Two-Way AI Noise CancelationAI Suite 3- Easy Optimization with AI Overclocking  TPU  EPU  DIGI+ Power Control  Turbo appMyAsusWinRARWEFI BIOSAI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeMemTest86
背面インターフェース
2 x Thunderbolt™ 4 USB Type-C® port(s)7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®)3 x USB 2.0 port(s) (3 x Type-A) 1 x HDMI® port1 x Wi-Fi Module1 x Marvell® AQtion 10Gb Ethernet port 5 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button
基板上インターフェース
Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)4 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s)1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerPower related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connector1 x 6-pin PCIe Graphics Card connectorStorage related 3 x M.2 slots (Key M)6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x FlexKey button 1 x 12-1 pin Front Panel Audio header (AAFP)1 x ReTry button1 x SPI TPM header (14-1pin)1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header
主な付属品
Cables1 x ARGB RGB extension cable1 x RGB extension cable2 x ROG weave SATA 6G cables4 x SATA 6Gb/s cables ROG Hyper M.2 Card1 x ROG Hyper M.2 Card2 x M.2 screw package for ROG Hyper M.2 CardMiscellaneous1 x ASUS Wi-Fi moving antennas1 x M.2 Rubber Package(s)1 x Q-connector1 x M.2 Q-Latch package(s)2 x M.2 Q-Latch packages for M.2 backplate1 x ROG key chain1 x ROG stickers1 x ROG thank you card1 x ROG Graphic card holder Installation Media1 x USB drive with utilities and drivers Documentation1 x User guide
BIOS機能
256 Mb Flash ROM, UEFI AMI BIOS
管理機能
WOL by PME, PXE
対応OS
Windows® 11 64-bit, Windows® 10 64-bit
フォームファクター
ATX 30.5cm x 24.4cm

パッケージサイズ

幅(W)
31.2cm
奥行(D)
10.8cm
高さ(H)
37cm

本体サイズ

重量
4.5kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
TELEC対応
RoHS対応
RoHS対応
