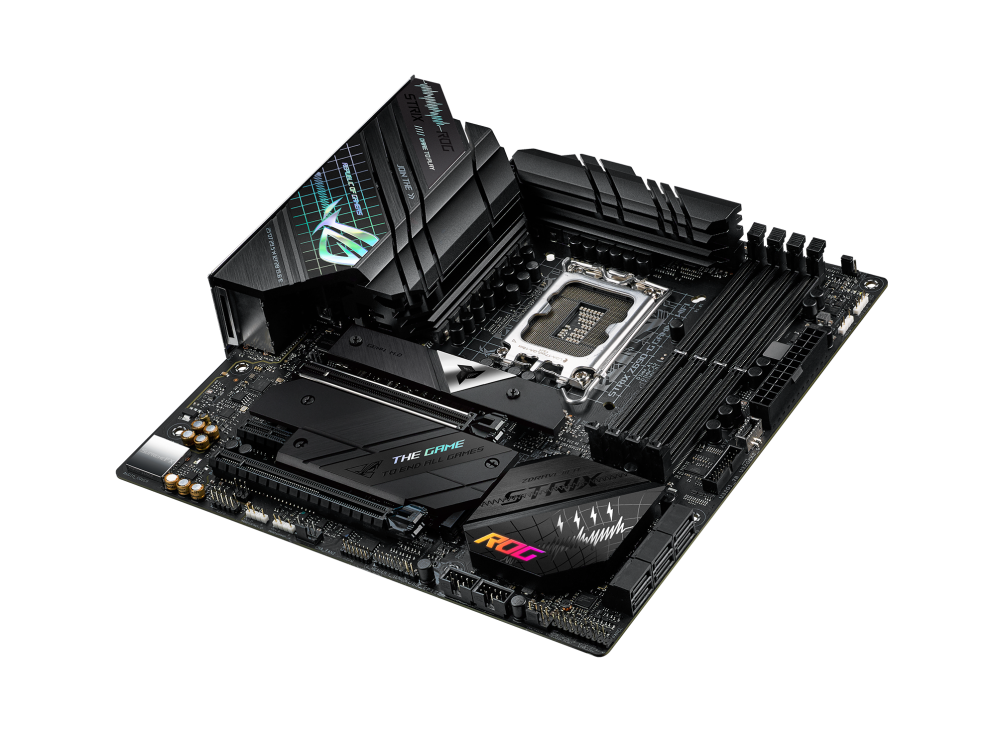

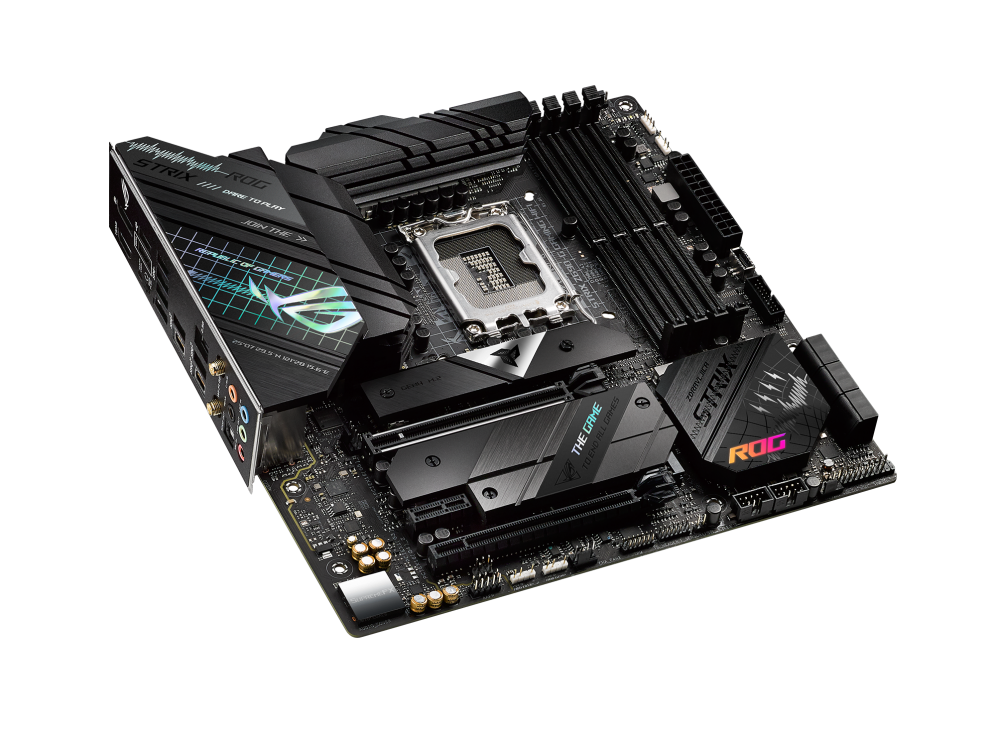

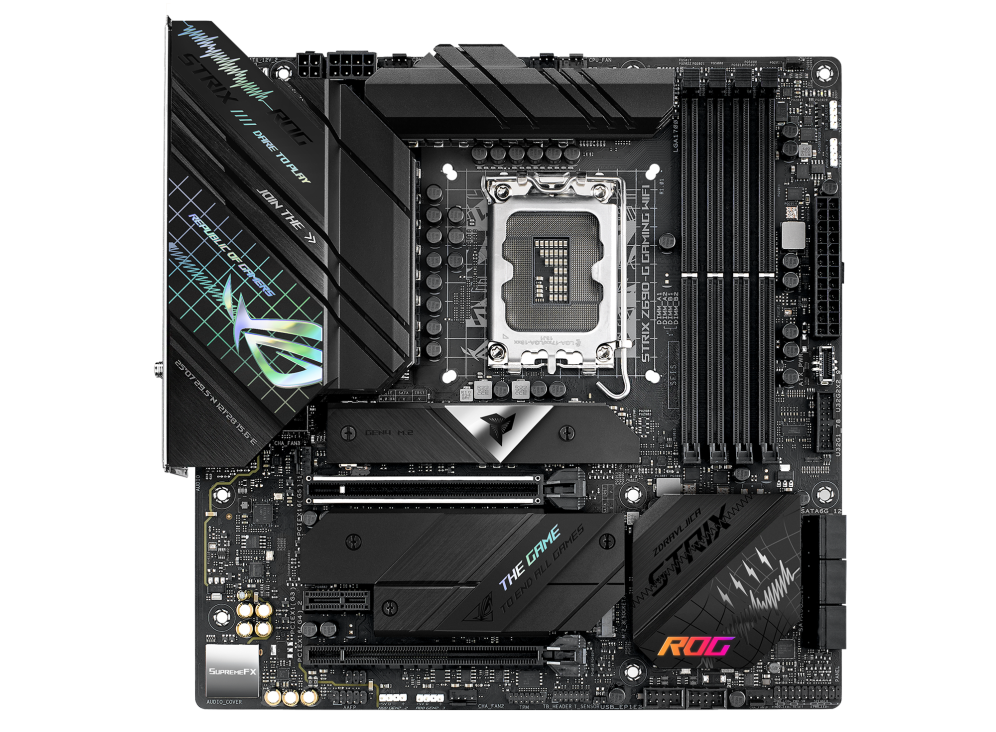

ROG STRIX Z690-G GAMING WIFI

Intel®Z690LGA1700ATXマザーボード、PCIe®5.0、14 + 1 DrMos、DDR5メモリサポート、双方向AIノイズキャンセル、AIオーバークロッキング、AI冷却、AIネットワーキング、WiFi 6E(802.11ax)、Intel®2.5Gbイーサネット、ヒートシンク付きの3つのM.2スロット、PCIe®4.0NVMe®SSDサポート、M.2バックプレート、USB 3.2 Gen2x2Type-C®、SATAおよびAURA SyncRGB照明

メーカー型番
90MB19G0-M0JAY0
TEKWIND型番
ASU-ROG/STRIX/Z690-G/GAMING/WIFI
JAN/UPC
0195553455428
ROG STRIX Z690-G GAMING WIFIの主な特長
  • 第12世代インテル® Core™、Pentium® Gold、Celeron®プロセッサに対応
  • 最適なパワーソリューション:14+1 DrMosにProCool II電源コネクタ、高品質な合金チョークと耐久性のあるコンデンサを採用し、マルチコアプロセッサに対応

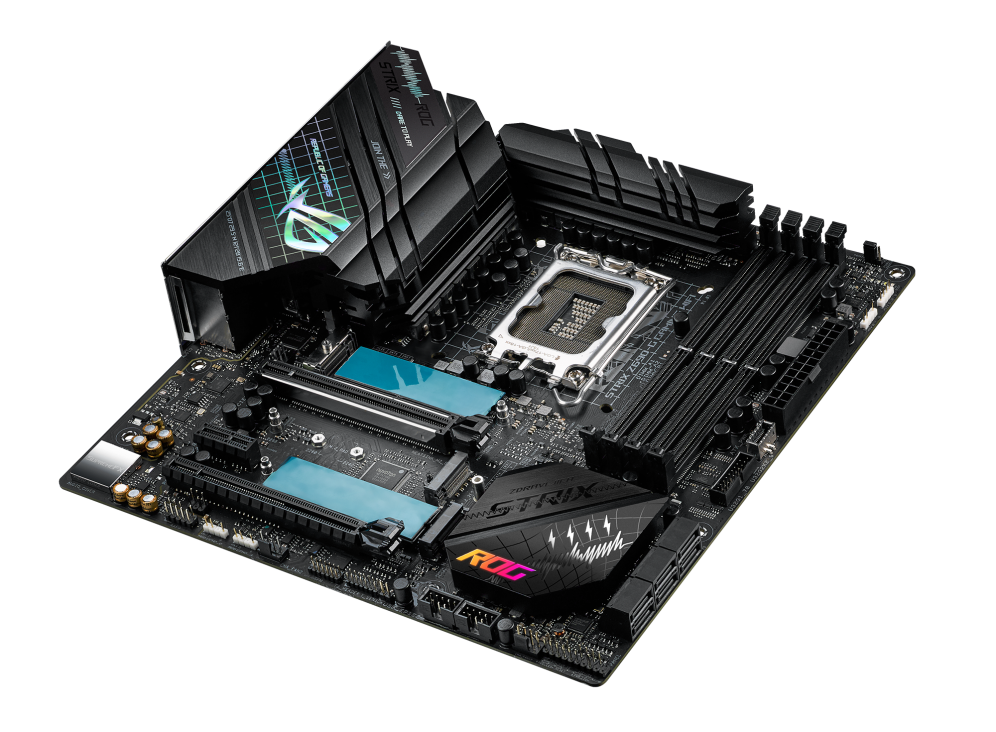

  • 最適化された熱設計:高伝導性サーマルパッドを使用した統合I/OカバーおよびVRMヒートシンク、3つのオンボードM.2ヒートシンク、M.2_1スロット用M.2バックプレート
  • 高性能なネットワーキング: Intel® WiFi 6E (802.11ax)、Intel® 2.5 Gb Ethernet (ASUS LANGuard搭載)
  • 最高のゲーミングコネクティビティ: HDMI® 2.1およびDisplayPort™ 1.4出力、3つのM.2スロットに加え、USB 3.2 Gen 2x2 Type-C®をサポート
  • インテリジェント・コントロール: ASUS独自の「AI OVERCLOCKING」、「AI COOLING」、「AI NETWORKING」、「双方向AIノイズキャンセリング」により、セットアップを簡素化し、パフォーマンスを向上
  • DIYフレンドリーなデザイン:PCIe®スロットQ-Release、M.2 Q-Latch、ROG Reusable Cable Organizer、プレマウントI/Oシールド、BIOS FlashBack™ボタン、およびClr CMOSボタン
  • パーソナライゼーション: ASUS独自のAura Sync RGBライティング、RGBヘッダーと3つのアドレサブルGen2ヘッダー
  • 業界をリードするゲーミングオーディオ: ALC4080とSavitech SV3H712アンプ、DTS® Sound UnboundとSonic Studio IIIを搭載
  • 有名なソフトウェア: AIDA64 Extreme 60日間無料体験版と、MemTest86が統合された直感的なUEFI BIOSダッシュボードがバンドル

製品仕様 SPEC

基本仕様

対応CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 10 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット
Intel® Z690 Chipset
メインメモリー
4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能
1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 8K@60Hz as specified in DisplayPort 1.4. *** Support 4K@60Hz as specified in HDMI 2.1.
拡張スロット
Intel® 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® Z690 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
ストレージ機能
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports *** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.
Wi-Fi
Intel® Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
オーディオ機能
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover
USB機能
Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB: Total 7 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
特別な機能
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers
Software Features
ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86

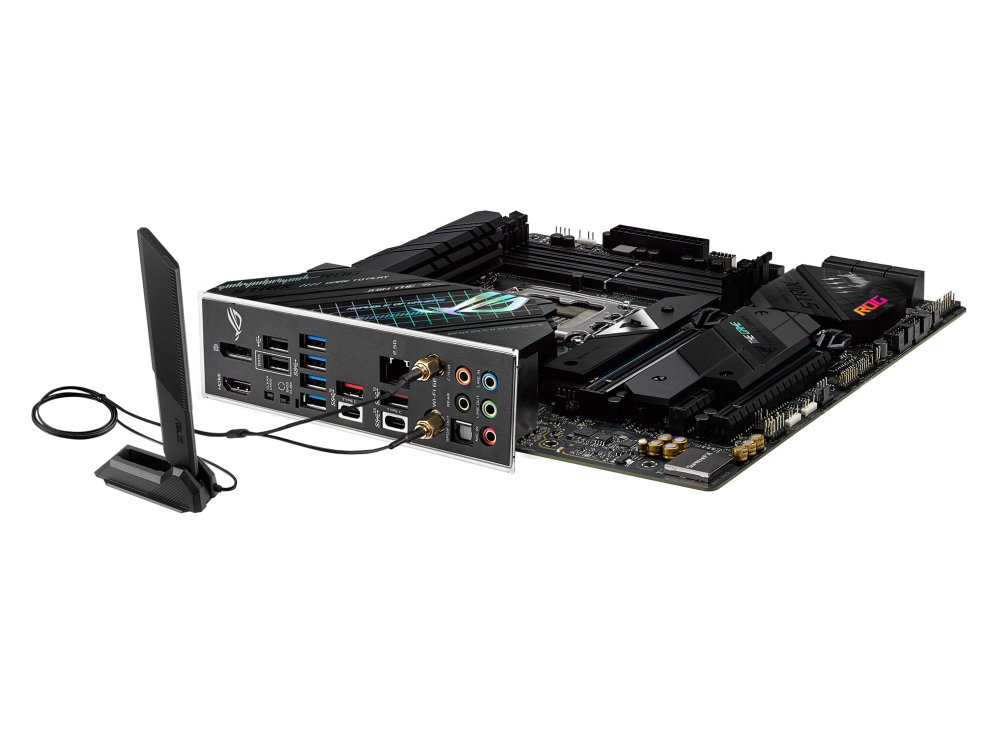

背面インターフェース
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
基板上インターフェース
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ header
主な付属品
Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual
BIOS機能
256 Mb Flash ROM, UEFI AMI BIOS
管理機能
WOL by PME, PXE
対応OS
Windows® 11 64-bit, Windows® 10 64-bit
フォームファクター
microATX 24.4cm x 24.4cm

パッケージサイズ

幅(W)
26.5cm
奥行(D)
7cm
高さ(H)
28cm

本体サイズ

重量
1.5kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
TELEC対応
RoHS対応
RoHS対応
