PRIME H310M-E - Intel® H310 チップセット搭載mATXマザーボード

  • 仕様
  • SNSでシェアする

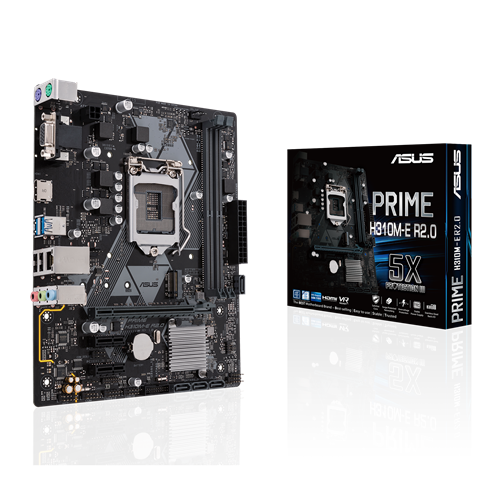

PRIME H310M-E

DDR4 2666MHz、SATA 6Gbps、およびUSB 3.1 Gen 1 Intel LGA-1151 mATXマザーボード

メーカー型番
90MB0X90-M0JAY0
TEKWIND型番
ASU-PRIME/H310M-E
JAN/UPC
0889349906545
PRIME H310M-Eの主な特長
  • ASUS OptiMem: 信号の整合性を向上するトレースとビアの慎重なルーティングによりメモリの安定性を強化
  • Fan Xpert: 究極の冷却と静音性を実現する柔軟なコントロール、 ゲーミング仕様のGPU温度検出機能を搭載
  • 5X Protection III: 複数のハードウェアプロテクションの組合せによる絶対的な保護

製品仕様

基本仕様

対応CPU
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.* Refer to www.asus.com for CPU support list
搭載チップセット
Intel® H310
メインメモリー
2 x DIMM, Max. 32GB, DDR4- 2666/2400/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture Supports Intel® Extreme Memory Profile (XMP)* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
グラフィックス機能
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz / 2560  x 1600  @ 60  Hz - Supports D-sub with max. resolution 1920  x 1200  @ 60  HzMaximum shared memory of 1024  MB (for iGPU exclusively)Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
拡張スロット
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1
ストレージ機能
Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*14 x SATA 6Gb/s port(s), gray,
LAN機能
Realtek® RTL8111H, 1 x 1000BASE-T/100BASE-TX/10BASE-T LAN
オーディオ機能
Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retaskingAudio Feature :- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB機能
Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
特別な機能
ASUS 5X Protection III :- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: Premium components provide better power efficiencyASUS OptiMem:- Optimem (Improved DDR4 stability)ASUS EPU :- EPU ASUS Exclusive Features :- AI Suite 3- Ai Charger - PC Cleaner- File TransferASUS Quiet Thermal Solution :- Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert ASUS EZ DIY :- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeASUS Q-Design :- ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)
背面インターフェース
1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps2 x USB 2.0 3 x Audio jack(s)
基板上インターフェース
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)1 x TPM header1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x Speaker connector
主な付属品
User´s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Anchor1 x Supporting DVD
BIOS機能
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
管理機能
WOL by PME, PXE
OS
Windows® 10 64-bit
フォームファクター(サイズW×D)
mATX Form Factor 8.9  inch x 7.3  inch ( 22.6  cm x 18.5  cm )
その他
*1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used. Due to the Chipset limitation, when a M.2 device is installed in PCIe mode, the socket is setto PCIe 2.0.

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
対象外
RoHS対応
RoHS対応
