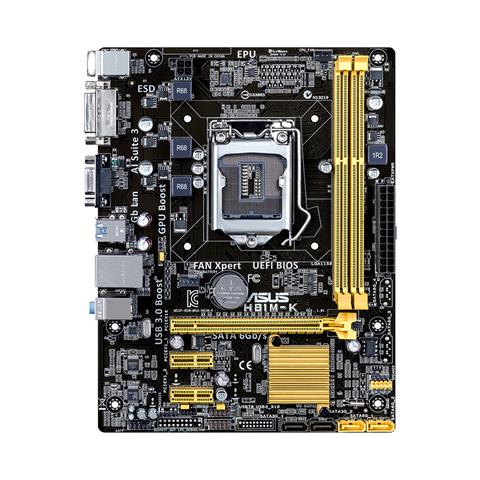

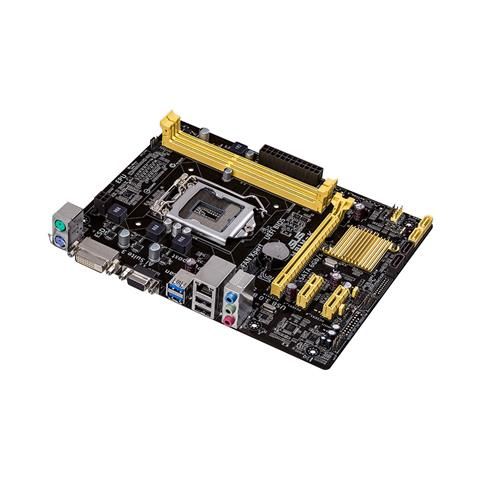

H81M-K - Socket 1150対応Micro-ATX マザーボード

基本仕様

対応CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPUSupports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.* Refer to www.asus.com for CPU support list

搭載チップセット

Intel® H81

メインメモリー

2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

グラフィックス機能

Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920  x 1200  @ 60 Hz - Supports RGB with max. resolution 1920  x 1200  @ 60  HzMaximum shared memory of 1024  MB (for iGPU exclusively)Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

拡張スロット

1 x PCIe x16 2 x PCIe 2.0 x1

ストレージ機能

Intel® H81 chipset : 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

USB機能

Intel® H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

オーディオ機能

Realtek ALC887/897 8-Channel High Definition Audio CODEC *2- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

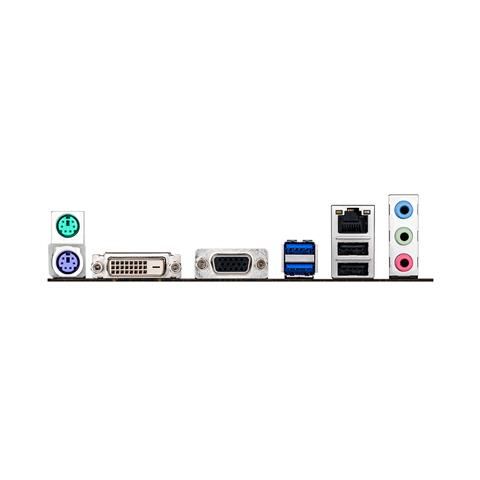

背面インターフェース

1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI1 x D-Sub1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s)

特別な機能

ASUS EPU :- EPU ASUS Exclusive Features :- GPU Boost - AI Suite 3- Ai Charger - Anti-Surge- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl- USB 3.0 Boost- Disk UnlockerASUS Quiet Thermal Solution :- Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert ASUS EZ DIY :- ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design :- ASUS Q-Slot

BIOS機能

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

その他

*1-1:Due to the limitation of the Intel® H81chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.*1-2:These functions will work depending on the CPU installed.*2:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

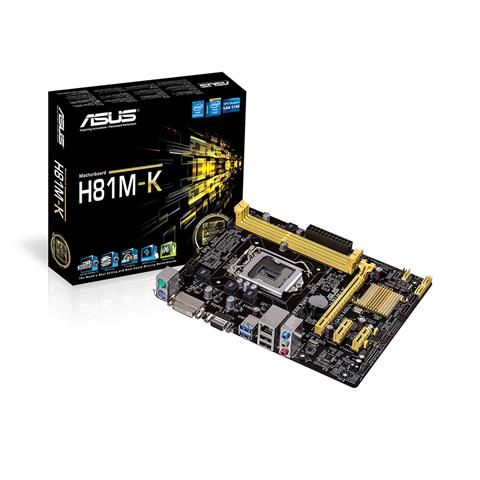

主な付属品

User´s manualI/O Shield2 x SATA 6Gb/s cable(s)

パッケージサイズ

幅(W)

22.8cm

奥行(D)

5.2cm

高さ(H)

24.8cm

本体サイズ

重量

800g

法令関連

電気用品安全(PSE)

対象外

電波法(TELEC認証)

対象外

RoHS対応

RoHS対応
