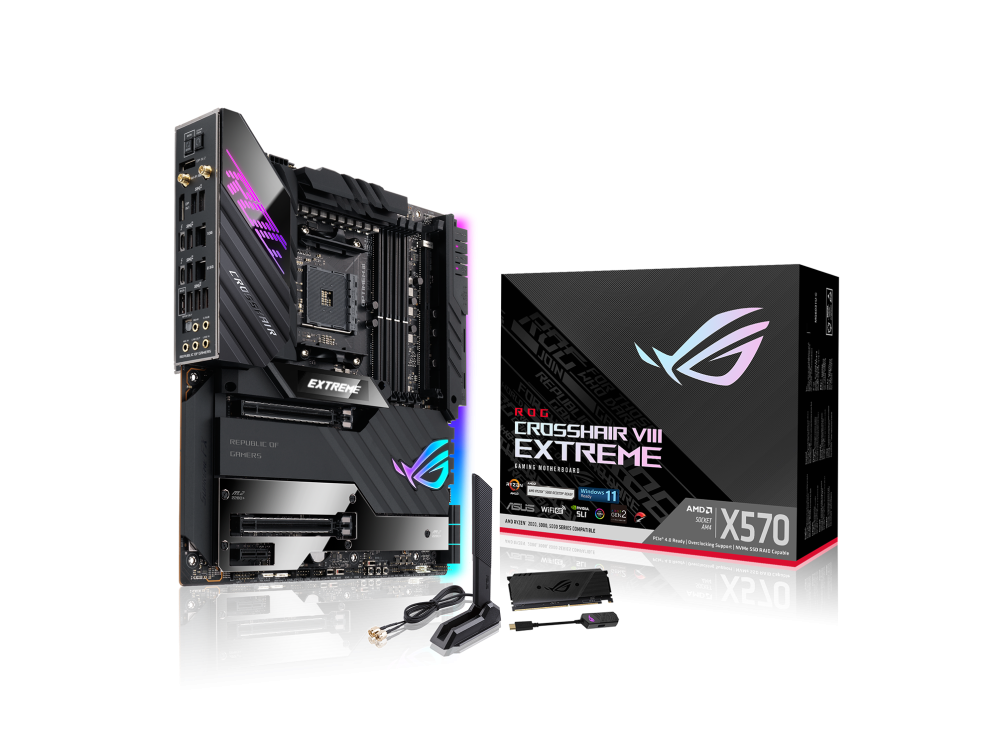

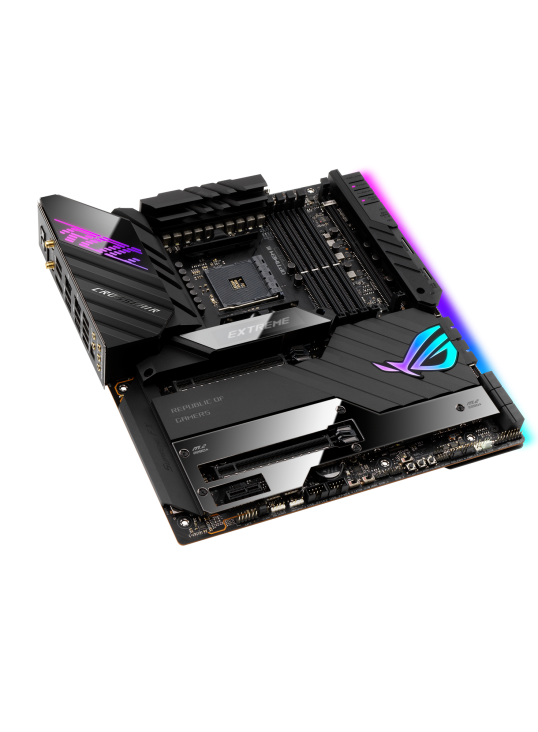

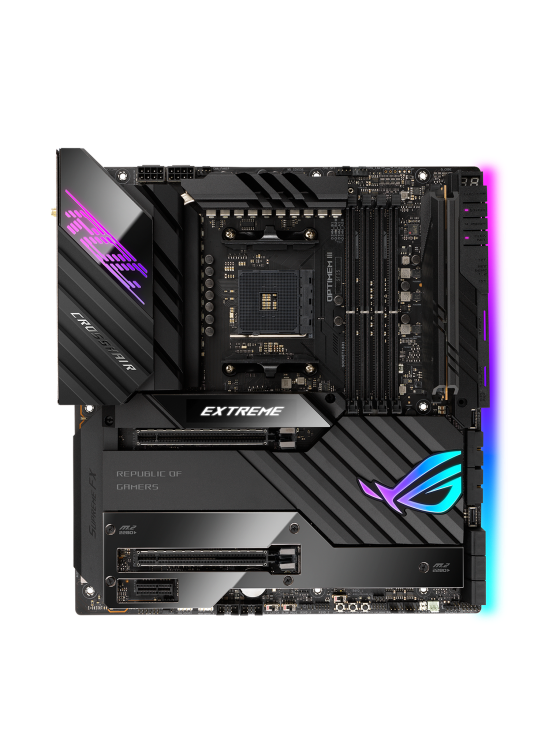

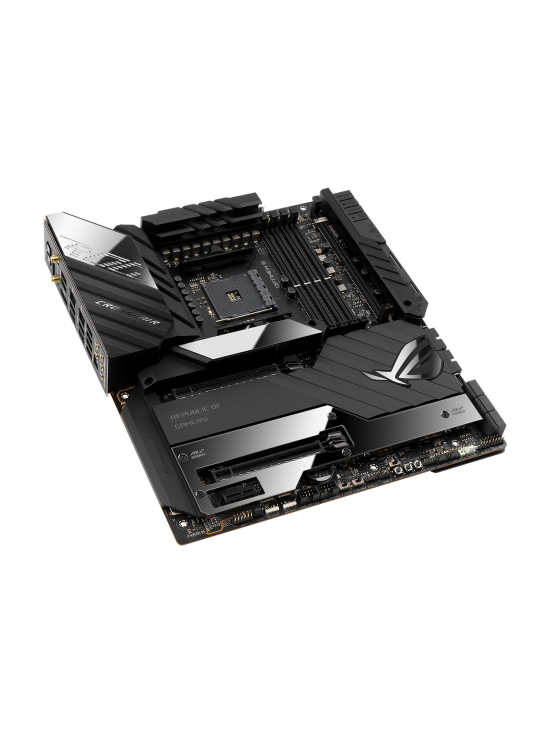

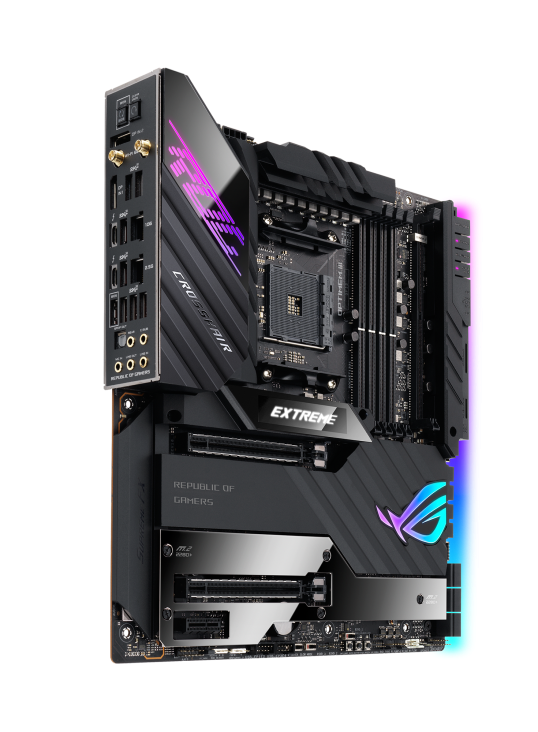

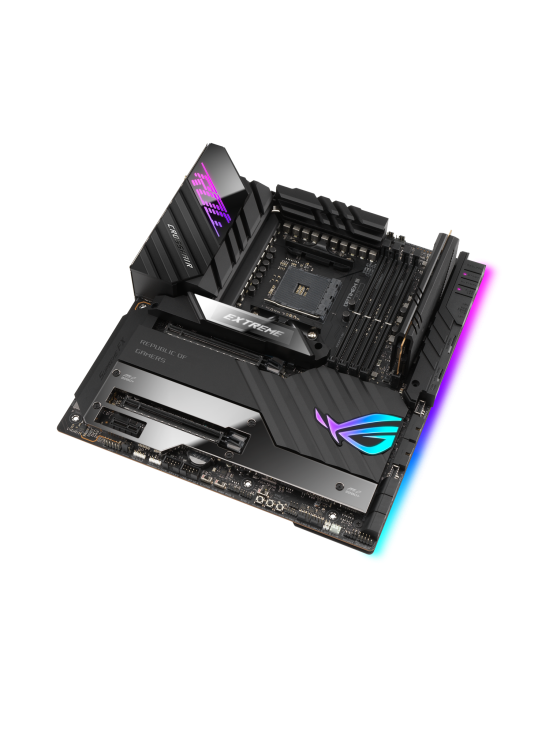

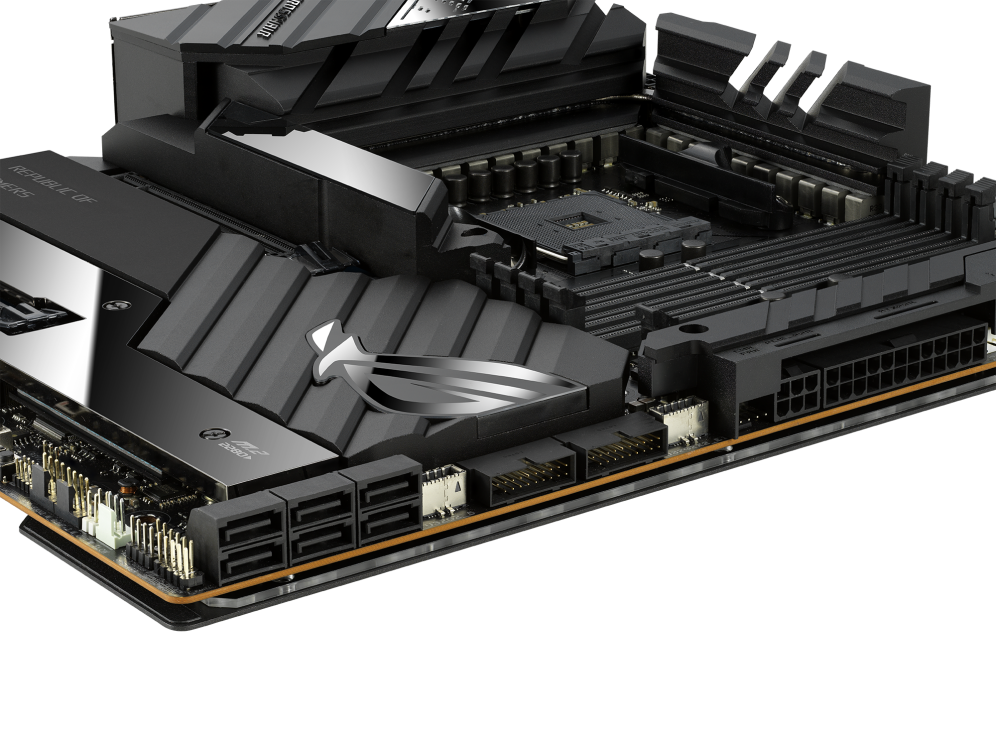

ROG CROSSHAIR VIII EXTREME

AMD X570 EATXゲーミングマザーボード、18+2のパワーステージ、5つのM.2スロット、PD 3.0 60W対応のUSB3.2 Gen 2x2フロントパネルコネクタ、USB 3.2 Gen 2フロントパネルコネクタ、デュアルThunderbolt™4、Marvell® AQtion 10Gbイーサネット、Intel® 2.5Gbイーサネット、PCIe®4.0、オンボードWiFi 6E、Aura Sync RGBライティング

メーカー型番
90MB1860-M0JAY0
TEKWIND型番
ASU-ROG/CROSSHAIR/8/EXTREME
JAN/UPC
0195553375863
ROG CROSSHAIR VIII EXTREMEの主な特長
  • AMD AM4 ソケット: AMD Ryzen 5000 Series/5000 G-Series/ 4000 G Series/ 3000 Series/ 3000 G Series/ 2000 Series/ 2000 G Seriesのデスクトッププロセッサに対応。さらに、最大2台のM.2ドライブをサポートし、接続性と速度を最大化するUSB 3.2 Gen 2とAMD StoreMIを装備。
  • 包括的な熱設計: VRMヒートシンクを大型化しアルミ製I/Oカバーを搭載、高伝導率サーマルパッド、バックプレート付きの5つのM.2ヒートシンク、ROG水冷ゾーン
  • 堅牢な電力供給: 設計された電力ソリューション。定格90Aに対して18+2 TIのパワーステージの評価。ProCool II電源コネクタ、極細合金チョーク、10K日本製ブラック金属コンデンサ。
  • 高性能ネットワーキング: USB 3.2 Gen 2x2フロントパネル、PD3.0対応60W急速充電、オンボードWiFi 6E、Marvell® AQtion 10Gbイーサネット、Intel®2.5Gbイーサネット、およびASUS LANGuard搭載
  • 業界最先端のゲーミングオーディオ: ESS® ES9018Q2C DACを搭載したROG SupremeFX ALC4082。付属のROG Clavis USB デジタルアナログコンバーター(DAC)により、ハイファイサウンドを実現
  • 圧倒的なパーソナライズ機能: 2ʺLiveDash OLED、RGBヘッダー1つとアドレサブルGen 2 RGBヘッダー3つを搭載したASUS独自のAura Sync RGBライティング
  • DIYフレンドリーな設計: 付属のROGファンコントローラー、プリマウント(事前取り付け済み)I/Oシールド、V_Latchスイッチ、BIOS FlashBack™、M.2 Q-Latch、Q-Code、FlexKey、Q-Connector、SafeSlot、グラフィックスカードホルダー搭載
  • 有名ソフトウェア: 1年分のAIDA64 Extremeサブスクリプション付き

製品仕様 SPEC

基本仕様

対応CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop ProcessorsAMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors** Refer to www.asus.com for CPU support list.
搭載チップセット
X570
メインメモリー
AMD Ryzen™ 5000 and 3000 Series Desktop Processors4 x DIMM, max. 128GB, DDR4 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memoryAMD Ryzen™ 5000 G-Series and 4000 G-Series Desktop Processors4 x DIMM, max. 128GB, DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memoryAMD Ryzen™ 2000 Series Desktop Processors4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memoryAMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memoryDual Channel Memory Architecture OptiMem III * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
グラフィックス機能
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
マルチGPU対応
NVIDIA 2-Way SLI® Technology** Support varies with different graphics cards
拡張スロット
AMD Ryzen™ 5000 and 3000 Series Desktop Processors2 x PCIe 4.0 x16 SafeSlots (support x16, x8/x8)AMD Ryzen™ 5000 G-Series, 4000 G-Series and 2000 series Desktop Processors2 x PCIe 3.0 x16 SafeSlots (support x16, x8/x8)AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors1 x PCIe 3.0 x16 SafeSlot (supports x8)AMD X570 chipset1 x PCIe 3.0 x1
ストレージ機能
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s portsAMD Ryzen™ 5000 and 3000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 & SATA modes)M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 mode)AMD Ryzen™ 5000 G-Series. 4000 G-Series, 2000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes)M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 mode)AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes)AMD X570 chipsetDIMM.2_1/2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)6 x SATA 6Gb/s ports
LAN機能
1 x Intel® 2.5Gb Ethernet 1 x Intel® I225-V 2.5Gb Ethernet1 x Marvell® AQtion AQC113CS 10Gb EthernetASUS LANGuard
Wi-Fi
2x2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2 Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band*Bluetooth v5.2* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
オーディオ機能
ALC4082 "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features- SupremeFX Shielding Technology- ESS® SABRE9018Q2C DAC/AMP- LED-illuminated audio jacks- Rear optical S/PDIF out port- Premium Japanese audio capacitors- Audio cover"
USB機能
Rear USB: Total 10 ports Total 10 ports AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series and 3000 Series Desktop Processors4 x USB 3.2 Gen 2 ports (4 x Type-A)AMD Ryzen™ 3000 G-Series, 2000 Series and 2000 G-Series Desktop Processors4 x USB 3.2 Gen 1 ports (4 x Type-A)AMD X570 chipset2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support4 x USB 3.2 Gen 2 ports (4 x Type-A)Front USB: Total 10 ports Total 10 ports 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C®, PD 3.0 up to DC 5V/3A 60W fast charging technology)*1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®)2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports*Please connect the 6-pin PCIe Graphics Card/ PD 3.0 connector to get the full power delivery up to 20V/3A
特別な機能
Y Extreme OC Kit- FlexKey button- LN2 Mode- Probelt- ReTry button- Safe boot button- Start button- Slow ModeExtreme Engine Digi+- 10K Black Metallic Capacitors- MicroFine Alloy Choke ASUS Q-Design- M.2 Q-Latch- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution - M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlotAURA Sync- ROG AURA sync backplate- AURA RGB header(s)- Addressable Gen 2 RGB header(s)Dual BIOSOLED 2"ASUS HYDRANODE- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)- 2 x USB 2.0 port support* (USB_EP1, USB_EP3)* Visit ASUS Website for the latest compatibility list.
Software Features
ROG専用ソフトウェア
-RAMCache III
-ROG CPU-Z
-GameFirst VI
-Sonic Studio III + SonicStudioバーチャルミキサー
-ソニックレーダーIII
-DTS®サウンドアンバウンド
-BullGuard Internet Security(1年間のフルバージョン)
ASUS専用ソフトウェア
アーマリークレート
--AIDA64 Extreme(1年間のフルバージョン)
-AURAクリエーター
-AURA Sync
-双方向AIノイズキャンセル
-OLEDディスプレイ
AIスイート3
-デュアルインテリジェントプロセッサによる5方向の最適化5
TPU
EPU
DIGI +パワーコントロール
ファンXpert4
ターボアプリ
DAEMON Tools
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
-ASUS CrashFree BIOS 3
-ASUSEZフラッシュ3
-ASUS UEFI BIOSEZモード
ダイナミックOCスイッチャー

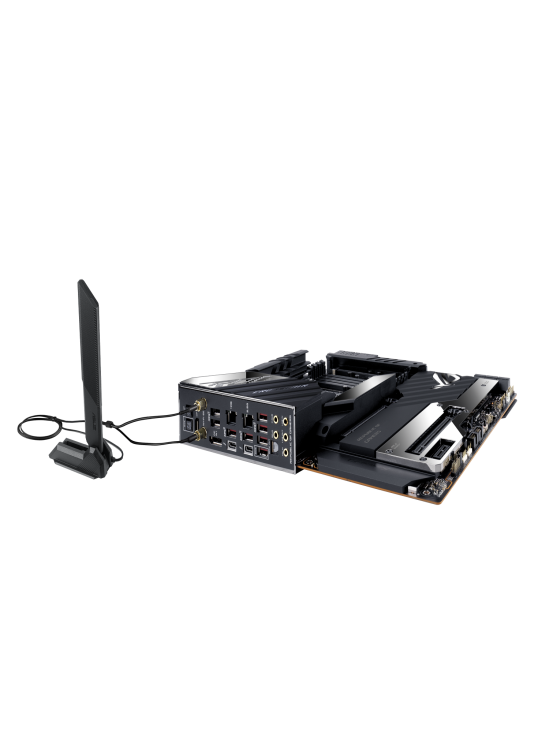

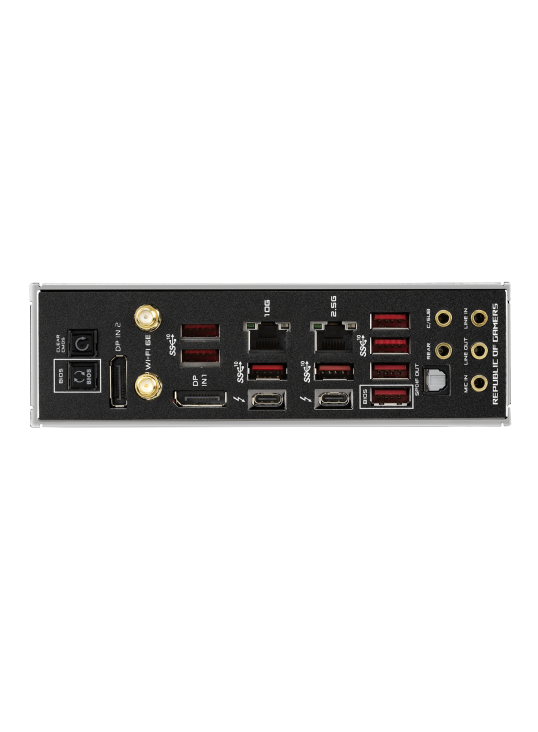

背面インターフェース
2 x Thunderbolt™ 4 USB Type-C® port(s)2 x DisplayPort IN ports for Thunderbolt™ 48 x USB 3.2 Gen 2 port(s) (8 x Type-A)1 x ASUS Wi-Fi Module1 x Intel® I225-V 2.5Gb Ethernet port1 x Marvell® AQtion AQC113CS 10Gb Ethernet port5 x LED-illuminated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button
基板上インターフェース
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)2 x 4-pin Chassis Fan header(s)2 x 4-pin Radiator Fan header(s)2 x W_PUMP+ header(s)1 x WB_SENSOR header(s)1 x 2-pin Water In header1 x 2-pin Water Out header1 x 3-pin Water Flow headerPower related1 x 24-pin Main Power connector2 x 8-pin +12V Power connector1 x 6-pin PCIe Graphics Card/ PD 3.0 connectorStorage related3 x M.2 slots (Key M)1 x DIMM.2 slot supports 2 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®, PD 3.0 up tp DC 5V/3A 60W fast charging technology)1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous3 x AURA Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x BIOS Switch button1 x FlexKey button1 x Front Panel Audio header (AAFP)1 x LN2 Mode jumper6 x ProbeIt Measurement Points1 x ReTry button1 x RSVD switch2 x RSVD header1 x V_Latch1 x Safe Boot button1 x Slow Mode switch1 x Speaker header1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header

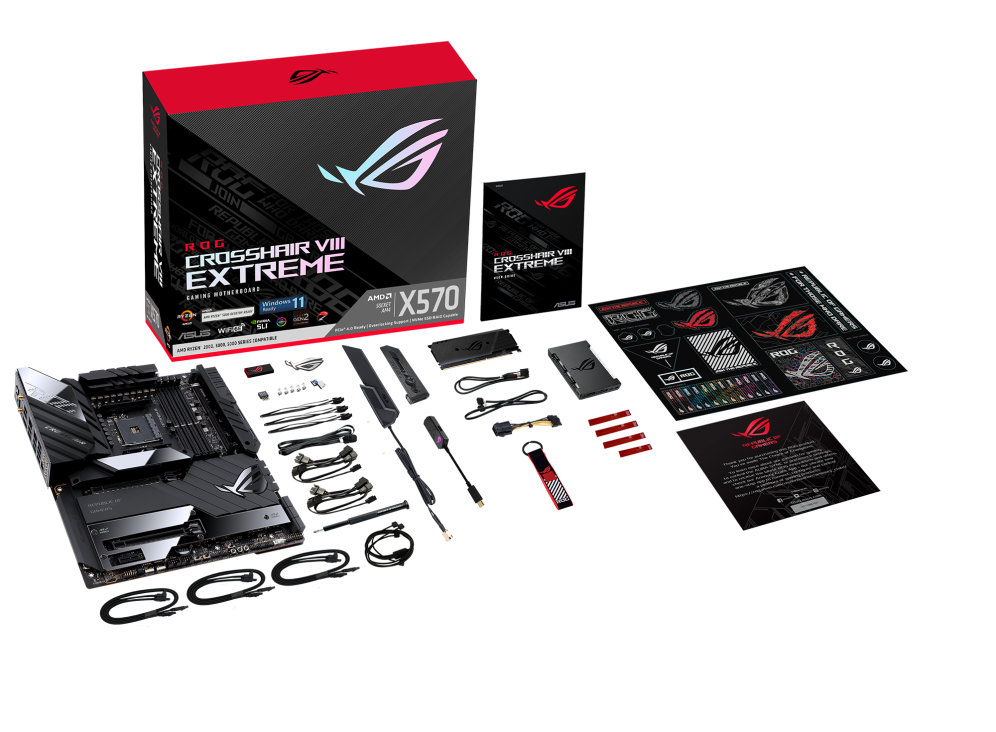

主な付属品
Cables1 x 1-to-3 ARGB splitter cable2 x 1-to-4 fan splitter cable1 x RGB extension cable3 x ROG weave SATA 6G cables1 x 3-in-1 Thermistor cables packROG Fan Controller1 x ROG Fan Controller1 x Fan EXT PWR cable1 x ARGB input cable1 x USB input cable1 x ROG Fan Controller 3M Mounting tape1 x Fan Controller manualROG DIMM.2 with Heatsink1 x ROG DIMM.2 with heatsink1 x M.2 pad for ROG DIMM.22 x M.2 screw package for ROG DIMM.2ROG CLAVIS DAC1 x ROG CLAVIS DAC1 x CLAVIS DAC manualMiscellaneous1 x ASUS Wi-Fi moving antennas2 x M.2 SSD screw package(s)1 x Q-connector1 x ROG key chain1 x ROG Graphics card holder1 x ROG logo plate stickers1 x ROG screwdriver1 x ROG stickers1 x ROG thank you cardInstallation Media 1 x USB drive with utilities and driversDocumentation1 x User manual
BIOS機能
2 x 256 Mb Flash ROM, UEFI AMI BIOS
管理機能
WOL by PME, PXE
対応OS
Windows® 11 readyWindows® 10 64bit
OS
Windows®11対応
Windows®1064ビット
フォームファクター
EATX 30.5cm x 27.7cm
フォームファクター(サイズW×D)
拡張ATX
30.5cm x 27.7cm
その他
製品(電気、電子機器、水銀を含むボタン電池)は都市ごみに入れないでください。電子製品の廃棄については、地域の規制を確認してください。
このウェブサイトに表示される商標記号(TM、®)の使用は、テキスト、商標、ロゴ、またはスローガンという単語がコモンロー保護の下で商標として使用されている、および/または米国および/または他の国/地域で商標として登録されていることを意味します。
WiFi 6Eの可用性と機能は、規制上の制限と5 GHzWiFiとの共存に依存しています。
HDMIおよびHDMIHigh-Definition Multimedia Interfaceという用語、およびHDMIロゴは、米国およびその他の国におけるHDMI Licensing Administrator、Inc。の商標または登録商標です。
連邦通信委員会およびカナダ産業省によって認定された製品は、米国およびカナダで配布されます。ローカルで入手可能な製品については、ASUSUSAおよびASUSCanadaのWebサイトにアクセスしてください。
すべての仕様は、予告なしに変更される場合があります。正確なオファーについては、サプライヤーに確認してください。製品はすべての市場で入手できるとは限りません。
仕様と機能はモデルによって異なり、すべての画像は例示です。詳細については、仕様ページを参照してください。
PCBの色とバンドルされているソフトウェアのバージョンは、予告なしに変更される場合があります。
記載されているブランド名および製品名は、それぞれの会社の商標です。
特に明記されていない限り、すべてのパフォーマンスの主張は理論上のパフォーマンスに基づいています。実際の数値は、実際の状況では異なる場合があります。
USB 3.0、3.1、3.2、および/またはType-Cの実際の転送速度は、ホストデバイスの処理速度、ファイル属性、およびシステム構成と動作環境に関連するその他の要因を含む多くの要因によって異なります。

パッケージサイズ

幅(W)
32cm
奥行(D)
12.5cm
高さ(H)
38cm

本体サイズ

重量
5.5kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
TELEC対応
RoHS対応
RoHS対応
