ROG Maximus XIII Extreme Glacial - Z590搭載LGA1200ソケット対応EATXマザーボード

基本仕様

対応CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU


Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

搭載チップセット

Intel® Z590 Chipset

メインメモリー

4 x DIMM, Max. 128GB, DDR4


5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports Intel® Extreme Memory Profile (XMP)


OptiMem III


* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.


* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.


* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

グラフィックス機能

1 x HDMI™ 2.0***
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs *
* Graphics specifications may vary between CPU types.

** Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.

拡張スロット

2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
Intel® 11th & 10th Gen Processors


2 x PCIe 4.0/3.0 x16 slot(s)


- Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s)


- Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 mode(s)


Intel® Z590 Chipset


1 x PCIe 3.0 x4 slot*


* PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode.

ストレージ機能

Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th & 10th Gen Processors


M.2_1 slot (Key M), type 2242/2260/2280


- Intel® 11th Core™ processors support PCIe 4.0 x4 mode


- Intel® 10th Core™ processors support PCIe 3.0 x4 mode


M.2_2 slot (Key M), type 2242/2260/2280


- Intel® 11th Core™ processors support PCIe 4.0 x4 mode


- Intel® 10th Core™ processors support PCIe 3.0 x4 mode


M.2_3 slot (Key M), type 2242/2260/2280


- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs


Intel® Z590 Chipset


DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)


DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*


6 x SATA 6Gb/s ports


Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.


To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.


* DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode.

Bluetooth®

2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2

USB機能

Rear USB:Total 10 ports
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
Front USB:Total 10 ports
1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®
1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

オーディオ機能

Audio Features

- SupremeFX Shielding Technology

- ESS® SABRE9018Q2C DAC/AMP

- LED-illuminated audio jacks

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Audio cover

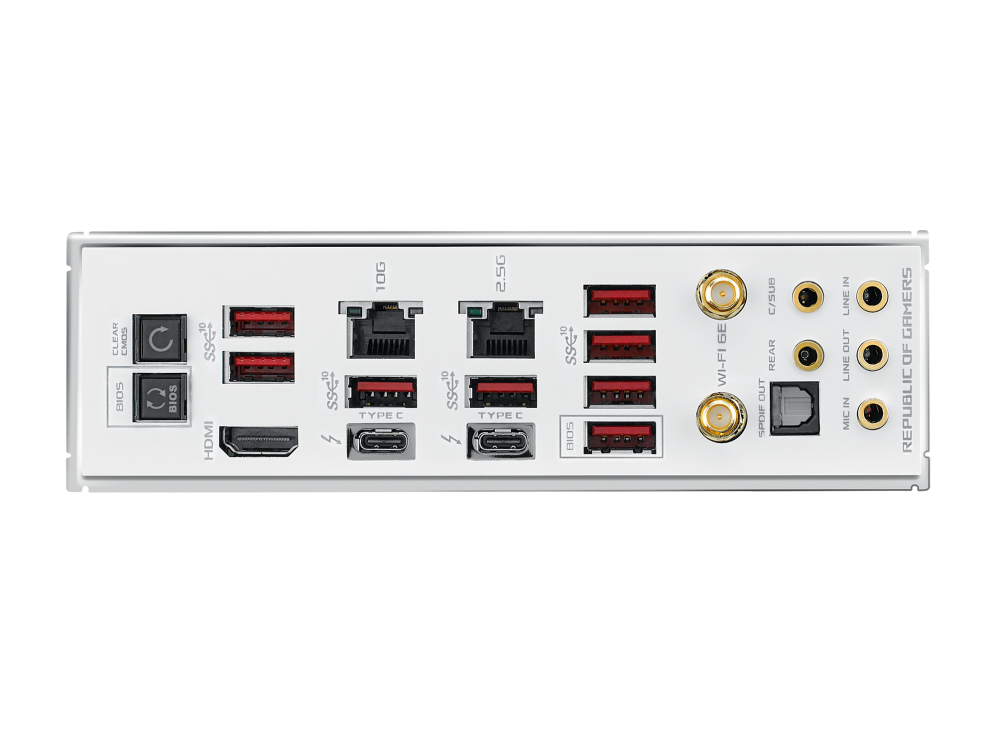

背面インターフェース

2 x Thunderbolt™ 4 USB Type-C® port(s)

8 x USB 3.2 Gen 2 port(s) (8 x Type-A)

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Marvell® AQtion AQC113CS 10Gb Ethernet

1 x Intel® I225-V 2.5Gb Ethernet

5 x LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

特別な機能

Extreme OC Kit


- FlexKey button


- LN2 Mode


- Probelt


- ReTry button


- Safe boot button


- Start button


- Slow Mode


Extreme Engine Digi+


- 10K Black Metallic Capacitors


- MicroFine Alloy Choke


ASUS Q-Design


- Q-Code


- Q-Connector


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink backplate


- M.2 heatsink


- VRM heatsink design


ASUS EZ DIY


- BIOS FlashBack™ button


- Clear CMOS button


- ProCool II


- Pre-mounted I/O shield


- SafeSlot


AURA Sync


- ROG AURA sync backplate


- AURA RGB header(s)


- Addressable Gen 2 RGB header(s)


Dual BIOS


OLED 2"


ASUS HYDRANODE


- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)


- 2 x USB2.0 port support* (USB_EP1,USB_EP3)


* Visit ASUS Website for the latest compatibility list.

Software Features

ROG Exclusive Software

- Mem Tweakit

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- BullGuard Internet Security (1-year full version)

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (1 year full version)

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

- OLED Display

AI Suite 3

- 5-Way Optimization with AI Overclocking

TPU

EPU

Digi+ Power Control

Fan Xpert 4

Turbo app

- EZ update

AI Charger

DAEMON Tools

MyAsus

WinRAR

UEFI BIOS

MemTest86

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS機能

2 x 256 Mb Flash ROM, UEFI AMI BIOS

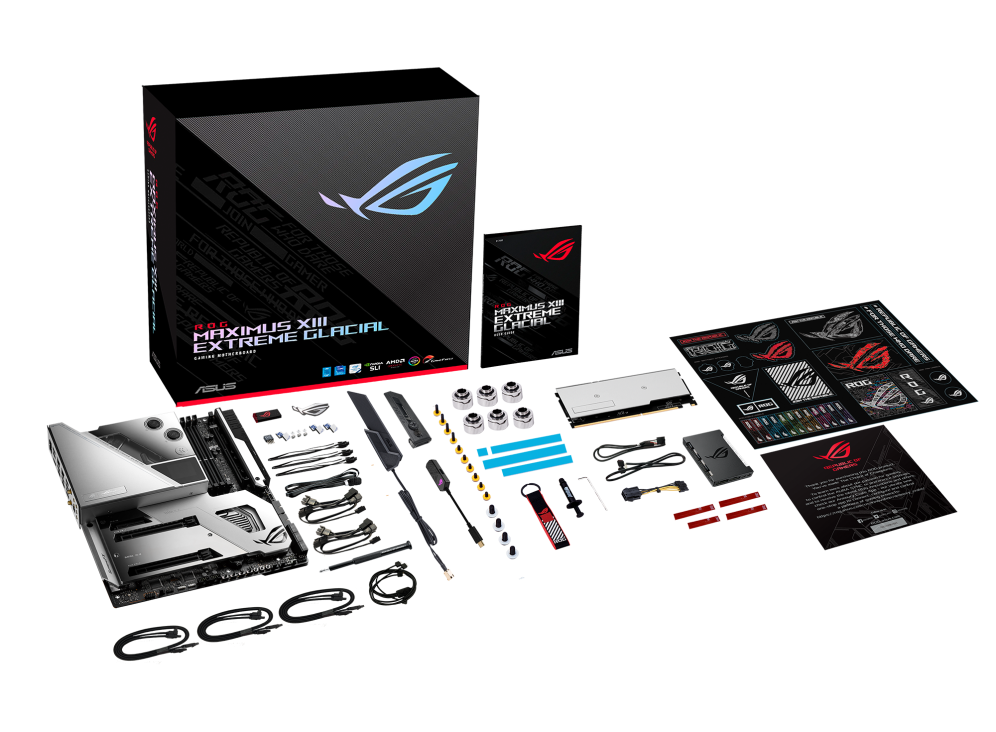

主な付属品

Cables
1 x 1-to-3 ARGB splitter cable
2 x 1-to-4 fan splitter cable
1 x RGB extension cable
3 x ROG weave SATA 6G cables
1 x 3-in-1 Thermistor cables pack
ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape
1 x Fan Controller manual
ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
Additional Cooling Kit
1 x Monoblock
3 x Screw package for monoblock
1 x Thermal pad for monoblock
1 x Fittings for monoblock
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package(s)
1 x M.2 SSD screw package(s)
1 x Q-connector
1 x ROG CLAVIS DAC
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
1 x ROG Graphics card holder
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User manual

OS

Windows 10 64bit

フォームファクター（サイズW×D）

Extended ATX
30.5cm x 27.7cm

パッケージサイズ

幅(W)

35cm

奥行(D)

41.5cm

高さ(H)

18.5cm

重量

9.2kg

法令関連

電気用品安全(PSE)

対象外

電波法(TELEC認証)

TELEC対応

RoHS対応

RoHS対応
