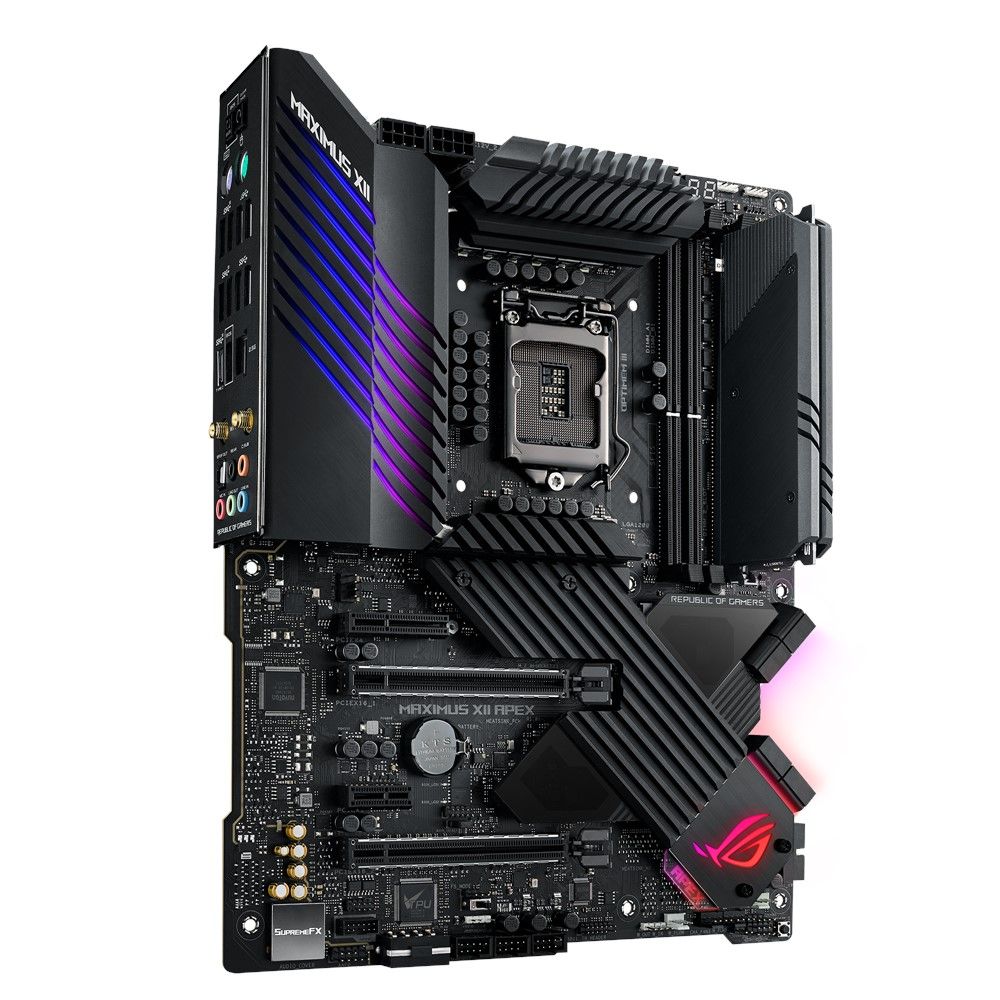

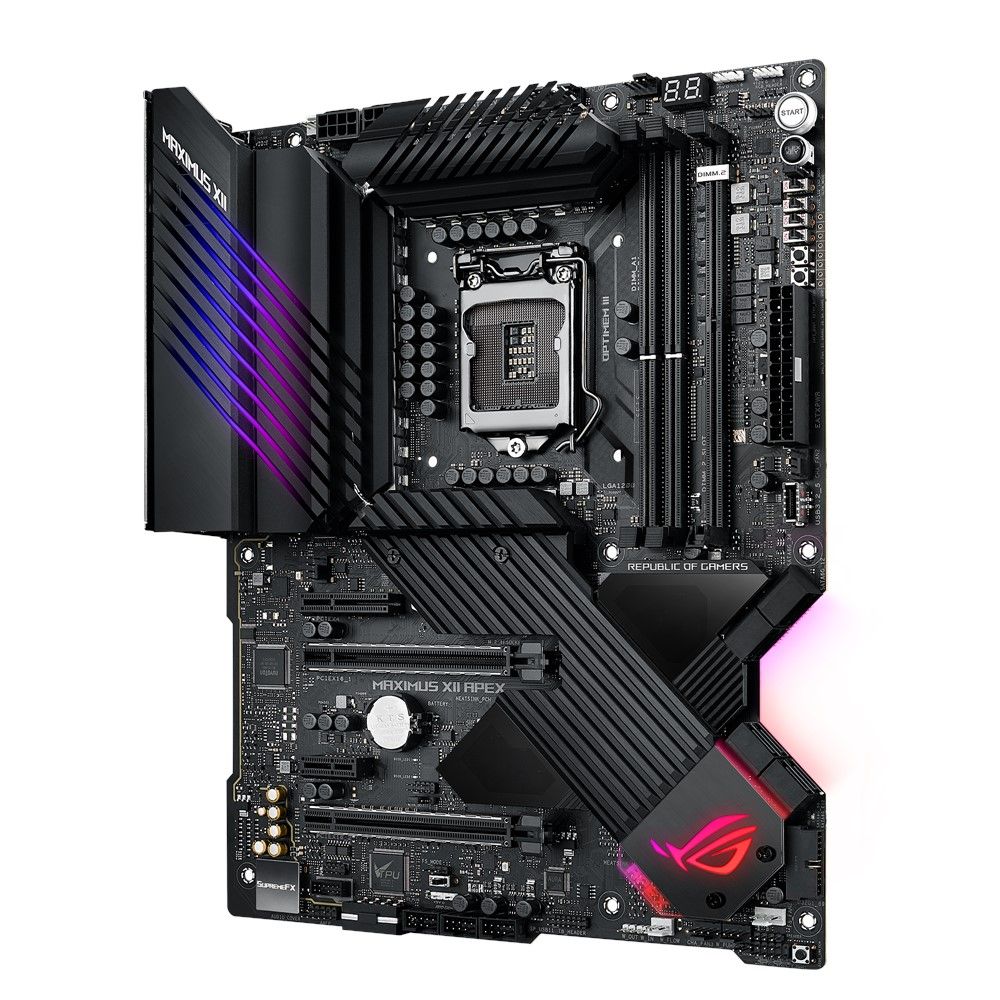

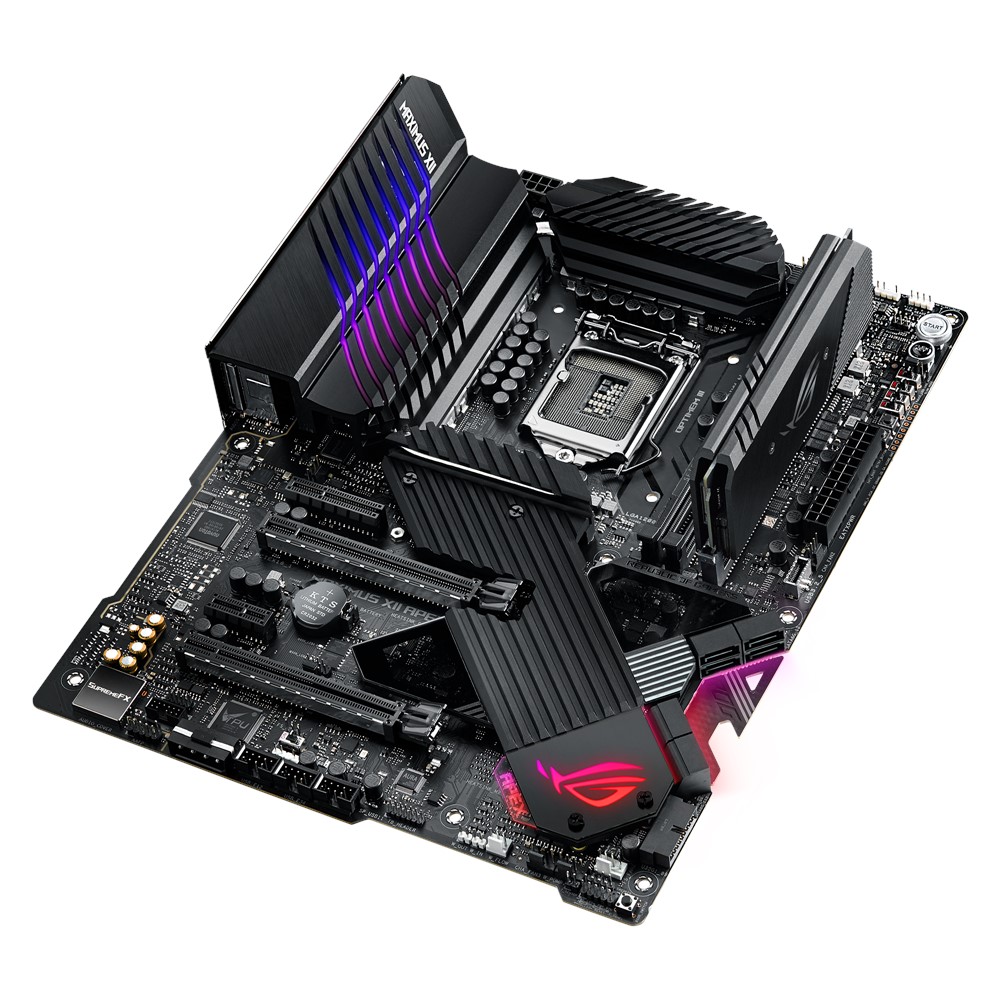

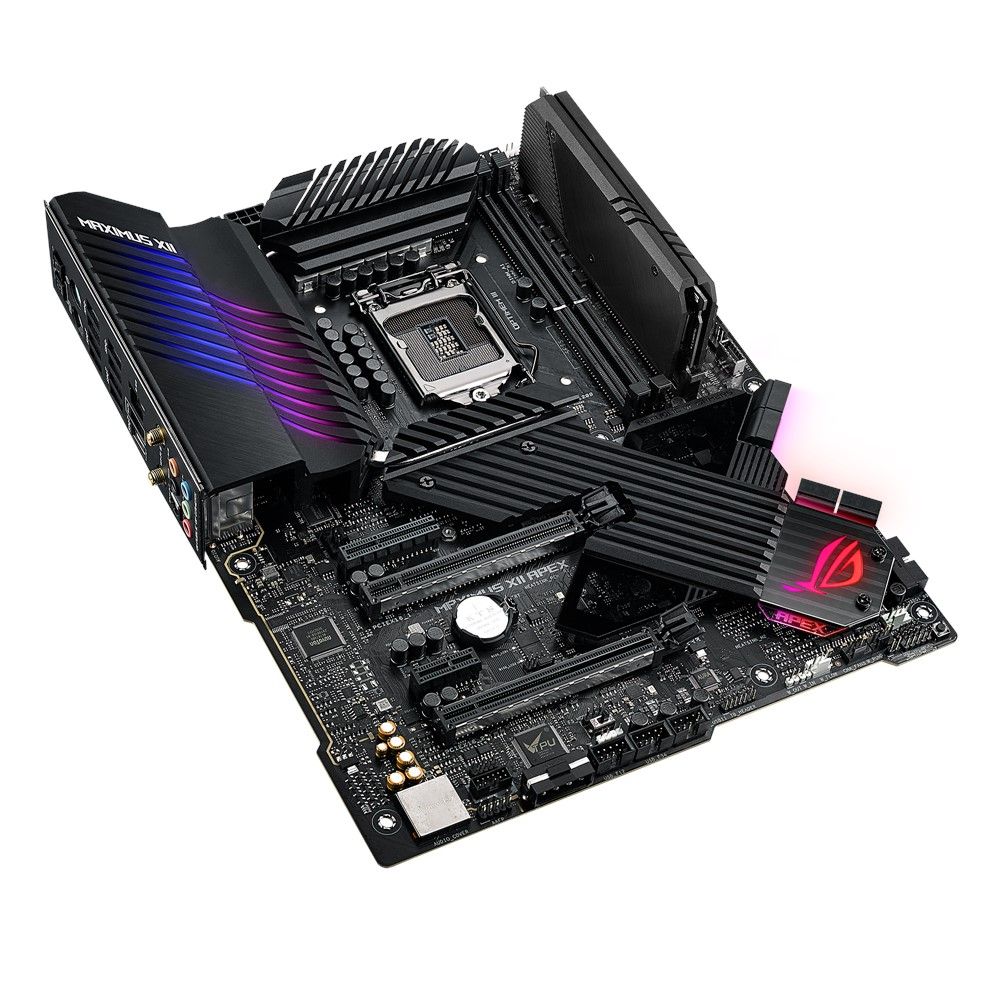

ROG MAXIMUS XII APEX

限界に挑戦するパフォーマンス

TEKWIND型番
ASU-ROG/MAXIMUS/12/APEX-TKB
JAN/UPC
4549584338513
ROG MAXIMUS XII APEXの主な特長
ROG Maximus XII Apexは、最新世代のインテル Coreプロセッサーの可能性を最大限に利用したいOCマニア向けの究極のオーバークロック用プラットフォームです。最適化されたレイアウト、強化された電力供給と制御、無数のカスタマイズオプションを備えた印象的なデザインは、オーバークロッカー、ゲーマー、PCビルダーの方々に魅力的です。

製品仕様 SPEC

基本仕様

対応CPU
Build in Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
搭載チップセット
Build in Intel® Z490
メインメモリー
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2133 MHz Memory *
* Double Capcity DRAM support depends on the DRAM models
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
マルチGPU対応
Supports AMD 2-Way CrossFireX Technology
Supports NVIDIA® 2-Way SLI® Technology
拡張スロット
Intel® 10th Gen Processors
Intel® Z490 Chipset
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 3.0 x4
1 x PCIe 3.0 x1
ストレージ機能
Intel® Z490 Chipset :
1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s)*3
Support Raid 0, 1, 5
ASMedia® SATA 6Gb/s controller :
2 x SATA 6Gb/s port(s),
Intel® Optane™ Memory Ready
LAN機能
Intel® I225-V 2.5Gb Ethernet, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
Wi-Fi
Wi-Fi Intel® Wi-Fi 6
Intel® Wi-Fi 6 AX201
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Bluetooth®
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
オーディオ機能
ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
- Supports up to 32-Bit/192kHz playback
- SupremeFX Shielding™ Technology
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Impedance sense for front and rear headphone outputs
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB機能
Rear USB Port ( Total 10 )
5 x USB 3.2 Gen 2 port(s)(4 + Type-A +1 + Type-C)
5 x USB 3.2 Gen 1 port(s)
Front USB Port ( Total 8 )
5 x USB 2.0 port(s)
2 x USB 3.2 Gen 1 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)
ROGシリーズ独自搭載機能
- Infineon TDA21472 Power Stage
Condensation detection
- O.C. Profile
- GPU.DIMM Post
ROG CloneDrive
Slow Mode
Safe Boot Button
Mem TweakIt
Double Power :
- Dual 8-pin CPU
Clear CMOS button
ROG CPU-Z
Overwolf
ReTry Button
LN2 Mode
ProbeIt
Start Button
Reset Button
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- OptiMem III
UEFI BIOS features :
- Tweakers´ Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
Extreme Tweaker
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- RAMCache III
特別な機能
- ProCool II
- BIOS FlashBack™ Button
- USB BIOS FlashBack™
ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
SafeDIMM slot
- Anti-Surge
- Advanced fan and liquid controls for ultimate cooling and quietness
AI Overclocking
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- MemOK! II
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Clear CMOS Button
- ASUS Q-Code
Armoury Crate
- ASUS NODE : hardware control interface
Gaming Aesthetics :
- AURA-RGB Lighting
DIY Friendly Design
- SafeSlot
- Digi+ VRM
- DRAM Overcurrent Protection
- Highly Durable components
- ESD Guards
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- ASUS CrashFree BIOS 3
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Software Features
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- ROG CPU-Z
- Overwolf
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software Features
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3:
- 5-Way Optimization with AI Overclocking
TPU
EPU
DIGI+ Power contorl
- EZ update
- Fan Xpert 4
- Turbo APP
- WinRAR
UEFI BIOS
- AI Overclocking Guide
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
-FlexKey
ASUS Special Features
ROG Extreme OC kit
- EZ PLUG
- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- Infineon TDA21472 Power Stage
- MicroFine Alloy Choke
ASUS Q-Design
- ASUS Q-Code
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink cover
ASUS EZ DIY
- BIOS Flashback™ button
- Clear CMOS button
- Procool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
Dual BIOS

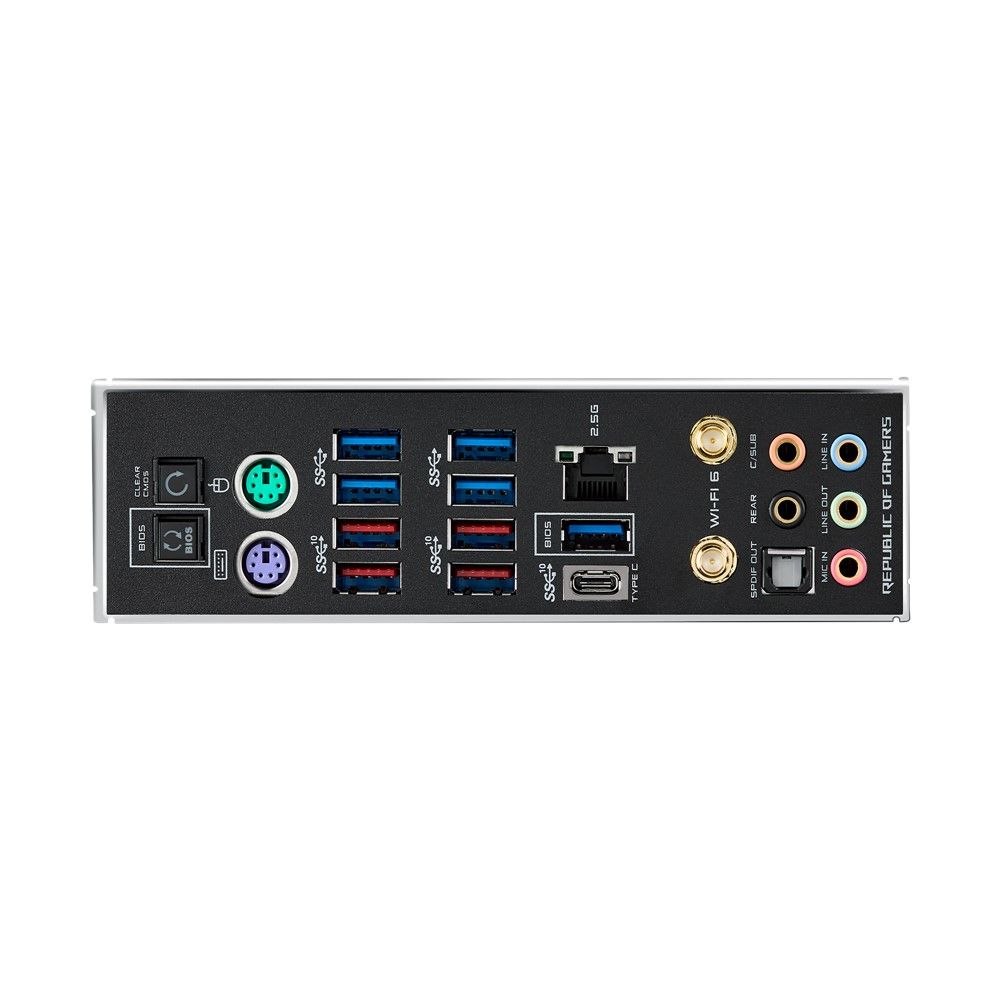

背面インターフェース
4 x USB 3.2 Gen 2 (red)
1 x USB 3.2 Gen 2 (black)Type-C,
5 x USB 3.2 Gen 1 (blue)
1 x USB BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0
1 x Clear CMOS button(s)
5 x Gold-plated audio jacks
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
基板上インターフェース
2 x 4-pin Full Speed Fan connectors
1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x FS Mode switch
1 x USB 3.2 Gen 2 front panel connector
3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
1 x ReTry jumper
1 x W_Pump+ Header
3 x onboard LED ON/OFF jumper(s)
1 x AIO PUMP Header
1 x Q-Code
1 x RGB Header
2 x Aura Addressable Strip Header(s)
2 x 8-pin EATX 12V Power connectors
1 x 4-pin EZ_PLUG Power connector(s)
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x Start button
1 x System panel connector
1 x Node Connector(s)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
主な付属品
User manual
1 x Customizable Name Plate Accessory Pack
1 x M.2 screw kit (long screw and mount)
2 x M.2 screw kit (short screw and mount)
1 x ROG DIMM.2 with heatsink
1 x M.2 Pad for ROG DIMM.2
1 x ROG big sticker
1 x Q-Connector
1 x ROG coaster(s)

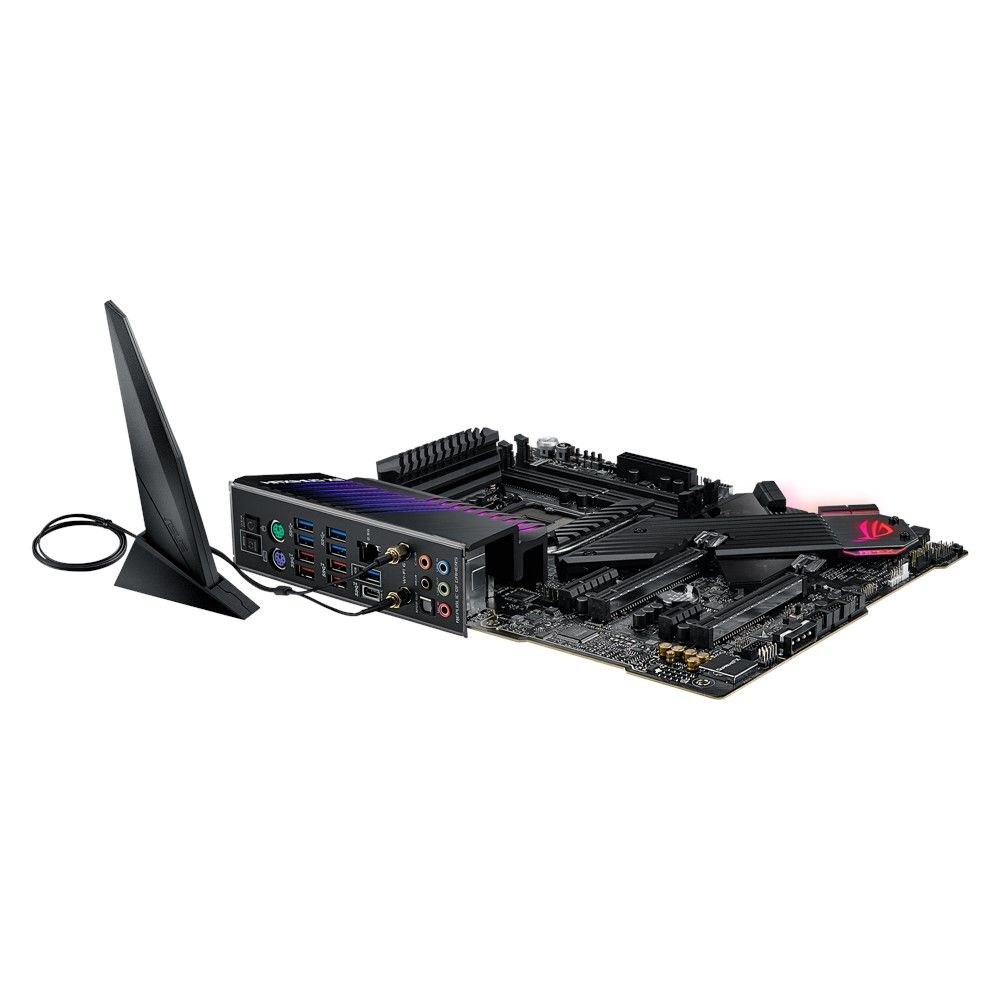

1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x ROG Thank you card
1 x Supporting DVD
1 x Extension cable for Addressable LED
BIOS機能
2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
管理機能
WOL by PME, PXE
OS
Windows® 10 64-bit
フォームファクター(サイズW×D)
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATX Form Factor
その他
*1When DIMM.2_1 is operating in SATA Mode, SATA6G_2 will be disabled.
*2 When DIMM.2_2 is populated, SATA6G_5&6 will be disabled.
*3 M.2_1 shares bandwidth with PCIe x4 slot, when M.2_1 is populated a x2 device, PCIe x4 slot will running at x1 mode, when M.2_1 is populated a x4 device, PCIe x4 slot will be disabled
