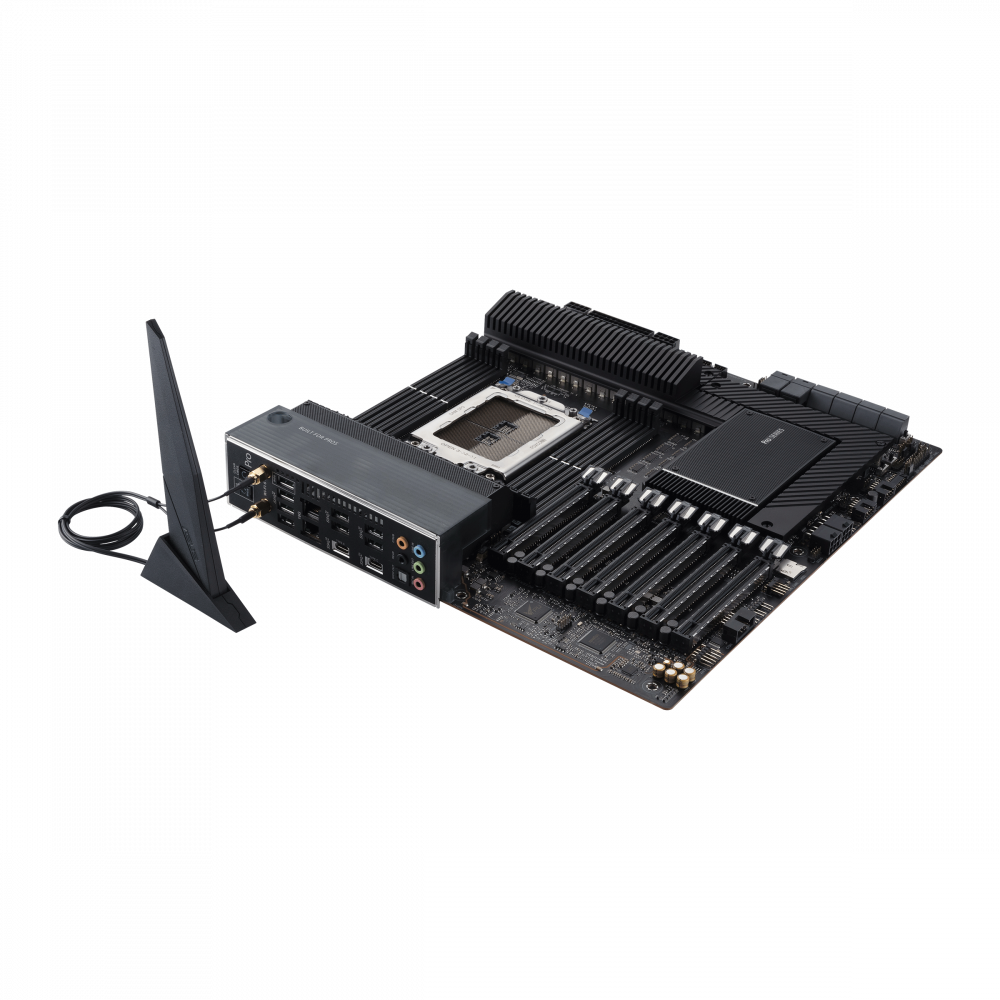

PRO WS WRX80E-SAGE SE WIFI

AMDWRX80Ryzen™Threadripper™PRO拡張ATXワークステーションマザーボード(Intelデュアル10 G LAN、USB 3.2 Gen 2x2 Type-Cポート、7 x PCIe 4.0 x16スロット、3 x M.2 PCIe 4.0、ASMB9-iKVM、2 x U .2および16パワーステージ

メーカー型番
90MB1590-M0JAY0
TEKWIND型番
ASU-PRO/WS/WRX80E-SAGE/SE/WIFI
JAN/UPC
0195553066266
PRO WS WRX80E-SAGE SE WIFIの主な特長
  • AMD sWRX8ソケット:AMDRyzen™Threadripper™PROシリーズプロセッサーに対応

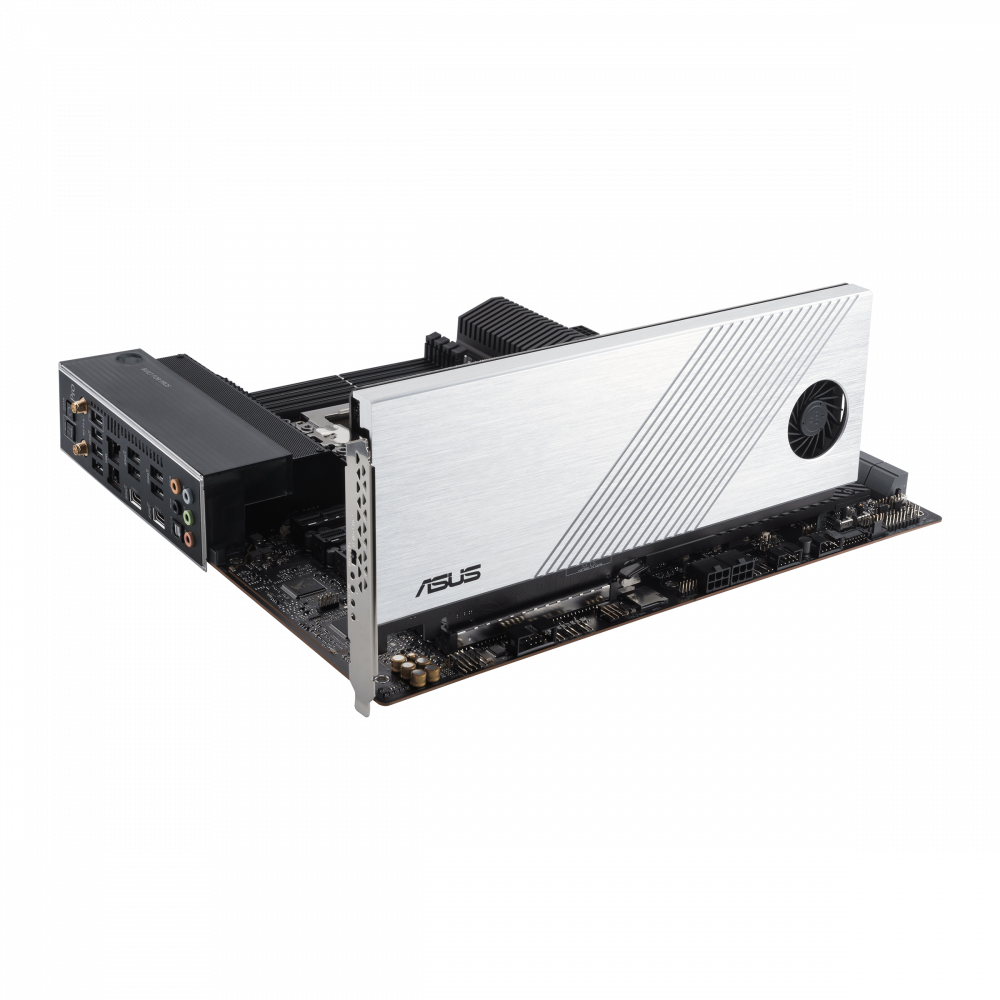

  • 超高速接続:USB 3.2 Gen 2x2 Type-Cポート、10 x USB 3.2 Gen 2ポート、3 x M.2 PCIe 4.0、HYPER M.2 x16 Gen 4カード、Intel®X550-AT2デュアル10Gbイーサネット
  • ASMB9-iKVMリモート管理:帯域外管理のためのIPMIアーキテクチャにインテリジェンスを提供し、ハードウェアレベルの制御を強化してIT効率を向上させるBMCチップ
  • 強力なパフォーマンス:16のパワーステージ、マルチGPUサポートおよびR-DIMMメモリサポート
  • 信頼できる安定性:24時間年中無休の信頼性についてテストされ、確実な互換性について検証され、究極のセキュリティのためにSafeSlotが装備されています

製品仕様

基本仕様

対応CPU
AMD® Ryzen™ Threadripper™ Pro Processors*
* Refer to www.asus.com for CPU support list.
搭載チップセット
AMD WRX80 Chipset
メインメモリー
Memory Channels:8DDR4 (Eight Channel)
Max Memory Size:2048GB
8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory*

8 Channel Memory Architecture

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
マルチGPU対応
Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
拡張スロット
AMD Ryzen™ Threadripper™ PRO Series Processors

7 x PCIe 4.0/3.0 x16 slot(s)*

* Support PCIe bandwidth bifurcation for RAID on CPU function.
ストレージ機能
Supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ Threadripper™ PRO Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*

AMD WRX80 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*

4 x SATA 6Gb/s ports

ASMedia ASM1061 Controller

4 x SATA 6Gb/s ports

Supports NVMe RAID configurations via M.2 storages

*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.
LAN機能
1 x Intel® X550-AT2 dual 10Gb Ethernet
Wi-Fi
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1
オーディオ機能
Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback"

Audio Features

- Audio Shielding

- Power pre-regulator reduces power input noise to ensure consistent performance

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

- Unique de-pop circuit
USB機能
Rear USB:Total 10 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)


Front USB:Total 7 ports
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
特別な機能
ASUS Q-Design

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

Bespoke Motherboard Design & Business Focused Features

- Event Log in ASMB9-iKVM

- 24/7 Reliability

- Overcurrent Protection

ASMB9-iKVM for KVM-over-Internet
Software Features
ASUS Exclusive Software

Armoury Crate

ASUS CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS:X® Ultra

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

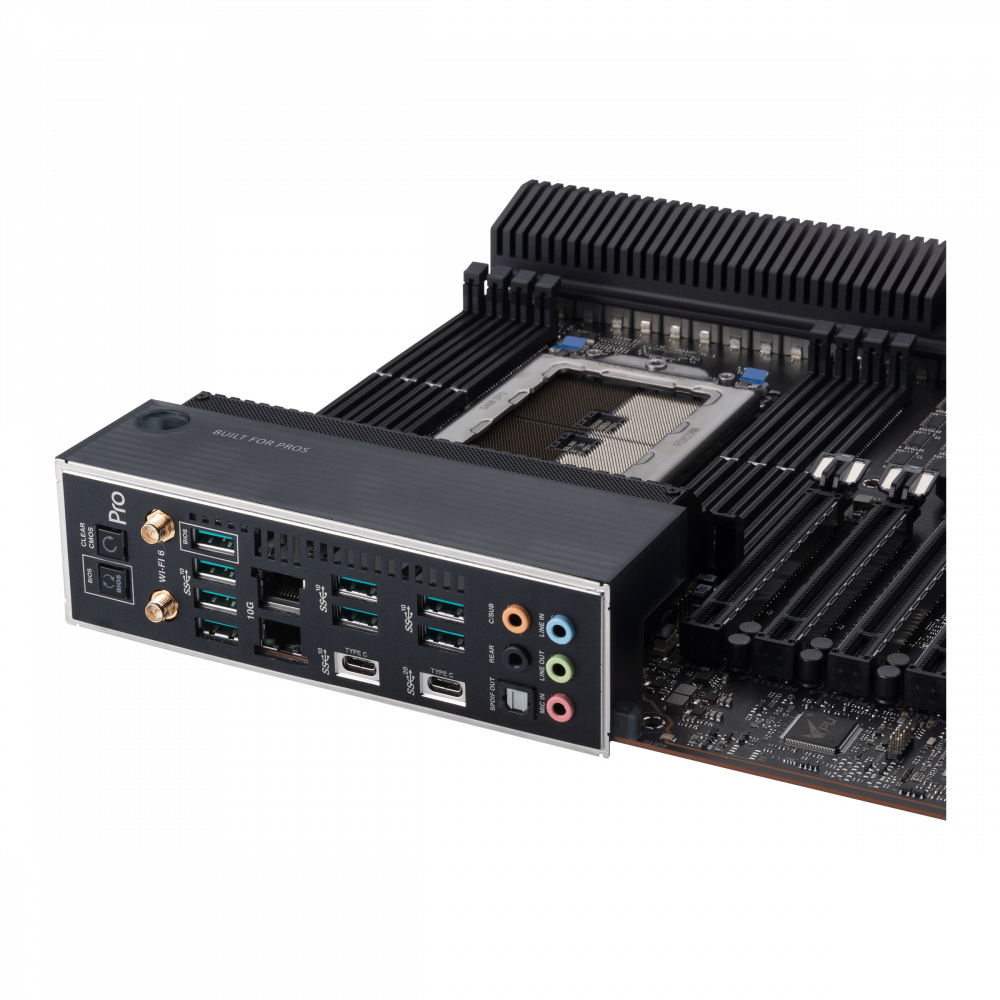

背面インターフェース
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)

1 x ASUS Wi-Fi Module

2 x Intel® X550-AT2 dual 10Gb Ethernet ports

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button
基板上インターフェース
Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

6 x 4-pin Chassis Fan header(s)

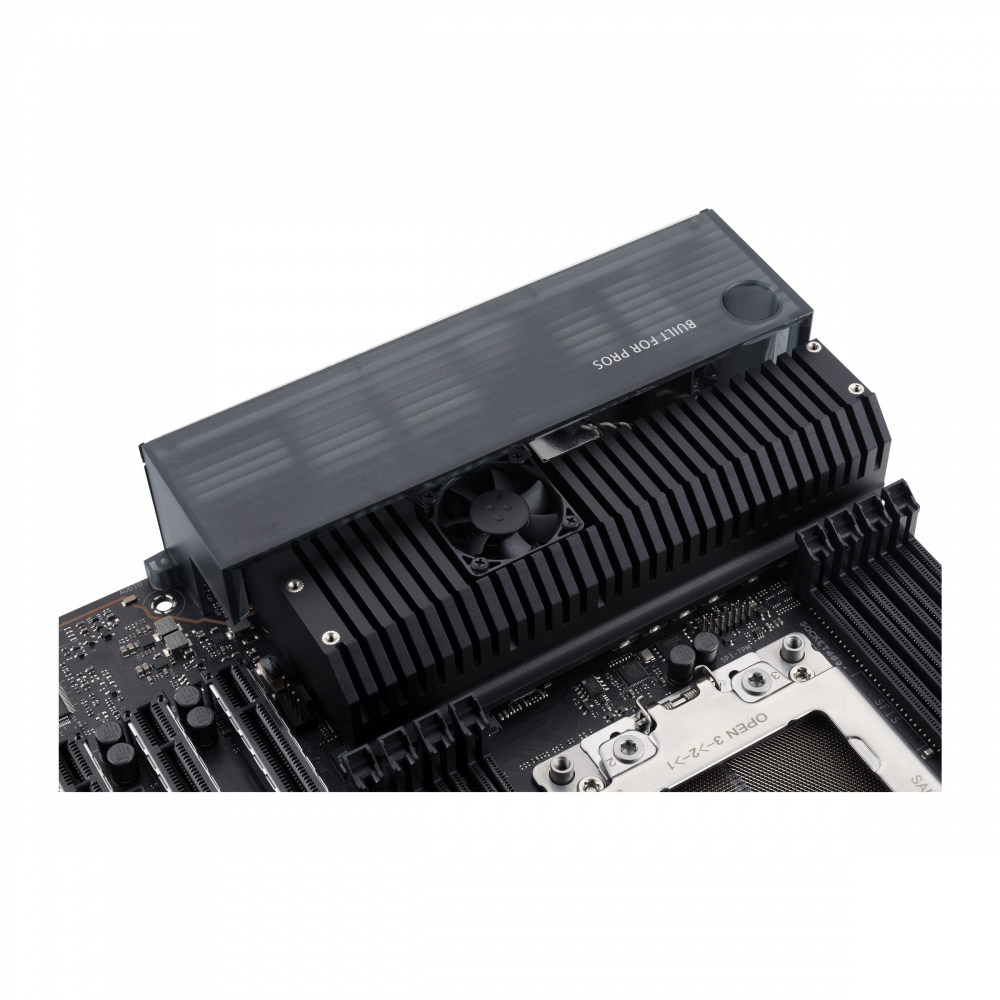

1 x VRM heatsink Fan header

1 x Chipset Fan header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

2 x 6-pin PCIe Graphics Card connector

1 x 8-pin PCIe Power connector

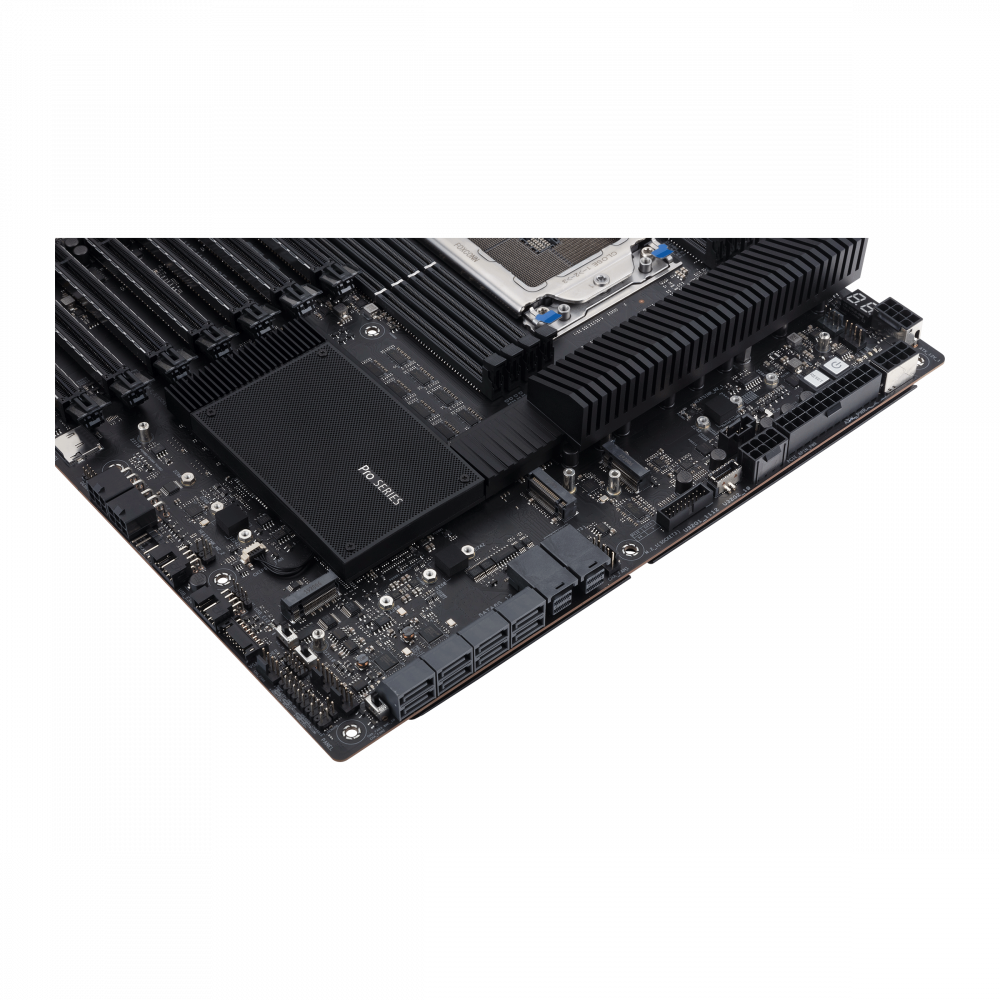

Storage related

3 x M.2 slots (Key M)

8 x SATA 6Gb/s ports

2 x U.2 slots

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

BMC Related

1 x BMC switch

1 x IPMI switch

1 x Messange LED header

1 x Micro SD card socket

2 x LAN LED header(s)

1 x Location LED header

1 x Location button header

1 x PSU_SMB header

1 x SMART_PSU switch

1 x VGA switch

1 x VGA header

1 x VPP_I2C header

Miscellaneous

1 x COM Port header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x RTC Battery header

1 x Thermal Sensor header
BIOS機能
256 Mb Flash ROM, UEFI AMI BIOS
管理機能
WOL by PME, PXE
OS
Windows 10 64bit
フォームファクター(サイズW×D)
Extended ATX
30.98cm*33.02cm

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
TELEC対応
RoHS対応
RoHS対応
