PRIME H510M-A - Intel® H510チップセット搭載 microATXマザーボード

  • 仕様
  • SNSでシェアする

PRIME H510M-A

Intel® H510 (LGA 1200) マイクロATXマザーボード、PCIe 4.0、32Gbps M.2スロット、Intel® 1 Gbイーサネット、DisplayPort、HDMI、D-Sub、USB 3.2 Gen 1 Type-A、SATA 6 Gbps、AURA Addressable Gen 2ヘッダー搭載。

メーカー型番
90MB17C0-M0JAY0
TEKWIND型番
ASU-PRIME/H510M-A
JAN/UPC
0195553128469
PRIME H510M-Aの主な特長
  • Intel® LGA 1200ソケット:第11世代および第10世代Intel® プロセッサーに対応
  • 包括的な冷却:VRM用ヒートシンク、M.2用ヒートシンク、PCH用ヒートシンク、Fan Xpert 2+搭載
  • 超高速な接続性:PCIe 4.0、32Gbps M.2スロット、Intel® 1 Gb Ethernet、USB 3.2 Gen 1
  • Aura Sync RGB::RGB LEDストリップ用のアドレサブルGen 2ヘッダーを搭載し、Aura Sync対応ハードウェアと簡単に同期させることができます。

製品仕様

基本仕様

対応CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット
Intel® H510 Chipset
メインメモリー
Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
グラフィックス機能
1 x DisplayPort 1.4**
1 x D-Sub
1 x HDMI™ 2.0**
* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
拡張スロット
Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel® 11th Gen processors support PCIe 4.0 x16

- Intel® 10th Gen processors support PCIe 3.0 x16

Intel® H510 Chipset

2 x PCIe 3.0 x1 slots
ストレージ機能
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
Wi-Fi
1 x Intel® I219-V 1Gb Ethernet
オーディオ機能
ALC887/897
Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
USB機能
Rear USB:Total 6 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)


Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
特別な機能
ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

AURA Sync

- AURA RGB headers

- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

AI Suite 3

- Performance and Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 2+

- EZ update

ASUS CPU-Z

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

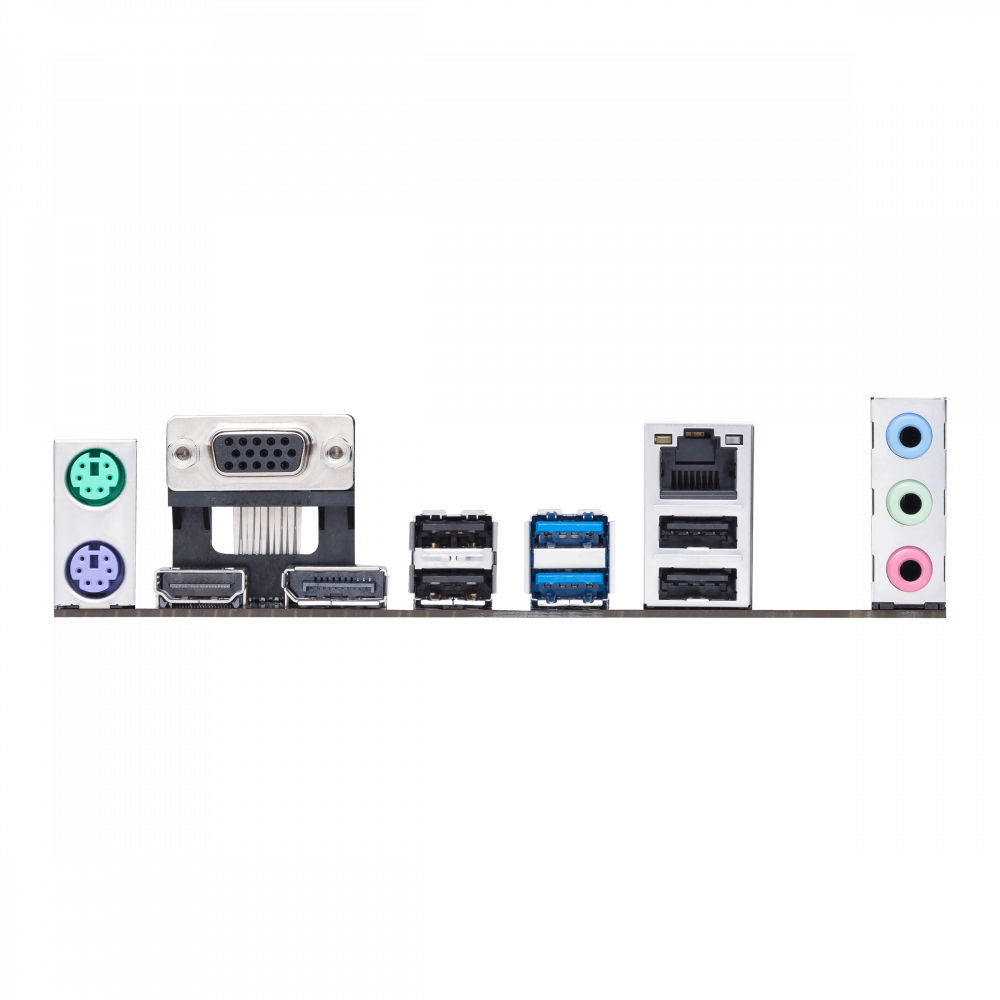

背面インターフェース
2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x D-Sub port

1 x HDMI™ port

1 x Intel® I219-V 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port

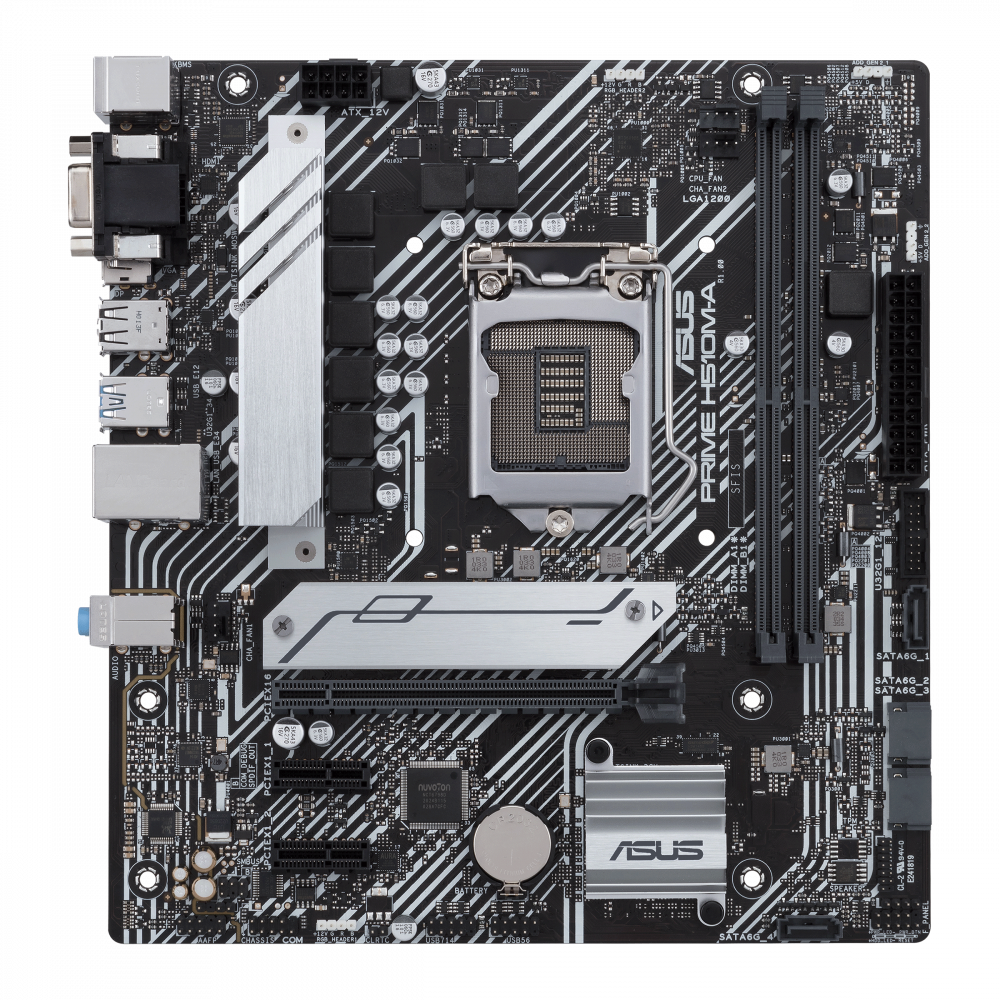

基板上インターフェース
Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header
主な付属品
Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

1 x User manual
BIOS機能
128 Mb Flash ROM, UEFI AMI BIOS
管理機能
WOL by PME, PXE
OS
Windows 10 64bit
フォームファクター(サイズW×D)
microATX
22.6cm x 21.1cm

パッケージサイズ

幅(W)
27cm
奥行(D)
5.2cm
高さ(H)
26cm
重量
1kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
対象外
RoHS対応
RoHS対応
