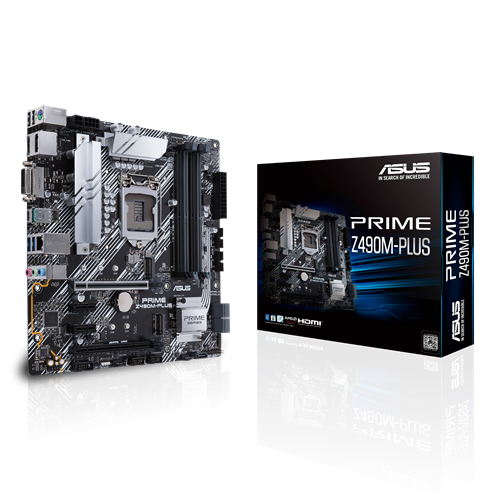

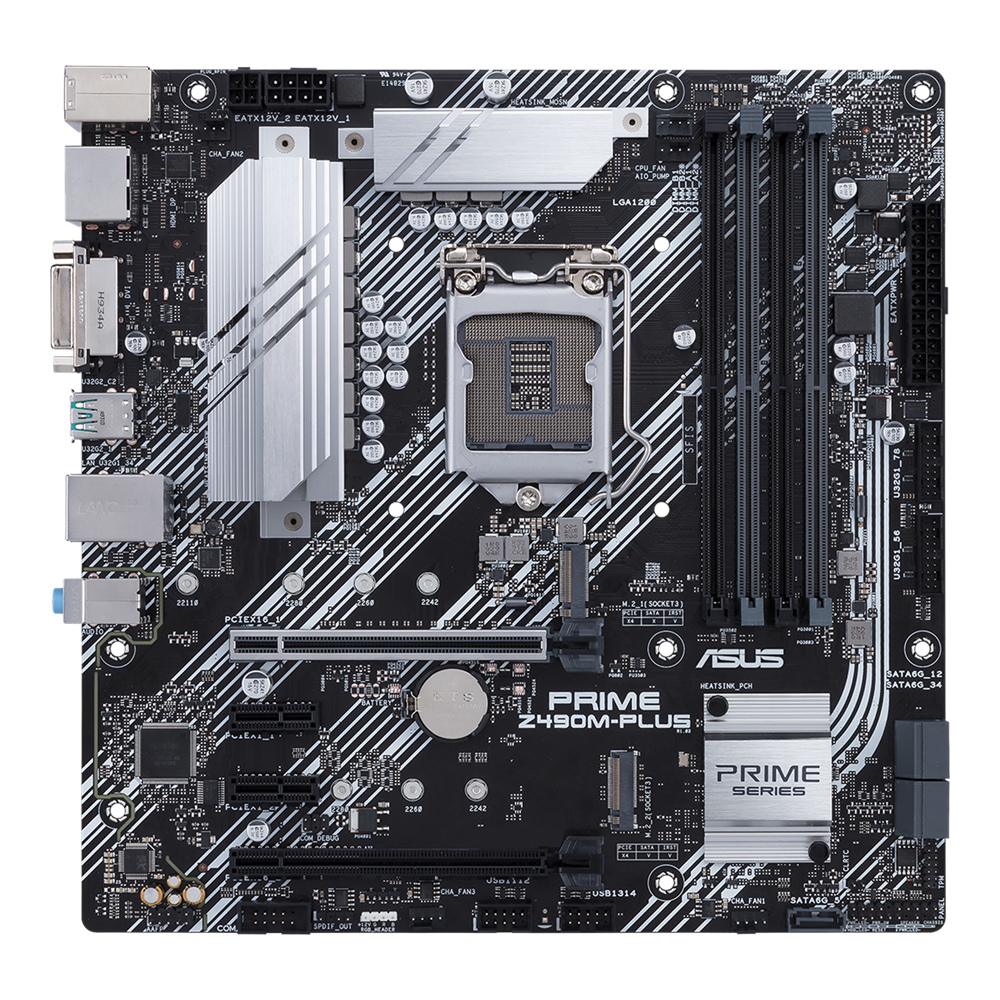

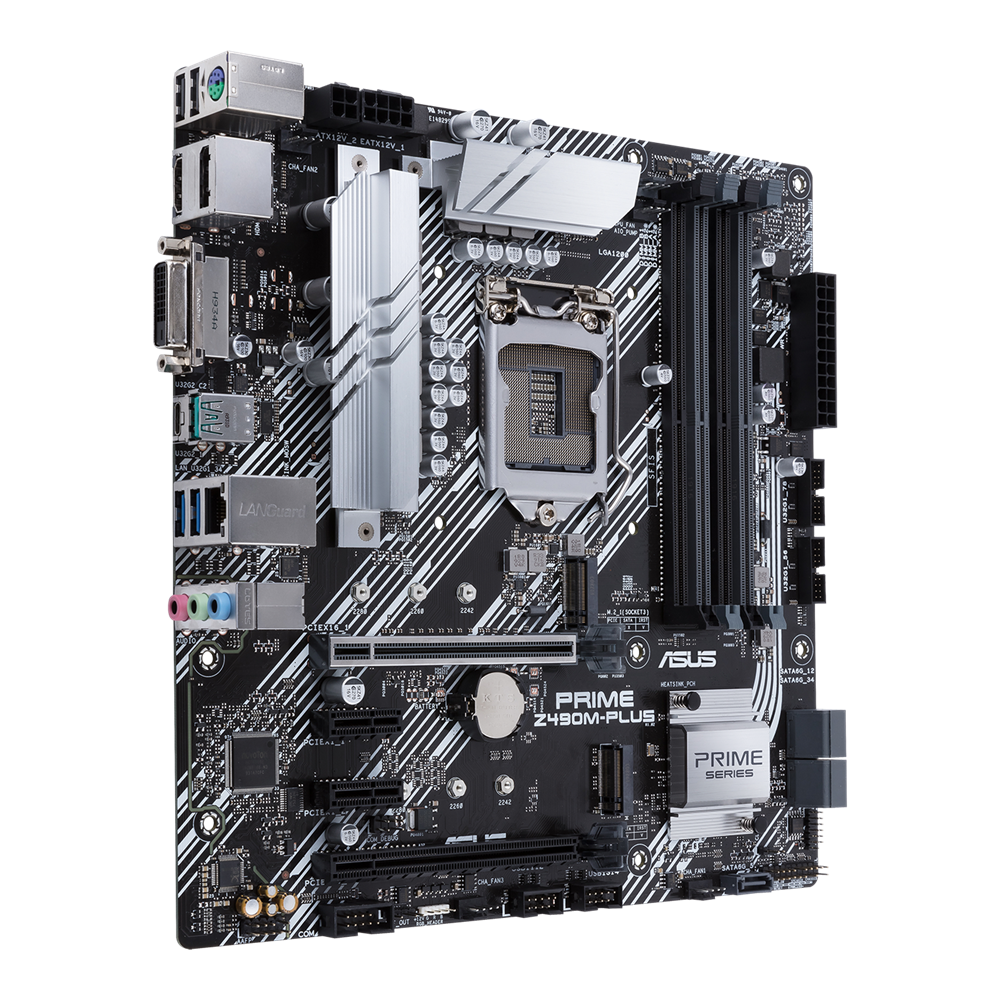

PRIME Z490M-PLUS - Intel® Z490チップセット搭載 microATXマザーボード
Intel® Z490(LGA 1200)ATXマザーボード(デュアルM.2)、9 DrMOSパワーステージ、HDMI、DisplayPort、SATA 6 Gbps、Intel® 1 Gbイーサネット、USB 3.2 Gen 2 Type-A®およびType-C®
PRIME Z490M-PLUS - Intel® Z490チップセット搭載 microATXマザーボードの主な特長
- Intel® LGA 1200ソケット:第10世代Intel® Core™プロセッサーに対応
- 強化された電力ソリューション:8+1 DrMOSパワーステージ、6レイヤーのPCB、ProCoolソケット、合金チョーク、安定した電力供給を実現する耐久性のあるコンデンサ。
- 包括的な冷却機能:VRMヒートシンク、ハイブリッドファンヘッダー、Fan Xpert 4
- ASUS OptiMem:トレースとビアの注意深いルーティング、さらにグランドレイヤーの最適化により、シグナルインテグリティを維持し、メモリのオーバークロックを改善。
- 超高速の接続:デュアルM.2、1 Gbイーサネット、USB 3.2 Gen 2 Type-A®およびType-C®のサポート
製品仕様 SPEC
基本仕様
- 対応CPU
- Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. - 搭載チップセット
- Intel® Z490
- メインメモリー
- 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - グラフィックス機能
- Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
1 x DVI-D
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. - 拡張スロット
- Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode) *1
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1 - ストレージ機能
- Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
5 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready - USB機能
- Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 8 )
4 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s) - オーディオ機能
- Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers

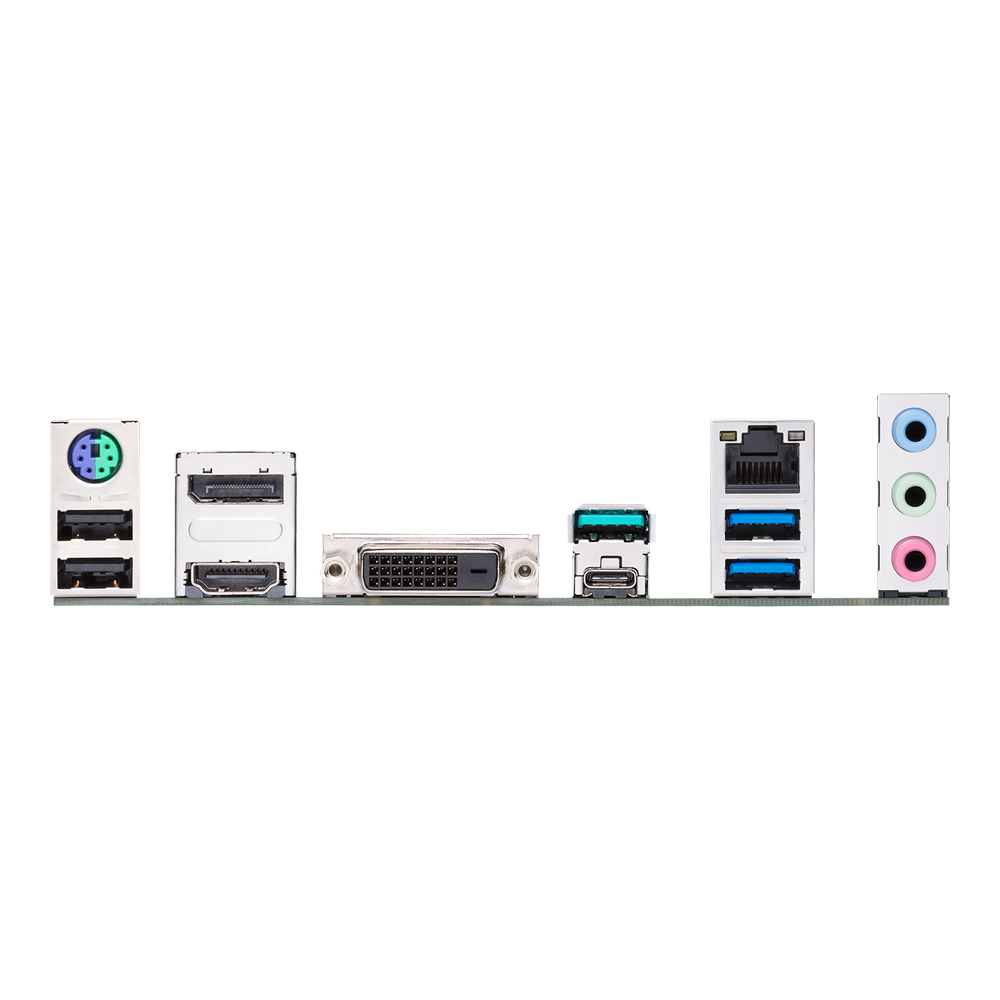

- Premium Japanese audio capacitors - 背面インターフェース
- 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s) - Software Features
- ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode - BIOS機能
- 128 Mb Flash ROM, UEFI AMI BIOS
- その他
- *1 Support PCIe bifurcation for RAID on CPU function.
*2 When a device in SATA mode is installed on the M.2_2 socket, SATA 6G_1 port cannot be used. - 主な付属品
- I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
User manual - OS
- Windows® 10 64-bit
- フォームファクター(サイズW×D)
- mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
