PRIME B560-PLUS - Intel 第11/10世代Coreプロセッサー対応 B560チップセット搭載ATXマザーボード

  • 仕様
  • SNSでシェアする

PRIME B560-PLUS

Intel® B560 (LGA 1200) ATXマザーボード、PCIe® 4.0、2つのM.2スロット、8つの電源ステージ、Intel® 1Gbイーサネット、DisplayPort、HDMI、D-Sub、USB 3.2 Gen 1 Type-C®、背面USB 3.2 Gen 2、Thunderbolt™ 4ヘッダーサポート、Aura Sync、Aura Sync RGBライティング搭載

メーカー型番
90MB16N0-M0JAY0
TEKWIND型番
ASU-PRIME/B560-PLUS
JAN/UPC
0195553122689
PRIME B560-PLUSの主な特長
  • Intel® LGA 1200ソケット:第11世代Intel® Core™ プロセッサーに対応
  • 包括的な冷却:VRM用ヒートシンク、フレキシブルM.2用ヒートシンク、PCH用ヒートシンク、ハイブリッドファンヘッダー、Fan Xpert 2+搭載
  • ASUS OptiMem: 信号の整合性を向上するトレースとビアの慎重なルーティングによりメモリの安定性を強化
  • 超高速な接続性:PCIe 4.0、Intel® 1 Gb Ethernet、背面USB 3.2 Gen 1 Type-C®およびThunderbolt™ 4ヘッダー対応
  • 5X Protection III: 複数のハードウェアプロテクションの組合せによる絶対的な保護

製品仕様

基本仕様

対応CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット
Intel® B560 Chipset
メインメモリー
4 x DIMM, Max. 128GB,DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS OptiMem
* 11th Gen Intel® Core™ processors support 2933/2800/2666/2400/2133 natively.
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
グラフィックス機能
1 x DP1.2**
1 x HDMITM 1.4/2.0***
1 x D-Sub
*Graphics specifications may vary between CPU types.
** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
***Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
拡張スロット
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
- Intel® 11th Core™ processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots
*Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
ストレージ機能
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 11th Gen Processors
- M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode mode)
- 6 x SATA 6Gb/s ports
When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
When an Intel® SSD is connected to a CPU-attached slot, only pass-through Single Volume mode in Intel® Rapid Storage Technology will be available.
LAN機能
"Intel® I219-V
ASUS LANGuard"
オーディオ機能
Realtek ALC897 7.1-Channel High Definition Audio CODEC*
- Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
USB機能
Rear USB (Total 7 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 1 port (1 x USB Type-C®)
4 x USB 2.0 ports
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Software Features
ASUS Exclusive Software:
Armoury Crate
- AURA Creator
-AURA Sync
AI Suite 3
-Performance And Power Saving Utility
Turbo EVO
Digi+ VRM
EPU
Fan Xpert 2+
- EZ update
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design:
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box Headers
AURA SYNC
- AURA RGB headers
- Addressable Gen 2 RGB headers

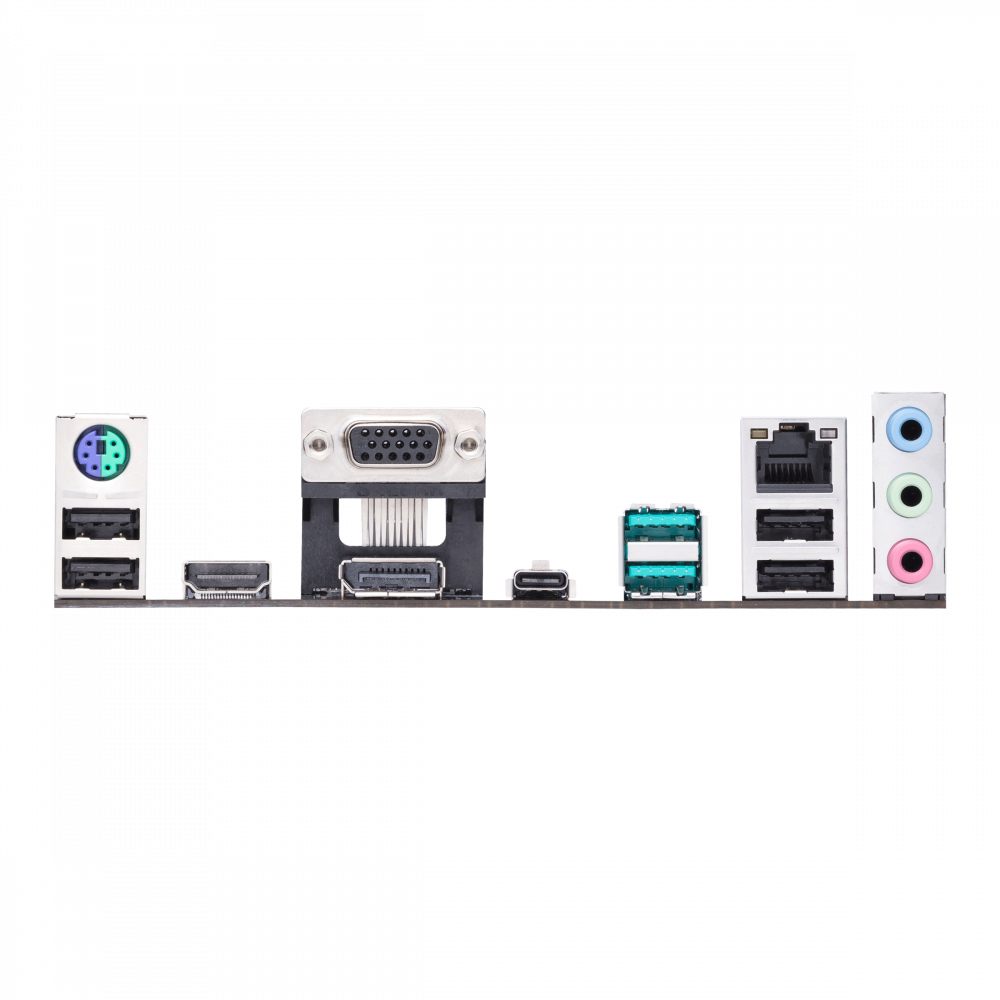

背面インターフェース
1 x DP port
1 x HDMI port
1 x D-Sub port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
1 x Intel® I219-V 1Gb Ethernet port
4 x USB 2.0 ports (4 x Type-A)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 1 port (1 x USB Type-C®)
基板上インターフェース
Fan and cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS jumper
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x 20-3pin System Panel header with Chassis intrude function
1 x SPI TPM header (14-1 pin)
1 x Thunderbolt 4 header
主な付属品
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 Rubber Package
1 x IO Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Supporting DVD
Documentation
1 x User's manual
BIOS機能
128 Mb Flash ROM, UEFI AMI BIOS
管理機能
WOL by PME, PXE
OS
Windows® 10 - 64 bit
フォームファクター(サイズW×D)
ATX Form Factor
12.0 inch x 9.2 inch (30.5 cm x 23.4cm)

パッケージサイズ

幅(W)
26.6cm
奥行(D)
5.3cm
高さ(H)
32.8cm
重量
1.3kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
対象外
RoHS対応
RoHS対応
