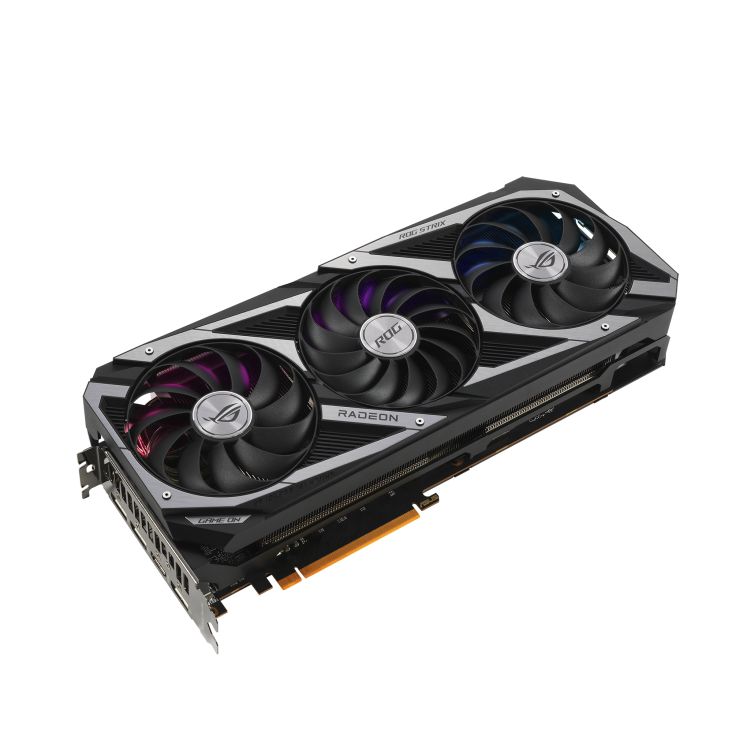

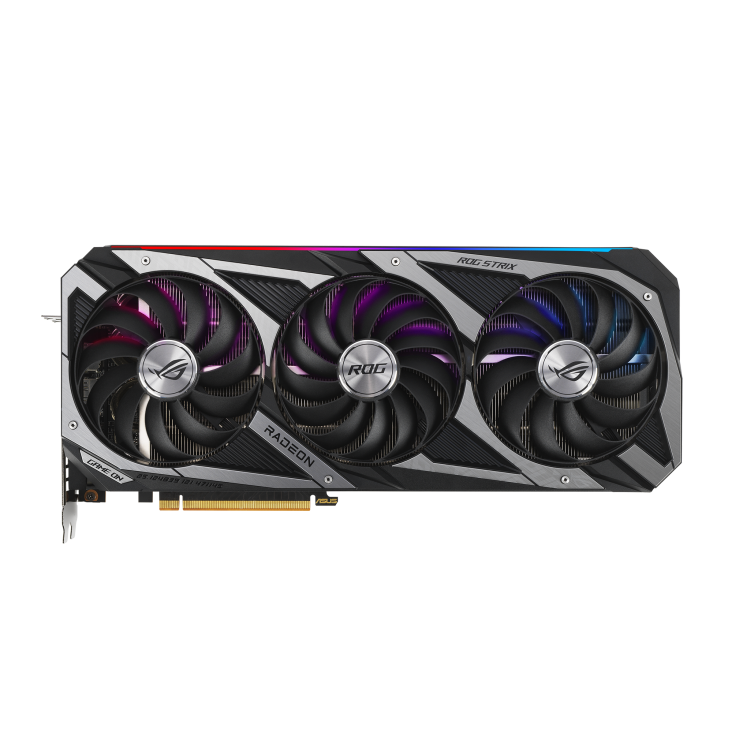

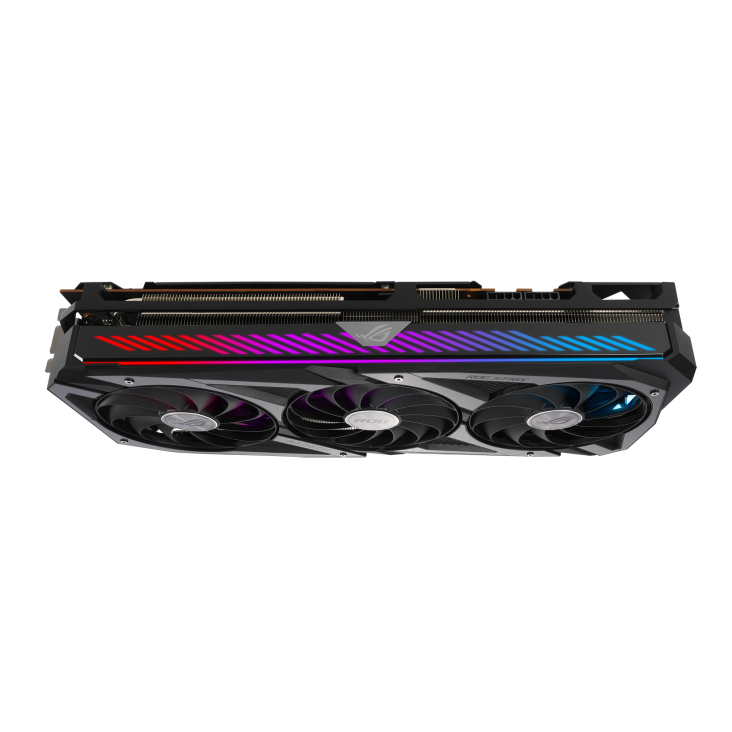

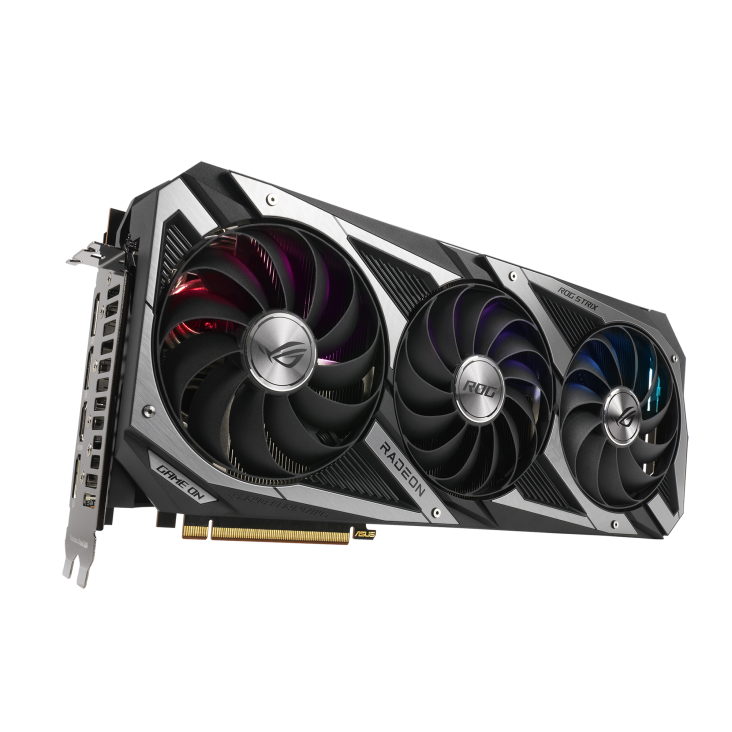

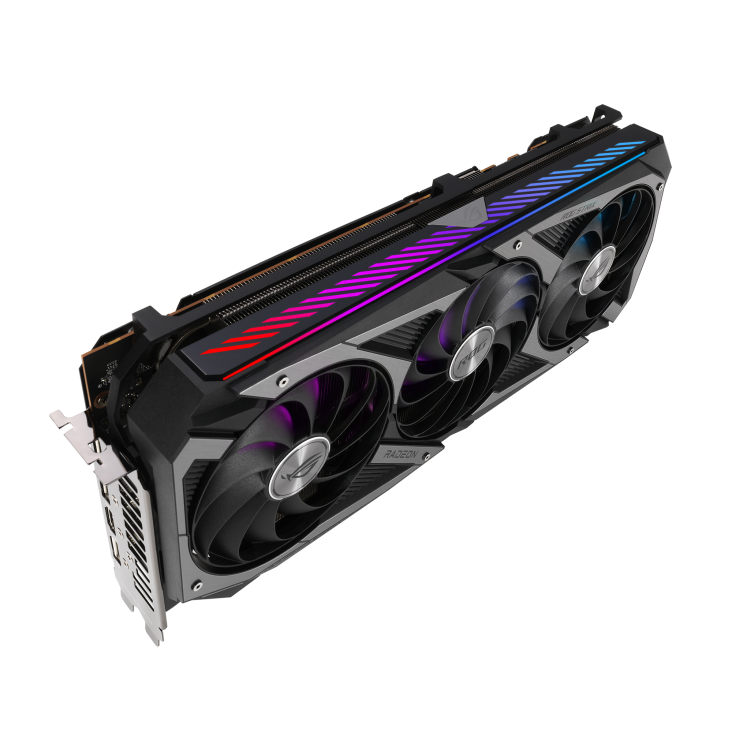

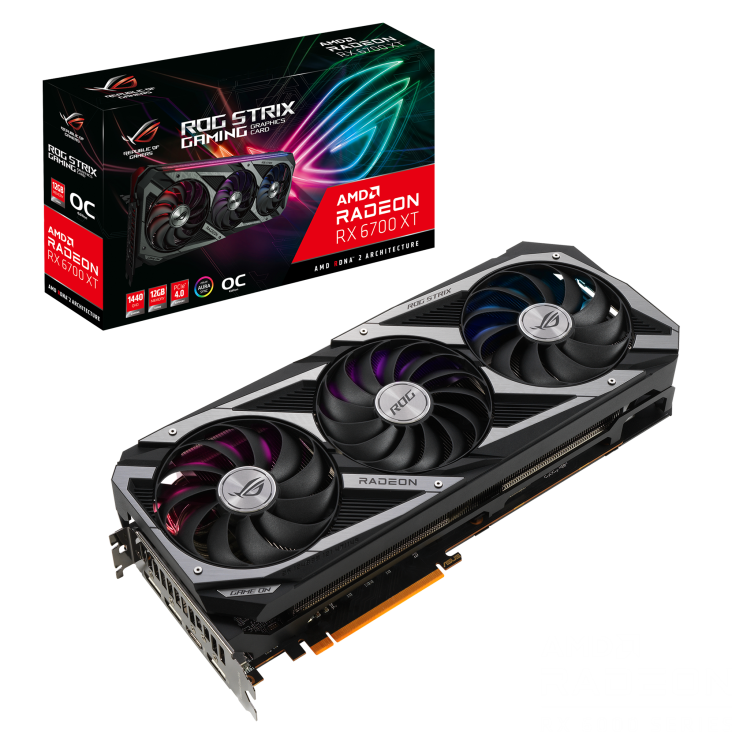

ROG-STRIX-RX6700XT-O12G-GAMING

強力な冷却性と電力性能を備えたROG Strix Radeon™ RX 6700 XT OC Edition 12GB GDDR6

メーカー型番
90YV0G81-M0NA00
TEKWIND型番
ASU-ROG-STRIX-RX6700XT-O12G-G
JAN/UPC
0195553119221
ROG-STRIX-RX6700XT-O12G-GAMINGの主な特長
  • Axial-techファンデザインは、より多くのファンブレードとセンターファンの回転方向を逆にしてチューニングされています。
  • 2.9スロット設計により、前世代と比較して冷却表面積が拡大し、これまで以上に熱的なヘッドルームが確保できます。
  • Super Alloy Power IIは、プレミアム品質の合金製チョークコイル、固体ポリマーコンデンサ、高電流パワーステージを採用。
  • MaxContactテクノロジーによりGPUチップとの接触が2倍になり、熱伝導が向上。
  • 補強フレームはPCBの過度のねじれと横方向に曲がるのを予防。
  • ASUS FanConnect II は、最適なシステム冷却のために2つのハイブリッド制御ファン2ヘッダーを装備。
  • 通気性の高いバックプレートが、冷却アレイ内で熱風が再循環するのを防ぎます。

製品仕様 SPEC

基本仕様

グラフィックスエンジン
AMD Radeon™ RX 6700 XT
Stream Processors
2560
OpenGL
OpenGL® 4.6
Memory Speed
16 Gbps
メモリーインターフェース
192-bit
HDCP準拠
HDCP 2.3
解像度
7680 x 4320
NVlink/ Crossfire Support
Yes for DirectX® 12 and Vulkan®
主な付属品
1 x ROG Velcro Hook & Loop
1 x Collection card
1 x Speedsetup Manual
付属ソフトウェア
ASUS GPU Tweak II & Drivers: please download all software from the support site.
サイズ
322 x 141 x 56.5 mm
12.68 x 5.55 x 2.22 inches
推奨PSU
650W
電源コネクター
2 x 8-pin
その他
* Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
** Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
*** All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

パッケージサイズ

幅(W)
23.3cm
奥行(D)
8.9cm
高さ(H)
40.5cm
重量
2.3kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
対象外
RoHS対応
RoHS対応
