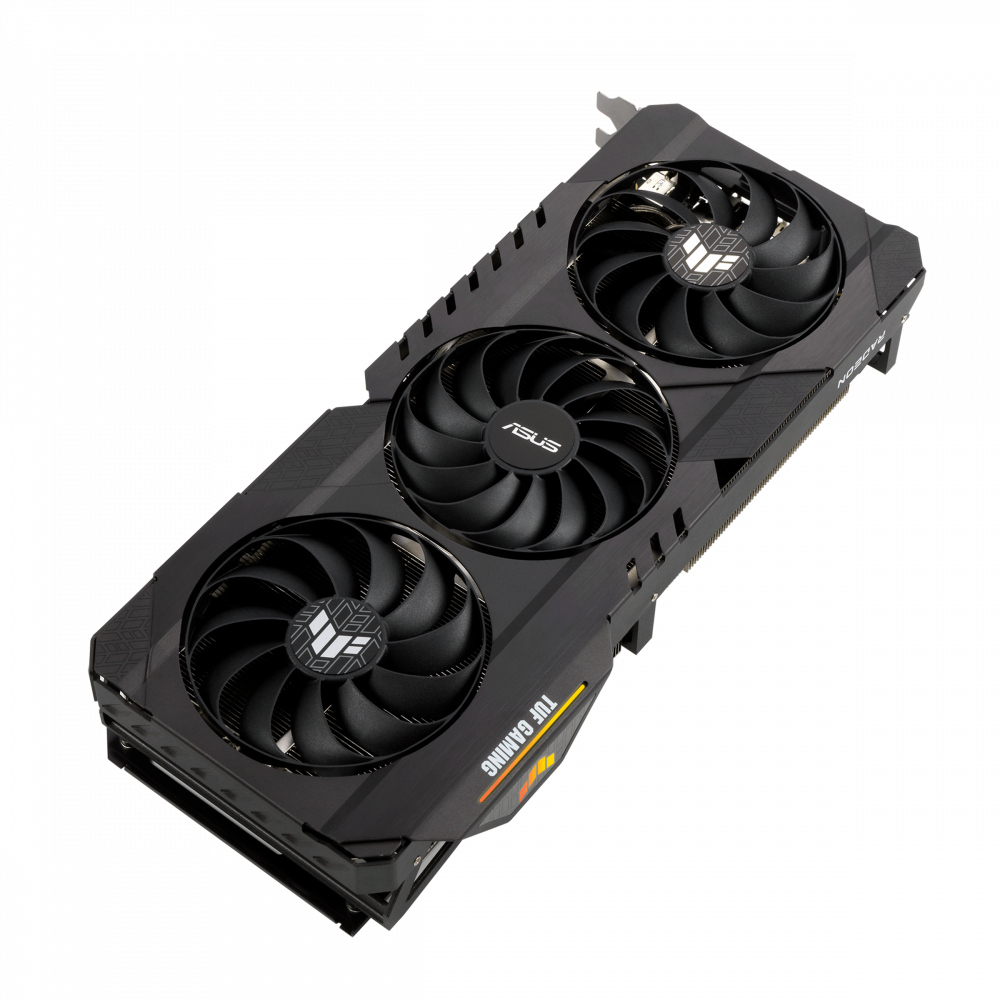

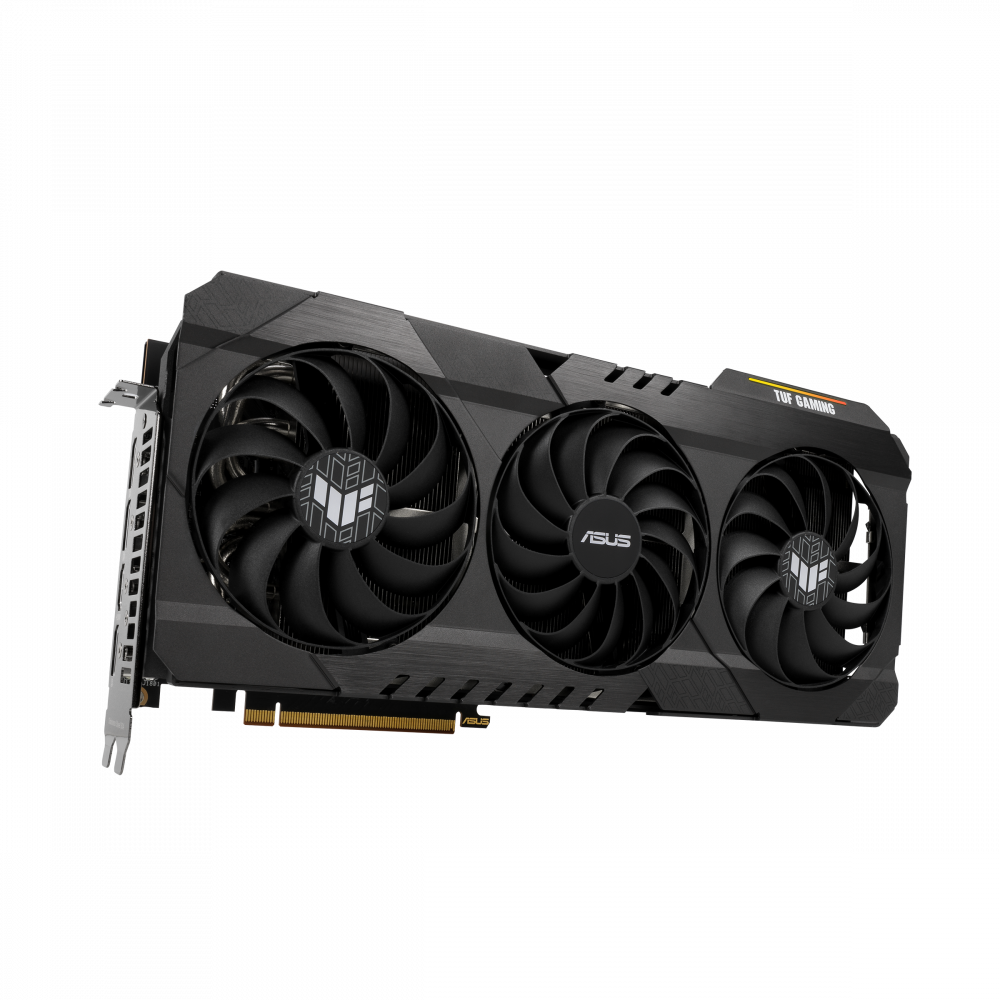

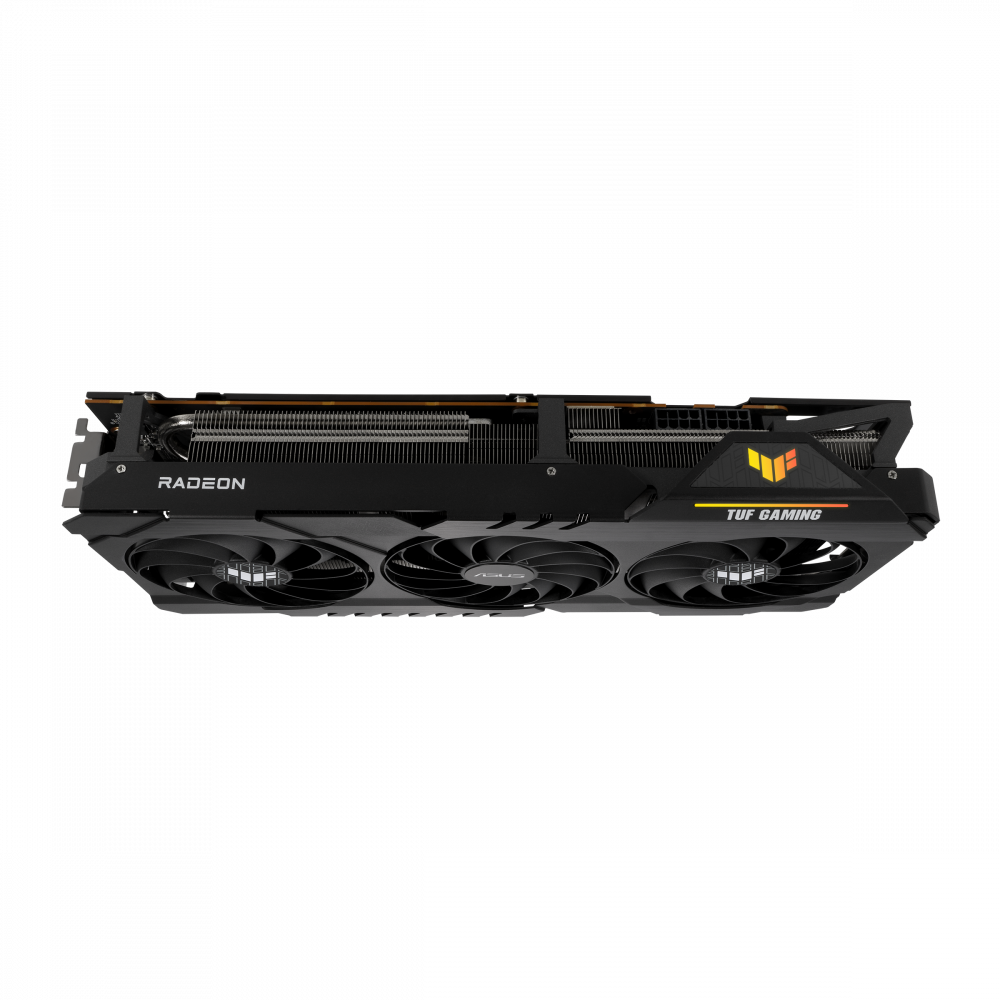

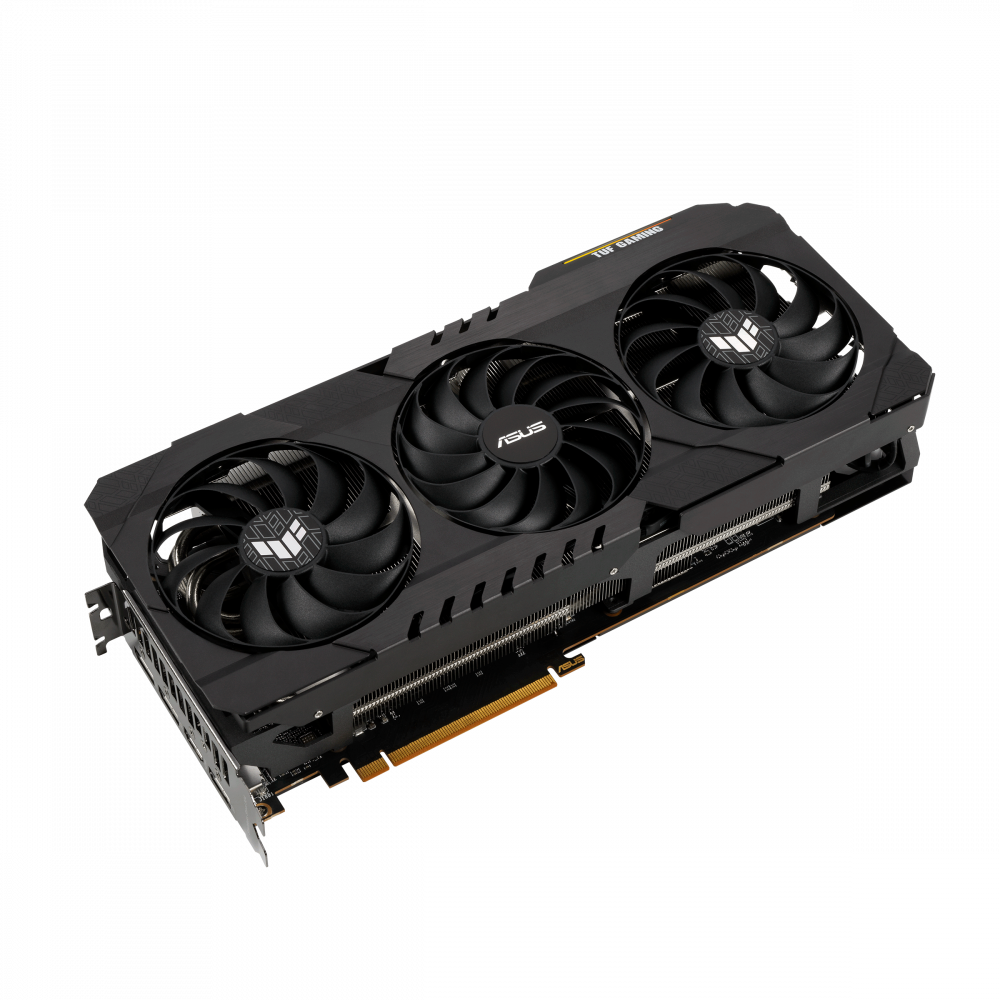

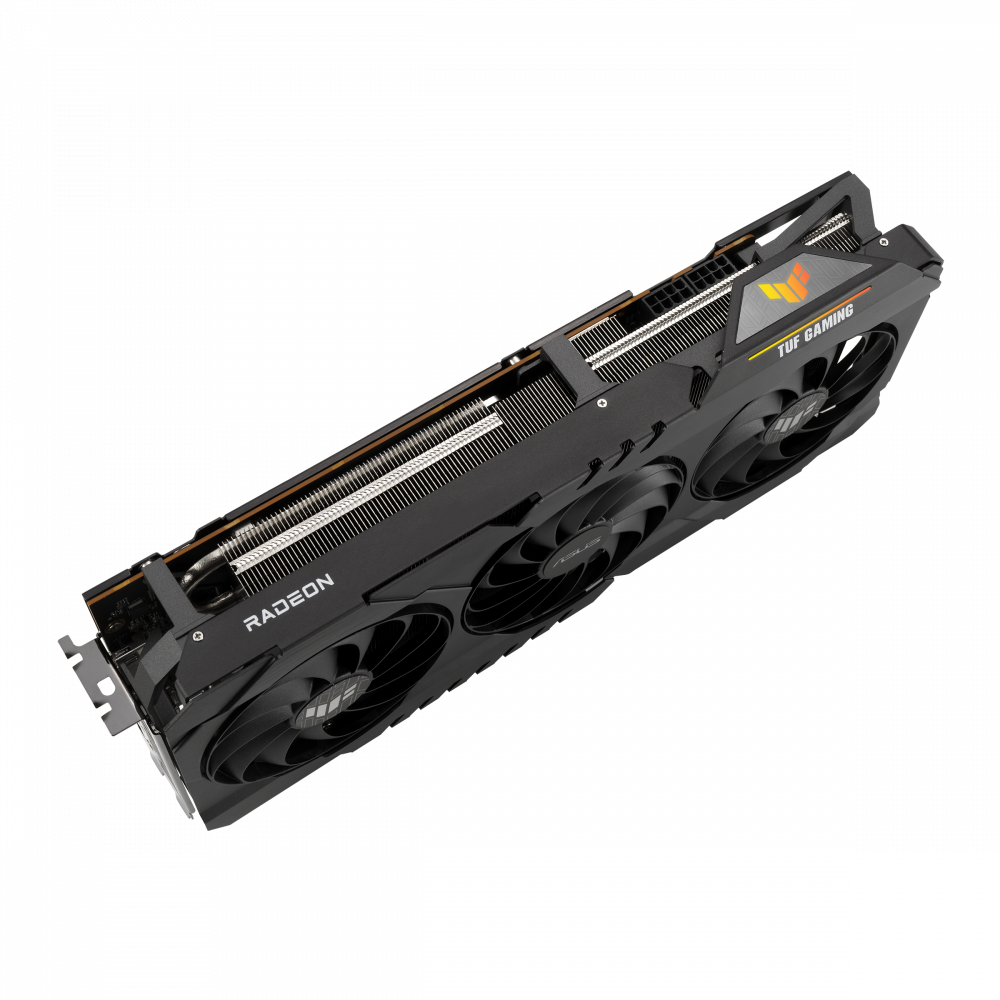

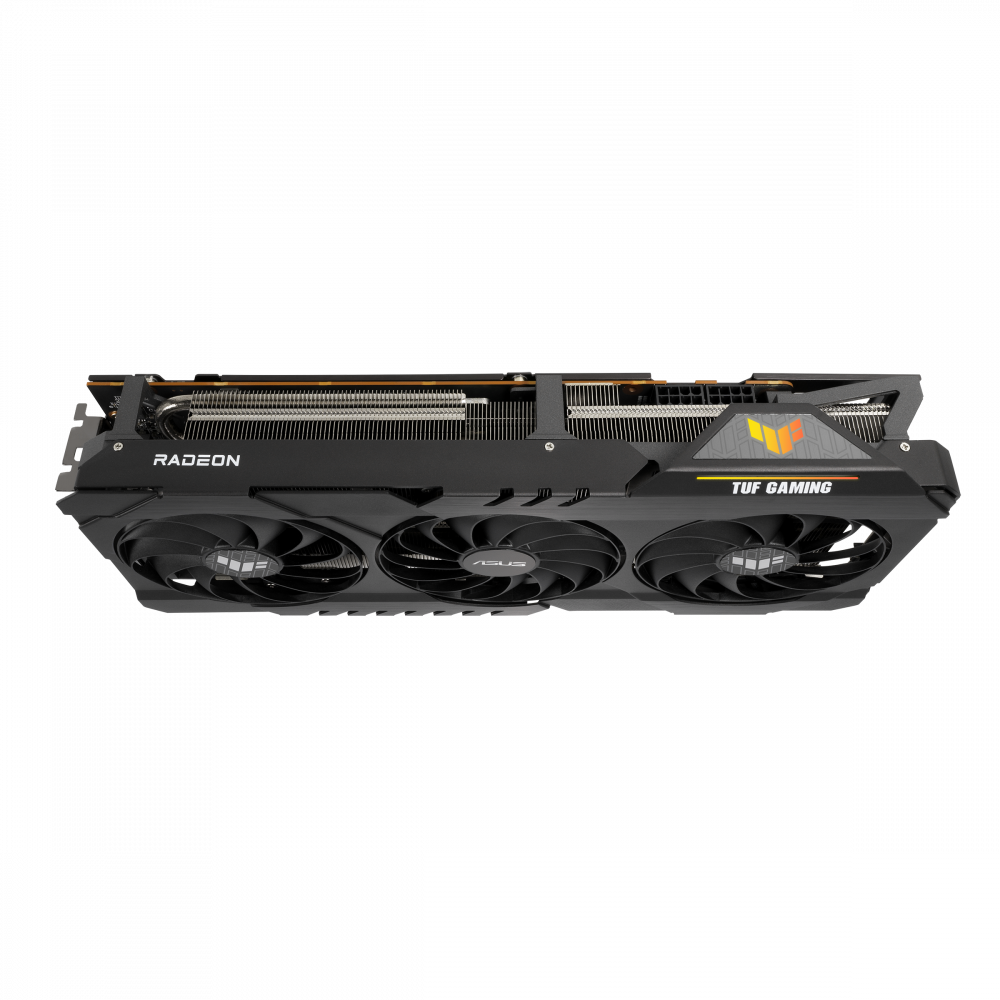

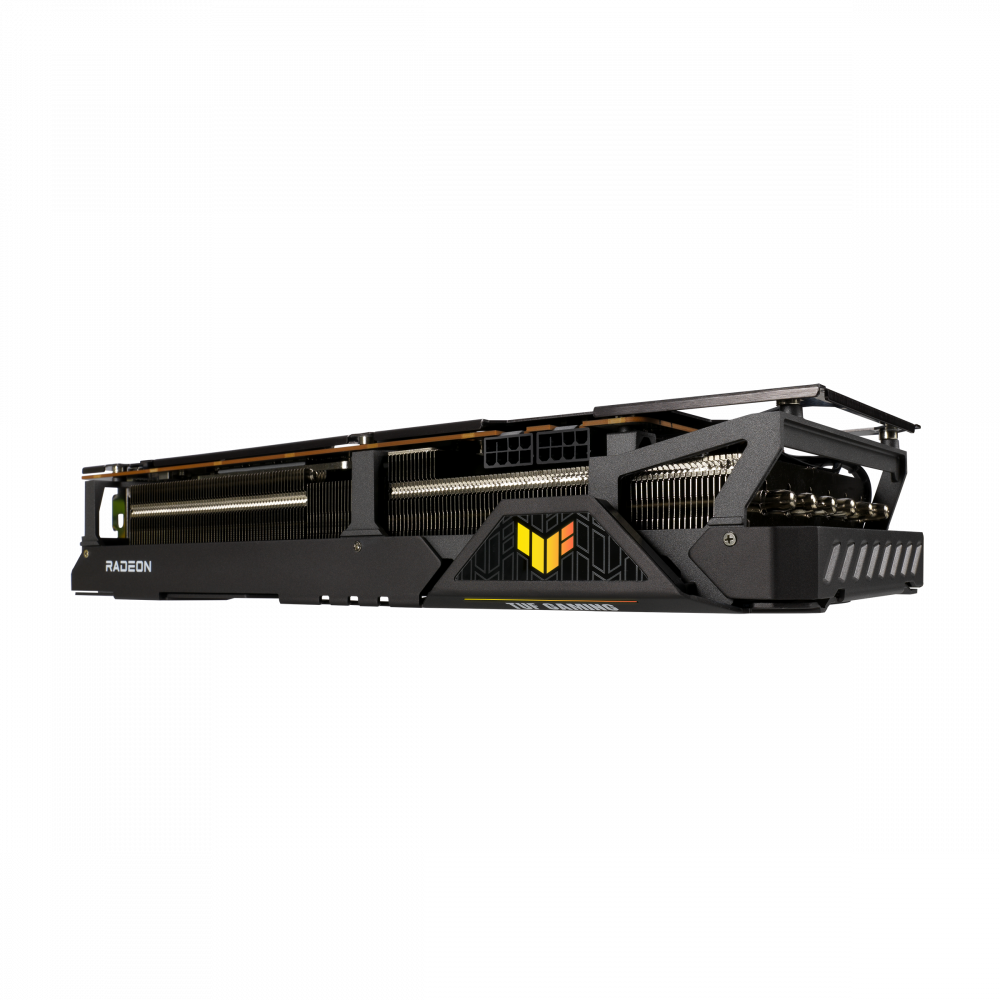

TUF-RX6700XT-O12G-GAMING

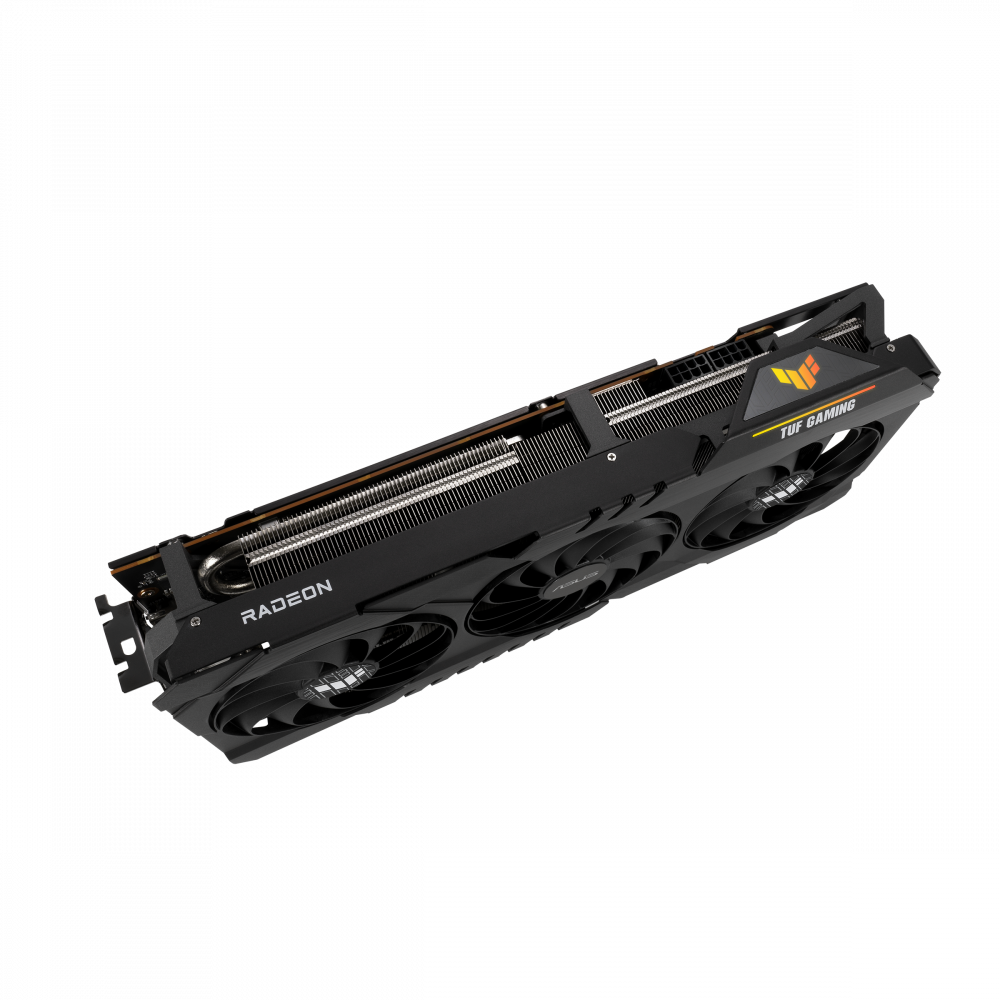

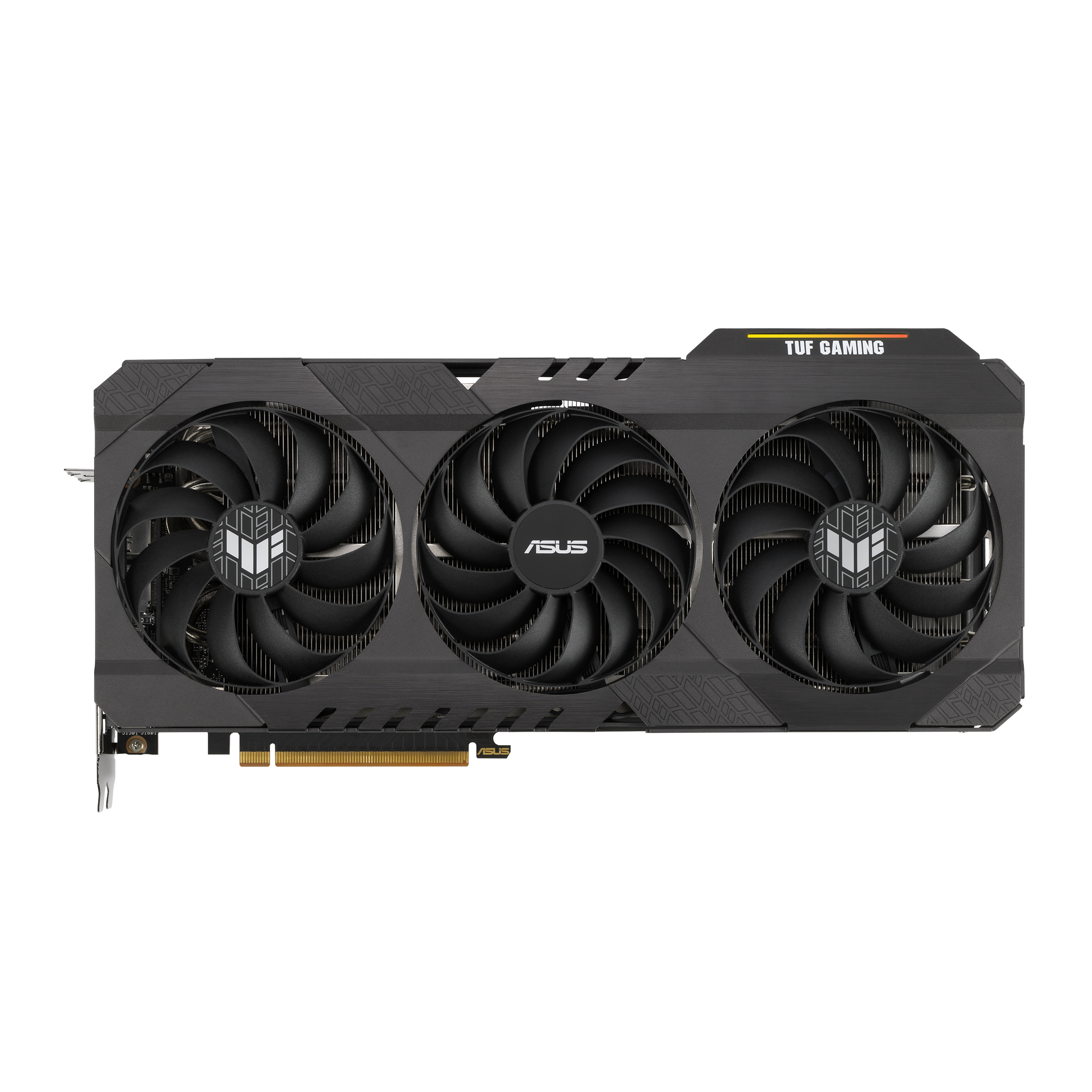

冷却性と耐久性に妥協しないASUS TUF Gaming Radeon™ RX 6700 XT OCエディション 12GB GDDR6

メーカー型番
90YV0G80-M0NA00
TEKWIND型番
ASU-TUF-RX6700XT-O12G-GAMING
JAN/UPC
0195553119283
TUF-RX6700XT-O12G-GAMINGの主な特長
  • Axial-techファンデザインは、より多くのファンブレードとセンターファンの回転方向を逆にしてチューニングされています。
  • デュアルボールファンベアリング は、スリーブベアリングの設計の最大2倍長持ちします。
  • 100%アルミ製のシュラウド、強化フレーム、金属製のバックプレートが耐久性を高めています。
  • MaxContact技術を用いてヒートスプレッダの表面を研磨し、平滑性を高めることで熱伝達が向上しました。
  • 144時間の検証プログラムでは、カードが最新のゲームに必ず対応できるように厳格な試験が行われます。

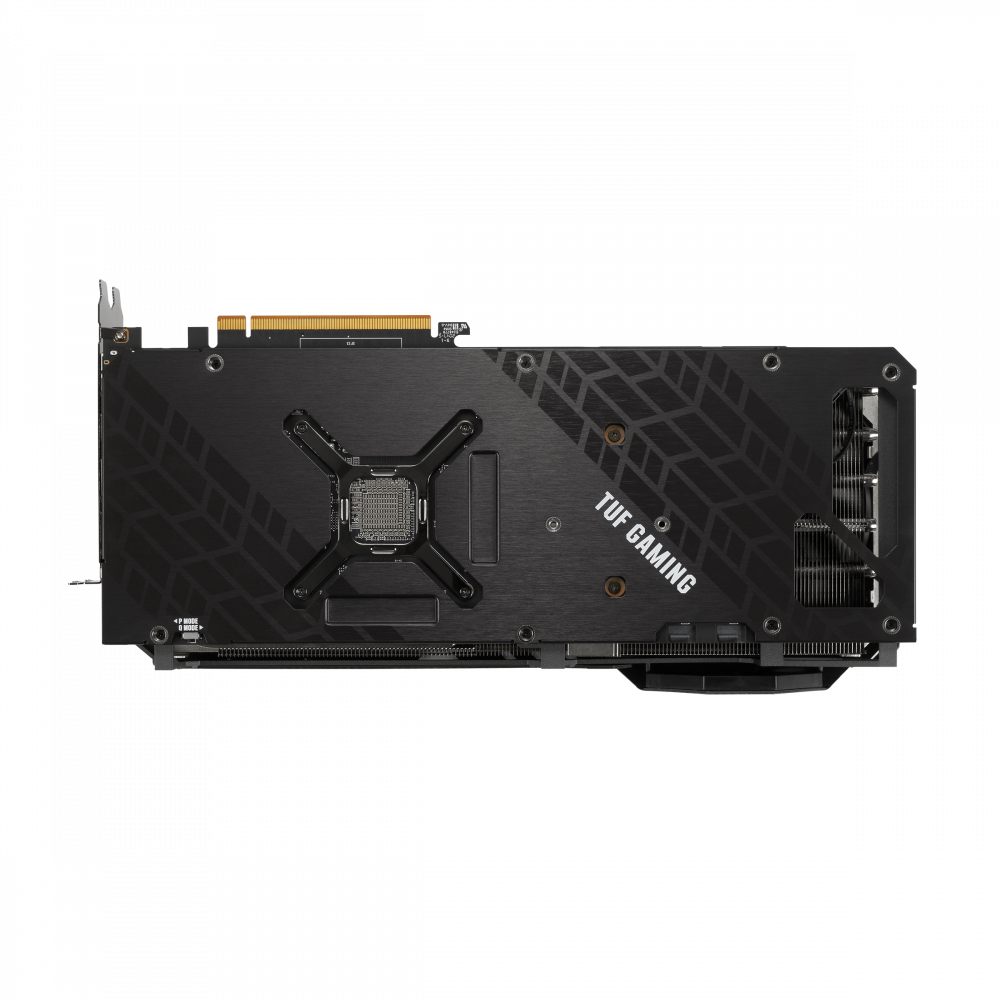

  • 通気性の高いバックプレートが、冷却アレイ内で熱風が再循環するのを防ぎます。

製品仕様 SPEC

基本仕様

グラフィックスエンジン
AMD Radeon™ RX 6700 XT
Stream Processors
2560
OpenGL
OpenGL® 4.6
メモリーインターフェース
192-bit
Memory Speed
16 Gbps
電源コネクター
2 x 8-pin
HDCP準拠
HDCP 2.3
解像度
Digital Max Resolution 7680 x 4320
NVlink/ Crossfire Support
Yes for DirectX® 12 and Vulkan®
推奨PSU
650W
主な付属品
1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup Manual
付属ソフトウェア
ASUS GPU Tweak II & Drivers: please download all software from the support site.
サイズ
322 x 152 x 58 mm
12.68 x 5.98 x 2.28 inches
Color Box (mm)
405 x 233 x 88.5 mm
Single Card (KG)
1.638
製品重量(梱包あり)(KG)
2.176
その他
* Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
** Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
*** All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

パッケージサイズ

幅(W)
23.3cm
奥行(D)
8.9cm
高さ(H)
40.5cm
重量
2.2kg

法令関連

電気用品安全(PSE)
対象外
電波法(TELEC認証)
対象外
RoHS対応
RoHS対応
