カテゴリー: PCパーツ > マザーボード > LGA1155

販売終了

インテル® Z68 Express チップセット搭載ATXマザーボード

DZ68ZV

JAN/UPC:0735858224963
メーカー型番:BOXDZ68ZV
TEKWIND型番:INT-BOXDZ68ZV

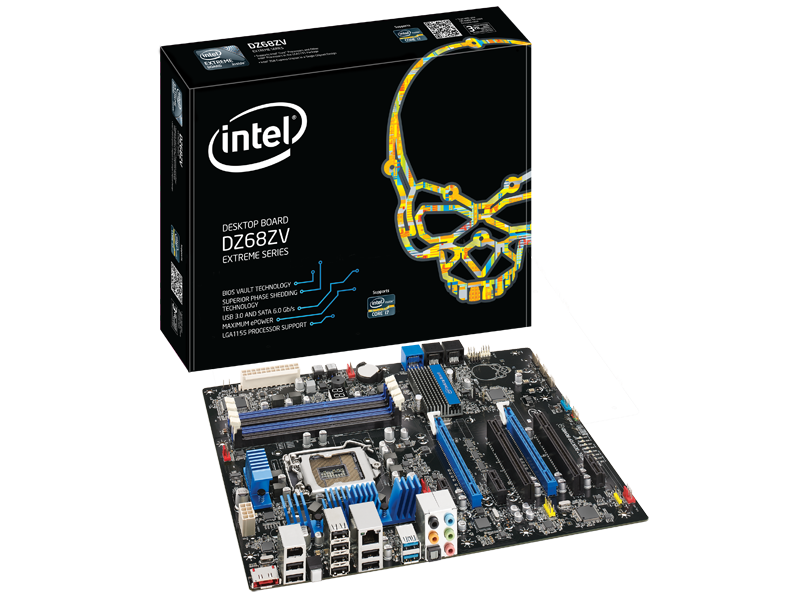

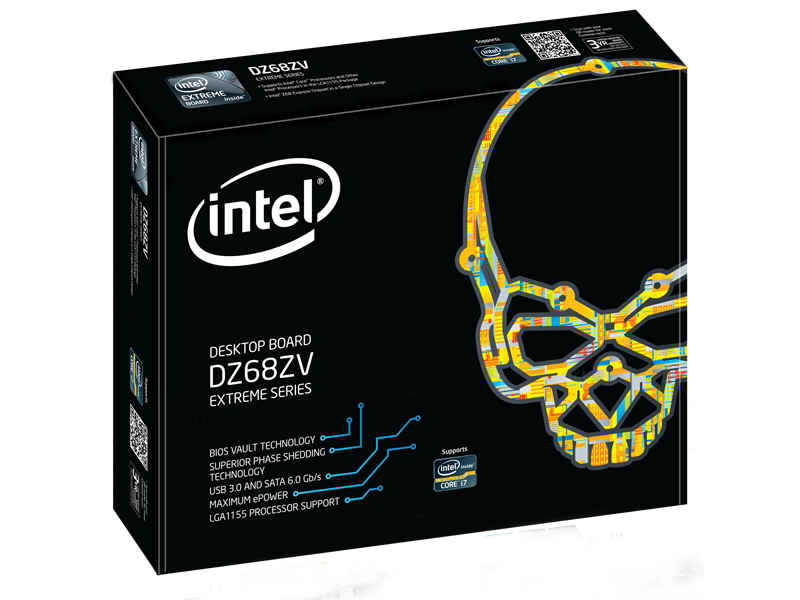

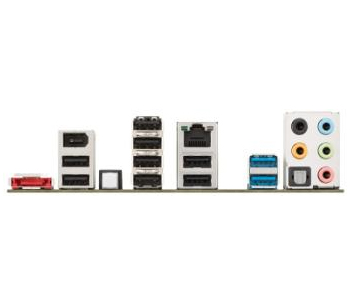

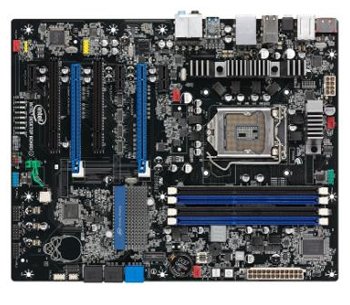

製品画像


スペック

Form factor ATX
Processor At product launch, this desktop board supports: Intel® Core™ i7 processor series in an LGA1155 socket
Intel® Core™ i5 processor series in an LGA1155 socket
View all compatible Intel® processor numbers
Memory Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR3 1600 /1333 /1066 MHz DIMMs
Support for up to 32 GB of system memory
Chipset Intel® Z68 Express Chipset supporting Intel® Smart Response Technology
Watch the how to implement video here. Intel® Rapid Storage Technology (Intel® RST) for RAID 0, 1, 5, and 10
Intel® Smart Response Technology
Audio Intel® High Definition Audio subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with six analog audio outputs w/optical S/PDIF out port
LAN support Intel Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral interfaces Two SuperSpeed USB 3.0 ports
Fourteen USB 2.0 ports
Two Serial ATA 6.0 Gb/s ports
Four Serial ATA 3.0 Gb/s ports, One eSATA ext. port
One IEEE 1394a header
Expansion capabilities One PCI Express* 2.0 x 16 bus add-in card connector or switchable to 2x8 PCIe 2.0 connectors
Three PCI Express 2.0 x 1 connectors
Two PCI Conventional bus connector
